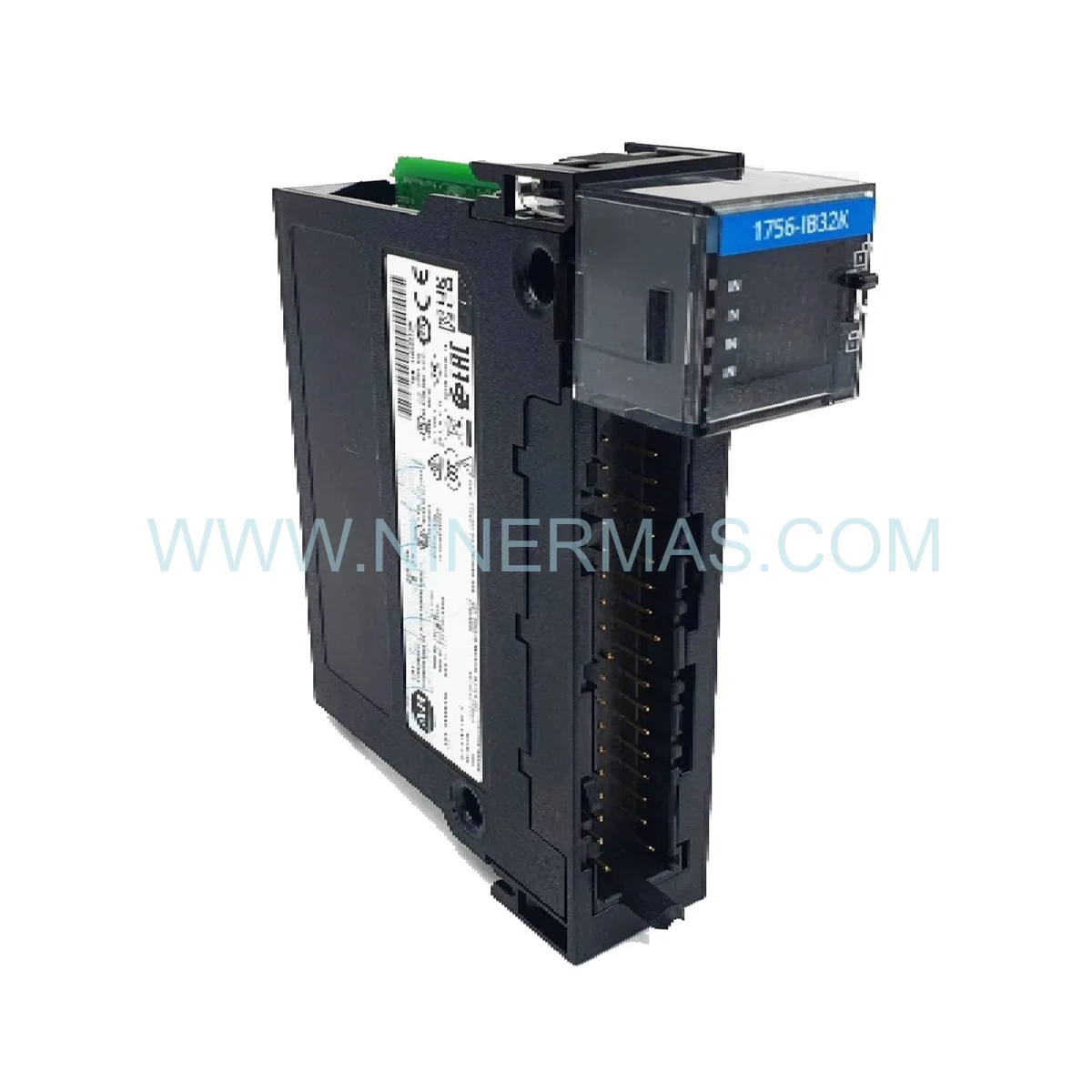

Allen-Bradley 1756-IB32K ControlLogix 32-Ch DC Input Module

Allen-Bradley 1756-IB32K ControlLogix 32-Channel DC Input Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of an Industrial Solution Architect with decades of experience in distributed control systems, the Allen-Bradley 1756-IB32K represents a cornerstone component in modern Process Control infrastructure. This 32-channel, conformal-coated DC digital input module is purpose-built for the ControlLogix 1756 platform — a backbone of DCS Hardware deployments across critical industries worldwide. When your facility demands uncompromising signal integrity from field devices operating at 24V DC, the 1756-IB32K delivers exactly that, with optical isolation rated at 1500V AC between field and backplane.

What distinguishes this module from generic alternatives is its technical compatibility across the entire ControlLogix ecosystem. The 1756-IB32K integrates directly with processors such as the 1756-L83EP and 1756-L74, supporting scalable Fieldbus architectures without requiring additional interface hardware. Its programmable input filter — adjustable from 0.5ms to 20ms — allows engineers to fine-tune response characteristics to match the dynamics of each application, whether that means rapid conveyor sensing or slower valve position monitoring in a petrochemical loop.

Original stock of the 1756-IB32K is increasingly scarce as Allen-Bradley transitions its portfolio. Factory Sealed units in verified condition represent a critical procurement opportunity for maintenance engineers managing Legacy Components in long-lifecycle industrial systems. Securing genuine inventory now is a strategic decision — not merely a purchasing transaction.

Key Technical Highlights

32 Isolated DC Input Channels — High-density I/O in a single 1756 chassis slot, reducing panel footprint and wiring complexity.
24V DC Nominal Operation — Accepts 10-31.2V DC, ensuring compatibility with a wide range of field device power supplies.
1500V AC Optical Isolation — Robust galvanic separation between field wiring and backplane, protecting the controller from transient surges.
Conformal Coating (Factory Applied) — PCB-level protection against moisture, dust, and chemical vapors — essential for harsh industrial environments.
Programmable Filter Response (0.5ms 20ms) — Tunable per-channel filtering for noise immunity without sacrificing speed in high-cycle applications.
Online Insertion & Removal (RIUP) — Supports hot-swap capability, enabling maintenance without system shutdown — a critical feature for Redundancy-focused architectures.
Operating Range: 0°C to 60°C — Rated for continuous operation across the full industrial temperature spectrum.

Vertical Industry Applications

The 1756-IB32K is deployed across a broad spectrum of demanding industrial verticals, each with unique uptime requirements and environmental challenges:

Petrochemical & Refining: Monitors valve position feedback, pressure switch states, and emergency shutdown (ESD) signals within Safety Instrumented Systems (SIS). The conformal coating resists hydrocarbon vapors and humidity, reducing unplanned downtime in continuous process environments.

Mining & Mineral Processing: Tracks conveyor belt status, crusher interlocks, and level switch inputs in dusty, vibration-prone conditions. High channel density minimizes the number of chassis slots required, simplifying remote I/O panel design.

Marine & Offshore Platforms: Withstands salt-laden air and condensation cycles that rapidly degrade uncoated electronics. The 1756-IB32K’s conformal protection extends service life significantly compared to standard modules in offshore control rooms.

Water & Wastewater Treatment: Reads flow meter pulses, pump run signals, and level sensor states across large distributed facilities. RIUP capability allows module replacement during scheduled maintenance windows without interrupting the treatment process.

Automotive Assembly: Interfaces with safety light curtains, robot home position sensors, and conveyor tracking systems. Fast programmable filter response ensures the control system reacts within cycle-time constraints on high-speed production lines.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every 1756-IB32K unit supplied through our channel is 100% Original Allen-Bradley — sourced directly from authorized distribution networks and verified against manufacturer traceability records. We do not supply refurbished, remarked, or third-party-manufactured substitutes. Each unit ships in its original Factory Sealed packaging with intact manufacturer labels and date codes intact for your incoming inspection process.

Our 12-Month Comprehensive Warranty covers all defects in materials and workmanship from the date of delivery. Should a unit fail within the warranty period, we provide direct replacement without requiring return-to-manufacturer authorization delays — a critical advantage when your production line cannot afford extended downtime.

For Emergency Repair scenarios, we offer expedited global logistics via DHL Express, FedEx International Priority, and UPS Worldwide Express. Most in-stock orders ship within 24 hours of payment confirmation. We serve maintenance teams across North America, Europe, Southeast Asia, and the Middle East with consistent lead times and full shipment tracking from our warehouse to your facility.

Buyer’s FAQ — Selection & Verification Guide

Q1: How do I verify that a 1756-IB32K unit is genuinely original Allen-Bradley and not a counterfeit?
A: Authentic units carry a holographic Allen-Bradley label on the module housing with a scannable QR code linking to Rockwell Automation’s product verification portal. The catalog number, series letter, and firmware revision are laser-etched — not printed — on the front bezel. Inspect the terminal block for consistent molding quality and verify the backplane connector pins are uniformly spaced and gold-plated. We provide full traceability documentation including distributor invoice copies upon request.

Q2: Where can I obtain the official datasheet and wiring diagram for the 1756-IB32K?
A: The official publication is Rockwell Automation document 1756-UM058, available through the Rockwell Automation Literature Library. We can also provide a pre-downloaded copy of the installation instructions and wiring diagrams as part of our technical documentation package — simply request it with your order.

Q3: Is the 1756-IB32K compatible with all ControlLogix chassis sizes and processor generations?
A: Yes. The module is compatible with all standard 1756 chassis (4-slot through 17-slot) and all ControlLogix processor generations from the original 1756-L1 through the current 1756-L8 series. It is also compatible with GuardLogix safety controllers when used in standard (non-safety) I/O roles. Verify your RSLogix 5000 or Studio 5000 software version supports the module’s firmware revision for full diagnostic feature access.

Q4: What is the difference between the 1756-IB32K and the standard 1756-IB32?
A: The “K” suffix designates the conformal-coated variant. Electrically and functionally, both modules are identical — same channel count, voltage ratings, filter options, and backplane interface. The 1756-IB32K is specified for environments with elevated humidity, condensation risk, or chemical exposure where the standard 1756-IB32 PCB would be vulnerable to corrosion-induced failures over time.

Q5: Can this module be used in a Legacy Upgrade project replacing older 1771 PLC-5 I/O systems?
A: Absolutely. The 1756-IB32K is a primary choice for Legacy Upgrade projects migrating from Allen-Bradley PLC-5 (1771 I/O) or SLC 500 platforms to ControlLogix. The high channel density reduces the number of new modules required, and the conformal coating ensures the replacement hardware matches or exceeds the environmental tolerance of the original legacy equipment. Migration planning tools from Rockwell Automation can assist with I/O mapping between legacy and ControlLogix addressing schemes.

Q6: What lead time should I expect for emergency orders of the 1756-IB32K?
A: For in-stock units, we process and ship emergency orders within 24 hours of payment confirmation. DHL Express typically delivers to major industrial hubs in Europe and North America within 2-3 business days; Southeast Asia and Middle East destinations within 3-5 business days. For Maintenance Stock procurement requiring larger quantities, contact our team directly for consolidated shipment options and volume pricing.
