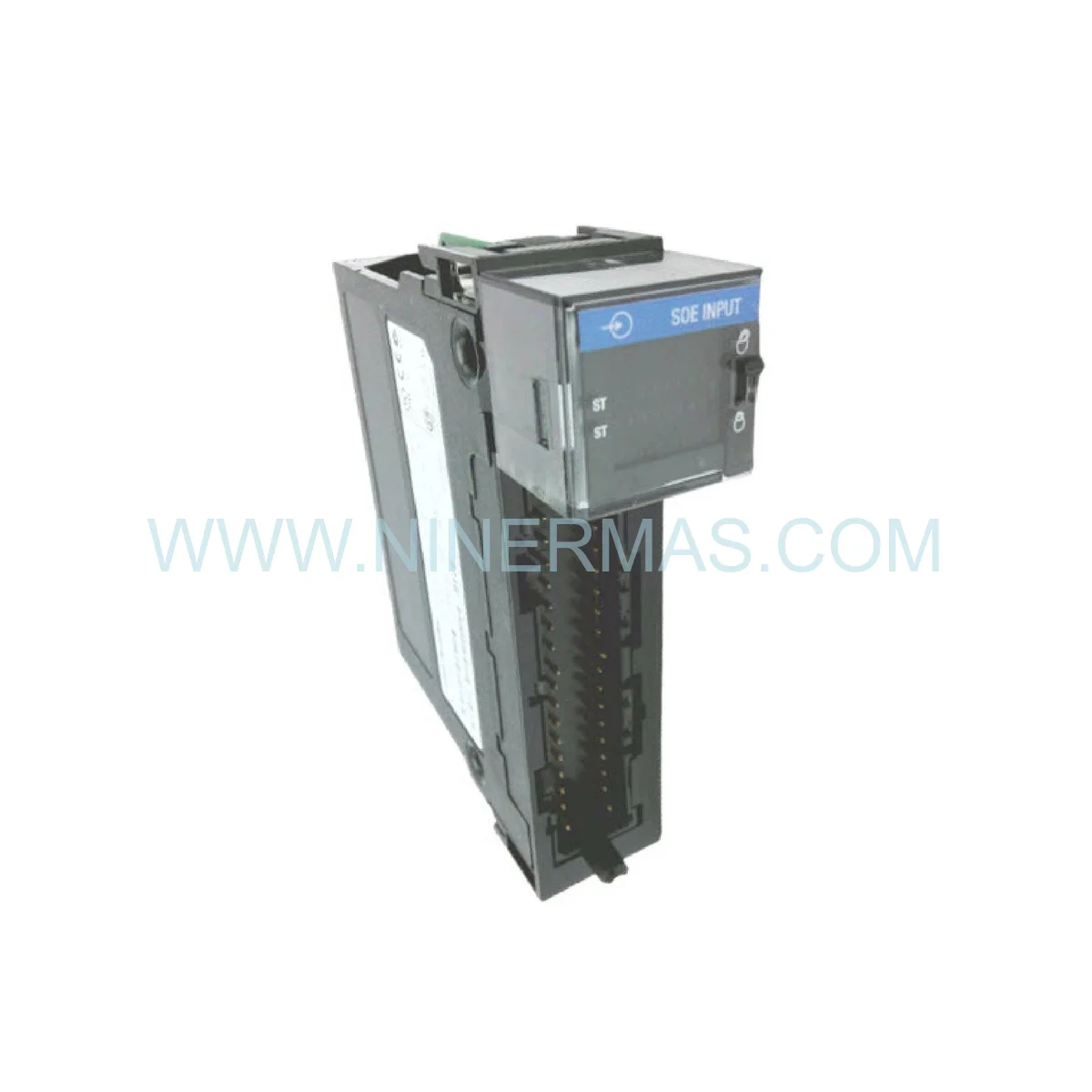

Allen-Bradley 1756-IB16ISOE | DC Isolated SOE Input Module

Allen-Bradley 1756-IB16ISOE — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Allen-Bradley 1756-IB16ISOE occupies a foundational role in preserving the operational integrity of mission-critical control architectures. As a 16-channel DC isolated Sequence of Events input module within the ControlLogix 1756 platform, the 1756-IB16ISOE delivers sub-millisecond event time-stamping that is indispensable for root cause analysis, regulatory audit trails, and safety instrumented system (SIS) validation. Its channel-to-channel and channel-to-backplane isolation rating of 1500V AC ensures that transient fault conditions are contained, preventing cascading failures across interconnected subsystems.

Within the framework of Industry 4.0 and digital transformation initiatives, the 1756-IB16ISOE demonstrates sustained long-term compatibility with Rockwell Automation’s ControlLogix ecosystem, including Studio 5000 Logix Designer and FactoryTalk Historian integration. Its deterministic response characteristics 1ms ON / 1ms OFF lign with the real-time data acquisition demands of modern SCADA and DCS architectures, ensuring that asset optimization strategies are grounded in accurate, time-correlated event data.

As a certified Original Equipment Manufacturer (OEM) component, the 1756-IB16ISOE adheres to the Original Documentation standards established by Rockwell Automation, guaranteeing that every unit shipped meets the factory-defined performance envelope. This authenticity is not merely a procurement consideration t is a System Performance and Safety Integrity imperative for facilities operating under IEC 61511, NFPA 70E, or ISO 13849 compliance frameworks.

Compliance & Safety Benchmarks

✅ Channel Isolation Certification: 1500V AC channel-to-channel and channel-to-backplane isolation, exceeding standard industrial dielectric requirements for high-voltage adjacent environments.

✅ Standard Adherence: Designed in conformance with IEC 61131-2 programmable controller input specifications and UL/CE marking requirements for global deployment.

Durability Under Thermal Stress: Rated for continuous operation from 0°C to 60°C (32°F to 140°F), with humidity tolerance suitable for non-condensing industrial environments.

✅ Hot-Swap Compliance: Supports live insertion and removal within the 1756 chassis, maintaining system uptime in accordance with high-availability operational mandates.

EMC Durability: Engineered to withstand electromagnetic interference consistent with IEC 61000-series industrial immunity standards, protecting signal fidelity in electrically noisy plant environments.

Vertical Industry Integration & Optimization

Semiconductor Fabrication: In cleanroom automation environments, the 1756-IB16ISOE enables precise event sequencing for wafer handling robotics and process chamber interlocks, where microsecond-level timing discrepancies can result in yield loss or equipment damage. Its isolated input architecture eliminates ground potential differences between dissimilar equipment frames.

Pharmaceutical Manufacturing: GMP-regulated facilities leverage the module’s SOE recording capability to generate compliant electronic batch records (EBR) and demonstrate process control integrity during FDA 21 CFR Part 11 audits. The time-stamped event log serves as an immutable audit trail for critical process deviations.

Chemical & Petrochemical Processing: Emergency Shutdown (ESD) and Safety Instrumented System (SIS) architectures in ATEX-classified zones rely on the 1756-IB16ISOE’s isolation performance to prevent ignition-risk ground faults while maintaining the sub-millisecond event resolution required for IEC 61511 functional safety validation.

Power Generation & Utility Substations: Protective relay contact monitoring, turbine trip signal capture, and grid disturbance sequence recording are core applications where the module’s SOE precision directly supports NERC CIP compliance and post-incident forensic analysis.

Automotive Assembly: High-throughput production lines utilize the module to capture safety circuit activations, tooling position confirmations, and quality gate triggers with the temporal accuracy required for Six Sigma process control and OEE optimization.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every 1756-IB16ISOE unit is dispatched in its original manufacturer packaging with intact tamper-evident seals, accompanied by Original Documentation including the product certification sheet and conformance declaration. This ensures that the module’s compliance status is fully traceable from factory to installation point.

Rapid Global Logistics: Leveraging established freight partnerships across North America, Europe, and Asia-Pacific, we provide expedited shipping with full export documentation, HS code classification, and customs compliance support to minimize lead times for time-sensitive maintenance and capital project requirements.

12-Month Quality Guarantee for Legacy Systems: Recognizing the extended operational lifecycles characteristic of industrial control infrastructure, we provide a 12-Month Quality Guarantee covering manufacturing defects and performance non-conformance. This warranty is specifically structured to support facilities managing aging ControlLogix deployments where component availability and long-term reliability are strategic asset optimization priorities.

Technical Support: Our engineering support team offers pre-sales configuration guidance, firmware compatibility verification, and post-installation troubleshooting assistance, ensuring that the 1756-IB16ISOE is correctly integrated within your specific control architecture.

Expert Technical FAQ

Q1: What installation compliance requirements apply to the 1756-IB16ISOE in a SIL-2 rated safety loop?
A: The 1756-IB16ISOE is a standard ControlLogix I/O module and is not independently SIL-certified. For SIL-2 applications, it must be used in conjunction with a validated GuardLogix safety controller and a documented Safety Requirements Specification (SRS) in accordance with IEC 61511. The module’s isolation characteristics support safe state signal integrity, but the overall SIL rating is determined at the system level.

Q2: How does the module perform in high-humidity or temperature-cycling environments?
A: The 1756-IB16ISOE is rated for 5-95% relative humidity (non-condensing) and 0-60°C continuous operation. For environments subject to thermal cycling or condensation risk, supplementary enclosure climate control (per IEC 60529 IP54 or higher) is recommended to maintain Compliance Standards and prevent dielectric degradation of the isolation barrier.

Q3: Which firmware versions of the ControlLogix controller are certified for use with the 1756-IB16ISOE?
A: The 1756-IB16ISOE is compatible with ControlLogix controllers running firmware revision 13.x and above. For SOE functionality, Studio 5000 Logix Designer v21 or later is required. Always consult the Rockwell Automation Product Compatibility and Download Center (PCDC) to verify certified firmware pairings before deployment in production environments.

Q4: Can the 1756-IB16ISOE be used in a redundant ControlLogix chassis configuration?
A: Yes. The module is compatible with ControlLogix redundancy configurations using the 1756-RM2/A redundancy module. In redundant systems, SOE data synchronization between primary and secondary chassis must be validated during Factory Acceptance Testing (FAT) to ensure Lifecycle Management continuity and data integrity during switchover events.

Q5: What are the recommended wiring practices to maintain signal integrity and Asset Optimization?
A: Utilize shielded twisted-pair (STP) cable for all input signal wiring, with shield grounded at a single point to prevent ground loop formation. Maintain physical separation of signal cables from power distribution wiring by a minimum of 150mm (6 inches), or use metallic conduit separation. Adhere to NEC Article 725 and IEC 60204-1 wiring standards for Class 2 circuit segregation in industrial control panel installations.

Q6: How is the authenticity of the 1756-IB16ISOE verified upon receipt?
A: Authentic units include a Rockwell Automation holographic label, a traceable serial number verifiable through the Rockwell Automation Product Authentication portal, and Original Documentation including the Declaration of Conformity. Inspect packaging integrity and verify the catalog number 1756-IB16ISOE is printed on both the module faceplate and the shipping carton label before installation.
