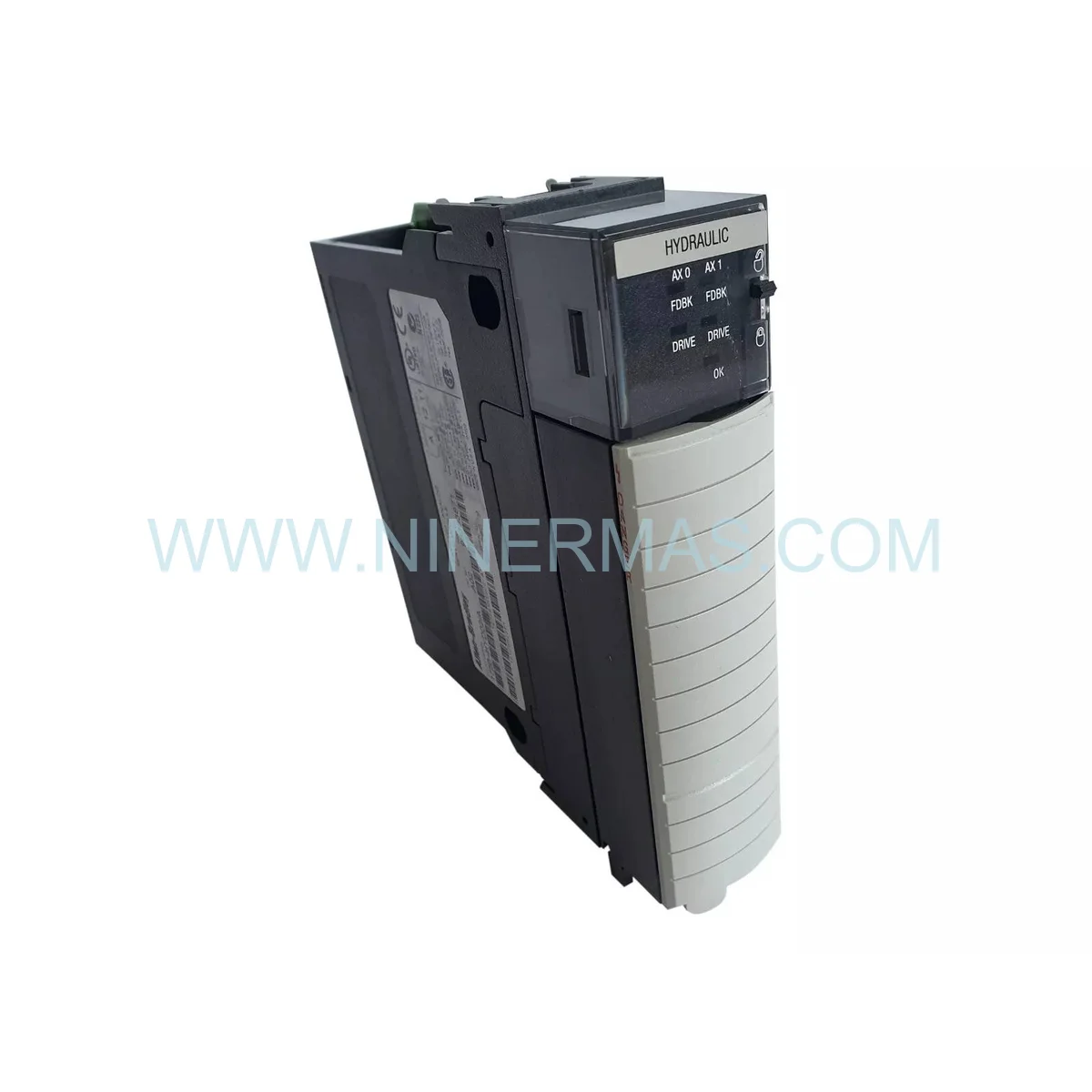

Allen-Bradley 1756-HYD02/A Hydraulic Servo Module

Allen-Bradley 1756-HYD02/A Hydraulic Servo Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, the Allen-Bradley 1756-HYD02/A occupies a mission-critical position within the ControlLogix Distributed Control System (DCS) architecture. This two-channel LDT hydraulic servo module is not merely a peripheral card — it is the nerve center of precision hydraulic positioning loops in high-stakes Process Control environments, where a deviation of even 0.1% can cascade into costly unplanned shutdowns. Designed to operate within the 1756 chassis backplane, it delivers deterministic, high-speed closed-loop feedback that modern DCS Hardware demands.

What distinguishes the Allen-Bradley 1756-HYD02/A from generic alternatives is its deep integration with the Studio 5000 Logix Designer ecosystem and its native support for Linear Displacement Transducer (LDT) feedback — a combination that eliminates the signal conditioning layers typically required by third-party Fieldbus solutions. For facilities managing Legacy Components within aging ControlLogix platforms, this module represents the most technically sound upgrade path, preserving existing wiring infrastructure while delivering modern control precision.

Original factory-sealed units of this module are increasingly scarce on the open market. As Rockwell Automation continues to evolve its product portfolio, procurement windows for genuine 1756-HYD02/A inventory are narrowing — making immediate sourcing a strategic priority for any maintenance or capital project team.

Key Technical Highlights

Dual Independent Servo Channels — Two fully isolated control loops for simultaneous multi-axis hydraulic positioning without cross-channel interference.
16-Bit Analog Output Resolution — Delivers ±10 VDC differential output with sub-millivolt precision, enabling tight valve positioning tolerances critical in Process Control applications.
High-Speed Backplane Communication — Synchronizes with the ControlLogix CPU at deterministic scan rates, ensuring Stability under dynamic load conditions and rapid process disturbances.
LDT Feedback Compatibility — Supports 3-wire and 4-wire ratiometric LDT configurations, providing absolute position verification with Factory Sealed signal integrity.
Redundancy-Ready Architecture — Compatible with ControlLogix redundancy chassis configurations, supporting Redundancy in safety-critical hydraulic systems where continuous operation is non-negotiable.
Comprehensive On-Board Diagnostics — Real-time fault detection for open circuits, over-range conditions, and channel health — all surfaced directly as controller tags for seamless SCADA integration.

Vertical Industry Applications

Petrochemical & Refining: In crude distillation and catalytic cracking units, the 1756-HYD02/A governs hydraulic control valves on feed streams and reflux loops. Its deterministic response eliminates the millisecond-level latency that causes product quality deviations, directly reducing unplanned downtime in continuous process trains.

Power Generation & Turbine Control: Steam and gas turbine governor systems rely on sub-millisecond hydraulic actuator response. This module’s high-speed backplane integration with the ControlLogix DCS Hardware platform ensures governor valve positioning meets OEM specifications, preventing turbine trip events.

Mining & Mineral Processing: Hydraulic press and crusher control systems in mining operations demand robust Legacy Components that withstand vibration, dust, and wide temperature swings. The 1756-HYD02/A’s industrial-grade design and sealed construction make it the preferred choice for these harsh environments.

Marine & Offshore: Vessel dynamic positioning and ballast control systems require Fieldbus-independent, self-contained servo control. The module’s isolated dual-channel architecture supports redundant hydraulic steering and stabilization systems aboard offshore platforms and large vessels.

Metal Forming & Heavy Industry: Injection molding presses and hydraulic forging equipment benefit from the module’s 16-bit resolution, which translates directly into tighter dimensional tolerances and reduced scrap rates — a measurable ROI for high-volume production facilities.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the Allen-Bradley 1756-HYD02/A supplied through our inventory is 100% Original — sourced directly from authorized distribution channels and verified against Rockwell Automation’s factory serialization records. No refurbished, remanufactured, or counterfeit components enter our supply chain. Each module ships in its original Factory Sealed packaging with all factory labels, revision markings, and documentation intact.

Our 12-Month Comprehensive Warranty covers all defects in materials and workmanship from the date of delivery. Should a module fail within the warranty period, we provide immediate cross-shipment of a replacement unit to minimize your system downtime — no lengthy RMA delays.

For Emergency Repair scenarios, we maintain dedicated express logistics partnerships with DHL, FedEx, and UPS, enabling same-day dispatch to virtually any global destination. Whether your facility is in Houston, Rotterdam, Singapore, or Abu Dhabi, our logistics infrastructure ensures your critical DCS Hardware reaches you within the shortest possible transit window. This is not a standard lead-time promise — it is an operational commitment built for industrial emergencies.

Buyer’s FAQ — Selection & Sourcing Guide

Q1: How do I verify that a 1756-HYD02/A unit is genuinely original and not a counterfeit?
A: Authentic Allen-Bradley 1756-HYD02/A modules carry a holographic Rockwell Automation label on the module body with a unique serial number traceable in Rockwell’s product verification portal. The revision suffix “/A” must be clearly printed — not handwritten or relabeled. Factory Sealed units will have unbroken tamper-evident packaging seals. Always request a Certificate of Conformance (CoC) and cross-reference the serial number before acceptance.

Q2: Where can I obtain the official datasheet and wiring diagrams for the 1756-HYD02/A?
A: The official publication is Rockwell Automation document 1756-UM009 (ControlLogix Hydraulic Servo Module User Manual), available through Rockwell’s Literature Library. Our technical team can also provide application-specific wiring guidance and Studio 5000 Add-On Instruction (AOI) templates upon request.

Q3: Is the 1756-HYD02/A compatible with all ControlLogix firmware versions?
A: The module is compatible with ControlLogix L6x and L7x series controllers running firmware v16.x and above. For L8x (5580) series controllers, firmware v28.x or higher is recommended to access full diagnostic tag sets. Always verify the Electronic Keying configuration in Studio 5000 before hot-swapping in a live system.

Q4: Can this module be used as a direct replacement for the non-revision 1756-HYD02 (without /A suffix)?
A: Yes. The /A revision is backward-compatible with all applications designed for the base 1756-HYD02. The /A revision incorporates minor hardware improvements for enhanced EMI immunity. No firmware or program changes are required for a direct swap, though updating Electronic Keying to “Compatible Module” is advised.

Q5: What is the typical lead time for emergency orders?
A: For in-stock units, same-day dispatch is available for orders confirmed before 14:00 local time. International express delivery via DHL or FedEx typically achieves 1-3 business day transit to major industrial hubs. For remote locations, we coordinate with regional freight forwarders to optimize the final-mile delivery.

Q6: Is this module classified as an End-of-Life (EOL) or Legacy Component?
A: Rockwell Automation has transitioned the 1756-HYD02/A to a limited-availability status. It is a Critical Part for Industry Safety in facilities that have not yet migrated to newer motion platforms. Stocking spare units now is strongly recommended for any plant running hydraulic servo loops on ControlLogix — replacement sourcing will only become more difficult and costly as remaining inventory depletes globally.
