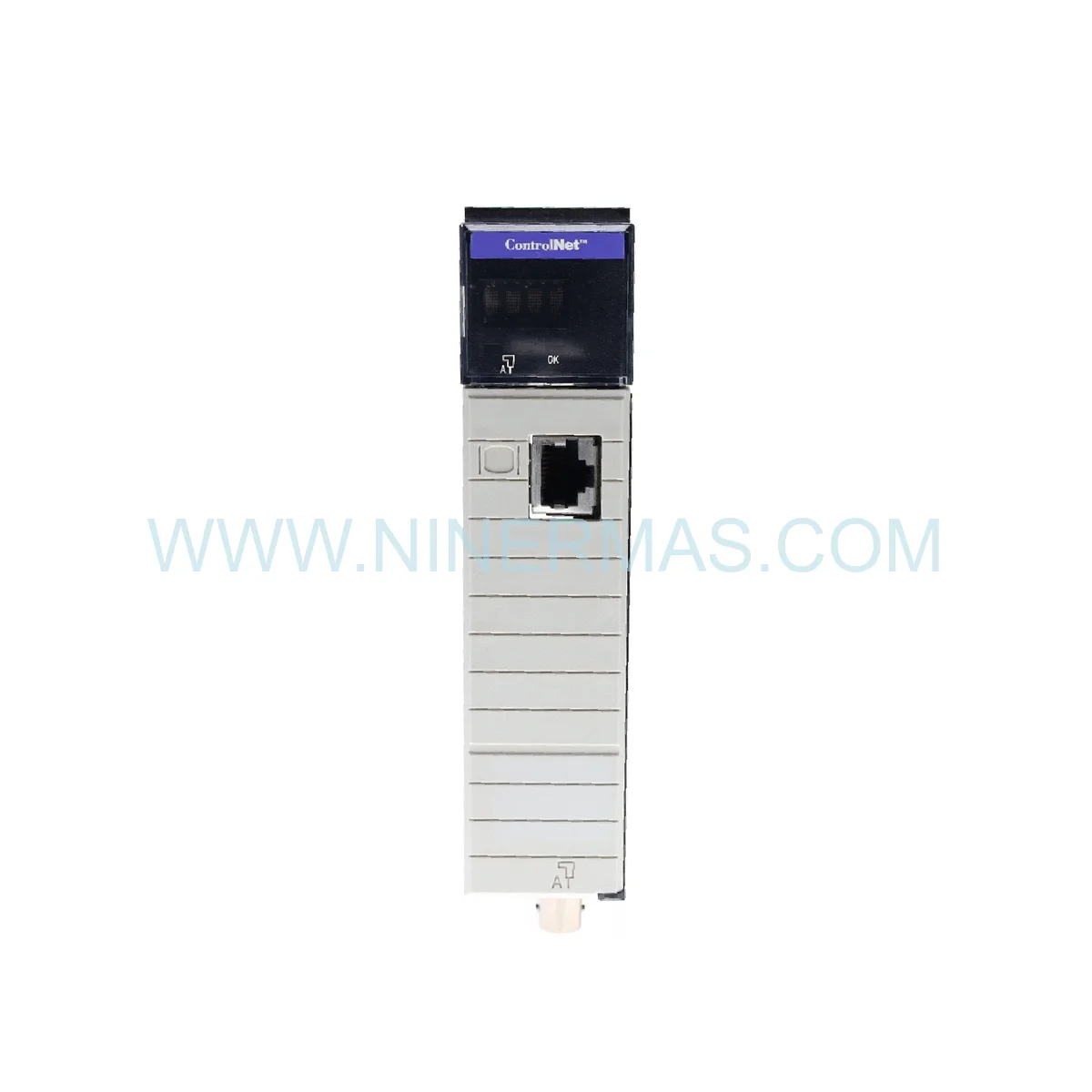

Allen-Bradley 1756-CNB ControlNet Bridge Module | Original Spare Parts

Allen-Bradley 1756-CNB ControlNet Bridge Module – Industrial Process Solution

Technical Overview & First Impression

As a seasoned Industrial Solution Architect, I can state with confidence that the Allen-Bradley 1756-CNB occupies a foundational role in modern Distributed Control System (DCS) architectures. This ControlNet bridge communication module is purpose-built for the ControlLogix chassis platform, enabling deterministic, real-time data exchange across ControlNet fieldbus networks at 5 Mbps — a throughput specification that remains highly relevant in today’s Process Control environments. Whether you are managing a continuous production line or a safety-instrumented loop, the 1756-CNB delivers the network backbone that keeps your system synchronized and responsive.

From a technical compatibility standpoint, the 1756-CNB integrates natively with the full ControlLogix 1756 ecosystem, including L6x and L8x series processors, and is fully configurable via RSNetWorx for ControlNet and Studio 5000 Logix Designer. Its dual BNC ControlNet ports support media redundancy — a critical design feature for facilities where network path failure cannot be tolerated. Unlike generic third-party alternatives, this module maintains electronic keying compatibility, ensuring that only verified hardware configurations are accepted by the chassis backplane. This level of DCS Hardware integrity is non-negotiable in regulated industries.

Original factory-sealed units of the 1756-CNB are increasingly scarce on the open market. As Allen-Bradley has transitioned its communication portfolio toward EtherNet/IP-centric architectures, legacy ControlNet infrastructure components have become critical EOL (End-of-Life) spare parts. Securing a factory-sealed, fully tested unit today is a strategic decision — not merely a procurement transaction. Our inventory is sourced directly from authorized channels, inspected, and shipped in original packaging to guarantee authenticity.

Key Technical Highlights

Deterministic ControlNet Communication: Scheduled and unscheduled messaging at 5 Mbps ensures predictable, repeatable Process Control performance across all network nodes.
Dual-Port Media Redundancy: Two independent BNC ControlNet ports provide automatic failover, supporting high-availability Redundancy architectures without manual intervention.
Hot-Swap Capability: Replace the module without powering down the ControlLogix chassis — minimizing maintenance windows and protecting production continuity.
G3 Conformal Coating: Factory-applied corrosion-resistant coating protects DCS Hardware against chemical vapors, humidity, and airborne particulates in harsh industrial environments.
Electronic Keying: Prevents incorrect module substitution, a critical safeguard in multi-chassis Distributed Control System deployments.
Broad Certification Compliance: UL, cUL, CE, and C-Tick certified — meeting global regulatory requirements for Factory Sealed industrial components deployed across international facilities.

Vertical Industry Applications

Petrochemical & Refining: In high-stakes refinery environments, the 1756-CNB bridges ControlLogix controllers to distributed I/O racks across hazardous zones. Its G3 coating and redundant Fieldbus architecture reduce unplanned shutdowns — where a single hour of downtime can cost hundreds of thousands of dollars.

Mining & Mineral Processing: Underground and surface mining operations demand Legacy Components that withstand vibration, dust, and temperature extremes. The 1756-CNB’s robust backplane design and conformal coating make it a proven choice for conveyor control, crusher automation, and ventilation management systems.

Marine & Offshore Platforms: Offshore oil platforms and marine vessels require DCS Hardware certified for corrosive salt-air environments. The 1756-CNB’s environmental ratings and redundant network ports align with the stringent uptime requirements of marine automation systems.

Power Generation & Utilities: In thermal, hydro, and nuclear power facilities, Process Control reliability is paramount. The 1756-CNB enables high-speed data exchange between turbine controllers, SCADA systems, and protection relays — supporting both scheduled maintenance cycles and emergency response protocols.

Automotive & Discrete Manufacturing: Assembly line synchronization across multiple ControlLogix chassis relies on the deterministic Fieldbus performance that ControlNet — and specifically the 1756-CNB — uniquely provides. Reduced cycle jitter translates directly to improved throughput and reduced scrap rates.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every 1756-CNB unit we supply is 100% Original Allen-Bradley — sourced through verified industrial supply channels and never remanufactured or relabeled. Each module ships in its original Factory Sealed packaging with intact manufacturer labels, serial number traceability, and full documentation.

Our 12-Month Comprehensive Warranty covers all manufacturing defects and functional failures under normal operating conditions. Should a fault occur within the warranty period, we provide rapid replacement or full refund — no bureaucratic delays.

For emergency maintenance scenarios, we offer priority dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express. Most in-stock orders ship within 24 hours of payment confirmation, with real-time tracking provided from warehouse to destination. We serve clients across North America, Europe, Southeast Asia, the Middle East, and beyond — because industrial emergencies do not respect time zones.

This module is classified as a Critical Part for Industry Safety. In Distributed Control System environments where the 1756-CNB serves as the primary communication bridge, its failure can cascade into full process shutdown. Maintaining at least one spare unit in your Maintenance Stock is a best practice endorsed by reliability engineers across the petrochemical and power generation sectors.

Buyer’s FAQ — Selection Guide

Q1: How can I verify that a 1756-CNB unit is 100% original and not counterfeit?
A: Authentic Allen-Bradley 1756-CNB modules carry a holographic manufacturer label on the module body with a unique serial number traceable in Rockwell Automation’s product database. The PCB interior (visible through the ventilation slots) should show clean, uniform solder joints with no signs of rework. We provide a Certificate of Authenticity and original packaging photos upon request before shipment.

Q2: Where can I obtain the official datasheet and wiring diagrams for the 1756-CNB?
A: The official publication is Rockwell Automation document 1756-UM054 (ControlNet Modules in Logix5000 Control Systems User Manual). Contact our technical team and we will supply the relevant documentation alongside your order.

Q3: Is the 1756-CNB compatible with both L6x and L8x series ControlLogix processors?
A: Yes. The 1756-CNB is compatible with all ControlLogix 1756 series processors, including the L61, L62, L63, L64, L65, L71, L72, L73, L74, L75, L81E, and L82E. Firmware version compatibility should be verified against your specific controller revision using the Rockwell Automation Product Compatibility and Download Center (PCDC).

Q4: Can the 1756-CNB be used in a redundant controller configuration?
A: Yes, when paired with a 1756-RM2 redundancy module and a compatible redundant processor pair, the 1756-CNB supports full controller redundancy. Both primary and secondary chassis require identical 1756-CNB modules at the same firmware revision for seamless failover.

Q5: What is the lead time for emergency orders?
A: In-stock units ship within 24 hours via DHL/FedEx/UPS express services. For urgent Legacy Upgrade or Emergency Repair scenarios, contact us directly via email or phone to confirm real-time stock availability and arrange same-day dispatch where possible.

Q6: Is this module suitable for use in SIS (Safety Instrumented System) applications?
A: The standard 1756-CNB is a Process Control communication module and is not SIL-rated for use as a safety function device. For SIS applications, consult Rockwell Automation’s GuardLogix or Safety ControlLogix product lines. However, the 1756-CNB is widely used in the non-safety layers of hybrid DCS/SIS architectures for supervisory data exchange.
