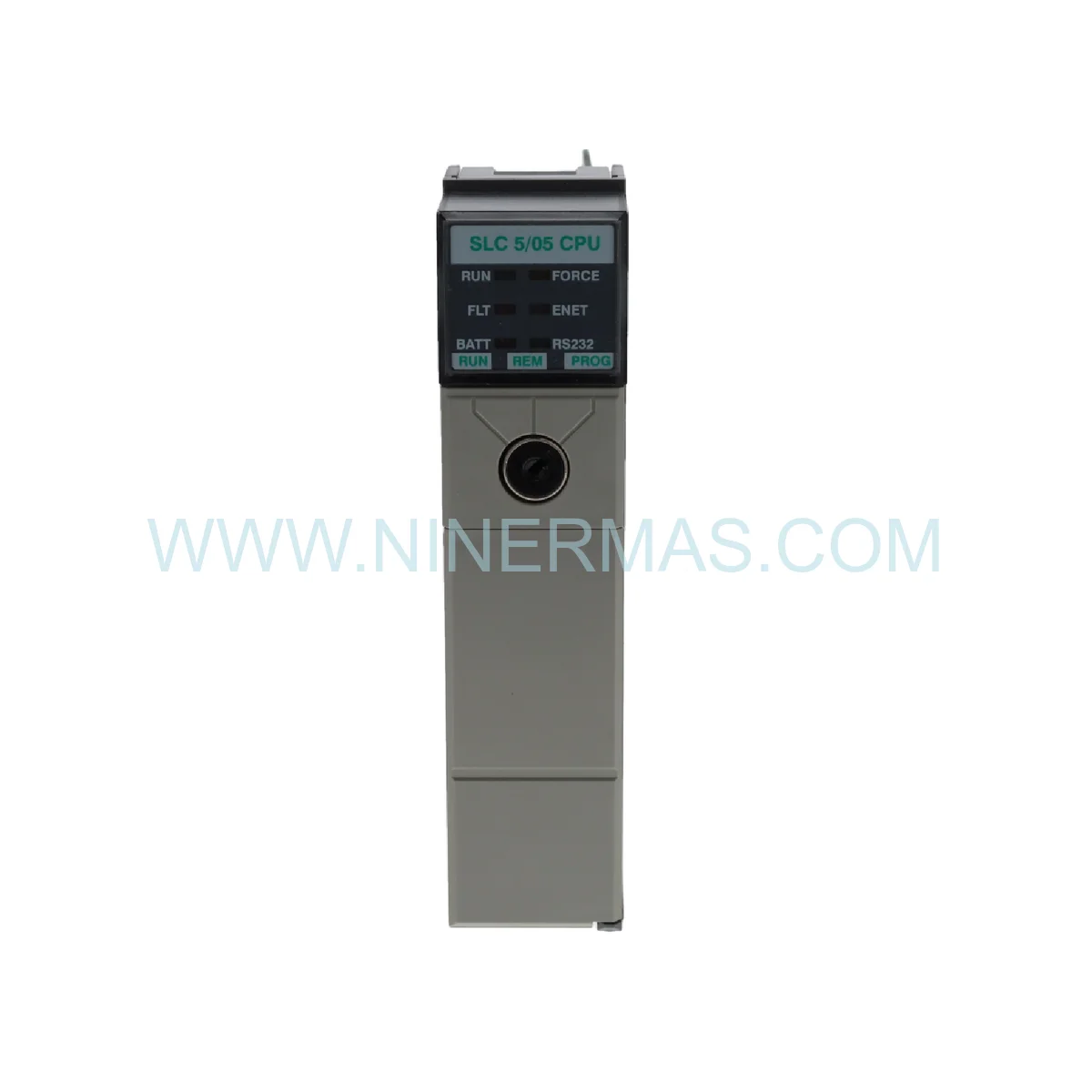

Allen-Bradley 1747-L551/C SLC 5/05 Processor | Retrofit & Upgrade

Allen-Bradley 1747-L551/C – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, the Allen-Bradley 1747-L551/C stands out as a cornerstone component in any SLC 500 modernization initiative. This processor’s 64K user memory capacity and dual-port communication architecture — combining DH+ and Ethernet/IP 10/100 Mbps — make it an indispensable hardware upgrade for factories seeking to extend operational life while bridging the gap between legacy infrastructure and modern industrial networks. The Allen-Bradley 1747-L551/C enables a phased migration strategy that minimizes production disruption and capital expenditure.

From a legacy compatibility standpoint, this processor integrates directly into all standard 1746 and 1747 series chassis without mechanical or electrical modification. Whether you are migrating from an SLC 5/03 or SLC 5/04 platform, the 1747-L551/C preserves existing ladder logic investments while unlocking Ethernet/IP connectivity — the critical upgrade path that allows aging SLC 500 networks to communicate with contemporary SCADA platforms, MES systems, and cloud-based analytics layers.

From a risk and cost perspective, deploying the 1747-L551/C as a retrofit solution dramatically reduces migration complexity. Rather than a full system rip-and-replace, engineering teams can execute a targeted processor swap, validate program compatibility via RSLogix 500, and commission the upgraded node within a single planned maintenance window — delivering measurable performance enhancement at a fraction of greenfield installation costs.

Upgrade Highlights & Compatibility

✅ Seamless Integration: Drop-in replacement for SLC 5/03 and SLC 5/04 processors — zero chassis modification required, preserving existing I/O wiring and module investments.

Dual-Port Connectivity: DH+ (Channel 0) for legacy network continuity + Ethernet/IP 10/100 Mbps (Channel 1) for modern SCADA, HMI, and enterprise integration — the ideal hardware upgrade bridge.

✅ Expanded Memory: 64K word user memory supports complex ladder logic programs, enabling future-proofing of control strategies without additional memory modules.

Deterministic Performance: 0.9 ms/1K instruction scan time ensures real-time control integrity across high-speed manufacturing and process automation environments.

✅ Broad I/O Scalability: Supports up to 4,096 inputs and 4,096 outputs — sufficient headroom for system expansion without processor replacement.

Certified Compliance: UL, CSA, and CE certifications confirm readiness for global deployment across regulated industries including food & beverage, pharmaceuticals, and energy.

Modernization Use Cases & Success Stories

DCS Migration — Chemical Processing Plant: A regional chemical manufacturer operating a legacy SLC 5/03-based distributed control system faced increasing downtime due to obsolete firmware and limited network visibility. By deploying the 1747-L551/C as a targeted retrofit solution, the engineering team activated Ethernet/IP connectivity to integrate the SLC 500 nodes directly into their new DCS supervisory layer. The result: a 40% reduction in unplanned downtime and real-time process data visibility without replacing field I/O infrastructure.

TSI Modernization — Power Generation Facility: A turbine monitoring system (TSI) at a combined-cycle power plant required performance enhancement to support expanded vibration and temperature sensor arrays. The 1747-L551/C’s 64K memory and high-speed scan time enabled the facility to consolidate multiple legacy processors into a single upgraded node, reducing panel footprint and simplifying maintenance — a textbook system migration success with zero production loss during commissioning.

Automotive Assembly Line Retrofit: An automotive Tier-1 supplier needed legacy compatibility with existing SLC 500 I/O while adding Ethernet/IP reporting for their new MES platform. The 1747-L551/C delivered seamless integration, allowing the line to report OEE metrics in real time while maintaining full backward compatibility with 15-year-old I/O modules — a true performance upgrade with minimal capital risk.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Part Number** | Allen-Bradley 1747-L551/C | | **Processor Series** | SLC 5/05 (SLC 500 Family) | | **Lifecycle Status** | Active — Available for New Retrofit Projects | | **User Memory** | 64K Words | | **Communication Port 0** | DH+ — Legacy Network Continuity | | **Communication Port 1** | Ethernet/IP 10/100 Mbps — Modern Integration | | **Scan Time** | 0.9 ms per 1K Instructions | | **Max I/O Points** | 4,096 Inputs / 4,096 Outputs | | **Operating Temperature** | 0°C to 60°C (32°F to 140°F) | | **Power Draw** | 1.5A @ 5V DC / 150mA @ 24V DC | | **Chassis Compatibility** | All 1746 & 1747 Series Chassis | | **Programming Software** | RSLogix 500 (Online Editing Supported) | | **Compatible Memory Modules** | 1747-M1, 1747-M2, 1747-M11, 1747-M13 | | **Certifications** | UL / CSA / CE | | **Mounting** | DIN Rail or Panel Mount | | **Warranty** | 12 Months — Manufacturing Defects & Functional Failures |

Supply Chain & Deployment Support

Original & Factory Sealed: Every Allen-Bradley 1747-L551/C unit is sourced as genuine, factory-sealed hardware — ensuring firmware integrity, full specification compliance, and compatibility assurance for mission-critical retrofit deployments.

Expedited Global Logistics: We maintain dedicated inventory channels to support urgent retrofit timelines. Expedited air freight options are available to all major industrial regions including North America, Europe, Southeast Asia, and the Middle East — minimizing system downtime during planned maintenance windows.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy SLC 500 ecosystem guidance. From RSLogix 500 program conversion assistance to chassis compatibility verification and Ethernet/IP network commissioning, we provide end-to-end retrofit project support — not just hardware supply.

Documentation Package: Full technical documentation including installation instructions, firmware release notes, and compatibility matrices is available upon request to support your engineering and compliance teams.

Retrofit FAQ (Upgrade Guide)

Q: Will the 1747-L551/C fit my existing SLC 500 chassis without mechanical modification?
A: Yes. The Allen-Bradley 1747-L551/C is a standard SLC 500 form-factor processor that installs directly into any 1746 or 1747 series chassis — including 4-slot, 7-slot, 10-slot, and 13-slot configurations — with no mechanical adaptation required. This makes it one of the most installation-space-compatible retrofit solutions in the SLC 500 family.

Q: How does the 1747-L551/C enable communication between legacy DH+ networks and modern Ethernet/IP systems?
A: The dual-port architecture is the key advantage. Channel 0 maintains your existing DH+ network topology — preserving communication with legacy HMIs, programming terminals, and peer SLC nodes — while Channel 1 provides a native Ethernet/IP 10/100 Mbps interface for direct connection to modern SCADA platforms, MES systems, and enterprise IT networks. No additional gateway hardware is required for most retrofit architectures.

Q: Can I migrate my existing SLC 5/03 or SLC 5/04 program to the 1747-L551/C without rewriting logic?
A: In most cases, yes. RSLogix 500 supports program upload from the existing processor and download to the 1747-L551/C with minimal conversion steps. Instruction set compatibility is maintained across the SLC 500 family. However, programs utilizing processor-specific features (such as SLC 5/03 DH485 communication) should be reviewed by a qualified engineer to identify any communication block updates required.

Q: What are the recommended spare part alternatives if the 1747-L551/C is unavailable?
A: For applications requiring DH+ only (no Ethernet/IP), the 1747-L542B (SLC 5/04, 32K) is a viable downgrade alternative. For applications requiring higher memory, the 1747-L553 (SLC 5/05, 64K, Series C) may be considered. Always verify chassis slot compatibility and firmware revision alignment before substituting processors in a live system.

Q: Is online editing supported during production operation after the retrofit?
A: Yes. The 1747-L551/C fully supports RSLogix 500 online editing, allowing engineers to modify ladder logic rungs, add instructions, and adjust data table values while the processor remains in Run mode. This capability is critical for minimizing production interruption during post-retrofit fine-tuning and commissioning phases.

Q: What is the expected lead time for the 1747-L551/C, and is expedited shipping available for emergency retrofit situations?
A: Standard lead time from confirmed order is 3-7 business days for in-stock units. For emergency retrofit and unplanned downtime scenarios, expedited same-day dispatch with international express freight is available upon request. Contact our team directly to confirm current stock status and arrange priority shipment to your facility.
