Allen-Bradley 1747-ACN15 ControlNet Adapter Legacy Retrofit

Allen-Bradley 1747-ACN15 ControlNet Adapter: Legacy System Retrofit & Smooth Upgrade Path

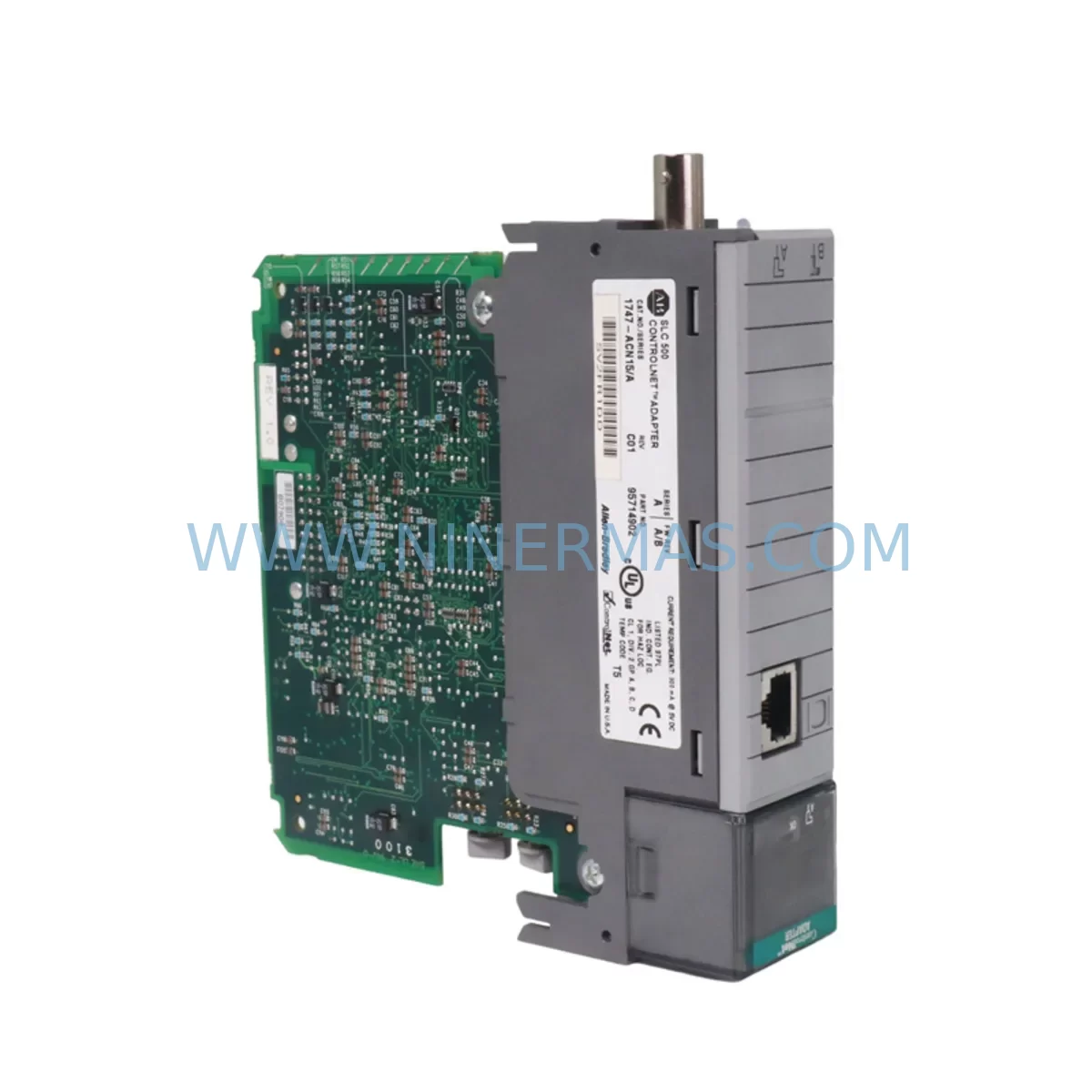

The Allen-Bradley 1747-ACN15 is a ruggedized ControlNet Adapter module designed for integration within the SLC 500 modular chassis platform. As legacy SLC 500 systems reach end-of-life and original spare parts become increasingly scarce, the 1747-ACN15 serves as a critical retrofit component for engineers tasked with sustaining aging production lines, upgrading control cabinets, and migrating communication architectures without triggering full system replacements. NINERMAS maintains verified inventory of the 1747-ACN15 to support customers managing discontinued spare part lifecycles, with each unit backed by a 12-month warranty and pre-shipment functional testing.

The 1747-ACN15 occupies a single slot in the SLC 500 modular rack — compatible with the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 chassis configurations. Before installation, engineers must confirm available slot count, backplane current draw budget, and chassis power supply capacity. The 1747-PS13 or 1747-PS402 power supply modules are commonly paired in these configurations; verifying that the combined module load does not exceed the rated backplane current is a mandatory pre-retrofit step. Failure to account for current budget is one of the most common causes of unexpected system faults during ControlNet adapter upgrades.

On the communication side, the 1747-ACN15 supports ControlNet revision 1.5 and is compatible with the broader Rockwell Automation ControlNet infrastructure, including 1786-series ControlNet cables, taps, and repeaters. When replacing an older 1747-ACN or 1747-ACNR15 module, engineers should verify that the node address, scheduled connection parameters, and NUT (Network Update Time) settings are preserved in the RSNetWorx for ControlNet configuration file. Any mismatch in scheduled bandwidth allocation between the replacement module and the existing network configuration can result in communication faults across connected I/O modules such as the 1746-IB16, 1746-OB16, or 1746-NI4 analog input modules.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 1747-ACN15 retrofit begins well before the module arrives on-site. The engineering team should pull the existing RSLogix 500 program backup and confirm the I/O configuration map, paying particular attention to the slot assignments for any 1746-series I/O modules currently communicating over ControlNet. If the legacy system also includes a 1747-SN Remote I/O Scanner or a 1747-SCNR ControlNet Scanner, the interaction between these modules and the replacement 1747-ACN15 must be validated in the offline program before live commissioning.

For systems that include an HMI — typically a PanelView 550, PanelView 600, or PanelView Plus 600 communicating over ControlNet — the HMI tag database and screen logic should be reviewed to confirm that no tag addresses are hard-coded to the old module’s node number. A node address change during replacement will cause HMI communication faults that are not always immediately obvious during initial power-up testing.

Cable infrastructure is another area requiring pre-retrofit inspection. ControlNet coaxial cable segments, BNC taps, and termination resistors should be tested for signal integrity before the new 1747-ACN15 is installed. Degraded cable segments that were tolerated by the original module may cause intermittent faults with a freshly installed replacement. Where coaxial infrastructure is aging, customers often take the opportunity to migrate to fiber-optic ControlNet segments using 1786-RPFRL or 1786-RPFRXL repeater modules, which also extends the physical reach of the network.

Programming cable access is required during commissioning. The 1747-CP3 or 1747-UIC USB-to-DH485 interface cable is typically used to connect a laptop running RSLogix 500 to the SLC 500 processor for program verification and online monitoring after the 1747-ACN15 is installed. Confirming that the processor — whether a 1747-L531, 1747-L541, or 1747-L553 — is running the correct program revision before going online is a non-negotiable step in any retrofit procedure.

Downtime Control During System Migration

Minimizing production downtime during a ControlNet adapter replacement requires a structured migration plan. The recommended approach is to perform all pre-commissioning steps — program backup, node address verification, cable testing, and HMI tag review — during scheduled maintenance windows before the physical swap occurs. When the replacement window arrives, the actual module swap and power-up sequence can typically be completed in under two hours for a well-prepared team.

The original RSLogix 500 program should be preserved in its entirety and not modified during the retrofit unless a specific fault condition requires a logic change. Maintaining the original program logic protects the existing control sequences and reduces the risk of introducing new faults during the upgrade. If the system uses a 1747-L55 processor with a memory module, the program should be verified on the memory module as well to ensure consistency.

After power-up, the ControlNet network should be monitored using RSNetWorx for ControlNet to confirm that all scheduled and unscheduled connections are re-established within the expected timeframe. Any modules that fail to come online — such as remote 1746-series I/O racks connected via 1747-ASB Remote I/O Adapter modules — should be investigated before returning the system to production. A structured commissioning checklist, including verification of all I/O points, HMI communications, and interlock logic, is the final step before sign-off.

Retrofit Support FAQ

Q: Is the 1747-ACN15 a direct drop-in replacement for the 1747-ACN?
A: The 1747-ACN15 is functionally compatible with the 1747-ACN in most SLC 500 modular chassis applications. However, engineers should verify the ControlNet revision level and scheduled connection parameters in RSNetWorx for ControlNet before installation, as minor configuration adjustments may be required depending on the existing network setup.

Q: Does NINERMAS test the 1747-ACN15 before shipment?
A: Yes. Every 1747-ACN15 unit shipped by NINERMAS undergoes pre-shipment functional testing to verify communication capability and module integrity. Units are shipped with a 12-month warranty covering functional defects from the date of shipment.

Q: What commissioning software is required for the 1747-ACN15?
A: RSNetWorx for ControlNet is required for network configuration and scheduled connection setup. RSLogix 500 is used for processor-side program verification and online monitoring. Both tools should be available on the commissioning laptop before the retrofit begins.

Q: How quickly can NINERMAS supply the 1747-ACN15?
A: NINERMAS maintains stock of the 1747-ACN15 to support urgent retrofit and emergency replacement requirements. Lead times vary by order volume; contact our team directly for current availability and expedited shipping options.
