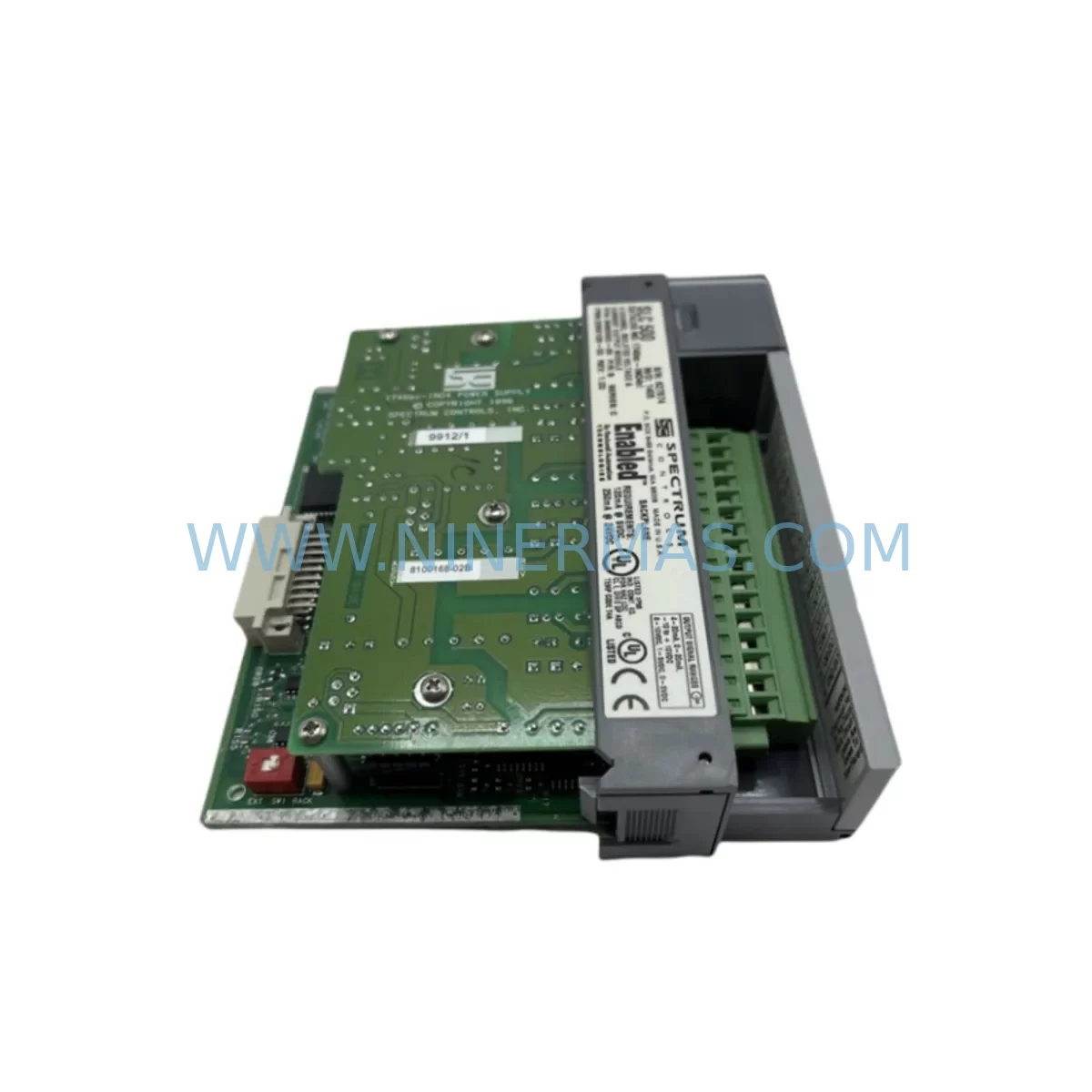

The Allen-Bradley 1746SC-IN04VI is a ruggedized, isolated analog input module designed for the SLC 500 series programmable controller platform. Built to operate reliably in harsh industrial environments — including high-vibration, high-humidity, and wide-temperature-range applications — this module is a critical spare part for maintenance engineers managing continuous production lines, process control systems, and legacy automation infrastructure. NINERMAS stocks the 1746SC-IN04VI as a service-ready replacement unit, fully tested before shipment and backed by a 12-month warranty.

For maintenance and procurement engineers responsible for uptime assurance, having the 1746SC-IN04VI available in your spare parts inventory is a proactive strategy against unplanned downtime. This module is commonly found in control cabinets alongside SLC 500 processor units such as the 1747-L543 and 1747-L553, and is frequently paired with the 1746-A13 or 1746-A7 chassis backplane. When this module is flagged during a fault diagnostic or routine I/O scan, the replacement workflow must also account for the condition of adjacent components in the same rack.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 1746SC-IN04VI in a live control cabinet, a disciplined maintenance approach requires more than a simple module swap. Maintenance engineers should treat this replacement as an opportunity to inspect the full I/O subsystem and associated power infrastructure. Begin by verifying the integrity of the 1746-P4 or 1746-P7 power supply module — voltage sag or ripple on the backplane rail is a common root cause of analog input drift and premature module failure. Check the power supply output under load before reinstalling the new module.

Next, inspect the 1746-A13 backplane connector pins for oxidation or mechanical damage, particularly in high-vibration environments where connector wear accelerates. If the system uses a 1747-SN remote I/O scanner or a 1747-ASB adapter for distributed I/O, verify that the communication link is stable and that no remote rack faults are masking the root cause of the analog input failure.

For signal integrity, review the field wiring connected to the 1746SC-IN04VI. Shielded twisted-pair cables should be grounded at a single point — typically at the control panel’s signal ground bus. Loose shield terminations or broken drain wires are a frequent source of noise on isolated analog channels. If the system includes signal isolators or signal conditioners (such as DIN-rail mounted loop-powered isolators) between field transmitters and the module input terminals, inspect these for drift or failure as well.

In systems where the SLC 500 rack shares a control cabinet with 1492-IFM interface modules or 1492-CABLE pre-wired terminal assemblies, verify that the wiring harness connectors are fully seated and that no terminal screws have loosened due to thermal cycling. For cabinets that also house 700-series relay modules or 100-series contactors, ensure that inductive switching noise is adequately suppressed with RC snubbers or varistors to protect the analog input channels from transient interference.

Annual maintenance schedules for SLC 500-based systems should include a calibration verification of all analog I/O channels, a torque check on all terminal block connections, and a visual inspection of the 1747-L5xx processor battery status. Proactive replacement of the processor lithium battery (catalog number 1747-BA) prevents program loss during power interruptions and is a low-cost insurance policy for legacy system continuity.

Site Replacement Workflow

The 1746SC-IN04VI is a direct replacement for the standard 1746-NI4 and 1746-NI8 analog input modules in ruggedized applications where the extended temperature and isolation specifications of the 1746SC series are required. When transitioning from a failed standard module to the ruggedized 1746SC variant, no processor program changes are required — the module occupies the same I/O slot address and uses the same RSLogix 500 configuration parameters.

To minimize downtime during replacement: (1) Document the existing channel configuration and scaling parameters from RSLogix 500 before powering down the rack. (2) Power down the SLC 500 chassis using the processor keyswitch — do not rely solely on the field power disconnect. (3) Remove the failed module and inspect the backplane connector for damage. (4) Install the 1746SC-IN04VI, ensuring the module is fully seated and the locking tab is engaged. (5) Restore power and verify channel status in the RSLogix 500 I/O configuration tree. (6) Confirm analog input readings against known field transmitter values before returning the system to automatic mode.

This workflow supports a target replacement time of under 30 minutes for a trained maintenance technician, making the 1746SC-IN04VI an effective tool for rapid downtime recovery in SLC 500-based process and discrete manufacturing systems.

Spare Parts Support FAQ

Q1: Is the 1746SC-IN04VI compatible with all SLC 500 chassis and processors?
The 1746SC-IN04VI is compatible with all standard SLC 500 I/O chassis (1746-A4, A7, A10, A13) and all SLC 5/03, 5/04, and 5/05 processors. It occupies a single I/O slot and is configured identically to standard 1746-NI series analog input modules in RSLogix 500. No firmware or hardware modification is required.

Q2: How does NINERMAS verify the 1746SC-IN04VI before shipment?
Every unit undergoes functional testing prior to dispatch, including channel isolation verification, input signal accuracy check across the full ±10V and 4–20mA ranges, and backplane connector inspection. Units that do not meet original specification tolerances are not shipped. All units are covered by a 12-month warranty from the date of delivery.

Q3: Can NINERMAS support long-term or blanket purchase orders for the 1746SC-IN04VI?
Yes. NINERMAS supports long-term supply agreements for MRO and spare parts procurement teams. We can hold allocated stock against a blanket order to ensure availability for scheduled maintenance windows and emergency replacement needs. Contact our sales team at sale@ninermas.com to discuss volume pricing and lead time commitments.

Q4: What should I do if the replacement 1746SC-IN04VI shows a channel fault after installation?
First, verify that the module is fully seated in the backplane and that the chassis power supply is within specification. Check the RSLogix 500 I/O configuration to confirm the channel data format and input range settings match the field transmitter output. If a channel fault persists, inspect the field wiring for open circuits, reversed polarity, or shield grounding issues. If the fault cannot be resolved through wiring and configuration checks, contact NINERMAS technical support — warranty replacement units are dispatched within 2 business days.
