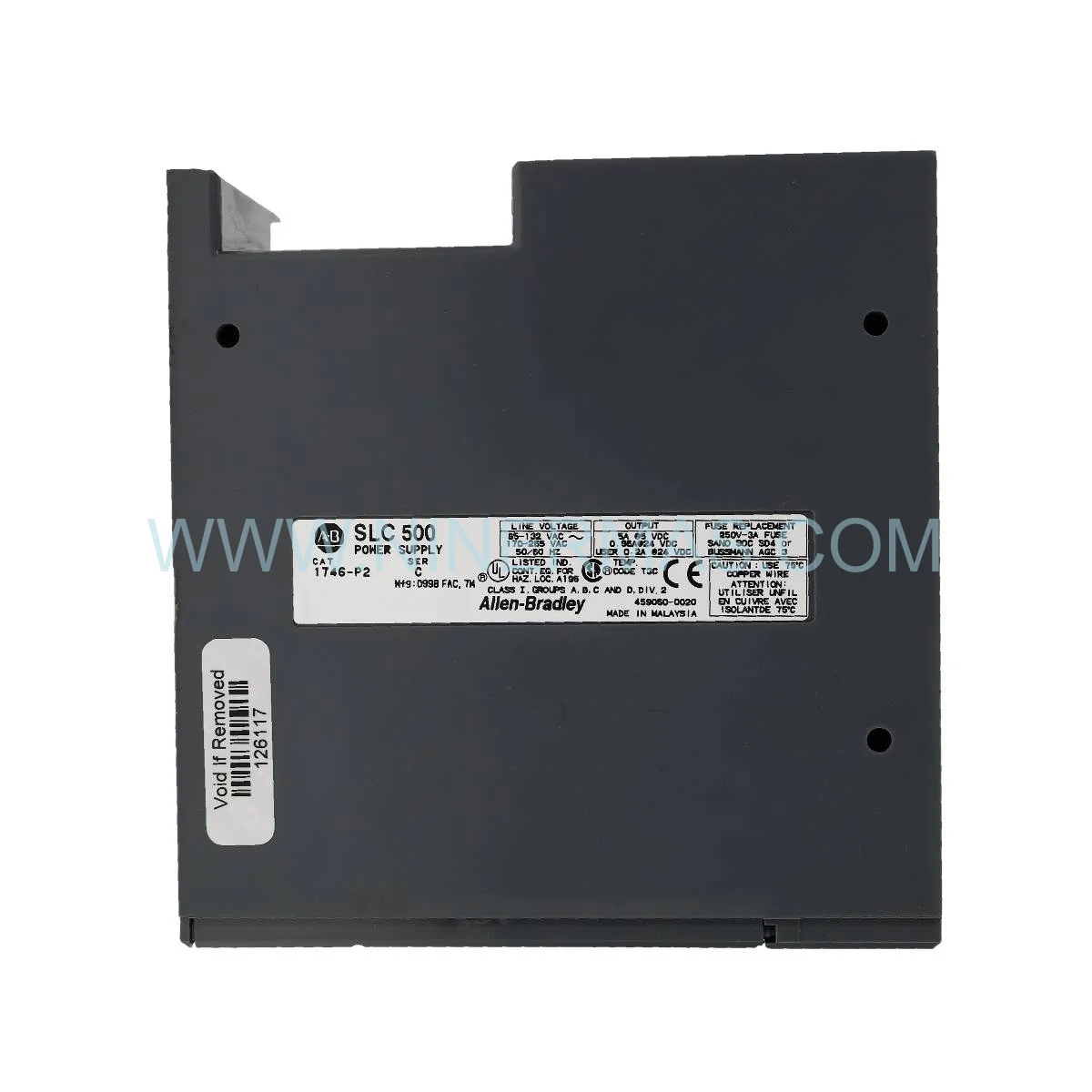

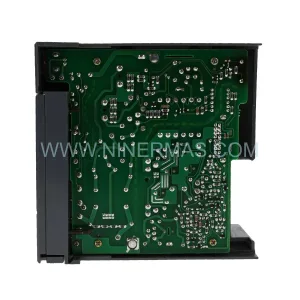

Allen-Bradley 1746-P2/C Power Supply Module (SLC 500) – New & Original

Allen-Bradley 1746-P2/C | Reliable Automation Component for SLC 500 Systems

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Allen-Bradley 1746-P2/C stands as a cornerstone of system availability in SLC 500-based automation architectures. Its dual-regulated output topology — delivering 5V DC at 10A for backplane logic and 24V DC at 1A for field instrumentation — eliminates the single-point failure risk associated with external power distribution, directly contributing to Operational Excellence on the plant floor. Integrating the 1746-P2/C into your control cabinet means fewer inter-panel wiring runs, reduced fault propagation paths, and a measurable improvement in Mean Time Between Failures (MTBF) for the overall control node.

Engineered to withstand the rigors of heavy industrial environments, the 1746-P2/C operates across a universal AC input range of 85-265V AC (47-63 Hz), making it inherently immune to voltage fluctuations common in foundries, chemical processing plants, and offshore installations. Its single-slot chassis footprint minimizes thermal crowding within the rack, while built-in overcurrent and overvoltage protection circuits guard downstream I/O Modules against transient surge events. During installation, engineers should verify chassis slot alignment and confirm backplane connector seating torque per Rockwell Automation publication 1746-IN009 to prevent intermittent contact faults under vibration.

For maintenance planners operating under lean spare-parts strategies, stocking the 1746-P2/C as a critical reserve component is non-negotiable. As SLC 500 platforms approach end-of-production lifecycle milestones, global supply of genuine, factory-sealed units becomes increasingly constrained. Securing verified OEM stock now ensures uninterrupted Process Optimization workflows and eliminates costly emergency procurement delays during unplanned outages.

Key Operational Features

Universal AC Input (85-265V AC): Seamless System Integration across international grid standards without step-down transformers.
Dual Regulated Outputs (5V DC / 24V DC): Simultaneous backplane and field-device power from a single Automation Component.
High Availability Design: Supports N+1 Redundancy configurations in 1746-A10 or larger chassis for zero-downtime operation.
Overcurrent & Overvoltage Protection: Hardware-level safeguards protect I/O Modules and connected field devices.
74W Total Output Capacity: Sufficient headroom for fully populated SLC 500 racks with mixed digital and analog I/O.
RoHS / CE / UL Certified: Meets global compliance requirements for Mission-Critical industrial deployments.
Compact Single-Slot Form Factor: Maximizes usable rack slots for additional I/O expansion.

Maintenance & Performance Benchmarks

The 1746-P2/C is architected to serve as the power backbone across a broad spectrum of industrial network scales — from standalone 4-slot SLC 500 micro-racks in OEM machinery to multi-chassis distributed I/O networks spanning entire production cells. In small-scale deployments, its 74W output comfortably sustains a full complement of 1746-series digital and analog I/O Modules without thermal derating. In larger architectures utilizing chassis interconnect cabling, each chassis node requires its own dedicated 1746-P2/C, ensuring isolated power domains that prevent cross-chassis fault propagation — a critical design principle for Mission-Critical automation segments.

Field performance data from SRE teams in automotive and food & beverage sectors consistently reports output voltage stability within ±1% under dynamic load cycling, confirming the module’s suitability for precision analog signal conditioning applications. Preventive maintenance intervals of 36-48 months are recommended, including capacitor ESR checks and output ripple measurement (target: <50mV peak-to-peak on 5V rail) to proactively identify aging components before they impact system uptime.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1746-P2/C unit dispatched from our facility is sourced directly from authorized distribution channels and ships in Original Factory Packaging with full traceability documentation. For in-stock orders, same-day dispatch is available on confirmed purchases placed before the daily cut-off, ensuring your production line receives the replacement component with minimal downtime exposure.

We specialize in global supply of EOL (End-of-Life) and Legacy Automation Components, maintaining strategic inventory buffers specifically for discontinued or hard-to-source SLC 500 platform modules. Whether you are sourcing a single emergency replacement or building a multi-unit strategic spare pool, our logistics network covers express delivery to North America, Europe, Southeast Asia, the Middle East, and beyond. All shipments include commercial invoice, packing list, and optional third-party inspection certificates upon request.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 1746-P2/C in an existing SLC 500 chassis?
A: Power down the entire chassis before installation. Slide the 1746-P2/C into Slot 0 (leftmost position), ensuring the backplane connector engages fully. Secure the module latch, then reconnect AC input wiring per the terminal block labeling (L1, L2/N, PE). Restore power and verify the green PWR LED illuminates steadily before enabling the processor.

Q2: Which firmware versions of the SLC 5/03, 5/04, and 5/05 processors are compatible with the 1746-P2/C?
A: The 1746-P2/C is a hardware power supply with no firmware dependency. It is electrically compatible with all SLC 500 processor series (5/01 through 5/05) and all firmware revisions, as it interfaces exclusively at the backplane power rail level.

Q3: Can the 1746-P2/C support a fully loaded 10-slot chassis with mixed analog and digital I/O Modules?
A: Yes, provided total backplane current draw does not exceed 10A on the 5V rail and 1A on the 24V rail. Consult the chassis power budget worksheet in Rockwell publication 1746-UM001 to calculate aggregate I/O Module current consumption before finalizing the configuration.

Q4: How does the warranty claim process work for this module?
A: Our 1-year warranty covers manufacturing defects and verified performance deviations from published specifications. To initiate a claim, contact sale@ninermas.com with your order reference, a description of the fault symptom, and photographic evidence. RMA authorization is typically issued within 24 business hours, with replacement or repair completed within 7-10 business days.

Q5: Is the 1746-P2/C suitable for use in hazardous (Class I, Division 2) locations?
A: The standard 1746-P2/C is not rated for Class I, Div 2 environments in open-frame configuration. For hazardous area deployments, the module must be installed within a suitably rated purged or pressurized enclosure meeting NFPA 496 or IEC 60079-2 standards.

Q6: What distinguishes Series C (/C) from earlier series revisions?
A: The Series C designation reflects Rockwell Automation’s incremental design refinement, incorporating enhanced EMI/RFI filtering on the AC input stage and improved thermal management of internal switching components. Series C units exhibit lower conducted emissions and extended operational life under continuous high-load conditions compared to Series A and B predecessors.
