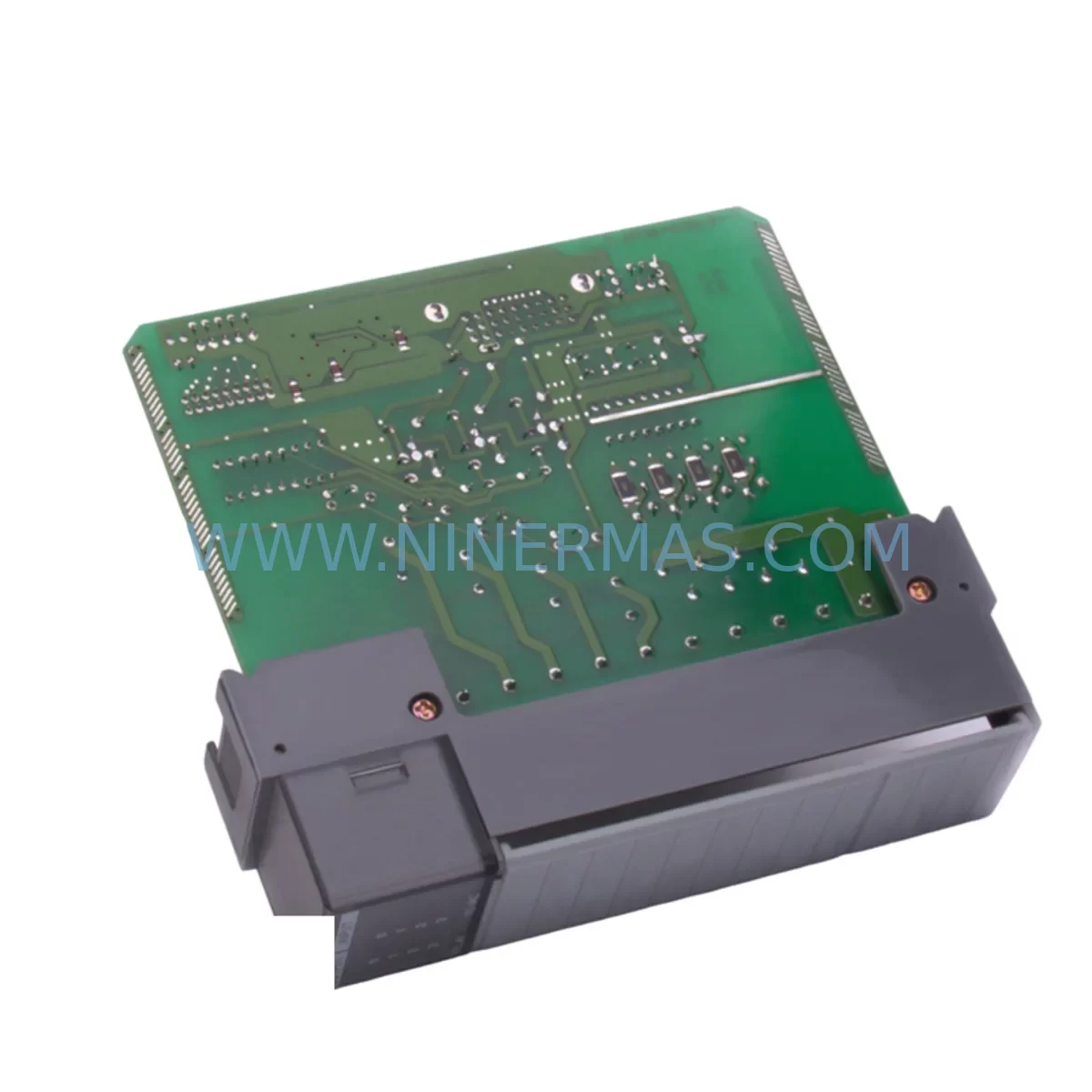

The Allen-Bradley 1746-NOI4I is a 4-channel isolated analog output module designed for the SLC 500 modular I/O system. As a critical component in process control and industrial automation environments, this module delivers precise 4–20 mA current output signals to field devices including control valves, variable frequency drives, and positioners. For maintenance engineers managing aging SLC 500 control systems, securing a verified, service-ready replacement of the 1746-NOI4I is essential to minimizing unplanned downtime and sustaining production continuity.

At NINERMAS, every 1746-NOI4I unit is sourced, inspected, and tested prior to dispatch. Whether you are responding to an emergency shutdown, executing a planned annual overhaul, or building out your critical spare parts inventory, this module ships ready for immediate installation. With a 12-month warranty and long-term supply commitment, NINERMAS supports your maintenance strategy from first contact through post-installation follow-up.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 1746-NOI4I in a live SLC 500 system, a thorough site assessment goes well beyond swapping the module itself. Maintenance engineers should treat this replacement as an opportunity to audit the surrounding electrical environment and reduce the risk of repeat failures.

Begin by inspecting the 1746-P4 or 1746-P7 power supply module that feeds the chassis. A degraded power supply delivering unstable 24V DC is a common root cause of analog output drift and module faults. Verify output voltage under load before commissioning the new 1746-NOI4I. Next, check the 1746-A7 or 1746-A10 chassis backplane for signs of corrosion, bent connector pins, or thermal stress — a compromised backplane can cause intermittent communication errors that are difficult to diagnose after the fact.

Review the 1747-L543 or 1747-L553 SLC 5/04 or 5/05 processor firmware version and I/O configuration file to confirm the output module is correctly mapped. Mismatched configuration files after a module swap are a frequent source of commissioning delays. If the system uses 1747-SDN DeviceNet Scanner or 1747-KFC15 ControlNet communication modules, verify that network node addresses and scan lists remain intact after the replacement.

On the field wiring side, inspect the 1492-IFM terminal block interface modules and associated field wiring for insulation breakdown, loose terminations, or moisture ingress — particularly in outdoor or high-humidity enclosures. Corroded terminals can introduce resistance that distorts the 4–20 mA signal and causes process deviations even with a healthy output module installed.

For systems with signal conditioning requirements, check any installed signal isolators or loop-powered transmitter barriers in the analog output circuit. These components age independently of the PLC module and may introduce offset errors if not verified. If the output drives a PowerFlex 40 or PowerFlex 70 variable frequency drive, confirm the drive’s analog input scaling and reference source settings have not been altered during the fault event.

Finally, review the 1746-NI4 or 1746-NI8 analog input modules in the same chassis for any correlated fault history. In many process control loops, an analog output fault is accompanied by upstream analog input anomalies that indicate a broader signal integrity issue rather than an isolated module failure. Addressing these concurrently reduces the likelihood of a repeat shutdown.

Site Replacement Workflow

Replacing the 1746-NOI4I follows a structured procedure to ensure system compatibility and minimize downtime. Before beginning, place the SLC 500 processor in Program Mode via RSLogix 500 or the keyswitch on the processor faceplate. This prevents unintended output activation during the swap.

Power down the chassis using the 1746-P4/P7 power supply switch and allow capacitors to discharge for a minimum of 30 seconds. Remove the existing module by releasing the top and bottom locking tabs and sliding it out of the I/O slot. Inspect the slot connector on the backplane for debris or damage before inserting the replacement 1746-NOI4I.

Seat the new module firmly until both locking tabs engage. Restore chassis power and observe the module status LED — a solid green indicates normal operation, while a flashing red indicates a configuration mismatch or wiring fault. Use RSLogix 500 to verify the module’s I/O configuration matches the existing program file. If the original module was configured with custom scaling or engineering unit conversion, confirm these parameters are correctly applied in the output instruction (OTE/MOV) rungs.

Perform a loop check on all four output channels by commanding known mA values from the processor and verifying the corresponding signal at the field device terminals. Document the as-found and as-left readings for your maintenance records. Return the processor to Run Mode only after all channels have been verified. This workflow is equally applicable when upgrading from an older 1746-NO4I (non-isolated) to the isolated 1746-NOI4I variant, which offers improved noise immunity in electrically noisy environments.
