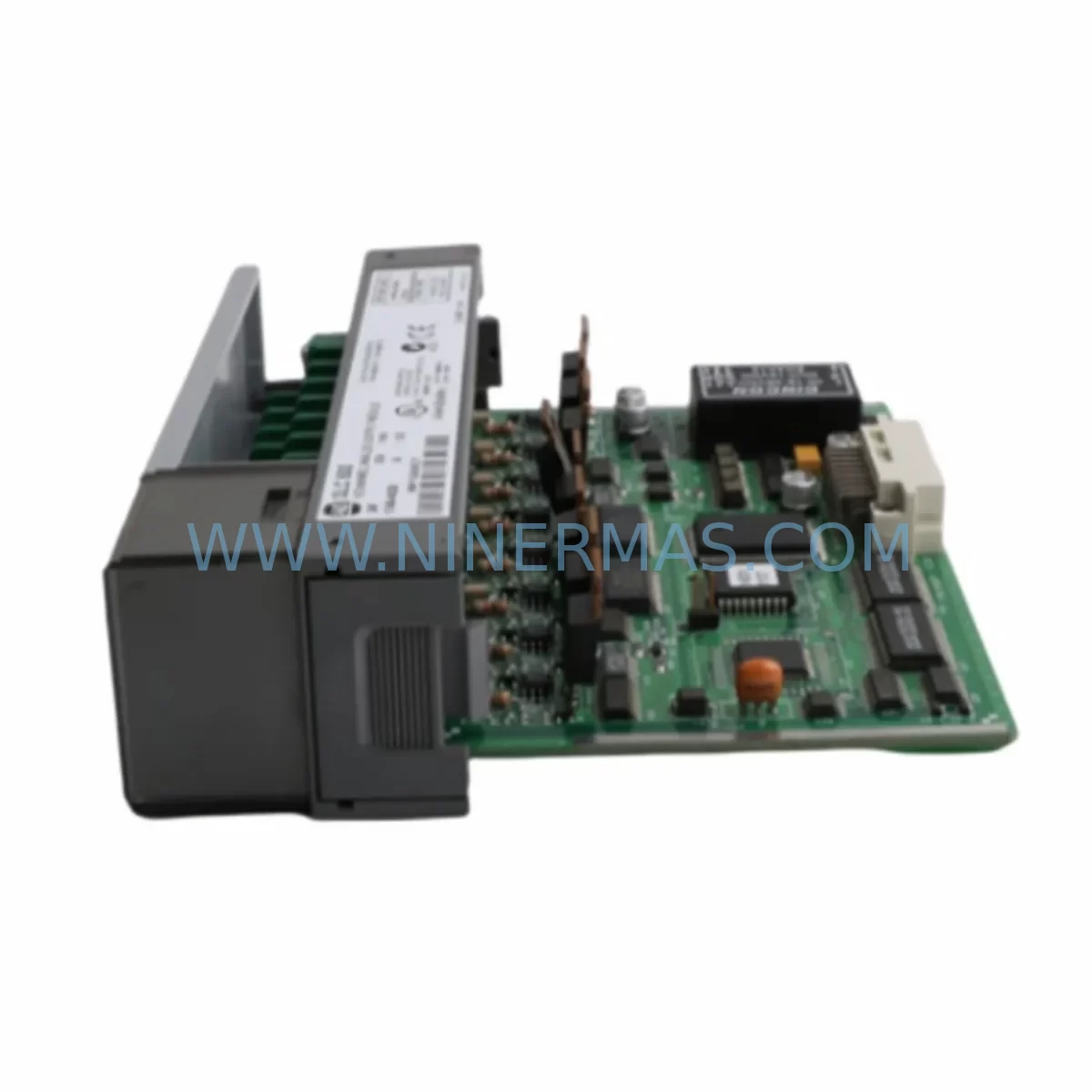

The Allen-Bradley 1746-NO8V is an 8-channel analog voltage output module designed for the SLC 500 modular I/O platform. As legacy SLC 500 systems approach end-of-life and original spare parts become increasingly scarce, the 1746-NO8V remains a critical component for engineers managing retrofit projects, control cabinet upgrades, and production line continuity. NINERMAS maintains verified stock of the 1746-NO8V to support planned and emergency replacement scenarios, backed by a 12-month warranty on every unit shipped.

Whether you are replacing a failed output module on an active production line, migrating analog signal chains from an aging SLC 5/03 or SLC 5/04 processor platform, or consolidating I/O racks ahead of a phased ControlLogix migration, the 1746-NO8V provides the electrical and mechanical compatibility required to minimize engineering rework. Each module outputs 0–10 VDC or ±10 VDC signals across eight independently configurable channels, making it suitable for valve positioners, variable-speed drive references, proportional control loops, and process setpoint transmission in legacy automation architectures.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 1746-NO8V retrofit begins well before the module arrives on site. Engineers should start by auditing the existing SLC 500 chassis configuration — confirming the chassis model (1746-A4, 1746-A7, 1746-A10, or 1746-A13), the slot assignment of the outgoing module, and the I/O image table addresses mapped in the active RSLogix 500 program. Slot addressing errors are among the most common causes of commissioning delays, and verifying the output file (O:e.s) mapping before physical installation eliminates the majority of post-swap faults.

Terminal wiring on the 1746-NO8V uses a removable screw-terminal block, which simplifies field replacement without rewiring field devices. Before disconnecting the existing module, photograph or document the terminal assignments for each of the eight output channels. Field devices connected to the analog outputs — including valve actuators, variable-frequency drive (VFD) speed reference inputs, and process controllers — should be confirmed against the module’s output voltage range to avoid signal mismatch after replacement.

Power budget verification is essential when adding or replacing modules in an existing SLC 500 chassis. The 1746-NO8V draws current from the 1746 backplane power supply — typically a 1746-P1, 1746-P2, or 1746-P4 unit. Confirm that the chassis power supply has sufficient remaining capacity to support the replacement module alongside existing I/O, including any 1746-IB16 digital input modules, 1746-OB16 digital output modules, 1746-NI8 analog input modules, or 1746-NIO4I combination I/O modules already installed in the rack. Overloaded power supplies are a frequent root cause of intermittent module faults in aging SLC 500 installations.

For sites planning a phased migration toward a ControlLogix or CompactLogix platform, the 1746-NO8V can serve as a bridge component — maintaining analog output continuity on the legacy SLC 500 rack while the new 1756 or 1769 chassis is commissioned in parallel. During this transition period, communication links between the legacy SLC processor and upstream SCADA or DCS systems — whether over DH+ using a 1784-KTX card, DH-485, or Ethernet/IP via an SLC 5/05 — should be validated to ensure data integrity is maintained across both platforms. HMI screens built in PanelView or FactoryTalk View should be reviewed to confirm that analog output tags remain correctly mapped throughout the cutover window.

Where signal isolation is required between the SLC 500 analog outputs and field devices — particularly in environments with ground loops, long cable runs, or high electrical noise — signal isolators or loop-powered isolators should be incorporated into the wiring design. This is especially relevant in retrofit scenarios where the original installation predates modern grounding standards.

Downtime Control During System Migration

Minimizing unplanned downtime during a 1746-NO8V replacement requires a structured pre-outage checklist. Before taking the SLC 500 system offline, back up the active processor program using RSLogix 500 and store a verified copy offline. Confirm that all analog output channels are in a safe state — either at zero output or at a defined hold-last-value condition — before removing power from the chassis. For processes where analog outputs drive continuous control loops (e.g., temperature regulation, flow control, or pressure setpoint), coordinate with operations to place the affected loops in manual mode at the field controller or DCS level before the module swap begins.

Physical module replacement on the SLC 500 platform is straightforward: power down the chassis, remove the terminal block, extract the module from the slot, insert the replacement 1746-NO8V, reconnect the terminal block, and restore power. The processor will perform an I/O configuration check on startup — if the replacement module matches the original slot configuration, the processor will resume normal operation without requiring a program download. If the slot configuration has changed or the module type differs from the stored configuration, RSLogix 500 will flag a configuration mismatch that must be resolved before the processor returns to Run mode.

Post-installation verification should include a channel-by-channel output test using RSLogix 500’s online monitoring mode, confirming that each of the eight analog output channels responds correctly to commanded values. Field device responses — valve positions, VFD speed feedback, or process variable readings — should be cross-checked against expected values before returning the system to automatic control. Documenting the commissioning test results provides a baseline for future maintenance and supports warranty claims if module performance issues arise within the 12-month warranty period.

For sites with strict uptime requirements, NINERMAS recommends maintaining at least one spare 1746-NO8V in the local control room inventory. Given the discontinued status of many SLC 500 components, lead times for emergency procurement can extend significantly — having a pre-tested spare on hand reduces mean time to repair (MTTR) to the duration of the physical swap and commissioning check rather than the full procurement and delivery cycle.

Retrofit Support FAQ

Q1: Is the 1746-NO8V a direct replacement for a failed unit in an existing SLC 500 rack?
Yes. The 1746-NO8V is a direct slot-compatible replacement for any existing 1746-NO8V installation. No program changes are required provided the slot address and I/O image table mapping remain unchanged. NINERMAS ships units with pre-shipment functional testing completed and includes a 12-month warranty covering manufacturing defects and operational failures.

Q2: What commissioning steps are required after installing a replacement 1746-NO8V?
After physical installation, power up the SLC 500 chassis and connect RSLogix 500 via RSLinx Classic. Verify that the processor recognizes the module in the correct slot without configuration faults. Use the online data monitor to force output values on each channel and confirm field device response. Return all loops to automatic mode only after all eight channels have been verified. Retain commissioning records for warranty documentation purposes.

Q3: Can the 1746-NO8V be used during a phased migration to ControlLogix?
Yes. The 1746-NO8V can remain in service on the legacy SLC 500 rack while a new ControlLogix or CompactLogix system is commissioned in parallel. This approach allows analog output continuity to be maintained on the existing production process while the new platform is validated. Once the migration is complete and the new 1756-OF8 or 1769-OF8C analog output modules are confirmed operational, the SLC 500 rack can be decommissioned in a controlled manner.

Q4: What is NINERMAS’s stock availability and warranty policy for the 1746-NO8V?
NINERMAS maintains verified inventory of the 1746-NO8V to support both planned retrofit projects and emergency replacement requirements. All units are subject to pre-shipment functional testing. A 12-month warranty is provided on every unit, covering manufacturing defects and operational failures under normal operating conditions. For volume procurement, long-term spare parts programs, and lead-time commitments, contact our sales team directly.
