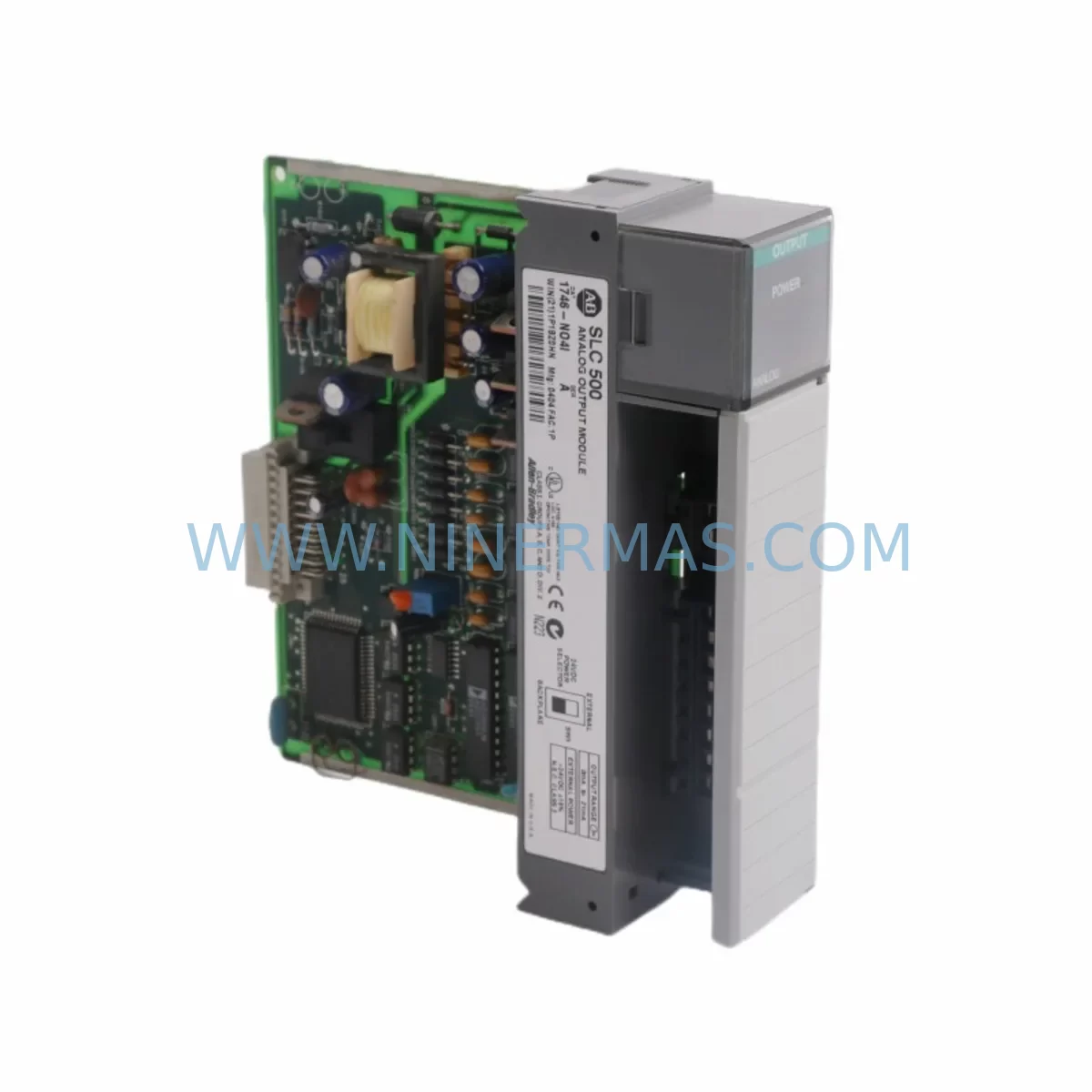

The Allen-Bradley 1746-NO4I is a 4-channel analog output module designed for the SLC 500 programmable controller platform. In critical industrial environments — including petrochemical processing, power generation, mining operations, water treatment facilities, metallurgical plants, and continuous manufacturing lines — reliable analog output performance is non-negotiable. Signal drift, output interruption, or module failure in these settings can trigger unplanned shutdowns, safety interlock faults, or process deviations that carry significant operational and safety consequences.

The 1746-NO4I delivers current output (4–20 mA) across four independent channels, providing precise process control signals to field devices such as control valves, variable frequency drives, and positioners. Its design supports stable operation in environments subject to electrical noise, vibration, temperature variation, and humidity — conditions routinely encountered in heavy industrial control cabinets. When integrated into a well-maintained SLC 500 rack, this module contributes directly to control loop integrity and reduces the risk of nuisance trips or uncontrolled process excursions.

At NINERMAS, every 1746-NO4I unit is sourced, inspected, and tested prior to shipment. We maintain long-term inventory to support both emergency replacement and planned maintenance procurement cycles. All units are backed by a 12-month warranty.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

When replacing the 1746-NO4I in a live SLC 500 control cabinet, a disciplined inspection of surrounding components is essential to prevent repeat failures and ensure the restored system operates safely. Analog output faults are rarely isolated events — they are often symptomatic of broader power quality issues, wiring degradation, or backplane stress.

Begin by verifying the condition of the 1746-P4 or 1746-P7 power supply module, which feeds the SLC 500 chassis. A degraded power supply can cause erratic analog output behavior, false fault codes, and premature module failure. Inspect the 1746-A4, 1746-A7, or 1746-A10 chassis backplane for signs of corrosion, bent connector pins, or heat damage — backplane integrity is critical for stable module communication.

Review the 1746-NI4 or 1746-NI8 analog input modules installed in the same rack. In closed-loop control applications, analog input and output modules work in tandem; a fault in one can mask or amplify issues in the other. Similarly, inspect any 1746-OB16 or 1746-OW16 digital output modules sharing the chassis, as high-current switching loads on digital outputs can introduce noise that affects analog signal quality.

Check the 1747-L543 or 1747-L553 SLC 5/04 or 5/05 processor module for firmware currency and memory integrity. Outdated firmware can cause scan time anomalies that affect analog output update rates. If the system uses 1747-SDN DeviceNet Scanner or 1747-SN Remote I/O Scanner modules for distributed I/O, verify that communication health indicators show no persistent faults.

Inspect field wiring terminations at the 1492-IFM series interface modules or terminal blocks connected to the 1746-NO4I output channels. Loose or corroded terminals are a leading cause of 4–20 mA signal drift in field devices. Where surge protection is not already installed, consider adding Phoenix Contact or Weidmüller signal surge protectors on analog output lines running to field instruments in exposed or high-EMI environments.

Finally, if the control cabinet serves a safety-critical interlock function, coordinate the replacement with the site safety team and verify that the process is in a safe state or that bypass procedures are in place before removing the module.

Critical Industrial Safety Applications

The Allen-Bradley 1746-NO4I is widely deployed across industries where precise, continuous analog output is a prerequisite for safe and efficient operation.

In petrochemical and refining plants, the module drives control valve positioners in distillation columns, reactor feed systems, and pressure control loops. Signal interruption in these applications can trigger emergency shutdowns or, in worst cases, process upsets with safety implications. Maintaining a stocked spare ensures rapid restoration without extended downtime.

In power generation facilities — including thermal, hydro, and co-generation plants — the 1746-NO4I is used to control turbine governor systems, boiler feed water valves, and excitation control loops. These are high-consequence control points where module availability directly affects plant output stability.

In mining and mineral processing operations, the module controls conveyor speed references via VFD analog inputs, slurry pump flow control, and flotation cell reagent dosing. The harsh environment — characterized by dust, vibration, and wide temperature swings — demands modules that have been properly tested and verified before installation.

In water and wastewater treatment facilities, the 1746-NO4I manages dosing pump speed, valve positioning for flow control, and aeration blower output. Regulatory compliance in these facilities depends on consistent, accurate analog output performance.

In metallurgical and steel production environments, the module is used in rolling mill tension control, furnace temperature regulation, and cooling water flow management — all applications where output accuracy and reliability are directly tied to product quality and worker safety.

Across port and marine terminal automation systems, the 1746-NO4I supports crane drive control, mooring winch speed regulation, and ballast system management — environments where electrical noise from large motor drives is a persistent challenge to analog signal integrity.

Safety and Quality FAQ

Q1: Does the 1746-NO4I come with a warranty, and what does it cover?
Every 1746-NO4I supplied by NINERMAS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full technical support to resolve the issue. Our warranty terms are straightforward — no hidden exclusions for industrial use environments.

Q2: How is the module tested before shipment?
Each unit undergoes a functional pre-shipment test to verify analog output channel performance, backplane communication integrity, and power consumption within specification. We do not ship untested stock. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 1746-NO4I compatible with all SLC 500 chassis and processors?
The 1746-NO4I is compatible with all standard SLC 500 modular chassis (1746-A4, A7, A10, A13) and all SLC 500 processor families including the SLC 5/01 through SLC 5/05. It is not compatible with the SLC 500 fixed hardware platform. Always verify chassis slot availability and power supply capacity before installation, particularly in fully populated racks.

Q4: Can NINERMAS support long-term or repeat supply of the 1746-NO4I?
Yes. NINERMAS maintains ongoing inventory of the 1746-NO4I and related SLC 500 components to support both emergency procurement and scheduled maintenance programs. We work with maintenance engineers and procurement teams to establish supply agreements that reduce lead time risk for legacy system support. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your requirements.
