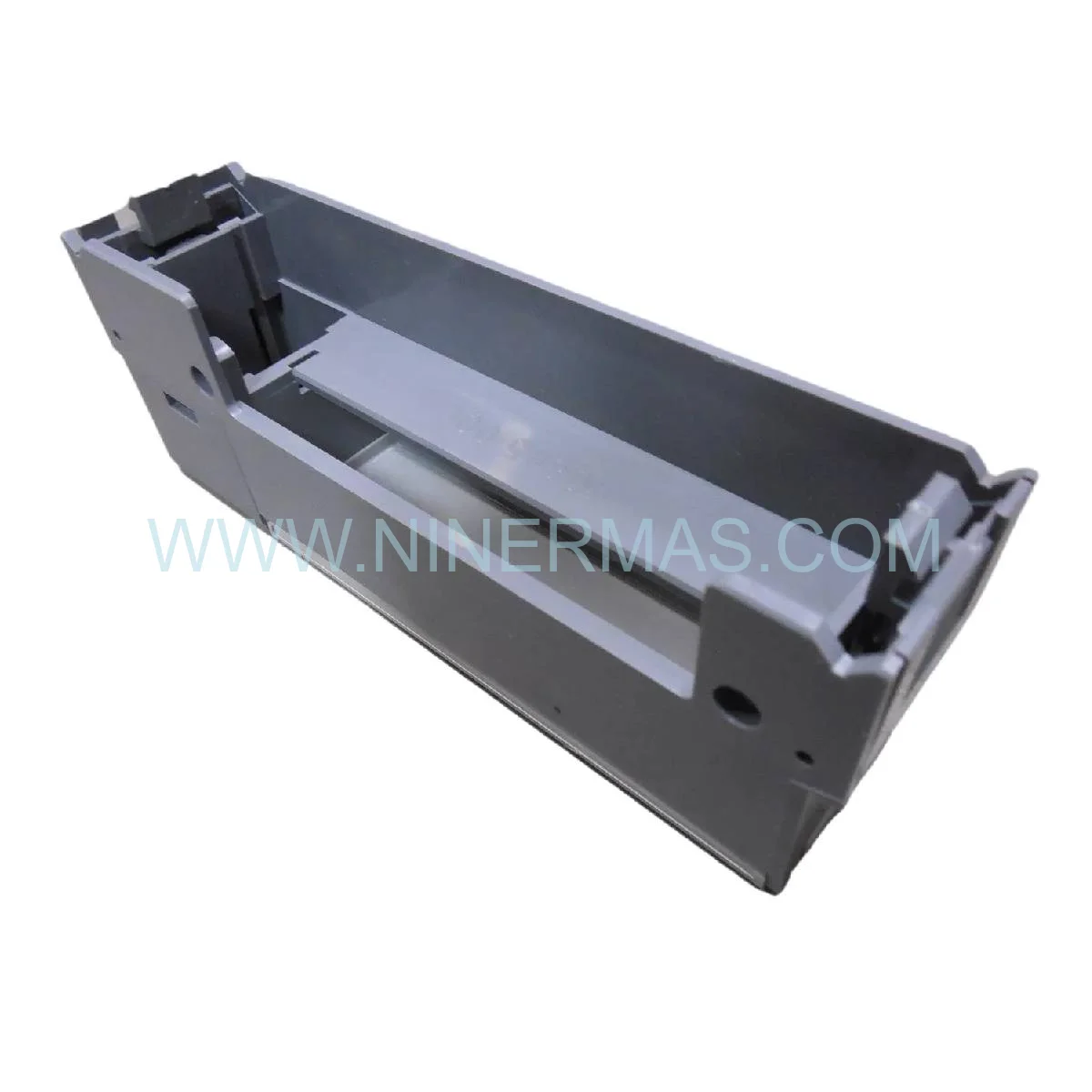

Allen-Bradley 1746-N2 SLC 500 Slot Filler Module — New & Original

Allen-Bradley 1746-N2 SLC 500 Slot Filler Module | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Allen-Bradley 1746-N2 is far more than a passive chassis accessory — it is a frontline defense component in sustaining system availability. Deployed within SLC 500 modular chassis architectures, the 1746-N2 eliminates the risk of unplanned downtime caused by particulate ingress, backplane signal degradation, and thermal imbalance in unoccupied slot positions. In high-uptime environments where every minute of stoppage translates to measurable financial loss, this module is a non-negotiable element of Operational Excellence.

In demanding industrial settings — foundries, chemical processing facilities, and heavy-duty packaging lines — the 1746-N2 demonstrates exceptional durability across wide thermal cycles (0°C to 60°C operating range) and high-humidity conditions up to 95% non-condensing. Field installation requires zero tooling: the module seats directly into any vacant SLC 500 chassis slot, immediately restoring designed airflow channels and EMI shielding continuity. Engineers should verify chassis slot alignment and backplane connector integrity prior to insertion to prevent mechanical stress on the bus interface.

As a critical spare-parts strategy, maintaining a buffer stock of the 1746-N2 is strongly recommended for any facility operating SLC 500 platforms. Given the end-of-life trajectory of legacy PLC infrastructure, sourcing original factory-sealed units from verified distributors ensures long-term system integration continuity without costly platform migrations.

Key Operational Features

Backplane Signal Integrity: Preserves seamless data transmission across active I/O Modules without introducing latency or noise artifacts.
Thermal Redundancy Support: Restores OEM-designed airflow patterns, protecting adjacent automation components from thermal stress.
EMI Containment: Shields open chassis slots from electromagnetic interference, reducing susceptibility in neighboring process control modules.
High Availability Design: Enables phased system expansion — reserve slots remain protected until additional I/O Modules are commissioned.
Seamless Integration: Compatible with all SLC 500 chassis variants (1746-A4, A7, A10, A13) with zero firmware configuration required.
Mission-Critical Reliability: Manufactured to Allen-Bradley’s industrial-grade standards, validated for continuous operation in harsh process environments.

Maintenance & Performance Benchmarks

The 1746-N2 is engineered to adapt across diverse industrial network architectures — from compact 4-slot standalone controllers to fully distributed 13-slot multi-rack configurations. In large-scale System Integration projects, maintaining slot filler discipline across all chassis reduces aggregate thermal load variance by ensuring uniform airflow resistance throughout the backplane assembly.

Preventive maintenance protocols should include periodic inspection of slot filler seating integrity, particularly in high-vibration environments such as press lines or compressor rooms. The module’s passive design eliminates firmware dependencies, meaning it remains fully functional regardless of SLC 500 processor firmware revision — a key advantage when managing legacy automation assets where firmware upgrades carry compatibility risk.

For facilities pursuing Process Optimization through predictive maintenance frameworks, the 1746-N2 contributes indirectly by stabilizing the thermal and electromagnetic baseline of the chassis, reducing false-positive fault triggers in adjacent analog and digital I/O Modules. This baseline stability is a measurable contributor to overall equipment effectiveness (OEE) in automated production cells.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Allen-Bradley 1746-N2 unit dispatched from our inventory is supplied in Original Factory Packaging, complete with manufacturer labeling and traceability documentation. For time-sensitive maintenance scenarios, same-day dispatch is available on confirmed in-stock orders placed before the daily cut-off window — minimizing production line exposure during unplanned outages.

We specialize in global supply chain solutions for EOL (End-of-Life) and legacy automation components, including the full SLC 500 product family. Whether you are sourcing a single replacement unit or establishing a strategic buffer inventory for multi-site operations, our procurement network spans certified distributors across North America, Europe, and Asia-Pacific. All units undergo pre-shipment verification to confirm part number authenticity and physical condition prior to export.

Worldwide express logistics options are available, with typical transit times of 3-7 business days to major industrial hubs globally. Customs documentation, commercial invoices, and certificate of origin are provided as standard for international shipments.

Engineering Support & FAQ

Q1: What is the correct installation procedure for the 1746-N2 in an active SLC 500 chassis?
A: Power down the SLC 500 chassis before inserting or removing any module, including the 1746-N2. Align the module with the chassis slot guides, apply firm even pressure until the backplane connector seats fully, and verify the module is flush with adjacent installed modules. No software configuration or I/O tree update is required.

Q2: Is the 1746-N2 compatible with all SLC 500 firmware versions?
A: Yes. As a passive mechanical component, the 1746-N2 carries no firmware dependency and is fully compatible with all SLC 500 processor revisions, from early Series A hardware through current production variants.

Q3: Can the 1746-N2 be used in ControlLogix or MicroLogix chassis?
A: No. The 1746-N2 is exclusively designed for the SLC 500 modular chassis platform. ControlLogix systems require 1756-series slot fillers; MicroLogix platforms use fixed I/O architecture and do not accept slot filler modules.

Q4: What is the warranty coverage and claim process?
A: All units are covered by a 1-Year Warranty against manufacturing defects and material failures from the date of shipment. To initiate a warranty claim, contact our technical support team via email with your order reference number, a description of the observed fault, and photographic evidence. Replacement units are dispatched upon claim verification, typically within 3-5 business days.

Q5: How does the 1746-N2 contribute to EMI reduction in mixed analog/digital I/O configurations?
A: Open chassis slots create discontinuities in the chassis enclosure’s electromagnetic shielding. The 1746-N2 restores the conductive boundary of the chassis, reducing radiated EMI ingress that can induce noise on adjacent analog input channels — a common source of erratic process readings in precision measurement applications.

Q6: Are original Allen-Bradley 1746-N2 units distinguishable from aftermarket alternatives?
A: Genuine Allen-Bradley units feature Rockwell Automation’s holographic authenticity label, precise injection-molded housing tolerances, and full manufacturer part number silk-screening. We supply exclusively OEM-sourced inventory; counterfeit or remanufactured units are not accepted into our supply chain.
