Allen-Bradley 1746-IO8 Retrofit-Compatible Combination I/O Module

Allen-Bradley 1746-IO8 Retrofit-Compatible Combination I/O Module: Legacy SLC 500 System Modernization & Smooth Upgrade

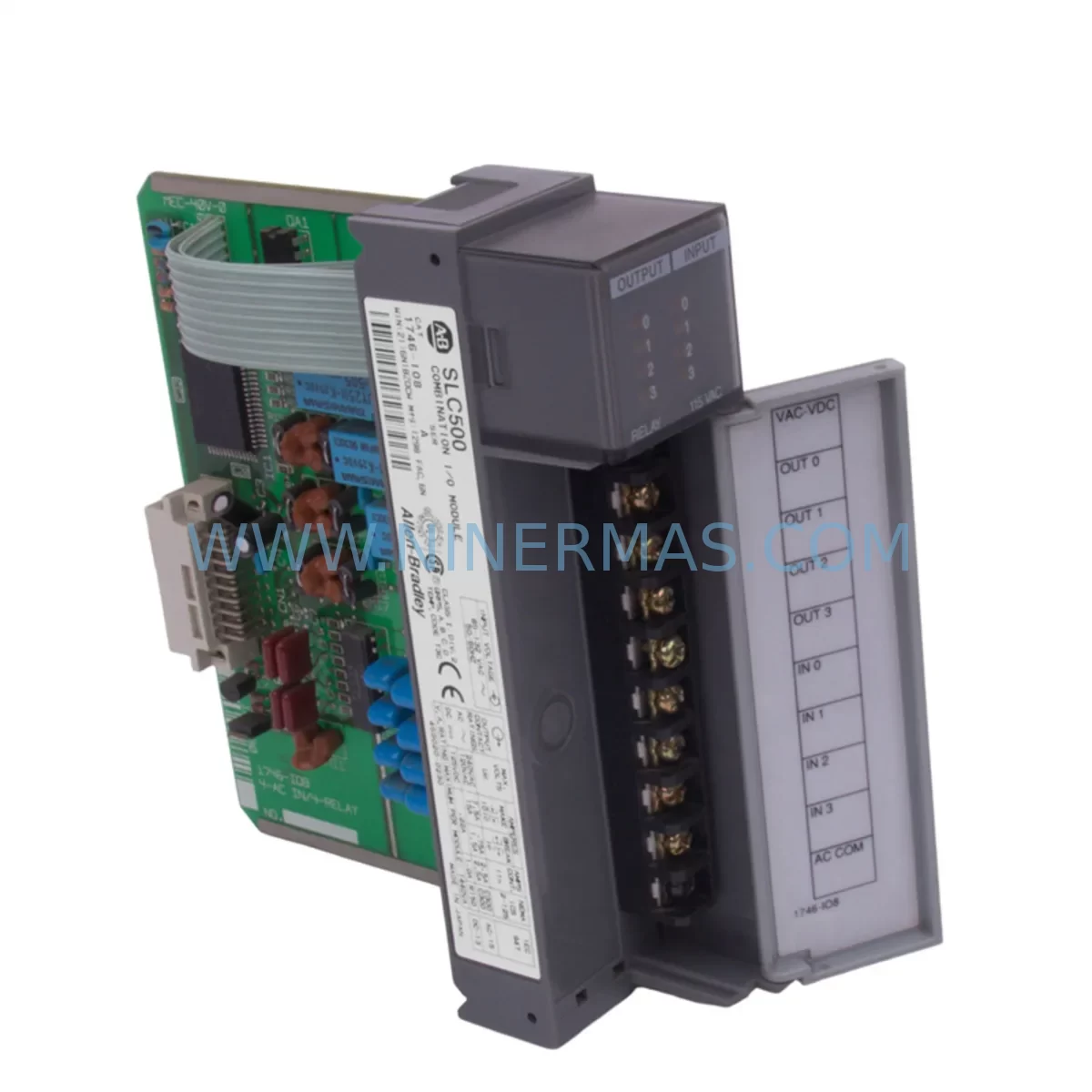

The Allen-Bradley 1746-IO8 is a ruggedized combination I/O module designed for the SLC 500 programmable controller platform, offering 4 DC inputs and 4 relay outputs in a single slot-width form factor. As industrial facilities continue to operate aging SLC 500 control systems well beyond their original design life, the 1746-IO8 remains a critical component for maintaining production continuity, extending system lifespan, and bridging the gap between legacy infrastructure and modern automation demands.

NINERMAS maintains verified inventory of the 1746-IO8 to support retrofit projects, emergency replacements, and planned system upgrades across manufacturing, utilities, oil & gas, water treatment, and heavy industry sectors. Each unit ships with a 12-month warranty and undergoes pre-shipment functional testing to ensure field-ready performance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 1746-IO8 within an operational SLC 500 system requires a structured approach that accounts for both hardware compatibility and software continuity. Before initiating a module swap, engineers should document the existing I/O address assignments using RSLogix 500 and export the current program as a backup. The 1746-IO8 occupies a single slot in the 1746-series chassis — commonly the 1746-A4 (4-slot), 1746-A7 (7-slot), or 1746-A10 (10-slot) — and the replacement module must be inserted into the identical slot position to preserve the processor’s I/O map without requiring a program edit.

Power budget verification is essential before adding or replacing any module in the 1746 chassis. The 1746-P1, 1746-P2, or 1746-P4 power supply must have sufficient backplane current capacity to support the 1746-IO8 alongside other installed modules such as the 1746-IB16 (16-point DC input), 1746-OB16 (16-point DC output), or 1746-NI4 (analog input). Exceeding the power supply’s rated backplane current will cause erratic module behavior or system faults.

Terminal block wiring should be carefully documented before removal. The 1746-IO8 uses a removable terminal block, which simplifies field replacement — the wired terminal block can be transferred directly to the new module, reducing rewiring time and the risk of miswiring. Confirm that all field devices connected to the relay outputs are within the 2A per-point contact rating, and inspect suppression devices on inductive loads such as solenoids and motor starters.

For facilities migrating from SLC 500 to a ControlLogix or CompactLogix platform, the 1746-IO8 may serve as a transitional component during phased migration. In such scenarios, the SLC 500 system continues to operate while new 1769-series CompactLogix I/O modules — such as the 1769-IQ16 or 1769-OB16 — are installed in parallel on the new control panel. Communication between legacy and new systems can be maintained using a 1761-NET-AIC or 1747-SDN DeviceNet Scanner during the transition period.

HMI systems connected to the SLC 500 processor via DH-485 — such as PanelView 550 or PanelView 600 terminals — do not require screen modifications when the 1746-IO8 is replaced with an identical module, as the I/O tag addresses remain unchanged. However, if the migration path involves replacing the SLC 5/04 or SLC 5/05 processor with a 1769-L30ER CompactLogix, HMI screens will require retargeting to the new controller’s tag database.

Signal isolation requirements should also be evaluated during retrofit planning. In environments with high electrical noise — common in motor control centers, VFD panels, and welding cells — installing a signal isolator or barrier between field devices and the 1746-IO8 inputs can prevent nuisance faults and extend module service life. Programming cables such as the 1747-UIC USB-to-DH-485 adapter are required for online program monitoring and I/O force testing during commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing the 1746-IO8 in a live production environment. A structured hot-swap procedure — performed during a scheduled maintenance window — typically reduces module replacement time to under 30 minutes when the terminal block is pre-wired and the replacement module is on-site and pre-tested.

Before powering down the chassis slot, place the SLC 500 processor in Program mode via RSLogix 500 to suspend output execution and prevent unintended actuator movement. Export and save the current program file (.RSS) to a local workstation and a backup location. After inserting the 1746-IO8 replacement, restore power and perform a controlled I/O force test — individually forcing each input and output point to verify correct field device response before returning the processor to Run mode.

For critical processes where even brief interruptions are unacceptable, a parallel wiring strategy can be employed: the replacement module is installed in an adjacent available slot, field wiring is transferred point-by-point, and the program is updated to reference the new slot address — all while the original module remains active. This approach eliminates process interruption but requires an available chassis slot and careful program management.

NINERMAS supports time-critical retrofit projects with same-day shipping on verified stock items, pre-shipment functional testing documentation, and technical consultation on wiring, addressing, and commissioning procedures. Our 12-month warranty covers all supplied modules against manufacturing defects and functional failure under normal operating conditions.

Retrofit Support FAQ

Q1: Is the 1746-IO8 a direct drop-in replacement for a failed module in my existing SLC 500 chassis?
Yes. The 1746-IO8 is a direct slot-for-slot replacement within any 1746-series chassis (1746-A4, A7, A10, A13). Insert the module into the same slot position as the failed unit, reconnect the terminal block, and the existing RSLogix 500 program will recognize the module without modification. Perform an I/O force test before returning to production.

Q2: What pre-shipment testing does NINERMAS perform on the 1746-IO8?
Each 1746-IO8 unit undergoes functional verification prior to shipment, including backplane communication check, input signal response test, and relay output continuity verification. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the 1746-IO8 be used during a phased migration from SLC 500 to CompactLogix?
Yes. The 1746-IO8 can continue to operate within the existing SLC 500 system while new CompactLogix infrastructure is installed in parallel. This phased approach allows production to continue uninterrupted during migration planning, panel fabrication, and program development for the new platform.

Q4: What should I verify regarding power supply capacity before installing a replacement 1746-IO8?
Check the backplane current draw of all installed modules against the rated output of your 1746-series power supply (1746-P1, P2, or P4). The 1746-IO8 draws approximately 130mA from the 5V backplane bus. If the chassis is near its power budget limit, consider redistributing modules or upgrading to a higher-capacity power supply before installation.
