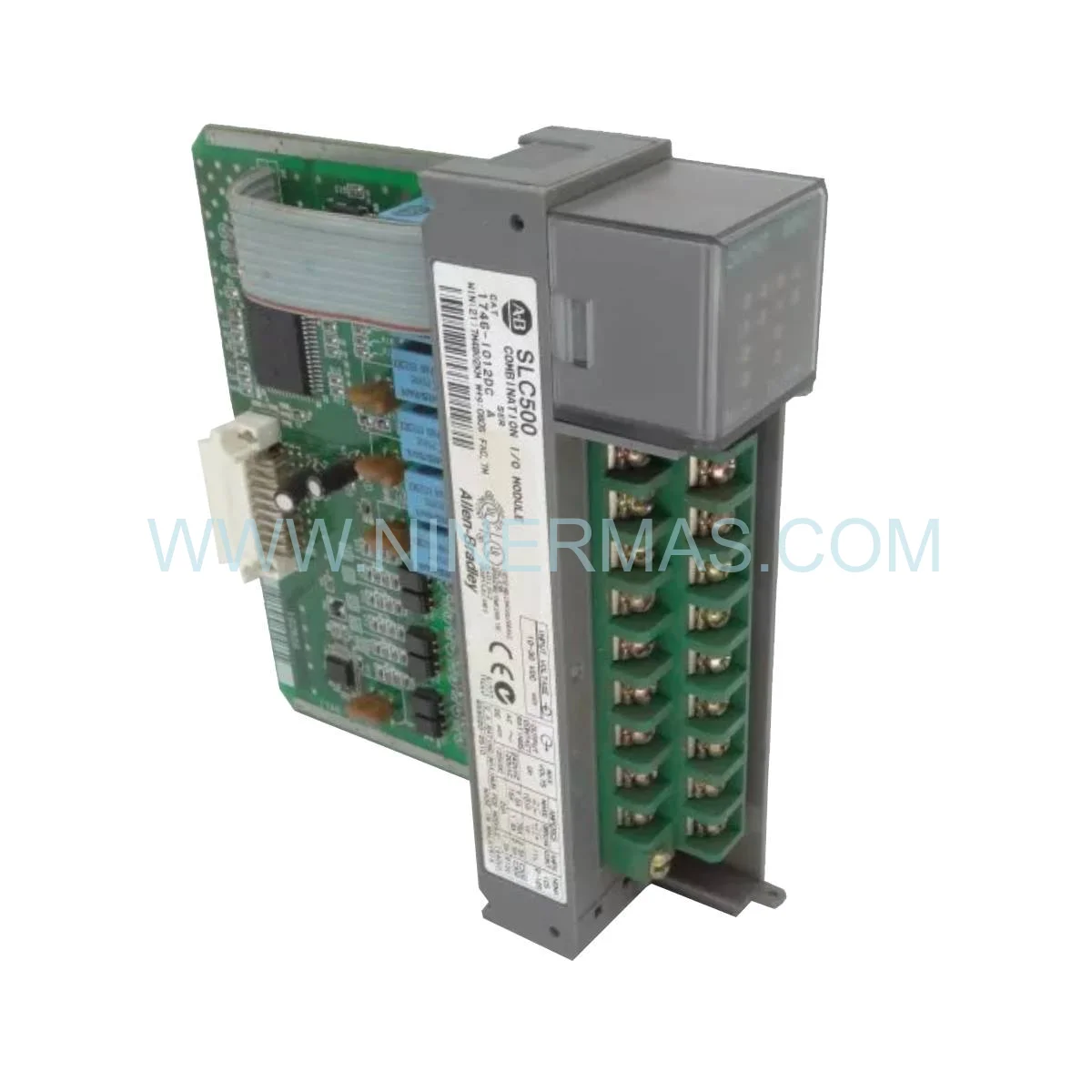

Allen-Bradley 1746-IO12DC | DC Combination I/O Module for SLC 500

Allen-Bradley 1746-IO12DC — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Allen-Bradley 1746-IO12DC represents a cornerstone asset in maintaining the operational integrity of SLC 500 programmable logic controller architectures. As a certified combination I/O module integrating 6 DC inputs and 6 DC outputs within a single chassis slot, the 1746-IO12DC eliminates redundant signal routing, reduces inter-module dependency risks, and upholds the Safety Integrity standards demanded by mission-critical industrial environments. Its optical isolation barrier of 1500V AC between field and logic circuits is a direct compliance response to IEC 61508 functional safety requirements, ensuring that transient field disturbances do not propagate into the control logic layer.

Within the framework of Industry 4.0 and long-term asset lifecycle management, the Allen-Bradley 1746-IO12DC demonstrates sustained compatibility with legacy SLC 500 processor families ncluding 5/01 through 5/05 hile supporting integration into modernized SCADA and DCS environments via RSLogix 500 configuration workflows. Its deterministic 10 ms input/output response time ensures temporal predictability, a non-negotiable attribute for synchronized multi-axis control and process sequencing in high-throughput manufacturing cells. Asset Optimization is further realized through the module’s hot-swap capability, which eliminates planned downtime during scheduled maintenance intervals.

As a factory-sealed, Original Documentation-accompanied component, the 1746-IO12DC delivers verifiable provenance and traceability ttributes that are indispensable when auditing system configurations against ISO 9001 quality management frameworks or regional regulatory compliance mandates. Its status as a genuine Allen-Bradley original part ensures that System Performance benchmarks established during commissioning are maintained throughout the full operational lifecycle of the installation.

Compliance & Safety Benchmarks

✅ UL / CSA / CE Certified: Meets North American and European electrical safety standards for industrial control equipment, enabling deployment across multi-jurisdictional facilities without re-certification overhead.

✅ 1500V AC Optical Isolation: Provides galvanic separation between field wiring and logic circuits, a Standard Adherence requirement for environments with high electromagnetic interference (EMI) or ground potential differences.

Operating Temperature Compliance: Rated 0-60°C (32-140°F), validated for continuous duty in thermally demanding enclosures without derating, supporting Durability benchmarks in foundry, chemical, and outdoor-rated panel applications.

✅ Sinking/Sourcing Input Flexibility: Dual-mode input compatibility ensures adherence to diverse field device wiring standards (NPN/PNP), reducing non-conformance risk during system integration audits.

Removable Terminal Block Design: Facilitates module replacement without disturbing field wiring, a Certification-aligned practice that preserves wiring integrity documentation and minimizes human error during corrective maintenance.

Vertical Industry Integration & Optimization

Semiconductor Manufacturing: In wafer fabrication and back-end assembly environments, the 1746-IO12DC’s deterministic I/O response and optical isolation support the precise sequencing of robotic handlers and vacuum systems, where microsecond-level signal fidelity directly impacts yield rates and contamination control protocols.

Pharmaceutical & Life Sciences: GMP-regulated production lines require I/O modules with full traceability and validated performance records. The 1746-IO12DC’s Original Documentation package supports 21 CFR Part 11 compliance workflows, enabling electronic batch record integration and audit-trail continuity across the asset’s operational lifecycle.

Chemical & Petrochemical Processing: In hazardous area control panels operating under ATEX or NEC Class I Division 2 guidelines, the module’s robust isolation and certified voltage ratings provide the Safety Integrity baseline required for continuous process monitoring of reactor feeds, valve actuators, and emergency shutdown (ESD) interlock circuits.

Automotive Body & Paint: High-cycle conveyor and transfer systems demand I/O modules capable of sustained 24V DC switching at rated current without thermal degradation. The 1746-IO12DC’s 2A-per-point output rating and 150 mA backplane draw ensure stable Operational Excellence across multi-shift production schedules.

Food & Beverage Processing: Washdown-adjacent control panels benefit from the module’s compact single-slot footprint, which reduces enclosure volume and simplifies IP65/IP66 sealing direct contribution to hygiene compliance and lifecycle cost reduction in sanitary processing environments.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every Allen-Bradley 1746-IO12DC unit is dispatched in its original manufacturer packaging with intact tamper-evident seals, ensuring that the module’s internal calibration, firmware state, and electrostatic discharge (ESD) protection remain uncompromised from warehouse to installation point. Original Documentation ncluding datasheet, wiring diagram, and certification declarations s included with each shipment to support commissioning audits and regulatory submissions.

Rapid Global Logistics: Leveraging established freight partnerships across Asia-Pacific, Europe, the Americas, and the Middle East, orders are processed within 1-2 business days with full export documentation (commercial invoice, packing list, certificate of origin) provided as standard. Expedited air freight options are available for emergency maintenance scenarios requiring same-week delivery to minimize production downtime exposure.

12-Month Quality Guarantee for Legacy Systems: Recognizing the extended service life of SLC 500 infrastructure in brownfield industrial facilities, our 12-Month Quality Guarantee covers manufacturing defects, premature component failure, and performance deviations from published specifications. Technical support ncluding remote diagnostic assistance, RSLogix 500 configuration guidance, and replacement coordination s available throughout the warranty period and beyond, supporting the full Lifecycle Management commitment we extend to every customer.

Expert Technical FAQ

Q1: Does the Allen-Bradley 1746-IO12DC comply with IEC 61131-2 standards for programmable controller input/output modules?
A: Yes. The 1746-IO12DC is designed and tested in accordance with IEC 61131-2 requirements governing DC digital I/O modules, including input threshold voltages, output current ratings, and isolation voltage levels. Its UL, CSA, and CE certifications further validate conformance to regional Compliance Standards applicable in North American and European industrial installations.

Q2: What environmental conditions affect the long-term reliability of the 1746-IO12DC in harsh industrial settings?
A: The module is rated for continuous operation between 0-60°C with a relative humidity range of 5-95% non-condensing. In environments with elevated particulate contamination or corrosive atmospheres, installation within NEMA 12 or IP54-rated enclosures is recommended to preserve System Performance and extend the module’s operational lifecycle beyond standard projections.

Q3: How does firmware versioning affect installation compliance when replacing a legacy 1746-IO12DC unit?
A: The 1746-IO12DC is a hardware-configured module with no field-upgradeable firmware. Its I/O mapping and addressing are managed entirely through RSLogix 500 software at the processor level, meaning direct hardware replacement does not introduce firmware version conflicts. This characteristic simplifies compliance documentation during corrective maintenance events and supports seamless Asset Optimization in legacy SLC 500 systems.

Q4: Can the 1746-IO12DC be used in safety-rated (SIL) applications?
A: The 1746-IO12DC is a standard-grade I/O module and is not independently SIL-rated under IEC 61508. For Safety Integrity Level-classified applications, it should be used in conjunction with Allen-Bradley GuardLogix or Safety PLC architectures where the safety function is managed at the processor and safety I/O module level. Our technical team can advise on compliant system architectures for your specific safety requirements.

Q5: What is the recommended wiring practice to maintain signal integrity over long cable runs?
A: For field wiring runs exceeding 100 meters, shielded twisted-pair (STP) cable with the shield grounded at a single point (typically the control panel earth bus) is recommended. Maximum recommended cable length is 300 meters (1000 feet). Maintaining physical separation between signal cables and high-voltage power conductors further reduces EMI-induced noise, preserving the module’s specified 10 ms response time accuracy.

Q6: How should the 1746-IO12DC be handled and stored prior to installation to maintain its certified condition?
A: The module must be stored in its original ESD-protective packaging within a controlled environment: temperature 0-70°C, humidity 5-95% non-condensing. Handling should be performed at a grounded ESD workstation using wrist straps and anti-static mats. These precautions preserve the module’s internal component integrity and ensure that its certified performance characteristics are fully realized upon installation, supporting Original Documentation compliance records.
