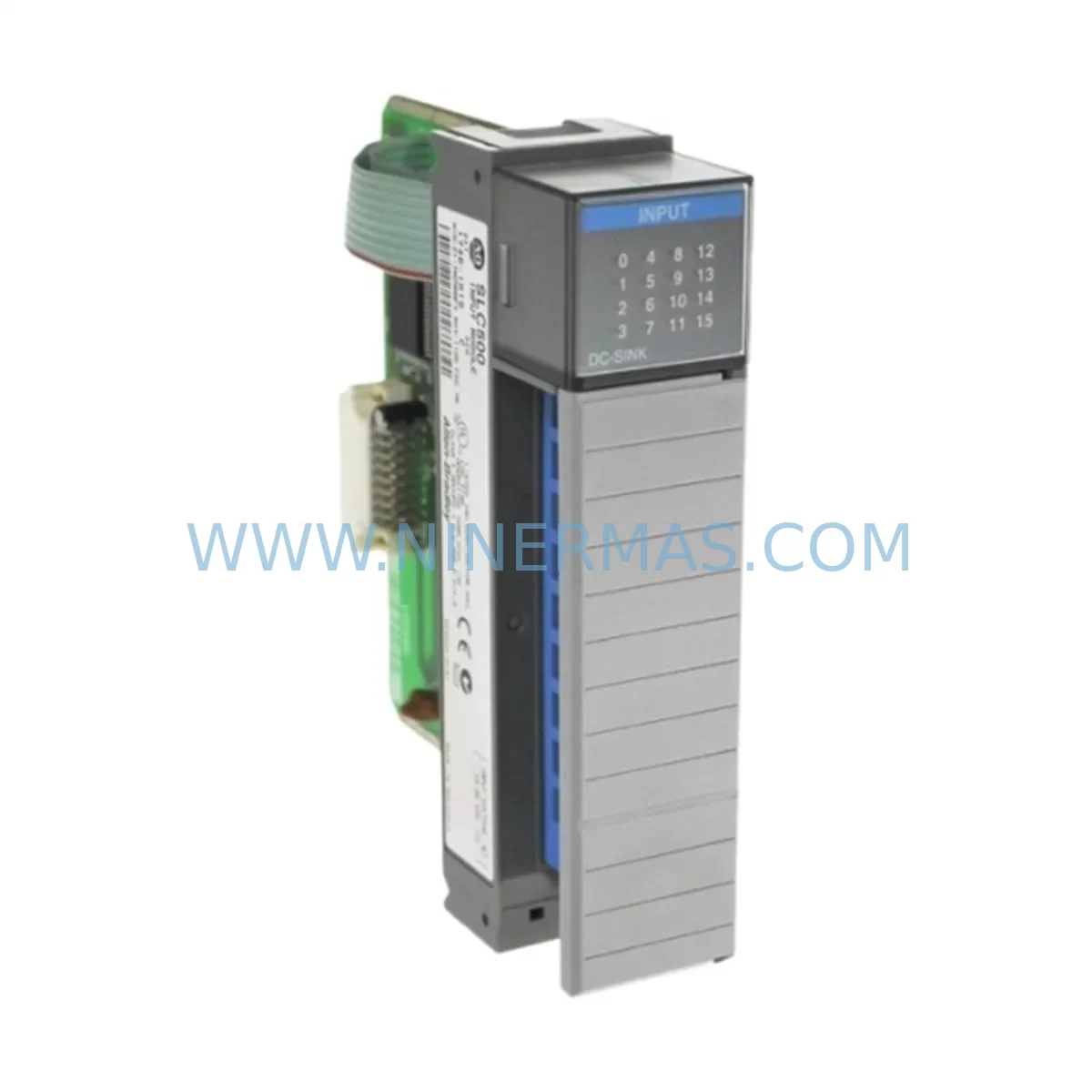

The Allen-Bradley 1746-IN16 is a 16-point 24V DC digital input module designed for the SLC 500 modular I/O system. As a critical field-replaceable unit in discrete control architectures, the 1746-IN16 is widely deployed across manufacturing lines, packaging systems, material handling conveyors, and process automation panels. When this module fails or degrades, the impact is immediate: loss of field signal visibility, unplanned downtime, and potential safety interlock failures. Stocking a verified service-ready 1746-IN16 spare is the most effective strategy to minimize mean time to repair (MTTR) and restore production continuity.

For maintenance engineers managing aging SLC 500 control cabinets, the 1746-IN16 sits at the intersection of field wiring and PLC logic. Its 16 individually isolated input channels accept signals from pushbuttons, proximity sensors, limit switches, and photoelectric sensors. Each channel features LED status indication, allowing technicians to perform rapid fault isolation without a laptop or programming device. When a channel fails to respond, the first diagnostic step is always to verify the 24V DC field supply — often sourced from a 1746-P4 or 1746-P7 power supply module — before condemning the input card itself.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a 1746-IN16 in a live SLC 500 system is rarely an isolated task. Experienced maintenance engineers know that a failing input module is often a symptom of broader electrical stress in the control cabinet. Before returning the system to service, a thorough inspection of adjacent components is strongly recommended.

Start with the power distribution chain. The 1746-P4 or 1746-P7 power supply module should be checked for output voltage stability and ripple — an under-voltage condition is a leading cause of intermittent input faults that are misdiagnosed as module failures. Inspect the 1746 chassis backplane for signs of corrosion, bent connector pins, or thermal discoloration, particularly in high-vibration or high-humidity environments.

Field wiring integrity is equally important. The removable terminal block (RTB) on the 1746-IN16 should be inspected for loose terminations, corroded contacts, and insulation breakdown. In systems where the 1746-IN16 monitors safety-critical inputs — such as E-stop circuits or guard door interlocks — verify that the field devices (proximity sensors, limit switches) are within their rated operating voltage and current draw. A 1746-OW16 output module or 1746-OB16 DC output module in the same chassis should also be checked for cross-talk or ground faults that could affect input signal integrity.

For SLC 500 systems with communication requirements, inspect the 1747-SDN DeviceNet Scanner or 1747-KE DH-485/RS-232 Interface module for firmware compatibility after any hardware replacement. If the control system includes a PanelView 550 or PanelView 600 HMI communicating over DH-485, verify that the communication link is re-established and tag mappings are intact after the module swap. In multi-rack configurations, the 1746-BAS or inter-rack expansion cables should be inspected for continuity and secure seating.

Signal conditioning upstream of the 1746-IN16 is another area that warrants attention during planned maintenance. If field signals pass through signal isolators or surge protection barriers before reaching the input module, these components should be tested for proper pass-through voltage levels. Fuse holders and miniature circuit breakers protecting the 24V DC field supply circuits should be verified for correct rating and continuity. A blown fuse on a field supply rail is a common root cause of apparent input module failures.

For annual maintenance cycles, consider replacing the 1746-IN16 as a preventive measure in systems that have been in continuous service for more than seven years, particularly in environments with elevated temperature, humidity, or vibration. Pairing the replacement with a simultaneous inspection of the 1746-P4 power supply, chassis backplane, and field wiring harness transforms a reactive repair into a proactive reliability improvement.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the 1746-IN16, use RSLogix 500 or Studio 5000 Logix Designer to capture the current I/O configuration, including slot assignment, input filter timing settings, and any forced I/O states. Export the processor file as a backup. Confirm the replacement module’s catalog number and firmware revision match the installed unit.

Step 2 — Safe Isolation: Place the SLC 5/03, 5/04, or 5/05 processor in Program mode via the keyswitch or software command. If the system does not support hot-swap without process impact, coordinate a controlled shutdown with the operations team. De-energize the 24V DC field supply to the affected input group using the appropriate circuit breaker or disconnect.

Step 3 — Module Removal: Disconnect the removable terminal block (RTB) from the 1746-IN16 by releasing the locking tabs. Slide the module out of the chassis slot. Inspect the backplane connector on the chassis for damage before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the new 1746-IN16 into the same chassis slot. Re-attach the RTB, ensuring all terminal screws are torqued to specification (typically 0.9 N·m / 8 lb·in). Re-energize the 24V DC field supply and verify LED status indicators illuminate correctly for active field devices.

Step 5 — System Verification: Return the processor to Run mode. Monitor the I/O status in RSLogix 500 to confirm all 16 input channels are reading correctly. Perform a functional test of all field devices connected to the module. Document the replacement in the maintenance log, including the date, technician name, module serial number, and any observations about the failed unit.

This workflow is compatible with SLC 500 modular chassis configurations from 4-slot to 13-slot and supports seamless replacement without PLC program modification, provided the slot assignment is preserved.

Spare Parts Support FAQ

Q1: Is the 1746-IN16 still available as a new original part, and what is the lead time?
The 1746-IN16 is part of the Allen-Bradley SLC 500 product family, which Rockwell Automation has transitioned to end-of-life status. However, NINERMAS maintains stock of new-surplus and refurbished-to-OEM-specification units with full functional testing. Standard lead time is 3–7 business days for in-stock units, with expedited shipping available for critical downtime situations. Contact sale@ninermas.com for real-time stock confirmation.

Q2: How do I verify compatibility between the 1746-IN16 and my existing SLC 500 chassis?
The 1746-IN16 is compatible with all SLC 500 modular chassis (1746-A4, 1746-A7, 1746-A10, 1746-A13) and all SLC 500 processors (5/01, 5/02, 5/03, 5/04, 5/05). Slot assignment is flexible — the module can be installed in any I/O slot. Verify that your 24V DC field supply capacity is sufficient to support the additional 8 mA per active input channel. No firmware update is required for the processor when replacing a like-for-like 1746-IN16.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover?
Every 1746-IN16 unit shipped by NINERMAS undergoes bench testing that includes power-on verification, per-channel input signal simulation across all 16 points, LED indicator function check, and backplane connector inspection. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can NINERMAS support long-term supply agreements for SLC 500 spare parts?
Yes. NINERMAS specializes in long-term supply support for legacy and end-of-life industrial automation components, including the full SLC 500 I/O family. We can establish blanket purchase orders, consignment stock arrangements, and annual supply agreements to ensure your maintenance team always has critical spares on hand. Reach out to sale@ninermas.com to discuss your specific inventory requirements and volume pricing.
