Allen-Bradley 1746-IC16 Service-Ready Spare Part for Industrial Maintenance

Allen-Bradley 1746-IC16 Service-Ready Spare Part for Industrial Maintenance

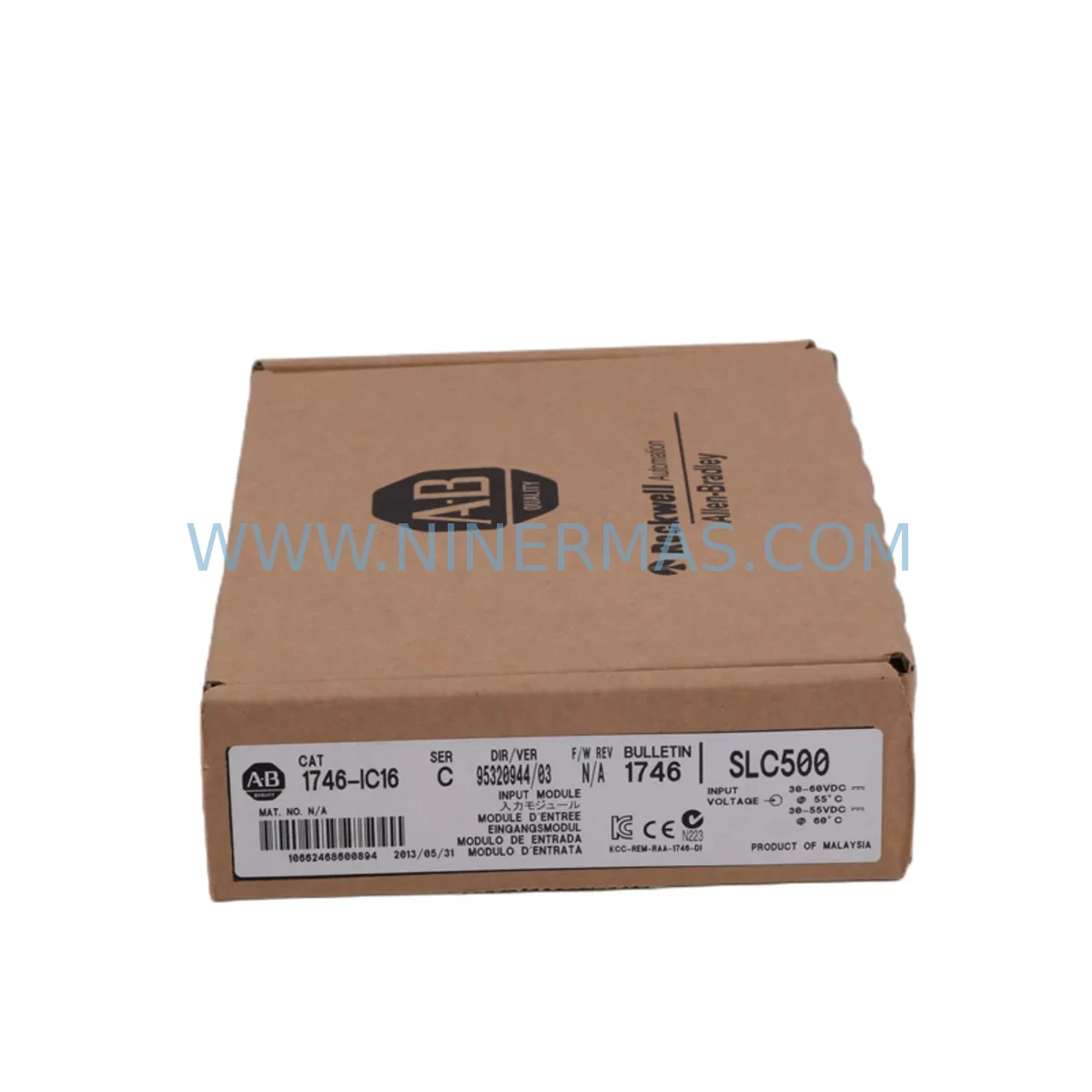

The Allen-Bradley 1746-IC16 is a 16-point DC input module designed for the SLC 500 modular I/O system, manufactured by Rockwell Automation. As a critical field-replaceable unit in industrial control cabinets, the 1746-IC16 accepts 24V DC sourcing input signals and interfaces directly with the SLC 500 processor backplane. For maintenance engineers managing aging SLC 500 installations, keeping a verified service-ready 1746-IC16 in your spare parts inventory is a proven strategy to minimize unplanned downtime and accelerate fault recovery on the production floor.

Whether you are responding to an emergency I/O fault, executing a scheduled annual overhaul, or building a preventive maintenance stock for a multi-line facility, the 1746-IC16 replacement module from NINERMAS is tested, inspected, and shipped with a 12-month warranty. Each unit undergoes functional verification prior to dispatch, ensuring that the module you receive is ready for immediate installation without additional bench testing.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1746-IC16 input module fails or shows intermittent signal faults, experienced maintenance engineers know that the root cause is rarely isolated to the module alone. A thorough site inspection should accompany any 1746-IC16 replacement to prevent repeat failures and ensure the restored system operates reliably through the next maintenance cycle.

Begin by inspecting the 1746 series backplane for signs of corrosion, bent connector pins, or thermal stress damage. A compromised backplane slot can cause a new 1746-IC16 to fail prematurely. Next, verify the 1746-P4 or 1746-P7 power supply module output voltage under load — an under-voltage condition on the 24V DC rail is a common cause of input module instability and false OFF-state readings across multiple I/O points.

Check all field wiring terminal blocks connected to the 1746-IC16 input commons and signal lines. Loose terminations, corroded ferrules, or undersized conductors introduce resistance that can push input signals below the ON-state threshold, causing sporadic faults that are difficult to diagnose without a systematic wiring audit. If the control cabinet uses 1492 series terminal blocks or 1492-CABLE pre-wired interface cables, inspect these for insulation cracking or connector wear, particularly in high-vibration environments.

For facilities running mixed I/O configurations, also inspect adjacent modules in the same chassis — particularly any 1746-OB16 or 1746-OW16 output modules sharing the same power supply segment. Output module inrush currents during actuator switching can cause momentary voltage dips that affect input module logic states. Installing a 1746-NIO4I analog I/O module or a dedicated signal conditioner in the same rack warrants a review of the backplane current budget to confirm the power supply is not operating near its rated limit.

Communication integrity should also be verified. If the SLC 500 system uses a 1747-SDN DeviceNet Scanner or a 1747-KE RS-232 Interface Module for supervisory communication, confirm that the scanner’s I/O map still correctly references the slot position of the replacement 1746-IC16. Slot reassignment errors after a module swap are a frequent source of post-maintenance alarms in legacy SLC 500 installations.

For systems integrated with a PanelView 550 or PanelView 600 HMI via DH-485 or DH+ networks, validate that input status tags mapped to the 1746-IC16 points are correctly displayed after the replacement. HMI tag mismatches can mask real process faults and create safety risks during the post-maintenance commissioning phase.

Finally, review the cabinet’s fuse and circuit protection for each input field circuit. Blown or degraded fuses on the 24V DC input commons are often overlooked during emergency replacements and can result in entire input groups appearing offline even after a successful module swap. Replacing the 1746-IC16 alongside a full fuse audit and a power supply load test is considered best practice for SLC 500 cabinet restoration.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the SLC 500 processor’s fault table and the 1746-IC16 LED indicators to identify which input points have failed. Document the fault code and the affected I/O addresses before powering down the cabinet.

Step 2 — Safe Isolation: De-energize the control cabinet following your site’s lockout/tagout (LOTO) procedure. Confirm that the 24V DC field power supply is isolated before removing the 1746-IC16 from the backplane slot.

Step 3 — Module Removal: Release the module locking tab and slide the 1746-IC16 straight out of the chassis slot. Avoid lateral force to protect the backplane connector. Label the removed module with the fault date and slot number for traceability.

Step 4 — Compatibility Verification: Confirm that the replacement 1746-IC16 matches the original module’s catalog number and firmware revision if applicable. For SLC 5/03 and higher processors, verify that the I/O configuration in RSLogix 500 matches the physical slot assignment.

Step 5 — Installation: Insert the replacement 1746-IC16 into the correct chassis slot and secure the locking tab. Reconnect field wiring to the module’s terminal block, verifying wire positions against the original wiring diagram.

Step 6 — Power-Up and Verification: Re-energize the cabinet and observe the 1746-IC16 LED indicators. Confirm that all 16 input points reflect the correct field device states. Clear any processor fault codes and perform a functional test of each input circuit before returning the system to production.

Step 7 — Documentation: Update the maintenance log with the replacement date, module serial number, and post-replacement test results. Record the spare parts inventory adjustment and initiate a reorder for the consumed 1746-IC16 unit to maintain your minimum stock level.

Spare Parts Support FAQ

Q1: Is the 1746-IC16 still available as a new original part, and what is the lead time?
The Allen-Bradley 1746-IC16 has been in the market for many years as part of the SLC 500 platform. NINERMAS maintains stock of both new and refurbished-tested units to support urgent maintenance requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. Contact sale@ninermas.com for real-time stock confirmation and expedited shipping options.

Q2: How do I verify compatibility between the 1746-IC16 and my existing SLC 500 chassis and processor?
The 1746-IC16 is compatible with all SLC 500 modular chassis (4-slot, 7-slot, 10-slot, and 13-slot configurations) and all SLC 500 processor families including the SLC 5/01, 5/02, 5/03, 5/04, and 5/05. Compatibility is determined by the chassis series (1746) rather than the processor model. If you are replacing a module in a configured RSLogix 500 project, ensure the I/O configuration in the software matches the physical slot assignment after replacement.

Q3: What does the 12-month warranty cover, and what is the return process if the module fails on arrival?
All 1746-IC16 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each module is functionally tested prior to shipment. In the event of a DOA (dead on arrival) or early failure, contact sale@ninermas.com with your order number and a description of the fault. NINERMAS will arrange a replacement dispatch or full refund based on your preference, with return shipping coordinated by our support team.

Q4: Can NINERMAS support long-term supply agreements for 1746-IC16 and other SLC 500 spare parts?
Yes. NINERMAS offers long-term supply agreements for maintenance teams and procurement engineers managing multi-site SLC 500 installations. We can reserve stock, provide scheduled delivery, and extend warranty terms for volume orders. This is particularly valuable for facilities operating legacy SLC 500 systems where Rockwell Automation has announced end-of-life timelines for certain catalog numbers. Contact our sales team to discuss a customized spare parts supply program.
