Allen-Bradley 1746-HSTP1 Spare Part for Industrial Maintenance

Allen-Bradley 1746-HSTP1 Spare Part for Industrial Maintenance

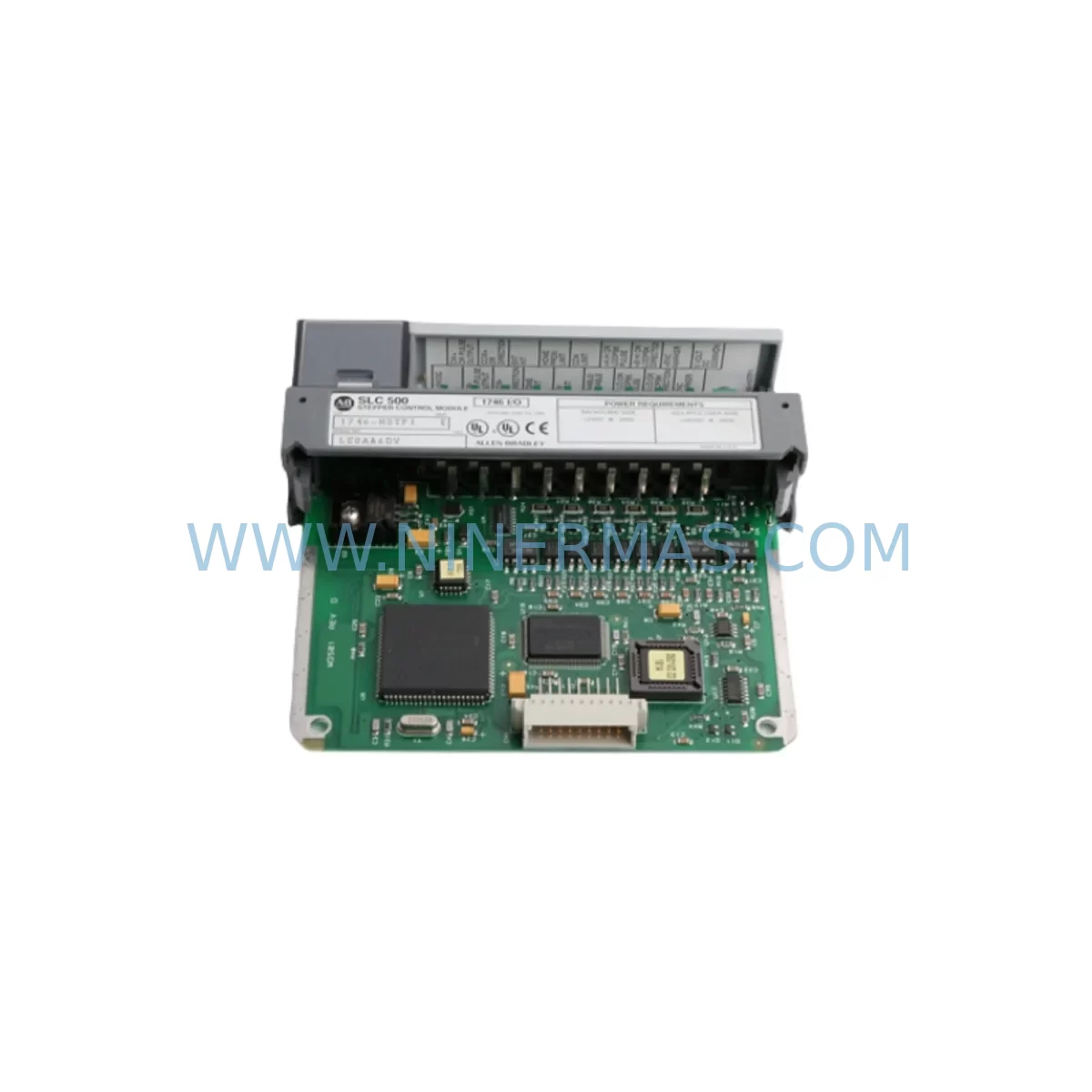

The Allen-Bradley 1746-HSTP1 is a high-speed stepper controller module designed for the SLC 500 modular I/O chassis platform. In industrial environments where precision motion control is critical — from packaging lines and conveyor indexing to CNC-adjacent positioning systems — the 1746-HSTP1 serves as the dedicated interface between the SLC 500 processor and stepper motor drives. When this module fails or degrades, the result is immediate: axis positioning errors, production stoppages, and costly unplanned downtime. Maintaining a verified service-ready spare in your parts inventory is the most effective strategy for rapid recovery and sustained line availability.

Sourced and pre-shipment tested by NINERMAS, each 1746-HSTP1 unit is verified for output pulse integrity, direction signal accuracy, and chassis communication before dispatch. With a 12-month warranty and long-term supply commitment, this spare part is suitable for both emergency replacement and planned annual maintenance programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1746-HSTP1 stepper controller module is flagged for replacement during a scheduled inspection or emergency fault response, maintenance engineers should treat the event as an opportunity to audit the broader motion control circuit. The stepper drive connected to the 1746-HSTP1 — typically a third-party unit receiving step and direction signals — should be checked for parameter integrity and wiring continuity before the new module is commissioned. Loose or corroded terminal connections at the drive interface are a common secondary cause of positioning faults that can be misattributed to the controller module itself.

Within the same SLC 500 chassis, it is advisable to inspect adjacent I/O modules such as the 1746-OB16 digital output module and 1746-IB16 digital input module for signs of wear, particularly if the chassis has been in service for more than five years. The 1746-P2 or 1746-P4 power supply module should be load-tested to confirm it is delivering stable 5 VDC and 24 VDC rails — an under-voltage condition on the backplane can cause intermittent stepper faults that are difficult to diagnose without a power quality check.

The SLC 5/04 or SLC 5/05 processor module itself should be reviewed for firmware version compatibility with the 1746-HSTP1 configuration file. If the processor battery (1747-BA) is approaching end of life, program loss risk increases — replace it as part of the same maintenance window. For systems using 1747-SDN DeviceNet scanner modules or 1747-SCNR remote I/O adapters, verify that the network configuration files are backed up before any chassis work begins.

On the field wiring side, inspect the stepper motor encoder feedback cables (if used in a semi-closed loop configuration), terminal blocks, and any signal isolation modules in the motion control loop. Fuse holders and 24 VDC branch circuit protection should also be verified — a blown fuse upstream of the stepper drive is a frequent cause of apparent module failure. If the system includes a PanelView 550 or PanelView 600 HMI for operator control, confirm that the motion status tags are correctly mapped after module replacement to avoid operator interface alarms.

Site Replacement Workflow

Before removing the 1746-HSTP1 from the chassis, perform a controlled axis stop and disable the stepper drive output. Document the current module configuration using RSLogix 500 — export the I/O configuration and any motion-specific data files (typically N or F files used for position and velocity parameters). Power down the SLC 500 chassis following the correct lockout/tagout procedure.

Remove the faulty 1746-HSTP1 by releasing the top and bottom retaining clips and sliding the module out of the chassis slot. Inspect the backplane connector for bent pins or contamination. Insert the replacement 1746-HSTP1, ensuring full seating against the backplane. Restore power and use RSLogix 500 to download the previously saved configuration. Verify that the module status LED indicates normal operation (solid green) before re-enabling the stepper drive.

Perform a slow-speed jog test to confirm correct pulse direction and step count before returning the axis to automatic mode. Log the replacement date, module serial number, and test results in the site maintenance record. This workflow minimizes re-commissioning time and ensures system compatibility is maintained without requiring a full motion parameter re-entry.

Spare Parts Support FAQ

Q: Is the 1746-HSTP1 still available as a new or tested spare?
A: Yes. NINERMAS maintains stock of the 1746-HSTP1 as a service-ready spare. Each unit is pre-shipment tested for pulse output and backplane communication. Long-term supply is supported for SLC 500 lifecycle extension programs.

Q: What is the warranty coverage for this spare part?
A: All 1746-HSTP1 units supplied by NINERMAS carry a 12-month warranty from the date of shipment, covering functional defects under normal operating conditions. Warranty claims are supported with direct technical assistance.

Q: How do I confirm compatibility with my existing SLC 500 chassis?
A: The 1746-HSTP1 is compatible with all SLC 500 modular chassis (1746 series) and SLC 5/03, 5/04, and 5/05 processors. Confirm your chassis slot availability and RSLogix 500 version before installation. NINERMAS technical support can assist with compatibility verification prior to purchase.

Q: Can I order multiple units for a spare parts inventory program?
A: Yes. NINERMAS supports bulk spare parts procurement for planned maintenance and long-term inventory programs. Volume pricing and fixed lead-time commitments are available for facilities managing multiple SLC 500 systems or planning multi-year lifecycle extensions.
