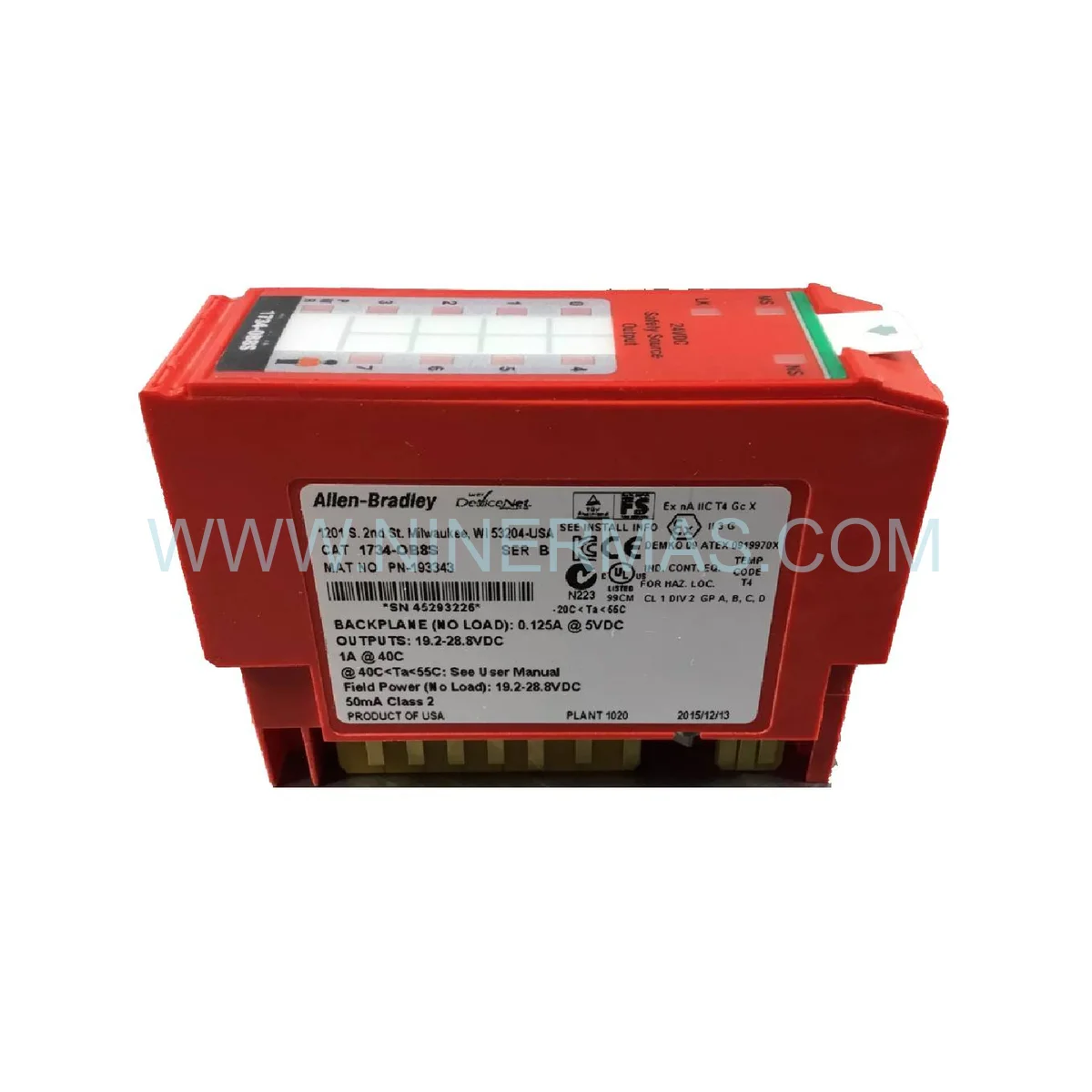

Allen-Bradley 1734-OB8S/B POINT I/O Safety Output Module — New & Original

Allen-Bradley 1734-OB8S/B POINT I/O Safety Digital Output Module | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the Allen-Bradley 1734-OB8S/B stands as a cornerstone I/O module for maximizing system availability in safety-instrumented environments. Rated SIL 3 per IEC 61508 and PLe / Category 4 per ISO 13849-1, the 1734-OB8S/B delivers eight independently monitored sourcing outputs that interface directly with emergency stop circuits, safety interlocks, and protective device networks — ensuring operational excellence even under the most demanding process conditions.

Engineered for durability in harsh industrial settings, this automation component operates reliably across a 0 °C to 60 °C ambient range and tolerates the electrical noise inherent to heavy manufacturing floors. During installation, engineers should observe proper DIN-rail torque specifications, verify 24 V DC supply stability within the 19.2-30 V DC window, and apply shielded cabling to safety-rated field devices to maintain diagnostic integrity. Grounding discipline and cable segregation from power conductors are non-negotiable for sustaining the module’s >99 % diagnostic coverage rating.

For maintenance planners, stocking the 1734-OB8S/B as a certified spare is a process optimization imperative. End-of-line procurement delays for safety-rated I/O modules can extend unplanned downtime from hours into days. Securing verified, original-factory inventory in advance is the single most effective strategy for protecting mean-time-to-repair (MTTR) targets across distributed control architectures.

Key Operational Features

SIL 3 / PLe / Category 4 Certified — Meets IEC 61508, IEC 62061, and ISO 13849-1 for the highest functional safety integrity levels
8 Safety-Rated Sourcing Outputs — 2 A per channel (8 A total), 24 V DC nominal; supports dual-channel output monitoring for redundancy
High Availability Architecture — Hot-swappable module replacement with electronic keying eliminates configuration mismatch risk during live maintenance windows
Seamless System Integration — Native CIP Safety over EtherNet/IP; plug-and-play with GuardLogix and Compact GuardLogix safety controllers
Comprehensive Fault Detection — >99 % diagnostic coverage with real-time short-circuit, open-load, and over-temperature reporting
Multi-Certification Compliance — T V, UL, CE, and CSA approvals support global deployment without re-certification overhead

Maintenance & Performance Benchmarks

The 1734-OB8S/B is architected to slot into POINT I/O distributed control nodes of any scale — from compact single-rack machine safety panels to multi-segment plant-wide safety networks spanning hundreds of nodes. Its 10 ms output reaction time satisfies the response budgets of most Category 3 and Category 4 safety functions without requiring additional time-margin engineering.

In large-scale industrial network architectures, the module’s CIP Safety implementation allows safety and standard I/O to coexist on the same EtherNet/IP backbone, reducing infrastructure cost while preserving logical isolation between safety and non-safety data paths. Firmware revision management is handled through Studio 5000 Logix Designer, enabling centralized version control across all nodes — a critical capability for facilities operating under IEC 62443 cybersecurity frameworks.

Benchmark data from field deployments confirms that replacing aging relay-based safety output circuits with the 1734-OB8S/B reduces wiring complexity by up to 60 % and cuts periodic proof-test labor by eliminating manual relay coil inspections. The module’s self-diagnostic routines execute continuously at the controller scan rate, surfacing latent faults before they propagate to a safety demand event.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 1734-OB8S/B dispatched from our facility is sourced directly from authorized distribution channels and ships in original factory packaging with intact tamper-evident seals — guaranteeing authenticity and full traceability back to the manufacturing lot. For in-stock orders, same-day dispatch is available on confirmed payment received before the daily cut-off, supporting urgent maintenance scenarios where production continuity cannot wait.

We maintain dedicated global supply channels for end-of-life (EOL) and legacy automation components, making us a reliable partner for facilities operating older POINT I/O generations alongside current hardware. Worldwide express logistics via DHL, FedEx, and UPS ensures delivery to North America, Europe, Southeast Asia, and the Middle East within 3-7 business days under standard conditions. All shipments include commercial invoice documentation, HS code classification, and country-of-origin certification to streamline customs clearance.

Engineering Support & FAQ

Q1: What terminal base is required to mount the 1734-OB8S/B?
A: The module requires a compatible 1734 POINT I/O terminal base (e.g., 1734-TOP or 1734-TOPS). The terminal base must be installed on the DIN rail before inserting the module. Electronic keying is enforced at the controller level to prevent incorrect module substitution.

Q2: Which firmware revision of Studio 5000 Logix Designer supports the 1734-OB8S/B?
A: Studio 5000 Logix Designer v21.00 and later fully support the 1734-OB8S/B safety instruction set. For safety-certified applications, Rockwell Automation recommends using the latest validated firmware revision documented in the module’s safety reference manual (publication 1734-RM004).

Q3: Can the 1734-OB8S/B be used in a standard (non-safety) control system?
A: Yes. While the module is certified for functional safety applications, individual output channels can drive standard 24 V DC loads where safety certification is not required. Safety-rated channels and standard channels can coexist within the same module configuration.

Q4: What is the proof-test interval for SIL 3 compliance?
A: The module’s continuous self-diagnostics (>99 % DC) significantly extend the required proof-test interval compared to relay-based alternatives. Refer to the 1734-OB8S/B safety manual and your system’s Safety Requirements Specification (SRS) for the validated proof-test interval applicable to your specific safety function.

Q5: How does the warranty claim process work?
A: Units are covered by a 12-month warranty from the date of shipment. To initiate a claim, contact our technical support team with the purchase order number, lot code from the module label, and a description of the observed fault. We will coordinate return merchandise authorization (RMA) and provide a replacement or repair within the agreed service window.

Q6: Is the 1734-OB8S/B compatible with Compact GuardLogix 5380 controllers?
A: Yes. The module communicates via CIP Safety over EtherNet/IP and is fully compatible with Compact GuardLogix 5380 (5069-L3xxERS3) controllers running firmware v32.00 or later. Verify the EtherNet/IP adapter firmware revision matches the controller’s compatibility matrix prior to commissioning.
