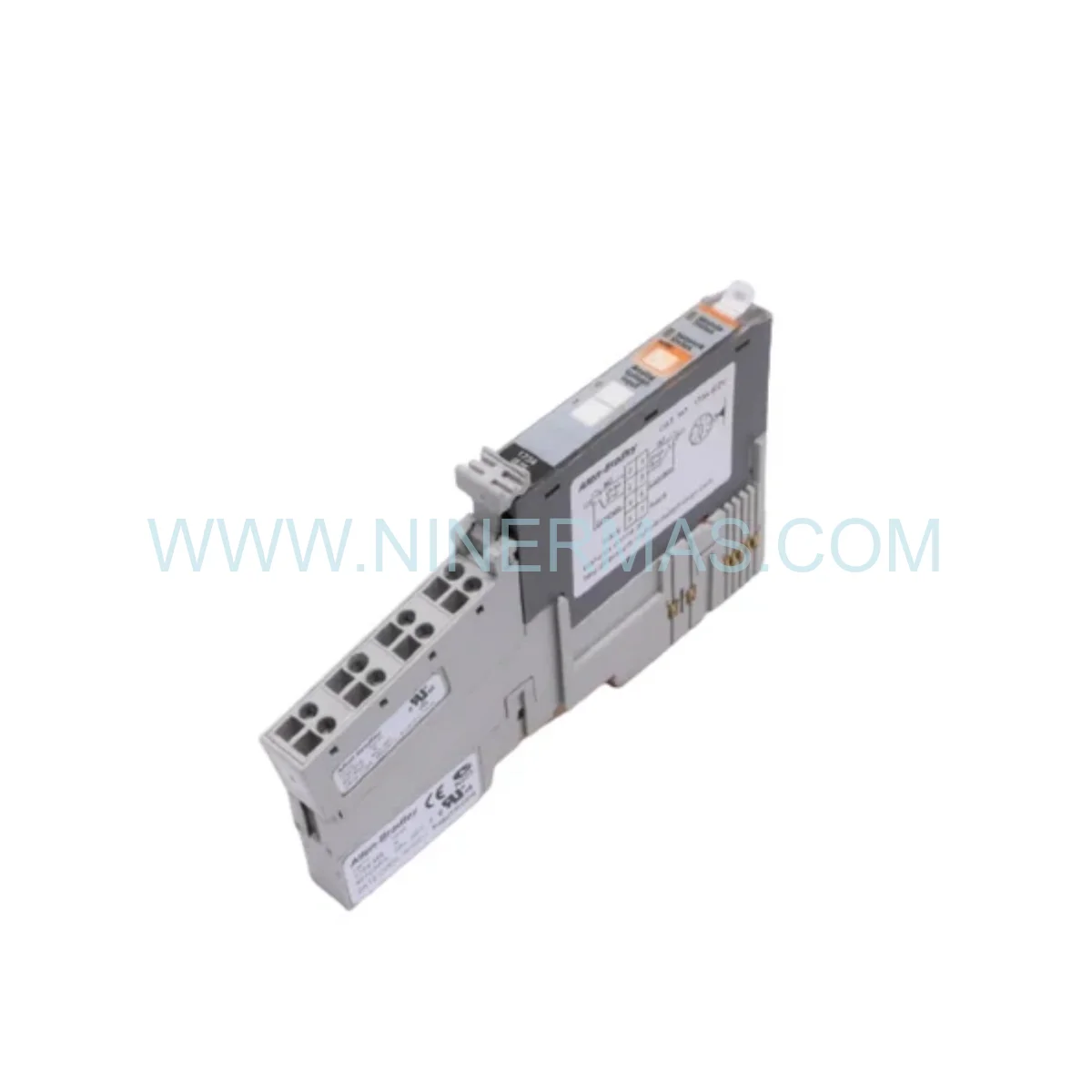

Allen-Bradley 1734-IE2I POINT I/O Analog Input Module — New & Original

Allen-Bradley 1734-IE2I | Isolated Analog Current Input Module — Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical process control infrastructure, the Allen-Bradley 1734-IE2I stands as a cornerstone component for sustaining system availability in continuous-operation facilities. This dual-channel isolated analog current input module integrates seamlessly into POINT I/O architectures, delivering 16-bit resolution across 4-20mA and 0-20mA current loops — a specification that directly translates to reduced signal drift, fewer nuisance alarms, and measurable gains in process optimization. The 1734-IE2I is engineered to maintain ±0.1% full-scale accuracy at 25°C, a benchmark that underpins operational excellence in pharmaceutical batch processing, chemical dosing, and energy metering applications.

In harsh industrial environments — characterized by electromagnetic interference, ground potential differentials, and wide thermal cycling — the 1734-IE2I’s channel-to-channel and channel-to-backplane isolation (rated at 250V continuous) provides a critical barrier against signal corruption. Installation teams should route analog wiring in dedicated conduit, separate from power cables, and terminate cable shields at a single grounding point to preserve signal fidelity. The module’s compact POINT I/O form factor simplifies panel integration, while its hot-swap capability allows field replacement without system shutdown — a decisive advantage in 24/7 production environments where unplanned downtime carries significant financial consequences.

For maintenance planners and procurement engineers, stocking the 1734-IE2I as a certified spare part is a proactive reliability strategy. As a legacy-compatible yet actively supported Rockwell Automation component, it bridges existing POINT I/O deployments with modern CompactLogix and ControlLogix controllers, protecting capital investment while enabling incremental system upgrades. Its role as a mission-critical automation component in global manufacturing networks makes it a high-priority item for any spare parts inventory program.

Key Operational Features

Dual Isolated Channels: Independent channel-to-channel isolation eliminates ground loops and cross-talk in electrically noisy plant environments.
High-Resolution Signal Acquisition: 16-bit (±15-bit + sign) ADC ensures precise measurement for process optimization and quality control applications.
Configurable Input Ranges: Software-selectable 0-20mA or 4-20mA per channel via Studio 5000 Logix Designer — no hardware jumpers required.
Redundancy-Ready Architecture: Compatible with 1734-AENTR redundant Ethernet adapter for high-availability system integration.
Built-In Diagnostics: Open-wire detection, over/under-range alarms, and channel-level fault bits support predictive maintenance and rapid fault isolation.
Hot-Swap Module Replacement: Field-replaceable under power, minimizing mean time to repair (MTTR) in continuous-process facilities.
Seamless Integration: Native Add-On Profile (AOP) support in Studio 5000 accelerates commissioning and reduces system integration risk.

Maintenance & Performance Benchmarks

The 1734-IE2I is engineered to perform across a broad spectrum of industrial network architectures — from small standalone POINT I/O nodes to large-scale distributed control systems spanning multiple plant areas. In EtherNet/IP-based topologies, the module communicates through 1734-AENT or 1734-AENTR adapters, supporting both linear and Device Level Ring (DLR) network configurations for enhanced fault tolerance.

Calibration intervals for the 1734-IE2I typically align with annual preventive maintenance cycles under standard operating conditions (0°C 60°C, non-condensing humidity). For installations in high-vibration or extreme-temperature zones, quarterly verification against a traceable reference standard is recommended. The module’s diagnostic data — accessible via controller tags in real time — enables condition-based maintenance strategies that reduce unnecessary interventions and extend overall system lifecycle. Power consumption of 1.5W typical from the backplane ensures minimal thermal loading on the I/O adapter, supporting dense module configurations without derating.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1734-IE2I unit dispatched from our facility is shipped in original factory packaging with intact tamper-evident seals, ensuring full traceability from Rockwell Automation’s production line to your receiving dock. For urgent maintenance scenarios, same-day dispatch is available on confirmed in-stock units — contact our team before 14:00 (GMT+8) to qualify. We maintain dedicated global inventory buffers specifically for end-of-life (EOL) and legacy POINT I/O modules, providing a reliable supply chain for facilities operating long-lifecycle automation systems that cannot be easily migrated.

Worldwide express logistics via DHL, FedEx, and UPS ensures delivery to industrial facilities across North America, Europe, Southeast Asia, and the Middle East within 3-7 business days. All shipments include commercial invoice, packing list, and certificate of origin documentation to facilitate smooth customs clearance. Insurance coverage is included as standard on all international orders.

Engineering Support & FAQ

Q1: What is the correct wiring procedure for 2-wire 4-20mA transmitters with the 1734-IE2I?
A: Connect the loop power supply positive terminal to the module’s IN+ terminal, and route the return through the transmitter back to IN . The 1734-IE2I measures the loop current while the external supply powers the transmitter. Refer to publication 1734-IN009 for terminal block wiring diagrams.

Q2: Which firmware versions of the 1734-AENT adapter are compatible with the 1734-IE2I?
A: The 1734-IE2I is compatible with 1734-AENT adapters running firmware revision 3.x and above, and 1734-AENTR from revision 2.x. Always verify compatibility using the Rockwell Automation Product Compatibility and Download Center (PCDC) before firmware updates.

Q3: Can the 1734-IE2I be used in a redundant I/O configuration?
A: Yes. When paired with the 1734-AENTR redundant adapter and a ControlLogix system with redundancy enabled, the 1734-IE2I participates in high-availability I/O configurations. Consult publication LOGIX-RM001 for redundancy system design guidelines.

Q4: How do I initiate a warranty claim for a defective 1734-IE2I module?
A: Contact our technical support team at sale@ninermas.com with your order number, module serial number, and a description of the observed fault. Our team will issue a Return Merchandise Authorization (RMA) within 24 business hours and arrange return logistics at no cost to you within the 12-month warranty period.

Q5: What diagnostic tags should I monitor in my ControlLogix program for predictive maintenance?
A: Key diagnostic tags include ChxFault (channel fault status), ChxOpenWire (open-circuit detection), ChxOverrange / ChxUnderrange (signal boundary violations), and ModuleFault (general module health). Map these to your SCADA/HMI alarm system for real-time condition monitoring.

Q6: Is the 1734-IE2I suitable for SIL-rated safety instrumented systems?
A: The standard 1734-IE2I is not SIL-rated for use in Safety Instrumented Systems (SIS). For functional safety applications requiring SIL 2 or SIL 3 compliance, evaluate Rockwell Automation’s GuardLogix and 1791DS safety I/O product families instead.
