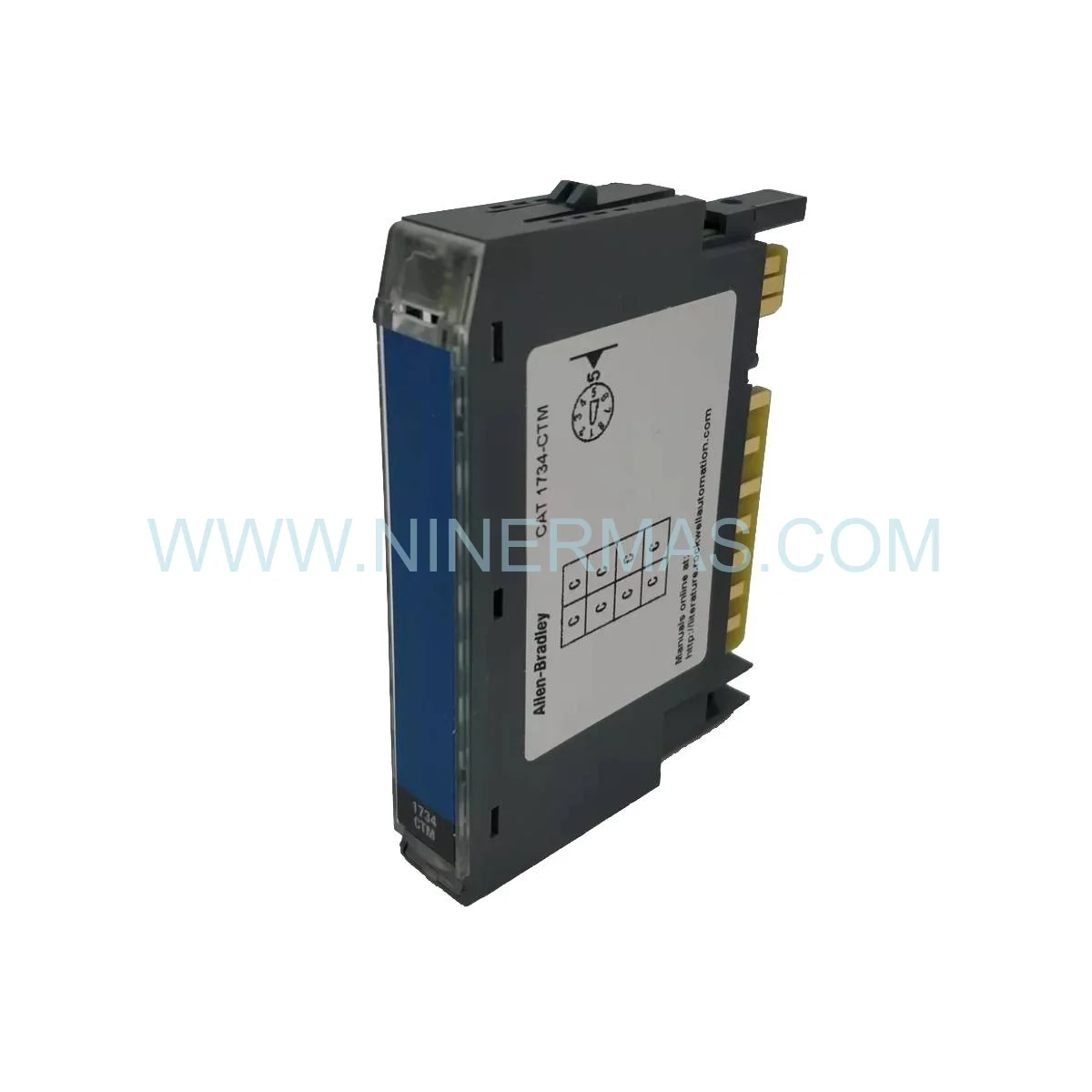

Allen-Bradley 1734-CTM | POINT I/O Field Isolation Terminal Module

Allen-Bradley 1734-CTM — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the Allen-Bradley 1734-CTM occupies a foundational role in preserving the operational integrity of distributed control architectures. As a certified field wiring isolation interface within the POINT I/O ecosystem, the 1734-CTM enforces galvanic separation between system logic and field-side power circuits — a prerequisite for any installation subject to IEC 61010 or UL 508A safety compliance frameworks. Its 250V continuous isolation rating, validated at 1600V DC for 60 seconds, ensures that transient voltage events in field circuits do not propagate into the POINTBus backplane, thereby protecting both personnel and capital assets.

Within the context of Industry 4.0 and smart manufacturing architectures, the Allen-Bradley 1734-CTM demonstrates long-term compatibility with modular I/O expansion strategies. Its support for both 10-28.8V DC and 120/240V AC field power distribution enables seamless integration across legacy and next-generation control panels without requiring infrastructure redesign. This dual-voltage capability is a critical asset optimization factor for facilities managing multi-generation equipment fleets under a unified lifecycle management strategy.

As a factory-sealed, original Allen-Bradley component, the 1734-CTM carries the full weight of Rockwell Automation’s quality control certification chain. Procurement of genuine OEM parts is not merely a preference — it is a compliance obligation in regulated industries where counterfeit or non-certified components can invalidate system safety certifications and expose operators to significant liability.

Compliance & Safety Benchmarks

• ✅ Isolation Voltage: 250V continuous (Basic Insulation Type) — tested at 1600V DC / 60s per IEC 61010-1
• ✅ Field Power Compliance: Supports 10-28.8V DC and 120/240V AC — dual-standard adherence for mixed-voltage environments
• ✅ Output Current Rating: 2A per point / 4A per module — within UL 508A panel design thresholds
• Wire Specification: 22-14 AWG copper, 75°C minimum rated insulation — per NEC and IEC wiring standards
• ✅ Terminal Torque Requirement: 0.8 N·m (7 lb·in) — mandatory for connection reliability and audit compliance
• ✅ Operating Temperature: -20°C to +55°C — certified for industrial ambient conditions
• Exclusive Compatibility: Allen-Bradley 1734-series terminal bases only — third-party substitution voids certification

Vertical Industry Integration & Optimization

The Allen-Bradley 1734-CTM delivers measurable process optimization value across precision-critical industries where electrical isolation is not optional but mandated by operational safety standards:

• Semiconductor Manufacturing: Cleanroom automation panels require strict separation of low-voltage sensor circuits from high-voltage actuator power. The 1734-CTM’s isolation architecture prevents ground loop interference that could corrupt precision measurement data or trigger unplanned shutdowns.
• Pharmaceutical & Life Sciences: GMP-compliant facilities demand full documentation of component certification status. As an original Allen-Bradley part with traceable Original Documentation, the 1734-CTM supports 21 CFR Part 11 audit trails and equipment qualification (IQ/OQ/PQ) processes.
• Chemical & Petrochemical Processing: In hazardous area adjacent control panels, verified isolation barriers are essential for functional safety compliance under IEC 61511. The 1734-CTM’s tested dielectric strength provides the separation margin required for Safety Integrity Level (SIL) assessments.
• Automotive Assembly: High-cycle production lines benefit from the module’s robust 4A maximum output capacity and wide operating temperature range, ensuring consistent System Performance across multi-shift operations without thermal derating concerns.
• Water & Wastewater Treatment: Remote I/O nodes in outdoor enclosures subject to wide ambient temperature swings rely on the 1734-CTM’s -20°C to +55°C rating to maintain Asset Optimization without seasonal maintenance interventions.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

• Factory Sealed Condition: Every Allen-Bradley 1734-CTM unit is dispatched in its original, unopened manufacturer packaging with intact tamper-evident seals — ensuring full traceability and compliance with incoming inspection protocols.
• Rapid Global Logistics: Leveraging established international freight partnerships, orders are processed with priority handling to minimize system downtime. Expedited shipping options are available for critical maintenance scenarios requiring immediate component replacement.
• 12-Month Quality Guarantee for Legacy Systems: Our extended warranty program specifically addresses the lifecycle management challenges of facilities operating aging POINT I/O infrastructure. Coverage includes manufacturing defects, material failures, and performance non-conformance against published Rockwell Automation specifications.
• Original Documentation Package: Shipments include access to current Allen-Bradley technical documentation, enabling seamless integration into your facility’s equipment qualification and change management records.
• Technical Support: Pre-sales engineering consultation and post-installation compliance verification support are available via direct contact with our industrial automation specialists.

Expert Technical FAQ

Q1: Does the Allen-Bradley 1734-CTM carry third-party safety certifications applicable to international installations?
A: The 1734-CTM is manufactured under Rockwell Automation’s ISO 9001-certified quality management system and is designed to comply with IEC 61010-1 isolation requirements. For region-specific certification documentation (CE, UL, cUL), consult the official Allen-Bradley product certification database or request Original Documentation through our technical support channel.

Q2: What environmental conditions could compromise the module’s isolation performance over its operational lifecycle?
A: Sustained exposure to condensing humidity, corrosive atmospheres (H , SO ), or operating temperatures consistently approaching the +55°C ceiling can accelerate insulation aging. For such environments, supplementary enclosure conditioning (NEMA 4X or IP66 rated) is recommended to preserve Safety Integrity over the full asset lifecycle.

Q3: Is firmware or software configuration required to commission the 1734-CTM?
A: No. The 1734-CTM is a passive terminal module with no embedded firmware or configurable parameters. It requires no Studio 5000 or RSLogix configuration — installation compliance is achieved entirely through correct mechanical assembly and wiring per the published installation instructions.

Q4: How does using a non-OEM terminal module affect system certification status?
A: Substituting a non-certified or counterfeit terminal module in place of the genuine Allen-Bradley 1734-CTM can invalidate the UL 508A panel listing and void the system integrator’s liability protection. Compliance Standards require that all components within a certified assembly maintain their original certification status throughout the system’s operational life.

Q5: What is the recommended inspection interval for the 1734-CTM in high-cycle applications?
A: As part of a structured Asset Optimization program, terminal torque verification (0.8 N·m) and visual insulation inspection are recommended at 12-month intervals or following any significant electrical fault event. This practice aligns with IEC 60204-1 maintenance requirements for industrial control equipment.

Q6: Can the 1734-CTM support simultaneous AC and DC field power distribution within the same module?
A: No. The 1734-CTM is designed to distribute a single field power source — either AC or DC — per installation. Mixing AC and DC within the same module violates the wiring specifications and compromises the isolation barrier integrity. Separate terminal modules must be used for each power type in mixed-voltage panel designs.
