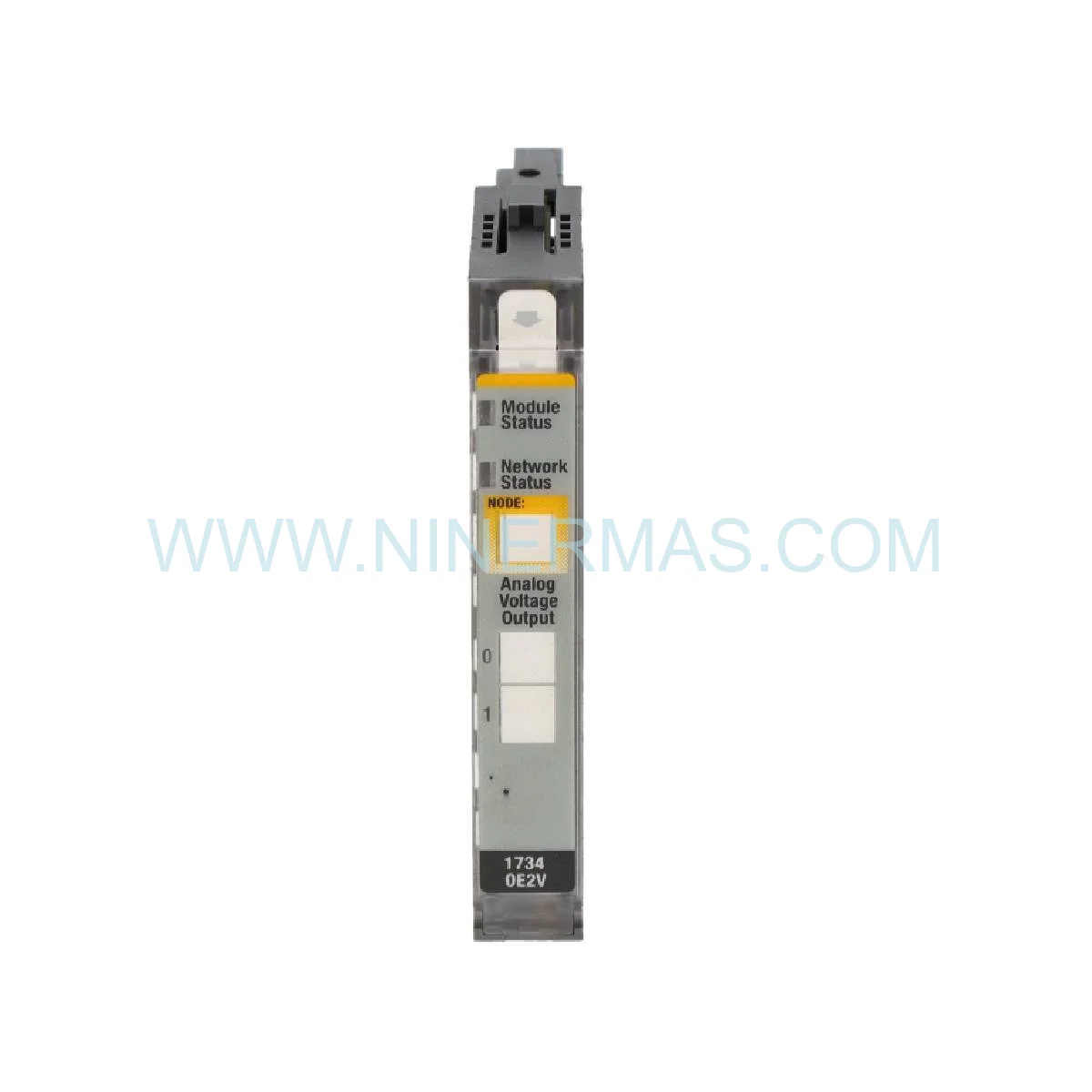

Allen-Bradley 1734-0E2V POINT I/O 2-Channel Analog Voltage Output

Allen-Bradley 1734-0E2V Analog Voltage Output Module – Precision Process Control

The Allen-Bradley 1734-0E2V provides two independent analog voltage output channels engineered for precise control of variable frequency drives, valve positioners, and analog instrumentation. This POINT I/O module converts digital control signals into accurate voltage outputs, enabling seamless integration between your control system and field devices requiring analog command signals.

Performance Specifications

• Output Channels: 2 independent voltage outputs
• Voltage Range: 0-10V DC or ±10V DC (software configurable)
• Resolution: 16-bit (65,536 steps) for precise control
• Accuracy: ±0.1% of full scale at 25 °C
• Update Rate: 1 ms typical per channel
• Output Current: ±10 mA maximum drive capability
• Isolation: Channel-to-backplane isolation for noise immunity
• Operating Range: 0 °C to 60 °C ambient temperature

Industrial Applications

Ideal for controlling variable speed drives where precise speed regulation is critical, the 1734-0E2V excels in applications requiring smooth analog command signals. Use it to modulate pneumatic control valves in process industries, adjust setpoints on temperature controllers, or command servo amplifiers in motion control systems. The 16-bit resolution ensures smooth transitions without stepping artifacts, critical for maintaining product quality in continuous manufacturing processes.

System Architecture

Install on 1734-MB mounting bases for DIN rail installation, then connect via 1734-AENTR EtherNet/IP adapters for network communication. Combine with 1734-OE2C current output modules when your application requires both voltage and current analog signals.

Technical Support Q&A

Q: What’s the difference between voltage and current outputs?
A: Voltage outputs (like the 1734-0E2V) are ideal for short cable runs and high-impedance loads. For long distances or noisy environments, consider current output modules which offer better noise immunity.

Q: Can I configure the output range in software?
A: Yes, each channel supports software-configurable ranges including 0-10V unipolar and ±10V bipolar operation, allowing flexibility without hardware changes.

Q: What load impedance is required?
A: Minimum load impedance is 1 k ©. The module can drive up to ±10 mA, suitable for most industrial analog input devices.

Warranty Coverage

Protected by our 12-month comprehensive warranty covering manufacturing defects and operational failures. Technical support includes configuration assistance, calibration guidance, and troubleshooting for integration challenges throughout the warranty period.
