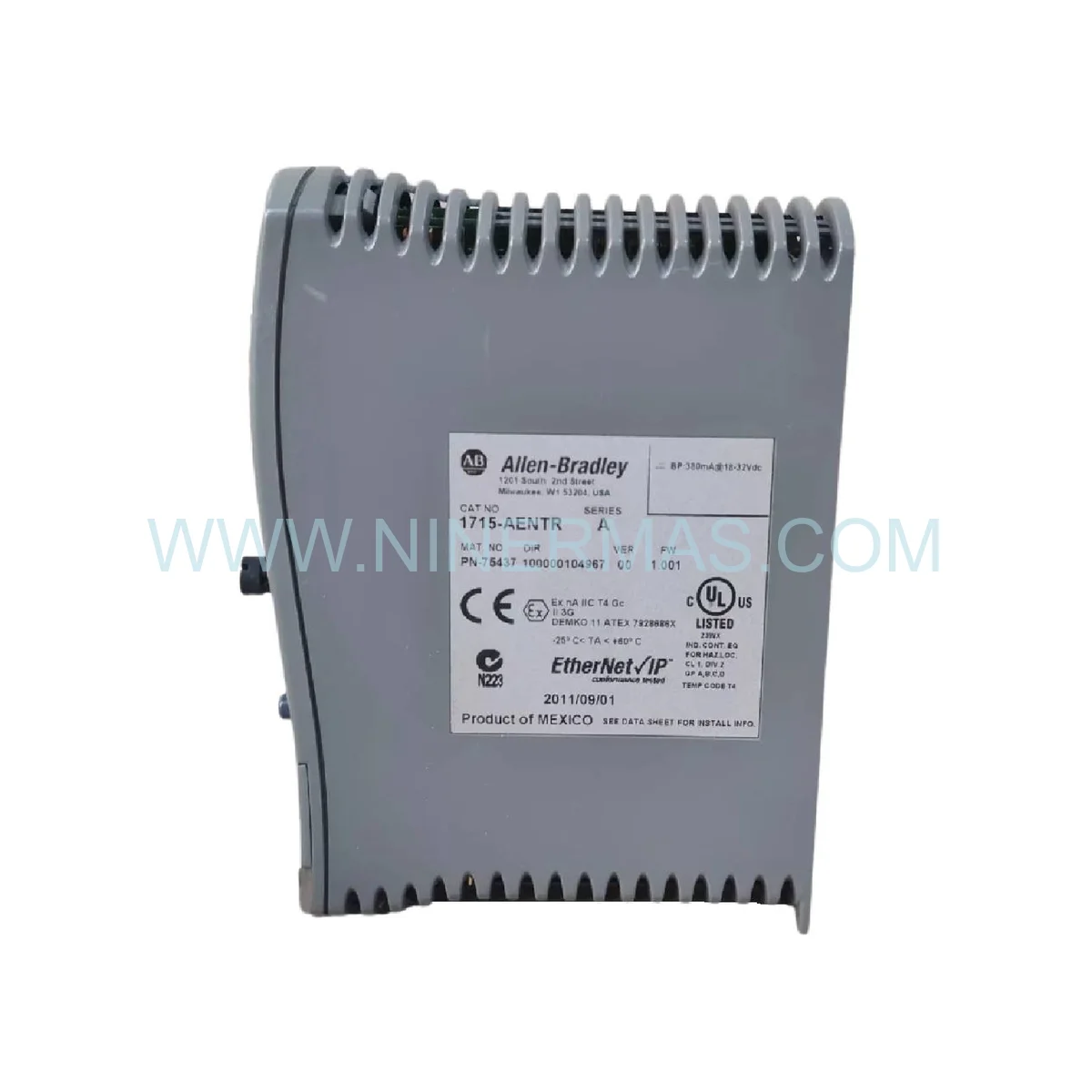

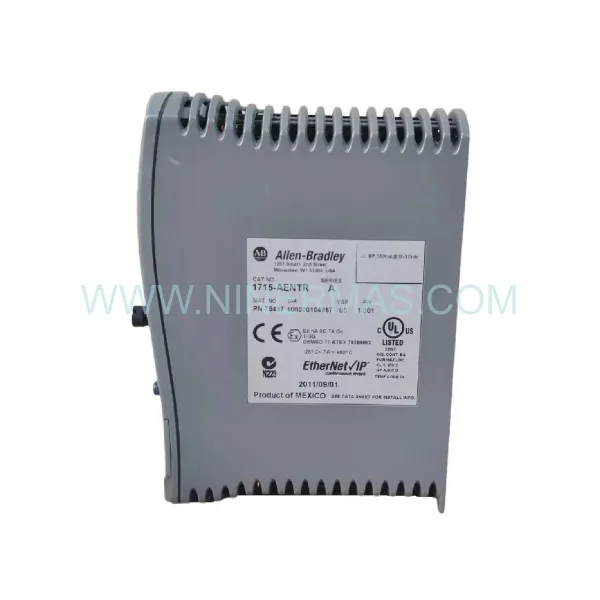

Allen Bradley 1715-AENTR/A Redundant I/O Adapter – EtherNet/IP Module

Allen Bradley 1715-AENTR/A Redundant I/O System Overview

The Allen Bradley 1715-AENTR/A is an advanced EtherNet/IP redundant adapter designed for mission-critical industrial automation applications requiring maximum uptime and fault tolerance. This robust I/O system supports up to 24 modules per adapter, delivering exceptional scalability for complex control architectures.

Technical Specifications

• Operating Voltage: 18-32V DC
• Module Capacity: Supports up to 24 I/O modules
• Communication Protocol: EtherNet/IP with redundant network capability
• Redundancy Type: Full adapter-level redundancy for continuous operation
• Mounting: DIN rail compatible
• Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
• Certifications: UL, CE, CSA approved

Application Scenarios

The 1715-AENTR/A excels in environments where system downtime is unacceptable. Ideal applications include:

• Process manufacturing plants requiring continuous production cycles
• Water treatment facilities with critical monitoring requirements
• Pharmaceutical production lines demanding validated control systems
• Oil and gas operations with remote monitoring needs
• Automotive assembly lines with zero-tolerance for interruptions

Intelligent Redundancy Solution

This adapter implements seamless failover mechanisms that automatically switch to backup communication paths without disrupting I/O operations. The dual-network architecture ensures your control system maintains full functionality even during network failures or maintenance activities, protecting your production schedule and reducing costly downtime.

System Integration Benefits

Designed for straightforward integration with Allen Bradley ControlLogix and CompactLogix platforms, the 1715-AENTR/A simplifies distributed I/O deployment. Its hot-swappable module design enables maintenance without system shutdown, while built-in diagnostics provide real-time health monitoring through your HMI or SCADA interface.

Frequently Asked Questions

Q: Can I mix different I/O module types on the same adapter?
A: Yes, the 1715-AENTR/A supports heterogeneous module configurations including digital input, digital output, analog input, and analog output modules simultaneously.

Q: What cable types are compatible with this adapter?
A: Standard Category 5e or higher Ethernet cables are recommended for optimal performance and reliability in industrial environments.

Q: Does this require special programming software?
A: Configuration is performed through RSLogix 5000/Studio 5000 software using standard EtherNet/IP Add-On Profiles (EDS files).

Q: How does the redundancy switching occur?
A: Failover is automatic and bumpless, typically completing within 50-100ms without data loss or process interruption.

Warranty & Support

All units include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Technical support and replacement services are available throughout the warranty period.
