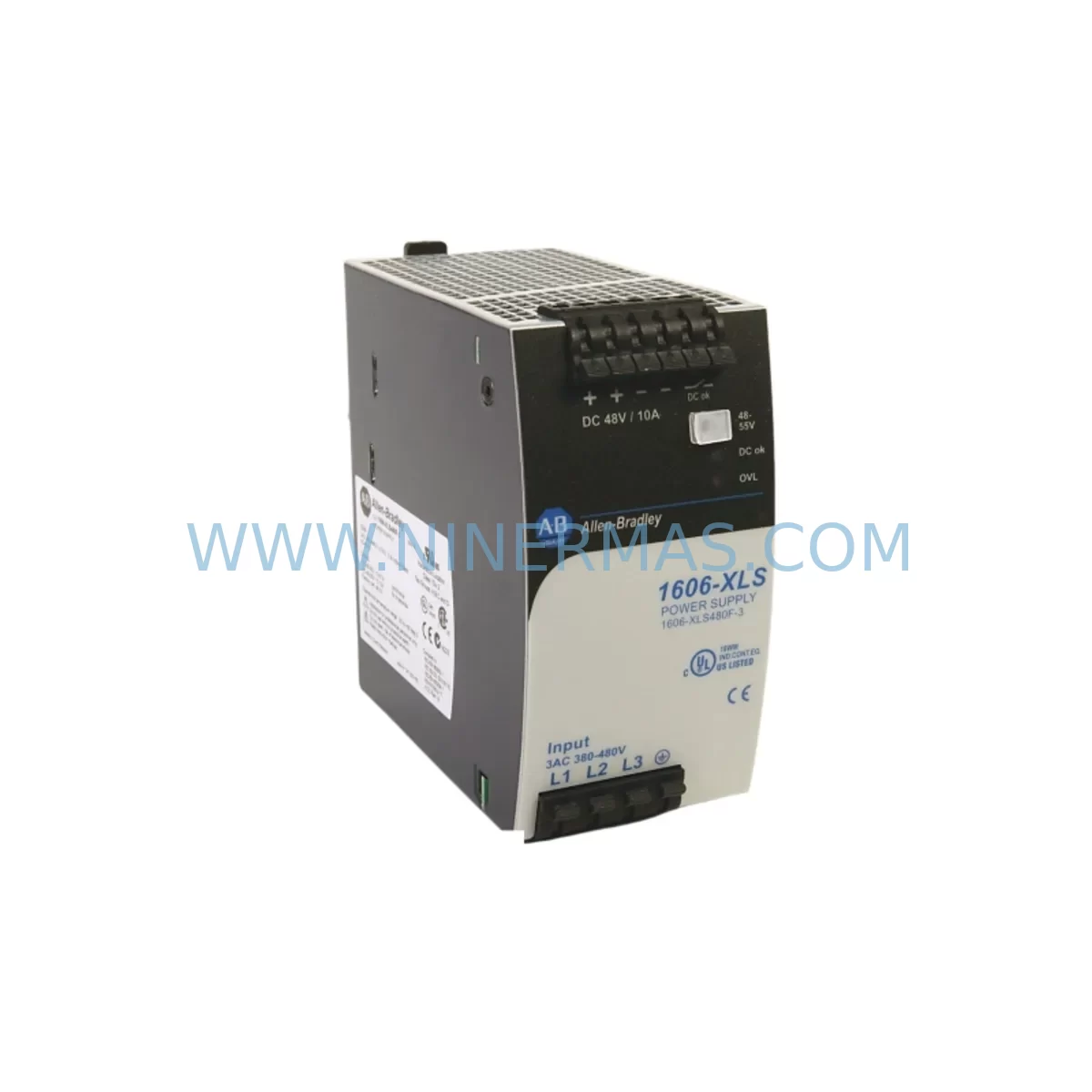

The Allen-Bradley 1606-XLS480E is a 480 W DIN-rail-mounted power supply engineered for demanding industrial environments. Originally deployed across a wide range of Rockwell Automation control cabinets, this unit continues to serve as a critical backbone for legacy automation lines that cannot afford unplanned downtime. As production facilities face the reality of end-of-life component availability, the 1606-XLS480E has become one of the most sought-after retrofit-compatible power supplies for engineers tasked with sustaining older ControlLogix, SLC 500, and MicroLogix-based systems without a full platform migration.

NINERMAS maintains verified stock of the 1606-XLS480E, pre-shipment tested and backed by a 12-month warranty. Each unit undergoes functional load testing, output voltage verification, and thermal cycling checks before dispatch, ensuring that replacement units arrive ready for immediate installation in live production environments.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 1606-XLS480E into an existing control cabinet, the retrofit scope extends well beyond the power supply itself. Engineers must audit the full power distribution chain and downstream load profile before committing to a replacement schedule.

In ControlLogix-based systems, the 1606-XLS480E typically feeds 24 V DC to field I/O marshalling panels, remote I/O drops, and communication modules. If the cabinet also houses a 1756-PA75 chassis power supply feeding a 1756-A13 backplane, the 1606-XLS480E operates in parallel as a field-side supply — meaning any voltage deviation or soft-start mismatch can affect the stability of 1756-L72 controller logic during power-up sequencing. Engineers should verify that the 1756-EN2T EtherNet/IP communication module maintains its network heartbeat throughout the power transition to avoid unintended controller faults.

For SLC 500 and MicroLogix retrofit projects, the 1606-XLS480E commonly replaces aging 24 V DC supplies that power discrete I/O wiring, signal isolators, and field transmitters. In these installations, terminal block compatibility is critical — the existing 1756-TBCH or equivalent terminal assemblies must accept the wire gauge and torque specifications of the replacement unit without re-termination. Where I/O expansion is planned alongside the power supply replacement, adding a 1756-IF16 analog input module or 1756-OB16E digital output module to the rack requires recalculating the total current draw to confirm the 480 W budget remains adequate.

HMI continuity is another key consideration. If the control cabinet drives a 2711P-T10C4D8 PanelView Plus terminal, the HMI’s 24 V DC supply rail must remain stable during the PSU changeover. A brief supply interruption can trigger a PanelView reboot, which — depending on the application — may require operator re-login and screen navigation back to the active process view. Pre-staging the replacement 1606-XLS480E on a temporary DIN rail segment and performing a hot-swap with a transfer switch can eliminate this risk in facilities where continuous HMI visibility is mandatory.

Network topology should also be reviewed. In distributed I/O architectures using a 1783-ETAP EtherNet/IP tap or similar passive network infrastructure, the 24 V DC supply feeds both the tap and the connected I/O adapters. Confirming that the 1606-XLS480E’s output ripple specification meets the tap’s input requirements prevents intermittent communication faults that are difficult to diagnose after installation.

Downtime Control During System Migration

Minimizing production downtime during a power supply replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, engineers should export the current PLC program from the 1756-L72 or equivalent controller and store a verified backup offline. This ensures that if the controller loses its program during the power transition — an unlikely but possible event in systems without battery-backed memory — recovery time is measured in minutes rather than hours.

The replacement sequence should follow a defined load-shedding order: de-energize field devices first, then communication modules, then the controller chassis, and finally the power supply itself. This sequence protects the 1756-EN2T and any connected remote I/O from voltage transients that can occur when a large capacitive load is suddenly disconnected from an aging PSU.

After installing the 1606-XLS480E, bring the system back online in reverse order. Monitor the output voltage under no-load conditions first, then apply field device loads incrementally. Use a calibrated DC clamp meter to verify that the total current draw remains within the 480 W / 24 V DC = 20 A continuous rating before re-enabling the controller. Document the measured values as part of the commissioning record — this data supports warranty claims and provides a baseline for future preventive maintenance cycles.

For facilities operating 24/7 with no scheduled maintenance windows, NINERMAS can support a staged replacement strategy where a pre-tested 1606-XLS480E is shipped ahead of the planned outage, allowing the maintenance team to complete all pre-installation checks — dimensional fit, terminal verification, load calculation — without time pressure during the actual changeover.

Retrofit Support FAQ

Q1: Is the 1606-XLS480E a direct replacement for the 1606-XLS480E-3?
The 1606-XLS480E and 1606-XLS480E-3 share the same output specification (24 V DC, 480 W) but differ in input voltage range and terminal configuration. Confirm the input voltage range of your existing installation before substituting. NINERMAS technical support can assist with cross-reference verification prior to order placement.

Q2: What commissioning checks are required after installation?
After mounting and wiring, verify output voltage at no load (should read 24.0–24.5 V DC), then apply full load and confirm voltage remains within ±1% of nominal. Check output ripple with an oscilloscope if the downstream load includes sensitive analog I/O modules such as the 1756-IF16. Record all measured values in the site commissioning log.

Q3: Can the existing cabinet wiring be reused without modification?
In most cases, yes — provided the wire gauge, terminal pitch, and torque specifications of the 1606-XLS480E match the existing installation. NINERMAS recommends reviewing the terminal block datasheet against the installed wiring before confirming compatibility. If re-termination is required, allow additional time in the maintenance schedule.

Q4: What does the 12-month warranty cover, and how is it claimed?
NINERMAS provides a 12-month warranty from the date of shipment covering manufacturing defects and functional failures under normal operating conditions. Each unit is pre-shipment tested and ships with a test report. To initiate a warranty claim, contact sale@ninermas.com with the order reference and a description of the observed fault. Replacement units are dispatched from verified stock with priority handling.
