Allen-Bradley 1606-XLP100E – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

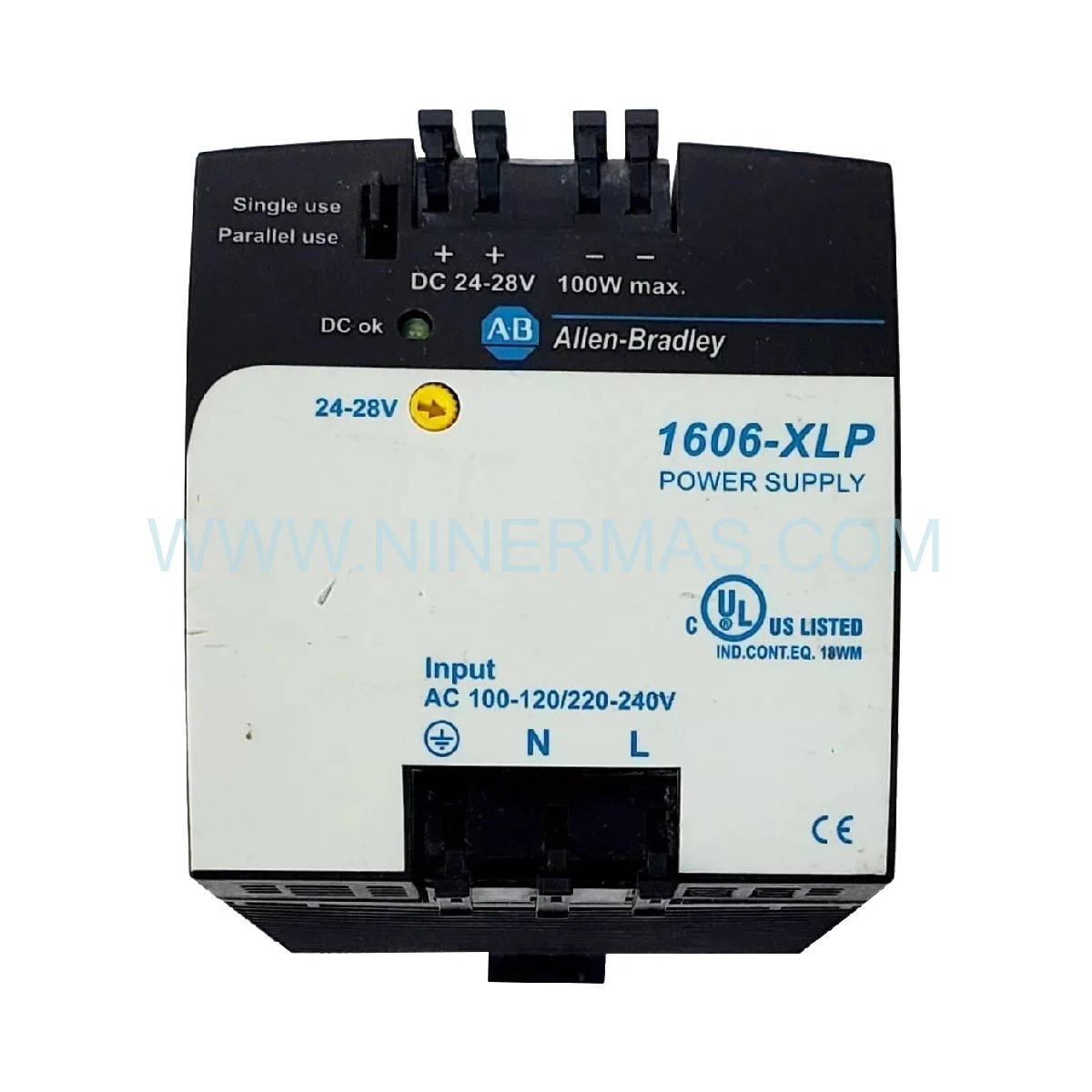

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing facilities, I consistently identify the power supply layer as the most critical — and most overlooked — element in any modernization initiative. The Allen-Bradley 1606-XLP100E stands at the center of this challenge: a compact, high-efficiency 100W DIN rail power supply that bridges the gap between aging control architectures and the demands of today’s smart factory environments. Its role in sustaining system uptime during phased migration projects is not merely supportive — it is foundational. By delivering stable 24VDC output with auto-select AC 100-240V input, the Allen-Bradley 1606-XLP100E eliminates voltage compatibility barriers that typically stall cross-regional retrofit deployments.

Legacy control panels built around first- and second-generation PLCs often rely on power infrastructure that is no longer manufactured or supported. The 1606-XLP100E’s backward compatibility with 35mm DIN rail mounting standards and its plug-and-play integration with Allen-Bradley ControlLogix, CompactLogix, and Flex I/O platforms make it an ideal retrofit anchor. Whether you are replacing an end-of-life power module or building a hybrid architecture that keeps legacy field devices operational while introducing modern network layers, this unit provides the electrical stability required for a zero-disruption cutover.

From a migration risk and cost perspective, the 1606-XLP100E dramatically reduces the scope of panel redesign. Its compact footprint preserves existing cabinet layouts, and its 91% efficiency rating lowers thermal load — a key factor when integrating new computing hardware into legacy enclosures not originally designed for high-density electronics. The result: faster commissioning timelines, reduced engineering hours, and a measurable reduction in total retrofit expenditure.

Upgrade Highlights & Compatibility

• Universal Input Compatibility: Auto-select AC 100-240V supports global facility deployments without hardware reconfiguration — critical for multinational retrofit programs.
• ✅ Seamless Integration: Direct drop-in replacement for aging 24VDC power modules in ControlLogix, CompactLogix, and Flex I/O control panels.
• Performance Enhancement: 91% efficiency reduces heat generation by up to 30% compared to legacy linear power supplies, extending cabinet component lifespan.
• ✅ Future-Proofing: Supports N+1 redundancy configuration via 1606-XLERED module — enabling high-availability architectures in critical process environments.
• Legacy Compatibility: 35mm DIN rail form factor ensures mechanical compatibility with existing panel infrastructure, eliminating costly enclosure modifications.
• ✅ Built-In Protection Suite: Overload, short-circuit, and over-temperature protection circuits safeguard both legacy field devices and newly integrated smart components during transition phases.

Modernization Use Cases & Success Stories

DCS Power Infrastructure Retrofit — Chemical Processing Plant:
A regional chemical manufacturer operating a 15-year-old Distributed Control System faced escalating downtime due to failing OEM power supplies no longer available through standard channels. By standardizing on the 1606-XLP100E across 24 control panels, the retrofit team achieved a like-for-like mechanical replacement with zero panel redesign. The auto-select input voltage feature allowed simultaneous deployment across facilities in Europe and Southeast Asia, reducing procurement complexity and cutting retrofit lead time by 40%.

Turbine Monitoring System (TSI) Modernization — Power Generation Facility:
A gas turbine operator upgrading from a legacy TSI platform to a modern condition monitoring architecture required a power supply capable of supporting both the decommissioned vibration sensors and the new IIoT edge gateways during a parallel-run transition period. The 1606-XLP100E’s 4.2A output capacity and robust protection circuits provided the electrical headroom needed to power mixed legacy-modern loads simultaneously — enabling a 6-month parallel operation phase without a single power-related fault.

Machine Automation Upgrade — Automotive Assembly Line:
An automotive Tier 1 supplier modernizing conveyor control systems replaced aging 24VDC power modules with the 1606-XLP100E as part of a broader Hardware Upgrade initiative. The conformal coating on the unit’s PCB ensured reliable operation in the high-humidity paint shop environment, while the compact DIN rail form factor allowed integration into existing junction boxes without structural modification — delivering a Performance Enhancement that reduced unplanned downtime by 22% in the first operational quarter.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Every 1606-XLP100E unit supplied is sourced from authorized distribution channels and shipped in original OEM packaging with full factory sealing. Batch traceability documentation is available upon request for quality-critical retrofit projects.

Expedited Global Logistics: Recognizing that retrofit project timelines are rarely flexible, we maintain ready stock with expedited international shipping to support urgent deployment schedules across North America, Europe, the Middle East, and Asia-Pacific. Lead time for standard orders: 3-7 business days globally.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy system integration challenges. Whether you need guidance on replacing an end-of-life power module, configuring redundancy for a critical process line, or validating electrical compatibility with aging field devices, we provide application-level consultation at no additional cost.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and performance deviations, with advance replacement options available for mission-critical retrofit installations.

Retrofit FAQ — Upgrade Guide

Q1: Will the 1606-XLP100E physically fit into my existing control panel without modification?
A: In the vast majority of retrofit scenarios, yes. The 1606-XLP100E uses the industry-standard 35mm DIN rail mounting system, which is mechanically compatible with virtually all control panels manufactured since the 1990s. Its compact width minimizes the impact on adjacent components, and no enclosure drilling or structural modification is typically required for a direct replacement installation.

Q2: How does this unit handle communication between legacy field devices and modern network-connected systems?
A: The 1606-XLP100E functions as a pure power supply and does not participate in data communication protocols. This is actually an advantage in retrofit scenarios: it provides clean, stable 24VDC power to both legacy analog devices and modern digital/networked components simultaneously, without introducing protocol conversion complexity. Communication bridging is handled at the controller or gateway layer, keeping the power infrastructure simple and reliable.

Q3: Can this power supply replace older Allen-Bradley or third-party 24VDC modules that are now obsolete or end-of-life?
A: Yes. The 1606-XLP100E is widely used as a Retrofit Solution for obsolete 24VDC power modules from multiple manufacturers. Its standard DIN rail form factor, universal input voltage, and 4.2A output capacity make it compatible with the electrical specifications of most legacy 100W-class power supplies. We recommend verifying output current requirements against your existing load profile before finalizing the replacement selection.

Q4: Is it possible to run the 1606-XLP100E in parallel with an existing power supply during a phased migration?
A: Parallel operation for load sharing is supported when using the 1606-XLERED redundancy module. This configuration allows you to introduce the new unit alongside the existing supply, validate performance under live conditions, and then decommission the legacy unit — all without a system shutdown. This approach is strongly recommended for critical process environments where unplanned downtime carries significant operational or safety risk.

Q5: What documentation is available to support the retrofit validation and commissioning process?
A: Full OEM technical documentation is available, including installation instructions, wiring diagrams, derating curves, and compliance certificates (CE, UL, cUL). For retrofit projects requiring formal change management documentation, we can provide product datasheets, conformity declarations, and batch-level traceability records to support your engineering change order (ECO) process.

Q6: How does the 1606-XLP100E perform in environments with significant temperature variation or airborne contaminants?
A: The unit is rated for operation from -25°C to +70°C and features a conformal-coated PCB that provides protection against moisture, dust, and mild chemical exposure. This makes it well-suited for retrofit deployments in foundries, food processing facilities, outdoor enclosures, and other environments where legacy equipment has historically suffered accelerated failure due to environmental stress.
