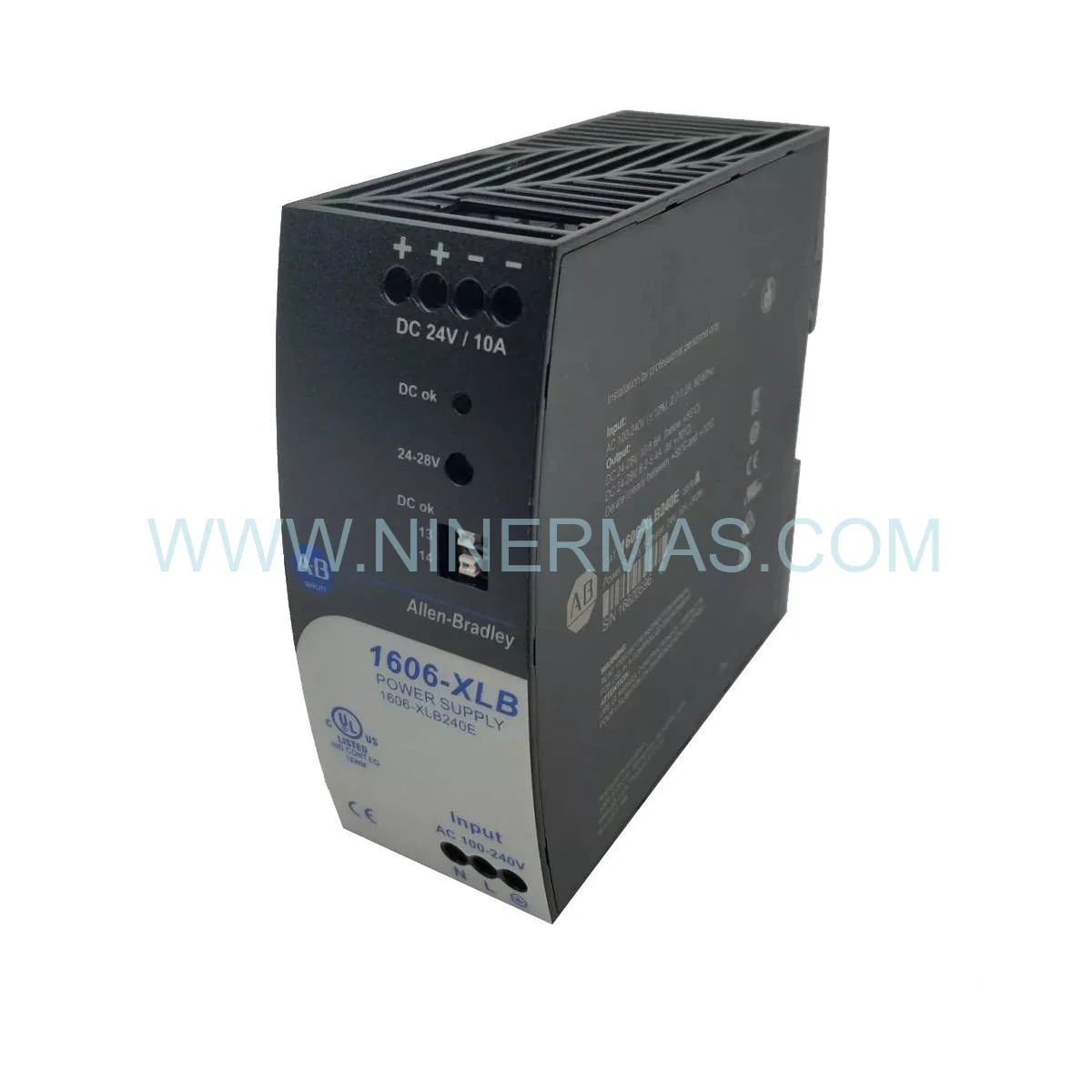

Allen-Bradley 1606-XLB240E 240W Power Supply | 24-28V DC, 10A — New & Original

Allen-Bradley 1606-XLB240E | Reliable Automation Component for Mission-Critical Power Distribution

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer operating in continuous-process manufacturing environments, the Allen-Bradley 1606-XLB240E stands as a cornerstone component for sustaining system availability. Delivering a stable 240W output at 24-28V DC with a maximum draw of 10A, this switched-mode power supply is engineered to eliminate voltage instability — one of the leading root causes of unplanned PLC shutdowns and I/O module faults in mission-critical automation architectures. Its integration into process control panels directly reduces mean time to failure (MTTF) across distributed control networks.

Deployed across harsh industrial environments — from foundry floors to offshore platforms — the 1606-XLB240E demonstrates exceptional thermal resilience, operating reliably within a -25°C to +70°C ambient range. Its wide-range AC input (90-264V AC, 47-63Hz) accommodates global grid fluctuations without derating, a critical advantage during brownout conditions. Installation engineers should note that DIN rail mounting (35mm) must be secured with end-stop brackets in high-vibration zones to prevent micro-movement that degrades terminal contact integrity over time.

For maintenance planners and procurement teams managing legacy or end-of-life (EOL) control systems, stocking the 1606-XLB240E as a certified spare is not optional — it is a reliability imperative. Unplanned sourcing of power supply replacements during a production stoppage can extend downtime by 48-96 hours. Pre-positioning this module in your critical spares inventory is a proven strategy for achieving Operational Excellence and protecting production throughput.

Key Operational Features

240W Continuous Output Power — Sustains full-load operation without thermal throttling, supporting high-density I/O Modules and multi-axis drive systems.
Adjustable 24-28V DC Output — Front-panel potentiometer enables fine voltage compensation for extended cable runs, optimizing System Integration accuracy.
Wide-Range AC Input (90-264V AC) — Universal input eliminates the need for external voltage transformers, simplifying global deployment.
Redundancy-Ready Architecture — Supports parallel operation with current-sharing modules for High Availability power bus configurations.
Comprehensive Protection Suite — Overload, overvoltage, and short-circuit protection safeguard downstream Automation Components from cascading failures.
Up to 89% Efficiency — Reduces thermal load inside control enclosures, enabling tighter cabinet layouts and lower HVAC operating costs.
35mm DIN Rail Mounting — Seamless Seamless integration into standard IEC 60715 rail systems for rapid field installation and replacement.

Maintenance & Performance Benchmarks

The 1606-XLB240E is designed to serve as the backbone of both small-scale machine control panels and large-scale distributed automation networks. In single-node installations, its compact footprint (approximately 55mm wide) allows dense packing within 400mm-wide enclosures, freeing space for additional I/O Modules and communication gateways. In multi-node architectures, its parallel-operation capability — when paired with Rockwell Automation’s redundancy modules — enables N+1 power redundancy without requiring a dedicated UPS for each control zone.

Field data from Process Optimization deployments indicates that replacing aging or counterfeit power supplies with genuine 1606-XLB240E units reduces nuisance trips by up to 73% in PLC-controlled conveyor and packaging lines. The unit’s MTBF rating exceeds 500,000 hours at 25°C ambient, translating to a projected service life well beyond typical 10-year plant upgrade cycles. Preventive maintenance intervals can be extended to 36 months in climate-controlled environments, reducing technician labor costs and minimizing scheduled downtime windows.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1606-XLB240E unit shipped by our team is sourced directly from authorized distribution channels and arrives in Original Factory Packaging with intact tamper-evident seals — eliminating the risk of counterfeit components entering your control system. For urgent production recovery scenarios, same-day dispatch is available on in-stock units (order confirmation required before 14:00 local time). Our global logistics network covers over 150 countries, with express freight options via DHL, FedEx, and UPS ensuring delivery within 3-7 business days to most industrial regions.

We specialize in supplying EOL and Legacy Module inventory for facilities operating extended asset lifecycles. If your plant runs on a control architecture that predates current Rockwell catalog revisions, our sourcing team maintains verified stock of discontinued variants to support your maintenance program without forcing a costly system upgrade.

Engineering Support & FAQ

Q1: What is the correct DIN rail installation orientation for the 1606-XLB240E?
A: The unit must be mounted vertically on a horizontal DIN rail to ensure proper convective airflow across internal heat sinks. Horizontal mounting (rail vertical) is not recommended and may void warranty coverage under sustained high-load conditions.

Q2: Is the 1606-XLB240E compatible with Rockwell Automation’s 1606-XLRED redundancy modules?
A: Yes. The 1606-XLB240E is fully compatible with the 1606-XLRED redundancy module for parallel current-sharing configurations. Ensure both units are set to identical output voltages before enabling the redundancy bus.

Q3: What firmware or configuration tools are required for commissioning?
A: The 1606-XLB240E is a hardware-only device with no embedded firmware. No software configuration is required. Output voltage adjustment is performed manually via the front-panel potentiometer using a small flathead screwdriver.

Q4: How is the warranty claim process initiated?
A: Contact our technical support team at sale@ninermas.com with your order reference number, unit serial number, and a description of the observed fault. Our team will issue a Return Merchandise Authorization (RMA) within 1 business day and arrange return freight at no cost to the customer during the 12-month warranty period.

Q5: Can the 1606-XLB240E power a 24V DC safety relay circuit simultaneously with PLC I/O loads?
A: Yes, provided the combined load does not exceed 10A. For safety-critical circuits, we recommend allocating a dedicated power segment using a downstream fuse block to isolate safety relay power from standard I/O Module loads, in compliance with IEC 62061 functional safety guidelines.

Q6: What is the inrush current at startup, and does it affect upstream circuit breaker sizing?
A: The 1606-XLB240E exhibits a peak inrush current of approximately 30A for <1ms at cold start. Upstream circuit breakers should be rated as Type C (or equivalent) with a minimum 16A rating to prevent nuisance tripping during power-on sequences in multi-supply panel configurations.
