Allen-Bradley 1492-CABLE025TBNH Service-Ready Spare Part

Allen-Bradley 1492-CABLE025TBNH Service-Ready Spare Part for Industrial Maintenance

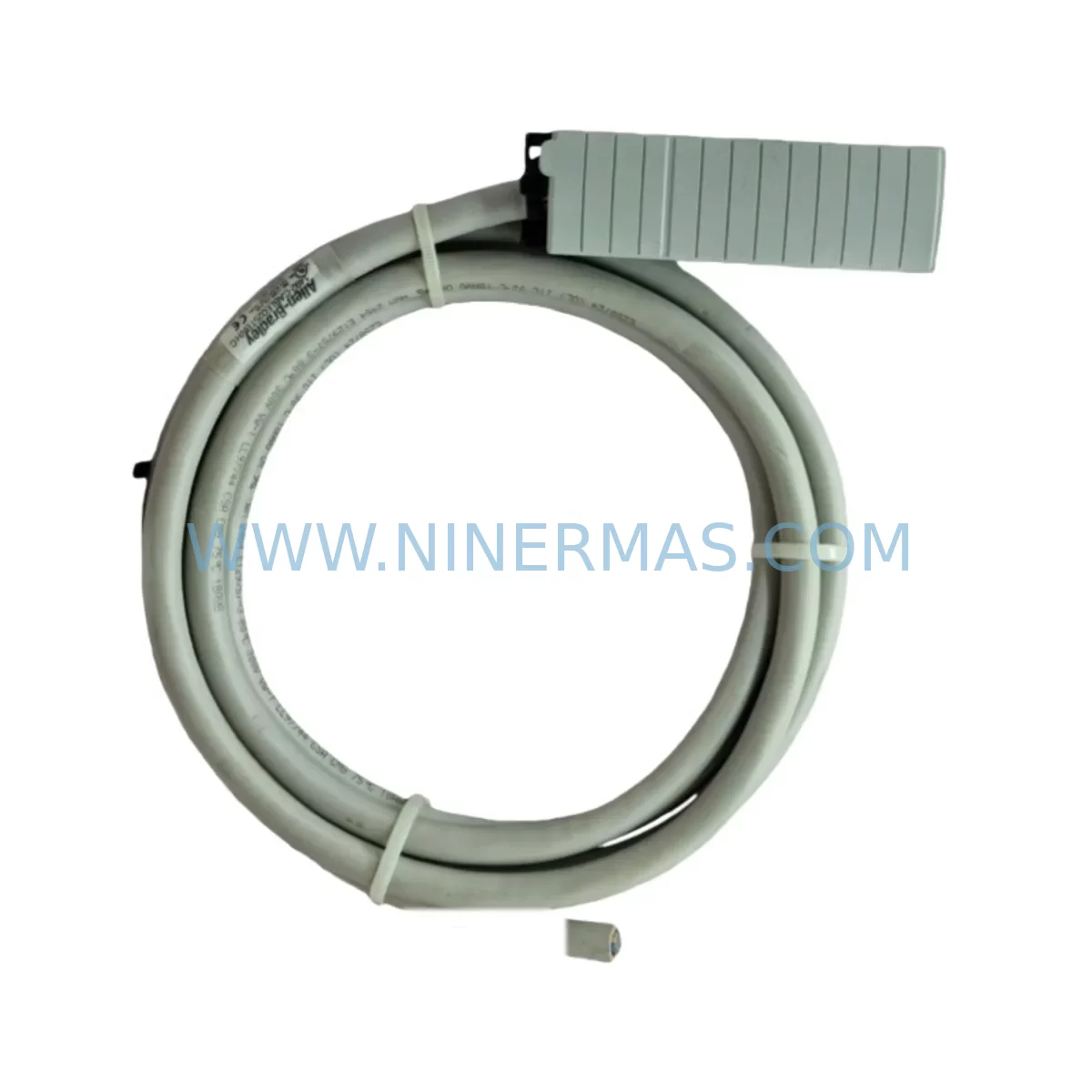

The Allen-Bradley 1492-CABLE025TBNH is a factory-terminated, pre-wired interface cable designed for seamless integration within the 1492 Series wiring system — one of Rockwell Automation’s most widely deployed I/O interface solutions across discrete manufacturing, process control, and critical infrastructure environments. As a genuine original spare part, the 1492-CABLE025TBNH provides maintenance engineers and procurement teams with a reliable, drop-in replacement that eliminates field wiring errors, reduces commissioning time, and restores system availability with minimal disruption to ongoing production.

In industrial facilities where control cabinet uptime is non-negotiable, having the correct pre-wired cable in stock is a fundamental part of any preventive maintenance strategy. The 1492-CABLE025TBNH connects Allen-Bradley I/O modules — including those in the 1756 ControlLogix, 1769 CompactLogix, and 1794 FLEX I/O families — directly to terminal blocks, eliminating the need for manual point-to-point wiring during replacement or commissioning. This dramatically reduces the risk of miswiring, which is one of the leading causes of unplanned downtime during maintenance windows.

For maintenance engineers conducting routine cabinet inspections or responding to fault alarms, the 1492-CABLE025TBNH is typically evaluated alongside other critical components in the same I/O circuit. During a replacement procedure, it is standard practice to also inspect the 1492-AIFM8-F-5 analog interface module, the associated 1756-IB16 or 1756-OB16 digital I/O modules, and the 1756-A7 or 1756-A13 chassis backplane for signs of connector wear or oxidation. The 1756-PA75 or 1756-PB75 power supply feeding the chassis should also be verified for output stability before reinstalling the cable assembly.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for systems using the 1492-CABLE025TBNH requires a holistic view of the entire I/O signal chain. When this cable is flagged for replacement — whether due to connector fatigue, insulation degradation, or a scheduled overhaul — maintenance teams should simultaneously assess the condition of the 1492-AIFM8-F-5 analog interface module and the 1492-IFM20F-24-2 interface module mounted on the terminal rail. These components share the same signal path and are subject to the same environmental stresses.

In ControlLogix-based systems, the cable interfaces directly with 1756-series I/O modules such as the 1756-IF8 analog input module or the 1756-OF8 analog output module. If the cable shows signs of intermittent signal loss, the I/O module’s channel diagnostics should be reviewed via Studio 5000 Logix Designer before concluding that the cable alone is at fault. In some cases, the 1756-EN2T EtherNet/IP communication module may also need to be checked if the fault manifests as a network-level I/O connection timeout rather than a hardware signal error.

For facilities running 1769 CompactLogix systems, the 1492-CABLE025TBNH is commonly used alongside 1769-IQ16 digital input modules and 1769-OB16 digital output modules. During annual shutdowns, it is advisable to replace all pre-wired cables in high-vibration zones as a preventive measure, even if no fault has been detected. Vibration-induced connector loosening is a known failure mode in mobile equipment and compressor control panels. Keeping a minimum of two spare units of the 1492-CABLE025TBNH per control cabinet is a widely adopted best practice in continuous process industries.

Procurement engineers should also consider stocking the 1492-CABLE050TBNH (0.5 m variant) and 1492-CABLE100TBNH (1.0 m variant) alongside the 025 model to cover different cabinet depth configurations without requiring custom field wiring. All variants ship pre-tested and are covered under a 12-month warranty from the date of shipment.

Site Replacement Workflow

Replacing the 1492-CABLE025TBNH on-site is a straightforward procedure when the correct spare is available and the replacement is planned in advance. The following workflow is recommended to minimize downtime and ensure system integrity:

Step 1 — Pre-replacement verification: Before removing the existing cable, document the current I/O module channel assignments and verify that the replacement cable matches the original part number exactly. Confirm that the 1756-PA75 power supply or equivalent is de-energized before disconnecting the cable from the I/O module side.

Step 2 — Connector inspection: Inspect the D-shell connector on both the I/O module and the terminal block interface module for bent pins, corrosion, or debris. Clean with dry compressed air if necessary. Do not use solvents on the connector housing.

Step 3 — Cable installation: Seat the new 1492-CABLE025TBNH firmly into both connectors and secure the locking screws to the specified torque. Verify that the cable routing does not create sharp bends or contact with sharp metal edges inside the cabinet.

Step 4 — System restoration: Re-energize the power supply and verify I/O channel status via the controller’s diagnostic interface. In Studio 5000, confirm that all previously faulted channels return to normal status. If any channel remains in fault, perform a module reset before escalating to hardware replacement.

Step 5 — Documentation: Record the replacement date, part number, and technician ID in the maintenance log. Update the spare parts inventory to trigger a reorder if stock falls below the minimum threshold.

All units supplied by NINERMAS are shipped after passing outgoing electrical continuity and connector integrity tests. Each unit is individually packaged with original labeling and is traceable to its manufacturing batch.

Spare Parts Support FAQ

Q1: Is the 1492-CABLE025TBNH compatible with both ControlLogix and CompactLogix systems?
Yes. The 1492-CABLE025TBNH is compatible with all Allen-Bradley I/O platforms that use the standard 40-pin MDR connector interface, including the 1756 ControlLogix, 1769 CompactLogix, 1794 FLEX I/O, and SLC 500 series with appropriate interface modules. Always verify the specific interface module (1492-AIFM or 1492-IFM series) used in your cabinet before ordering.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, connector failures, and electrical continuity faults under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, mechanical impact, or exposure to corrosive chemicals. Warranty claims are processed within 5 business days of receiving the returned unit.

Q3: How do you ensure the cable is genuine and not a counterfeit?
All 1492-CABLE025TBNH units supplied by NINERMAS are sourced from authorized distribution channels and verified against Rockwell Automation’s original part specifications. Each unit undergoes outgoing inspection including connector pin continuity testing and visual inspection of labeling and housing markings before shipment.

Q4: Can you supply multiple units for long-term stock?
Yes. NINERMAS maintains ongoing inventory of the 1492-CABLE025TBNH and related 1492 series cable variants. We support bulk procurement for annual maintenance contracts, plant turnaround projects, and strategic spare parts programs. Lead time for standard orders is 3–7 business days. Contact our team for volume pricing and long-term supply agreements.
