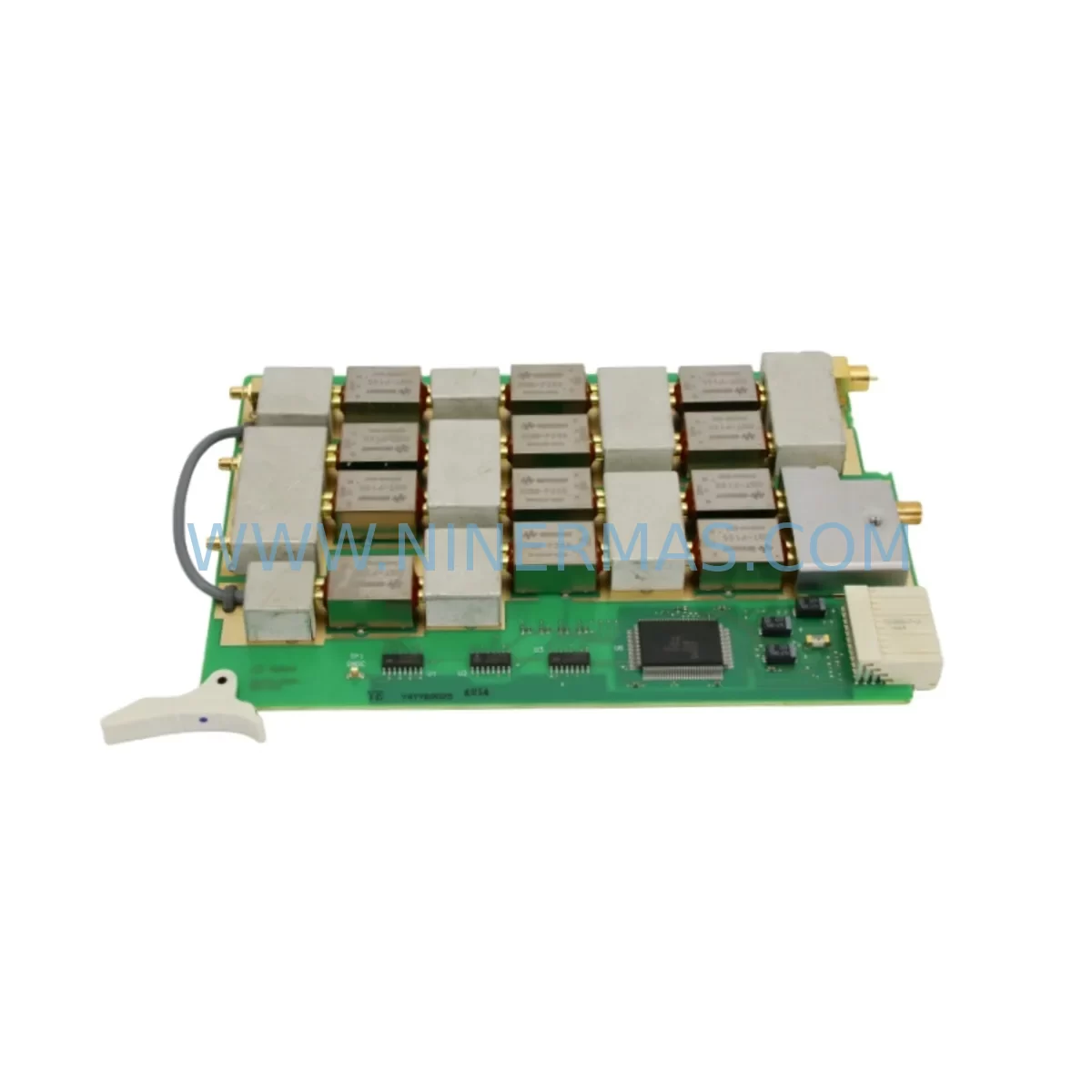

The Agilent E3126-26611 pin board — also referenced under part numbers 33-5013, E3126-66611, 8300D, 0090-00012, and 0040-21367 — is a critical interconnect and signal routing component used in Agilent instrumentation and industrial test systems. When this board fails or degrades, the downstream impact on measurement accuracy, system uptime, and production continuity can be severe. Sourcing a verified, service-ready replacement from a specialist spare parts supplier is the fastest path to restoring full system operation without compromising calibration integrity or safety compliance.

At NINERMAS, every E3126-26611 unit is sourced from original production channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams managing aging Agilent instrumentation platforms where OEM support has been discontinued or lead times are unacceptably long.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the E3126-26611 pin board in an Agilent 8300D or E3126-series system, a thorough site inspection is essential to prevent repeat failures and ensure the replacement board operates within its rated parameters. Maintenance engineers should treat this replacement as an opportunity to audit the entire instrumentation rack or control cabinet.

Begin by inspecting the backplane assembly that the E3126-26611 seats into. Worn connector pins, oxidized contacts, or cracked PCB traces on the backplane can cause intermittent faults that will damage a new board within weeks. If the backplane shows signs of arcing or mechanical stress, replace it concurrently.

Next, verify the DC power supply module feeding the instrumentation rack. Agilent systems in this class typically require tightly regulated +5 V and ±15 V rails. A degraded power supply — even one that appears functional — can introduce ripple that corrupts signal integrity on the pin board. Check the Agilent E3631A or equivalent bench power supply output under load before reinstalling the replacement board.

Inspect all ribbon cables and flat flex connectors routed to and from the E3126-26611. These cables are a common failure point in aging systems: insulation cracks, connector latch fatigue, and pin corrosion all contribute to intermittent signal loss. Replace any cable showing visible wear, and confirm correct pin-1 orientation before reconnecting.

Review the I/O interface cards in adjacent slots. In ATE environments, the pin board often interfaces directly with digital I/O modules or analog measurement cards. Confirm that the I/O cards — such as the Agilent E1330B quad 8-bit I/O module or equivalent — are seated correctly and that their firmware is compatible with the replacement board revision.

Check signal isolation modules and relay boards in the same measurement loop. If the system uses relay multiplexers (such as the Agilent E1406A command module or similar switching matrices), inspect relay contact resistance and coil drive voltages. A failed relay can mask a successful board replacement by introducing path resistance that mimics a board fault.

Examine terminal blocks and field wiring connected to the instrumentation chassis. Loose terminations, incorrect torque on screw terminals, and mixed wire gauges are frequent sources of noise that appear as board-level faults. Re-torque all terminals to specification and verify wire labeling against the as-built wiring diagram.

For systems with GPIB or RS-232 communication interfaces, confirm that the communication module — such as the Agilent 82357B USB/GPIB interface or an equivalent GPIB controller card — is functioning correctly after the board swap. A communication timeout or bus error post-replacement often indicates a configuration mismatch rather than a hardware fault.

Finally, if the system includes an HMI panel or operator interface, perform a full display and input verification cycle after the replacement. HMI screens that were previously showing intermittent errors may clear once the pin board is restored, confirming the root cause. If HMI faults persist, inspect the HMI power supply and communication cable separately.

Maintaining a local spare parts buffer that includes the E3126-26611 alongside its associated backplane, power supply, and I/O cards reduces mean time to repair (MTTR) from days to hours — a critical advantage in high-availability production environments.

Site Replacement Workflow

Step 1 — Isolation: Power down the instrumentation system following the OEM lockout/tagout procedure. Discharge any capacitive storage in the power supply before opening the chassis.

Step 2 — Documentation: Photograph the existing board orientation, cable routing, and connector positions before removal. Record the board revision number and any visible markings for traceability.

Step 3 — Removal: Carefully extract the E3126-26611 using appropriate ESD precautions. Avoid flexing the board during removal; the pin connectors are precision-aligned and can be damaged by lateral force.

Step 4 — Inspection: Inspect the vacated slot for debris, damaged connector pins, or signs of thermal stress. Clean the slot with dry compressed air before installing the replacement.

Step 5 — Installation: Seat the replacement E3126-26611 firmly and evenly. Confirm all connector rows are fully engaged before applying any retaining hardware.

Step 6 — Verification: Power on the system and run the OEM self-test or diagnostic routine. Confirm all measurement channels return to within-specification readings before returning the system to production.

Step 7 — Documentation Close-Out: Record the replacement in the maintenance log with the new board serial number, installation date, and technician ID. Retain the failed board for failure analysis if required by your quality system.

This workflow is compatible with both direct like-for-like replacement of the E3126-26611 and cross-reference substitution using the 33-5013 or 8300D part numbers, provided the board revision is confirmed compatible with the target system.

Spare Parts Support FAQ

Q1: Is the E3126-26611 still available from the OEM, and what is the typical lead time from NINERMAS?
Agilent’s instrumentation division has transitioned to Keysight Technologies, and many legacy part numbers including the E3126-26611 are no longer available through standard OEM channels. NINERMAS maintains reserved inventory of this part specifically for maintenance and retrofit applications. In-stock units ship within 1–3 business days globally.

Q2: How do I confirm compatibility between the E3126-26611 and my specific system revision?
Provide your system model number, chassis serial number, and existing board revision to our technical team at sale@ninermas.com. We will cross-reference against our compatibility database and confirm the correct board variant before shipment. Cross-reference part numbers 33-5013, E3126-66611, 8300D, 0090-00012, and 0040-21367 are all verified against our stock.

Q3: What pre-shipment testing does NINERMAS perform on the E3126-26611?
Each unit undergoes visual inspection, connector integrity verification, and functional testing on compatible test fixtures before shipment. A test report is available upon request. All units are shipped in ESD-safe packaging with humidity indicators to protect connector integrity during transit.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact sale@ninermas.com with your order number, a description of the fault, and any available diagnostic data. NINERMAS will arrange return shipping and provide a replacement or refund within the agreed service window.
