ADLINK PCI-9114A-DG Service-Ready Spare Part for Industrial Maintenance

ADLINK PCI-9114A-DG Service-Ready Spare Part for Industrial Maintenance

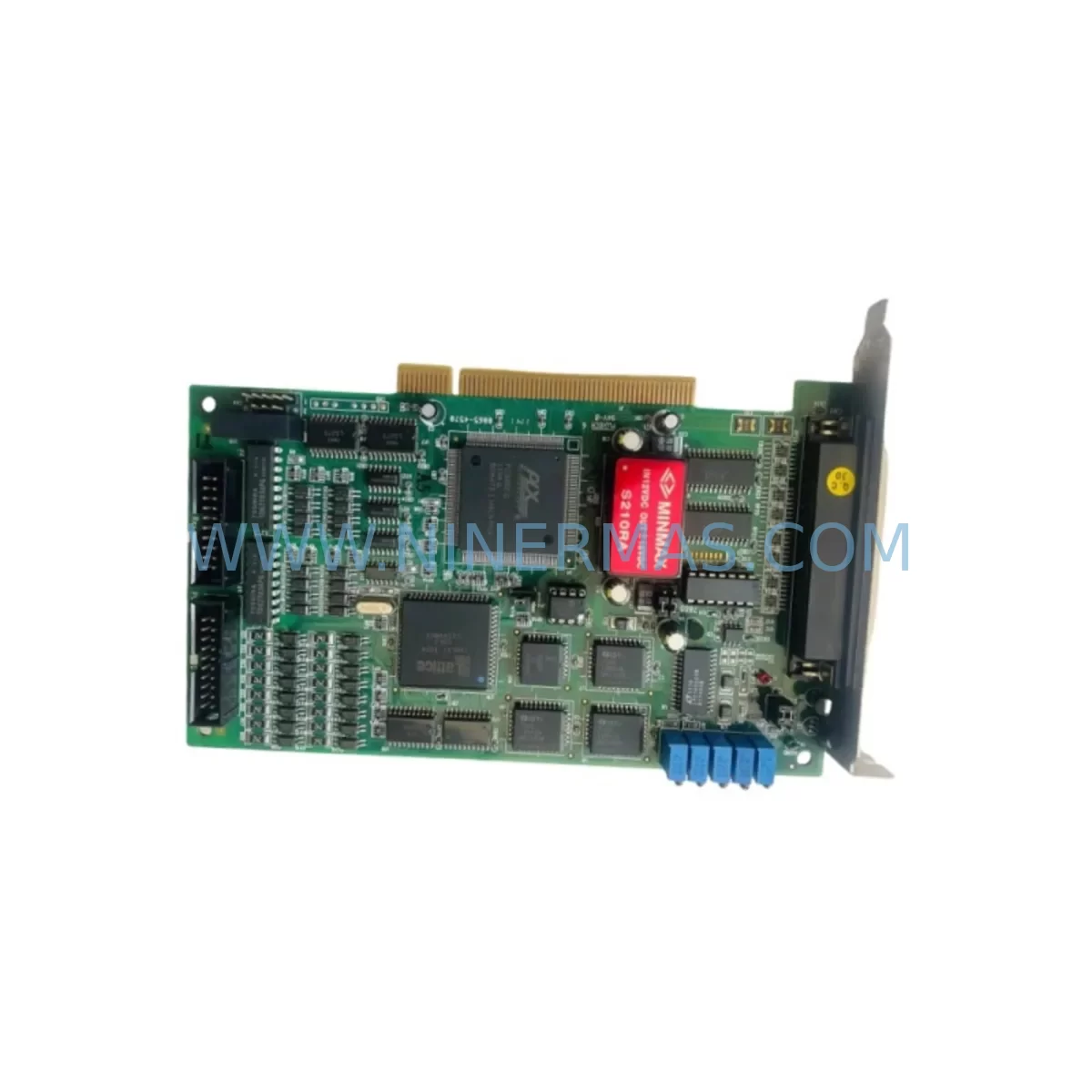

The ADLINK PCI-9114A-DG is a high-performance multifunction data acquisition (DAQ) card designed for demanding industrial automation environments. As a service-ready spare part, it is stocked and tested to support rapid replacement in production lines, control cabinets, and measurement systems where unplanned downtime carries significant operational and financial risk. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a strategic spare parts inventory, the PCI-9114A-DG delivers the reliability and compatibility that maintenance engineers and procurement teams depend on.

Sourced directly from ADLINK’s authorized supply chain, this unit is verified against original factory specifications before shipment. Each card undergoes functional testing to confirm analog input performance, digital I/O integrity, and PCI bus communication — ensuring that the replacement unit performs identically to the original installed component. A 12-month warranty is included with every shipment, providing procurement teams with the assurance needed for long-term asset management and MRO budgeting.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the PCI-9114A-DG in a live industrial system, a thorough inspection of the surrounding electrical environment is essential to prevent repeat failures and ensure stable resumed operation. Maintenance engineers should begin by verifying the host PC’s PCI backplane integrity — a faulty backplane slot or damaged PCI riser card can cause premature failure of a newly installed DAQ card. The system power supply unit (PSU) should be checked for stable +5V and +12V rails, as voltage fluctuations are a common root cause of DAQ card degradation in industrial PCs.

Signal conditioning components upstream of the PCI-9114A-DG deserve close attention. Signal isolators and analog signal conditioners protecting the card’s input channels should be inspected for drift or damage, particularly in environments with high electromagnetic interference. Terminal blocks and field wiring connectors on the I/O interface should be checked for corrosion, loose terminations, or insulation breakdown — issues that frequently accompany DAQ card failures in high-cycle production environments.

For systems where the PCI-9114A-DG interfaces with relay output modules or solid-state relay (SSR) banks, those components should be tested for contact wear and leakage current before the new card is commissioned. Fuse holders and circuit protection devices on the I/O wiring should also be replaced as a precaution during the same maintenance window.

In control cabinets where the PCI-9114A-DG operates alongside communication modules — such as RS-232/RS-485 serial interface cards, PROFIBUS DP adapters, or Ethernet-based fieldbus modules — the communication wiring and termination resistors should be verified to rule out bus conflicts that could affect the new card’s initialization. If the system includes an HMI panel connected to the same industrial PC, the HMI software configuration and I/O mapping should be validated after card replacement to confirm that all channel assignments remain correct.

For older systems where the PCI-9114A-DG is part of a legacy measurement or control architecture, procurement teams should consider stocking companion components such as the ADLINK PCI-9114 (predecessor model for cross-reference), ADLINK ACL-8112 series DAQ cards for alternative slot configurations, ADLINK DIN-rail signal conditioning modules, and compatible SCSI-68 or DB-37 I/O connector cables. Maintaining a minimum of one spare PCI-9114A-DG per production line, alongside spare I/O cables and signal isolators, is a widely adopted best practice in facilities with zero-tolerance downtime policies.

Site Replacement Workflow

Replacing the PCI-9114A-DG on-site follows a structured sequence to minimize downtime and avoid configuration errors. Begin with a controlled system shutdown and full ESD precautions before opening the control cabinet or industrial PC chassis. Document the existing card’s slot position, I/O wiring layout, and any jumper or DIP switch settings before removal — the PCI-9114A-DG uses hardware configuration for input range selection, and these settings must be replicated on the replacement unit.

After physical installation of the new card, install or update the ADLINK DAQPilot driver package and confirm that the operating system recognizes the card in the PCI device tree. Run the built-in self-test utility to verify analog input accuracy across all active channels before reconnecting field wiring. Reconnect I/O cables in sequence, confirming signal levels at each channel against known reference values from the previous commissioning record.

For systems migrating from the older PCI-9114 or PCI-9114A to the PCI-9114A-DG variant, the -DG suffix indicates daughterboard expansion capability, which may require updated driver configuration if the daughterboard I/O is utilized. Confirm software compatibility with the SCADA, DCS, or custom application layer before returning the system to production. This structured approach consistently achieves full system restoration within a single maintenance shift, even in complex multi-card configurations.

Spare Parts Support FAQ

Q1: Is the PCI-9114A-DG a direct drop-in replacement for the PCI-9114 and PCI-9114A?
Yes. The PCI-9114A-DG is backward compatible with the PCI-9114 and PCI-9114A in terms of physical form factor and core analog/digital I/O functionality. The -DG variant adds a daughterboard connector for expanded I/O; if your existing system does not use this feature, the replacement is fully transparent to the application software.

Q2: How is the unit tested before shipment?
Every PCI-9114A-DG unit is functionally tested prior to dispatch. Testing covers PCI bus enumeration, analog input channel accuracy, digital I/O state verification, and onboard timer/counter operation. A test report is available upon request for quality-critical procurement processes.

Q3: What is the recommended spare parts stocking strategy for this card?
For production facilities running 24/7 operations, we recommend maintaining a minimum of one PCI-9114A-DG per three installed units as on-site hot spares. For facilities with longer acceptable downtime windows, a single spare per site is typically sufficient. Long-term supply agreements are available for customers requiring guaranteed stock allocation over 12–36 month horizons.

Q4: What warranty and after-sales support is provided?
All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Our technical support team provides pre-sales compatibility verification, installation guidance, and post-installation troubleshooting assistance. Replacement or refund is processed within 5 business days of confirmed warranty claim.
