ABB YPI105C YT204001-BK Retrofit Digital Input for Legacy DCS

ABB YPI105C YT204001-BK Retrofit Digital Input for Legacy DCS

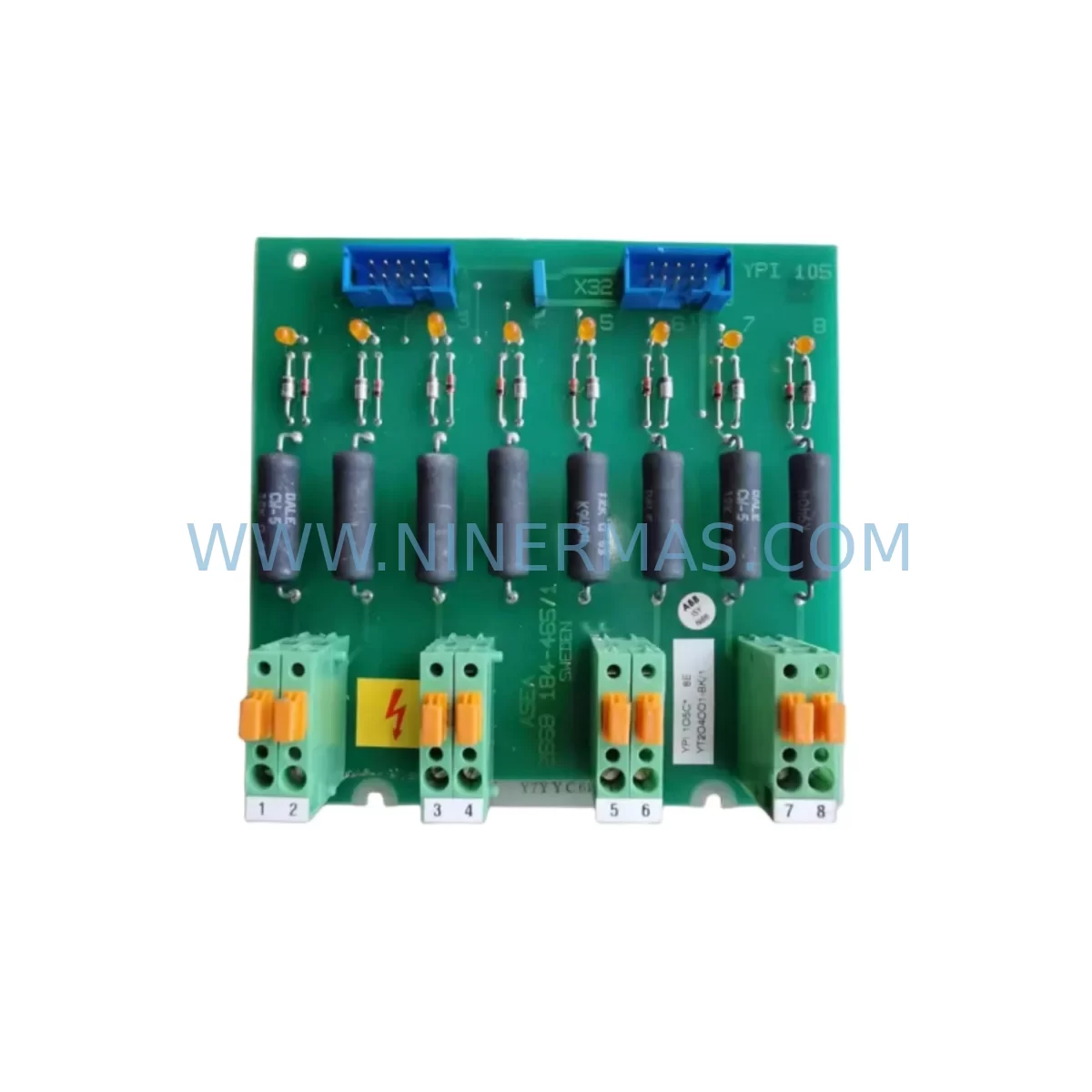

The ABB YPI105C (order reference YT204001-BK) is a ruggedized digital input module originally designed for ABB’s INFI 90 Distributed Control System platform. As ABB transitions its installed base toward the Symphony Plus architecture, the YPI105C remains a critical spare part and retrofit component for facilities that continue to operate legacy INFI 90 control cabinets. Whether you are managing a planned migration, responding to an unplanned module failure, or extending the operational life of an existing control system, the YPI105C provides a direct-fit, field-proven solution that minimises engineering risk and reduces commissioning time on the plant floor.

NINERMAS maintains verified stock of the YPI105C YT204001-BK with pre-shipment functional testing, full 12-month warranty coverage, and same-week dispatch capability to support urgent maintenance windows across the process, power generation, and heavy manufacturing sectors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the YPI105C into an existing INFI 90 or Symphony Plus control system requires a structured pre-installation review. Before removing the failed or end-of-life module, maintenance engineers should document the current module address assignment within the INFI-NET node map and capture a full backup of the associated function block logic from the engineering workstation. This step protects the control program and eliminates the risk of logic loss during the physical swap.

Power supply capacity is a frequent oversight in retrofit projects. The NPSI01 power supply module feeding the affected rack must be verified to have sufficient headroom to support the YPI105C alongside co-installed modules such as the NTDO02 digital output module and the NTAI05 analog input termination unit. If the rack is operating near its rated load, a power audit should be completed before the maintenance window begins.

Terminal wiring continuity is equally important. The YPI105C connects to field devices through the INTKM01 termination kit or equivalent marshalling panel. Engineers should verify that the existing field cable schedule matches the channel-to-terminal mapping expected by the replacement module. Any discrepancy in wiring polarity or signal grouping must be resolved before energising the new card to avoid nuisance trips or incorrect digital state reporting to the operator HMI.

For systems where the INFI 90 backplane communicates upstream to an AC 800M controller via the NTCL01 communication link module, the module address configured in the hardware definition file must be confirmed to match the physical DIP switch or software address setting on the YPI105C. A mismatch at this stage will prevent the controller from recognising the new module and will generate a hardware fault alarm on the operator station.

Where the control system includes NTAI04 analog input modules or NTRO02 relay output modules installed in adjacent slots, engineers should confirm that the backplane bus is not interrupted during the card swap. Hot-swap capability depends on the specific rack revision and firmware level of the NTMP01 processor module governing that node. If hot-swap is not supported, a controlled shutdown of the affected node is required, and the outage window should be planned accordingly.

For facilities undertaking a broader migration from INFI 90 to Symphony Plus, the YPI105C can serve as a bridge component, maintaining digital input functionality on legacy racks while new Symphony Plus I/O modules such as the IMFEC12 fieldbus communication module are introduced on parallel control paths. This phased approach allows production to continue on existing loops while new infrastructure is commissioned and validated, significantly reducing the risk associated with a full cutover.

Where I/O expansion is required as part of the upgrade, the IMDSO14 digital output slave module is commonly deployed alongside the YPI105C to extend the discrete control capability of the existing rack without requiring a new controller node. This combination is particularly effective in retrofit projects where cabinet space is constrained and the installation footprint of new hardware must be minimised.

Downtime Control During System Migration

Minimising unplanned downtime is the primary concern for any maintenance team managing a digital input module replacement on a live production system. The YPI105C supports a structured swap procedure that, when properly planned, can be completed within a single maintenance shift without requiring extended process shutdowns.

The recommended approach begins with a pre-outage simulation: using the engineering workstation, force all digital input channels associated with the YPI105C to their last-known safe state. This allows the process control logic to continue executing on the AC 800M or MasterPiece 200/1 controller without generating spurious alarms or initiating protective trips during the physical module removal.

Once the replacement YPI105C is seated in the rack and the termination wiring is confirmed, the module configuration is re-downloaded from the engineering station. Channel-by-channel verification against the field device states should be completed before releasing the forced values and returning the inputs to live scanning. This step confirms that the new module is reading field signals correctly and that no wiring errors were introduced during the swap.

HMI screen validation is the final step before returning the system to normal operation. Operators should confirm that all digital input tags associated with the YPI105C are displaying correctly on the operator station and that no unacknowledged alarms remain active. A signed commissioning record should be completed and retained as part of the plant maintenance log, supporting both internal audit requirements and warranty claim documentation.

Retrofit Support FAQ

Q: Is the ABB YPI105C YT204001-BK a direct replacement for the original module in my INFI 90 rack?
A: Yes. The YPI105C YT204001-BK is a like-for-like replacement for the same module position in INFI 90 racks. No mechanical modification is required. The module address and function block configuration must be verified and re-downloaded from the engineering workstation after installation.

Q: Does NINERMAS perform pre-shipment testing on the YPI105C?
A: All YPI105C units dispatched by NINERMAS undergo functional testing prior to shipment. A test certificate is included with each unit. The module is covered by a 12-month warranty from the date of dispatch.

Q: What should I check regarding wiring compatibility before installing the YPI105C?
A: Verify the field cable schedule against the channel-to-terminal mapping of the YPI105C. Confirm that the termination kit (INTKM01 or equivalent) is correctly wired and that field device output voltages are within the 24 VDC nominal input range of the module. Isolate the field loop before removing the existing module.

Q: How quickly can NINERMAS ship the YPI105C YT204001-BK?
A: NINERMAS maintains in-stock inventory of the YPI105C YT204001-BK and supports same-week dispatch for urgent maintenance requirements. Global shipping is available. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm availability and lead time for your location.
