ABB UNITROL 1000 3BHE005774R0002 Safety-Reliable AVR

ABB UNITROL 1000 3BHE005774R0002 Safety-Reliable AVR for Critical Control Sites

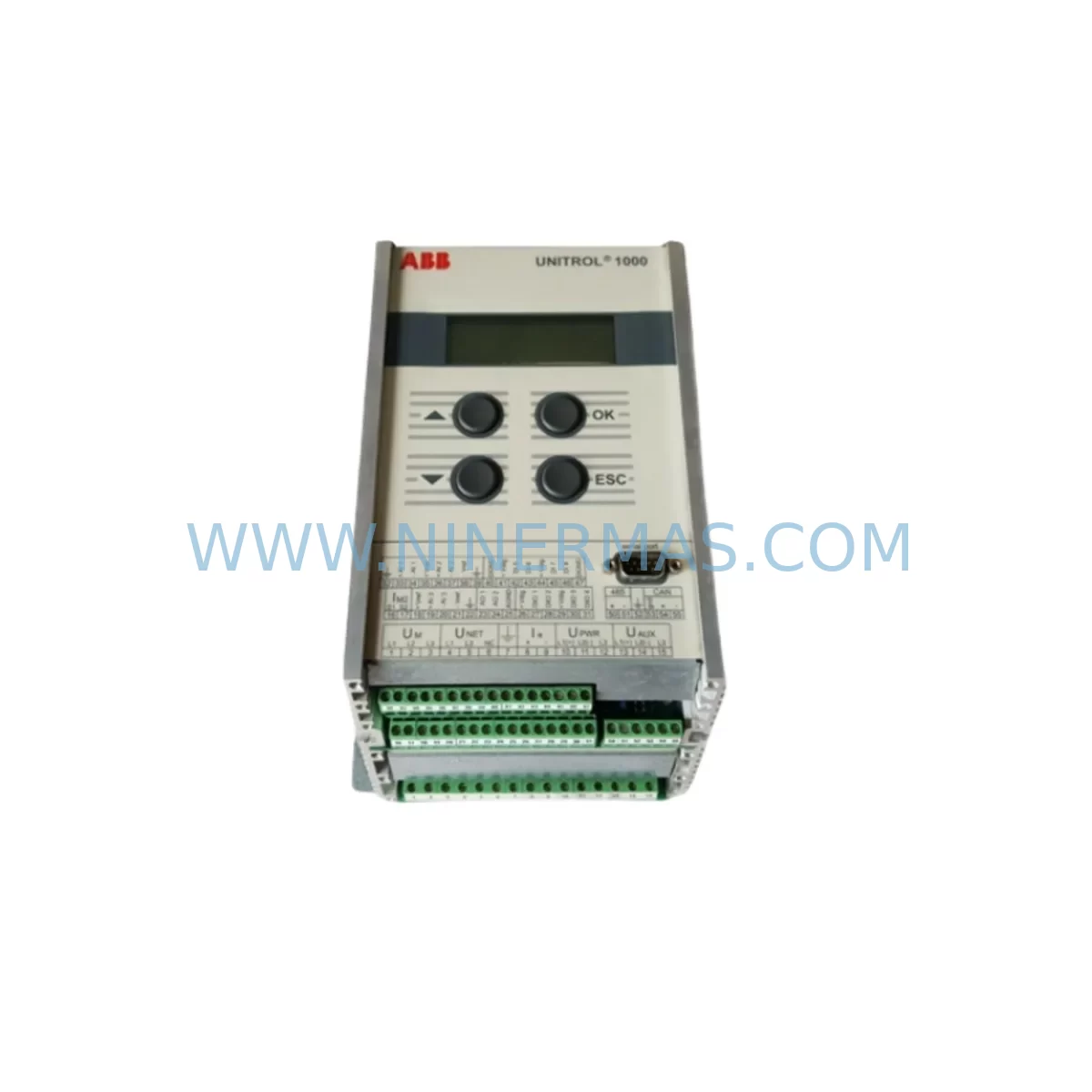

The ABB UNITROL 1000 3BHE005774R0002 is a precision-engineered Automatic Voltage Regulator (AVR) designed for generator excitation control in critical industrial power systems. As a core component of the UNITROL 1000 series, this unit governs generator terminal voltage with high accuracy, ensuring stable power output under variable load conditions, sudden load changes, and grid disturbances. For maintenance engineers managing continuous production facilities, power plants, or heavy industrial sites, the 3BHE005774R0002 represents a safety-critical spare that must be sourced, verified, and stocked with zero compromise.

In high-stakes environments — including petrochemical plants, thermal power stations, mining operations, water treatment facilities, and metallurgical complexes — generator excitation instability can cascade into unplanned shutdowns, equipment damage, and safety incidents. The UNITROL 1000 3BHE005774R0002 is engineered to prevent exactly these scenarios, delivering closed-loop voltage regulation with fast response times, robust EMI immunity, and reliable operation across demanding ambient conditions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

When replacing the ABB UNITROL 1000 3BHE005774R0002 in a generator control cabinet, a disciplined inspection of the surrounding electrical architecture is essential to prevent repeat failures and ensure long-term system stability. Maintenance engineers should treat this replacement as an opportunity for a comprehensive cabinet audit.

Begin with the excitation power supply circuit. The thyristor firing board — often an ABB SDCS-PIN-48 or equivalent pulse interface card — must be inspected for gate signal integrity and thermal stress. A degraded firing board can cause asymmetric excitation output, leading to voltage oscillation even after the AVR is replaced. Similarly, the excitation transformer feeding the thyristor bridge should be checked for insulation resistance and turns ratio consistency.

On the measurement input side, verify the voltage transformer (VT) secondary wiring and the current transformer (CT) circuits feeding the AVR’s measurement inputs. Signal drift from a faulty VT or an open CT secondary can cause the UNITROL 1000 to regulate against an incorrect reference, producing chronic over- or under-excitation. Terminal blocks in the measurement circuit — particularly ABB ENTRELEC or Phoenix Contact series — should be torque-checked and inspected for oxidation.

The UNITROL 1000 communicates with the plant DCS or SCADA via RS-485 or PROFIBUS DP. If the site uses an ABB AC800M controller or a Freelance DCS node, verify the communication cable shielding and termination resistors. A floating shield or missing termination in a high-EMI generator hall can introduce noise that disrupts AVR parameter reads and remote setpoint commands.

Power supply quality to the AVR’s auxiliary 24 VDC logic supply deserves attention. An ABB CP-E 24/5.0 or equivalent DIN-rail power supply should be load-tested and its output ripple measured. Excessive ripple or voltage sag under load can cause the UNITROL 1000 to reset unexpectedly during generator loading transients — a failure mode that is frequently misdiagnosed as an AVR hardware fault.

For sites with surge exposure — particularly diesel generator sets in remote mining or offshore installations — surge protection devices (SPDs) on the AVR’s measurement and communication inputs should be inspected and replaced if their status indicators show activation. ABB OVR or equivalent DIN-rail SPDs are commonly used in this role. Additionally, the generator’s speed governor interface — whether a Woodward EG3P actuator or an electronic governor module — should be checked for coordinated response, as AVR and governor interactions are a common source of hunting instability after component replacement.

Finally, review the HMI panel connected to the UNITROL 1000. An ABB CP600 operator panel or a third-party touchscreen configured for UNITROL parameter access should be tested for communication continuity and parameter display accuracy after the AVR replacement is complete.

Critical Industrial Safety Applications

The ABB UNITROL 1000 3BHE005774R0002 is deployed across a wide range of critical industrial power generation and distribution environments where voltage stability is directly linked to operational safety and production continuity.

In petrochemical and refinery facilities, generator sets powering compressor drives, pump motors, and safety shutdown systems depend on precise AVR control to maintain voltage within tight tolerances. A voltage excursion in these environments can trigger protective relay trips across multiple motor feeders simultaneously, causing cascading process shutdowns that require hours to safely restart.

In thermal and hydroelectric power plants, the UNITROL 1000 series is used for synchronous generator excitation control, where reactive power sharing between parallel machines must be tightly managed. The 3BHE005774R0002 supports VAR and power factor control modes that are essential for grid-connected operation and compliance with utility interconnection requirements.

In mining and mineral processing operations, where generators often operate in island mode supplying large variable loads such as SAG mills and conveyor drives, the AVR’s fast response to load steps prevents voltage collapse and protects sensitive instrumentation and control equipment throughout the facility.

In water treatment and pumping stations, standby generator sets equipped with UNITROL 1000 AVRs must start and accept full load within seconds during mains failure. The 3BHE005774R0002’s configurable soft-start and load acceptance parameters make it well-suited for these emergency power applications.

In metallurgical and steel plants, where arc furnaces and rolling mill drives create severe voltage fluctuations on the local power network, the UNITROL 1000’s robust measurement filtering and fast excitation response help maintain generator terminal voltage stability and protect downstream equipment from power quality disturbances.

Safety and Quality FAQ

Q1: Does the 3BHE005774R0002 come with a warranty, and what does it cover?
Every ABB UNITROL 1000 3BHE005774R0002 unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification before dispatch to ensure it meets ABB’s original performance specifications.

Q2: Is the 3BHE005774R0002 compatible with earlier UNITROL 1000 variants?
The 3BHE005774R0002 is the R0002 revision of the UNITROL 1000 AVR board and is designed as a direct replacement for the R0001 variant (3BHE005774R0001) in most applications. Compatibility should be confirmed against the site’s existing UNITROL 1000 cabinet configuration and firmware version. NINERMAS can assist with compatibility verification based on your cabinet documentation or nameplate data.

Q3: How quickly can the unit be shipped, and is long-term supply availability assured?
NINERMAS maintains stock of ABB UNITROL 1000 spare parts to support urgent maintenance and planned shutdown requirements. Standard lead times are confirmed at the time of inquiry. For customers managing long-term maintenance contracts or multi-site generator fleets, NINERMAS offers supply planning support to ensure consistent availability of critical AVR spares without procurement gaps.

Q4: What information is needed to confirm the correct replacement part before ordering?
To confirm the correct replacement, please provide the full part number from the existing unit’s nameplate (3BHE005774R0002), the UNITROL 1000 cabinet serial number or project documentation if available, and the generator rating and site voltage. This allows NINERMAS to verify the correct revision and any site-specific configuration requirements before shipment.
