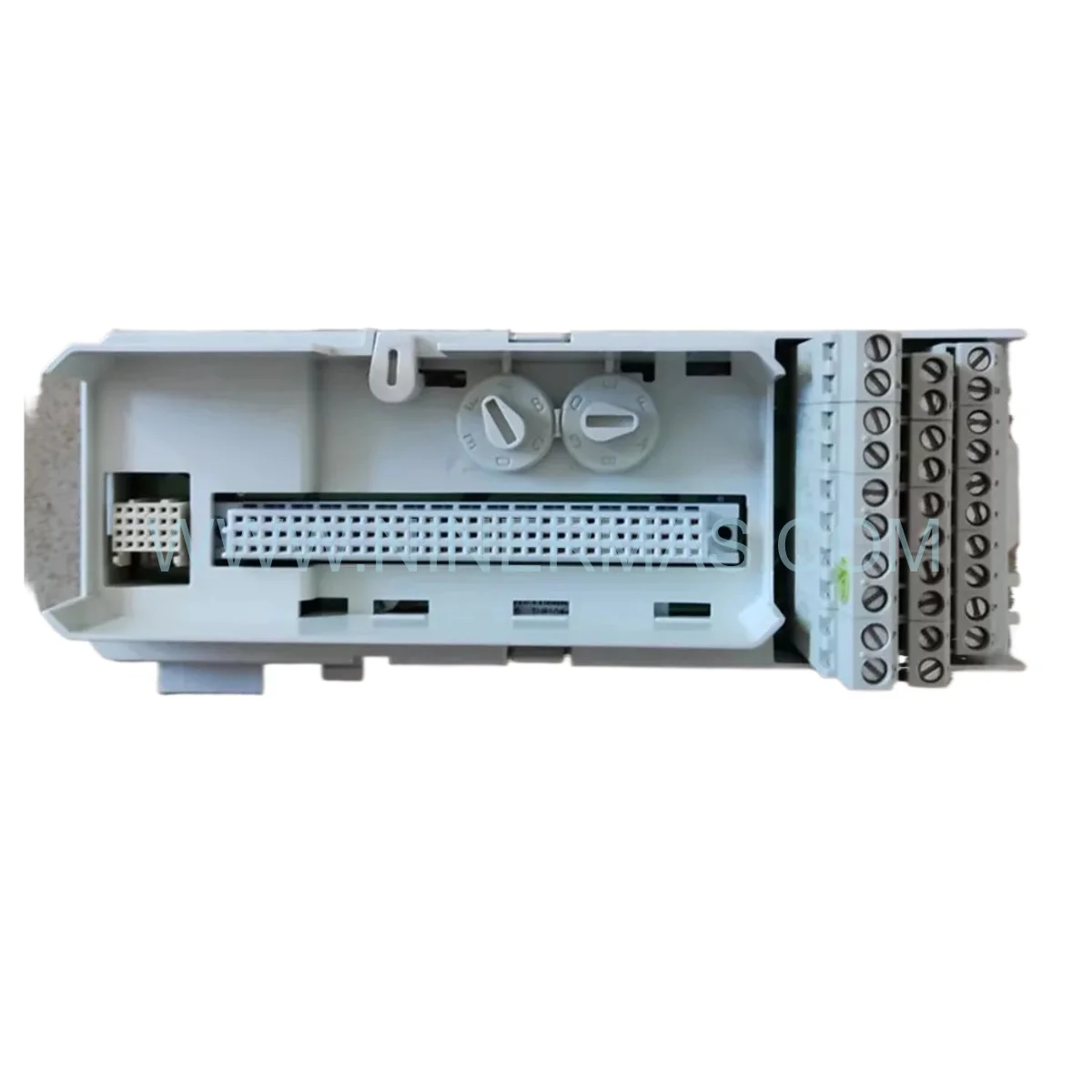

ABB TU810V1 Module Termination Unit 3BSE013230R1 | New & Original

ABB TU810V1 3BSE013230R1 | Reliable Automation Component for Mission-Critical Systems

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the ABB TU810V1 3BSE013230R1 represents a foundational element in sustaining system availability. As a compact module termination unit (MTU) engineered for ABB’s AC 800M controller platform, the 3BSE013230R1 delivers deterministic signal routing between field instrumentation and the control layer — a capability that directly reduces unplanned downtime in mission-critical applications such as chemical processing, power generation, and oil & gas operations. Its role in process optimization cannot be overstated: stable I/O connectivity is the backbone of operational excellence.

Durability under industrial stress conditions is a defining characteristic of this MTU. The TU810V1 is rated IP20 and operates reliably across a 0°C to +60°C ambient range, tolerating the vibration, humidity fluctuations, and EMI exposure common in heavy-industry enclosures. During installation, engineers should ensure proper DIN rail torque and verify backplane connector seating to prevent intermittent signal faults — a common oversight that compromises system integration integrity over time.

For maintenance planners, stocking the 3BSE013230R1 as a critical spare is a proven strategy for reducing mean time to repair (MTTR). Given the extended lead times associated with legacy and end-of-life (EOL) automation components, maintaining on-hand inventory of this MTU ensures that a single module failure does not cascade into a prolonged production halt.

Key Operational Features

Seamless System Integration — Plug-compatible with ABB AC 800M I/O modules; supports both analog and digital signal types without additional adapters.
Hot-Swap Capability — Enables module replacement under live system conditions, preserving high availability during scheduled and corrective maintenance windows.
Redundancy-Ready Architecture — Supports redundant I/O configurations critical for safety-instrumented systems (SIS) and high-availability process loops.
Diagnostic LED Indicators — Onboard status LEDs provide real-time fault visibility, accelerating root-cause analysis and minimizing diagnostic labor hours.
Compact DIN Rail Form Factor — Space-efficient footprint optimizes cabinet layout density without sacrificing wiring accessibility or thermal management.
Pre-Wired Terminal Blocks — Factory-configured terminations reduce commissioning time and eliminate field wiring errors that introduce latent faults.

Maintenance & Performance Benchmarks

The 3BSE013230R1 is engineered to perform consistently across diverse industrial network architectures — from compact standalone DCS nodes to large-scale distributed control topologies spanning multiple process units. In centralized architectures, the TU810V1 functions as a local termination hub, consolidating field wiring at the cabinet level and reducing cable runs. In distributed deployments, it serves as a remote I/O interface node, extending the AC 800M control domain to geographically dispersed field devices.

Benchmark data from field deployments indicates that proper installation of the 3BSE013230R1 contributes to measurable improvements in signal integrity — particularly in environments with high electromagnetic interference. Engineers report a reduction in nuisance alarms and spurious trips when replacing aged or counterfeit termination units with genuine ABB components. This directly supports process optimization objectives and reduces the operational burden on control room personnel.

Firmware compatibility is maintained across the AC 800M controller family. The TU810V1 does not require firmware updates independently; however, it is recommended to verify that the host controller firmware version supports the specific I/O module variant installed on the 3BSE013230R1 backplane prior to commissioning.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the ABB TU810V1 3BSE013230R1 dispatched from our facility is shipped in Original Factory Packaging, preserving the integrity of connector pins, terminal blocks, and PCB assemblies during transit. For urgent plant maintenance scenarios, same-day dispatch is available on confirmed in-stock units — contact our team to verify real-time availability before placing your order.

We maintain a dedicated global supply channel for EOL and legacy ABB automation components. As the AC 800M platform ages across installed base sites worldwide, sourcing genuine 3BSE013230R1 units through authorized channels becomes increasingly critical. Our procurement network spans multiple continents, enabling reliable fulfillment for customers in North America, Europe, the Middle East, and Asia-Pacific.

All shipments are supported by Worldwide Express Logistics via DHL, FedEx, and UPS, with full tracking and customs documentation provided. Export compliance and HS code classification are handled by our logistics team to ensure smooth cross-border clearance.

Engineering Support & FAQ

Q1: What is the correct installation procedure for the ABB TU810V1 3BSE013230R1?
Mount the unit on a 35 mm DIN rail within a grounded industrial enclosure. Ensure the backplane connector is fully seated before securing the DIN rail clip. Connect field wiring to the pre-labeled terminal blocks per the AC 800M I/O module wiring diagram. Apply power only after all connections are verified. Refer to ABB document 3BSE013230R1 installation guide for torque specifications.

Q2: Which AC 800M I/O modules are compatible with the 3BSE013230R1?
The TU810V1 is designed to interface with ABB’s standard S800 I/O module family, including AI810, AO810, DI810, and DO810 series modules. Verify module-to-MTU compatibility in the AC 800M Hardware Configuration manual prior to installation.

Q3: Does the TU810V1 require a firmware update?
The 3BSE013230R1 is a passive termination unit and does not contain independently updatable firmware. Firmware management applies to the I/O modules and the AC 800M controller. Ensure the controller firmware is at a revision level that supports your specific I/O module configuration.

Q4: What is the warranty coverage and claim process?
All units carry a 1-year warranty against manufacturing defects. To initiate a warranty claim, contact sale@ninermas.com with your order number, a description of the fault, and photographic evidence. Replacement or repair will be processed within 5-7 business days upon receipt of the defective unit.

Q5: Can the 3BSE013230R1 be used in safety-instrumented systems (SIS)?
The TU810V1 supports redundant I/O configurations and is compatible with ABB’s safety-rated I/O modules when deployed within a certified SIS architecture. Consult the applicable functional safety documentation and your system integrator before deploying in SIL-rated loops.

Q6: How do I verify that a TU810V1 unit is genuine ABB?
Authentic 3BSE013230R1 units feature ABB’s holographic product label, a traceable serial number, and original factory packaging with ABB branding. Request a certificate of conformity and traceability documentation from your supplier. We provide full documentation with every shipment.
