ABB SDCS-COM-81 3ADT314900R1002 Retrofit-Compatible Communication Module for Legacy DCS800 DC Drive Systems

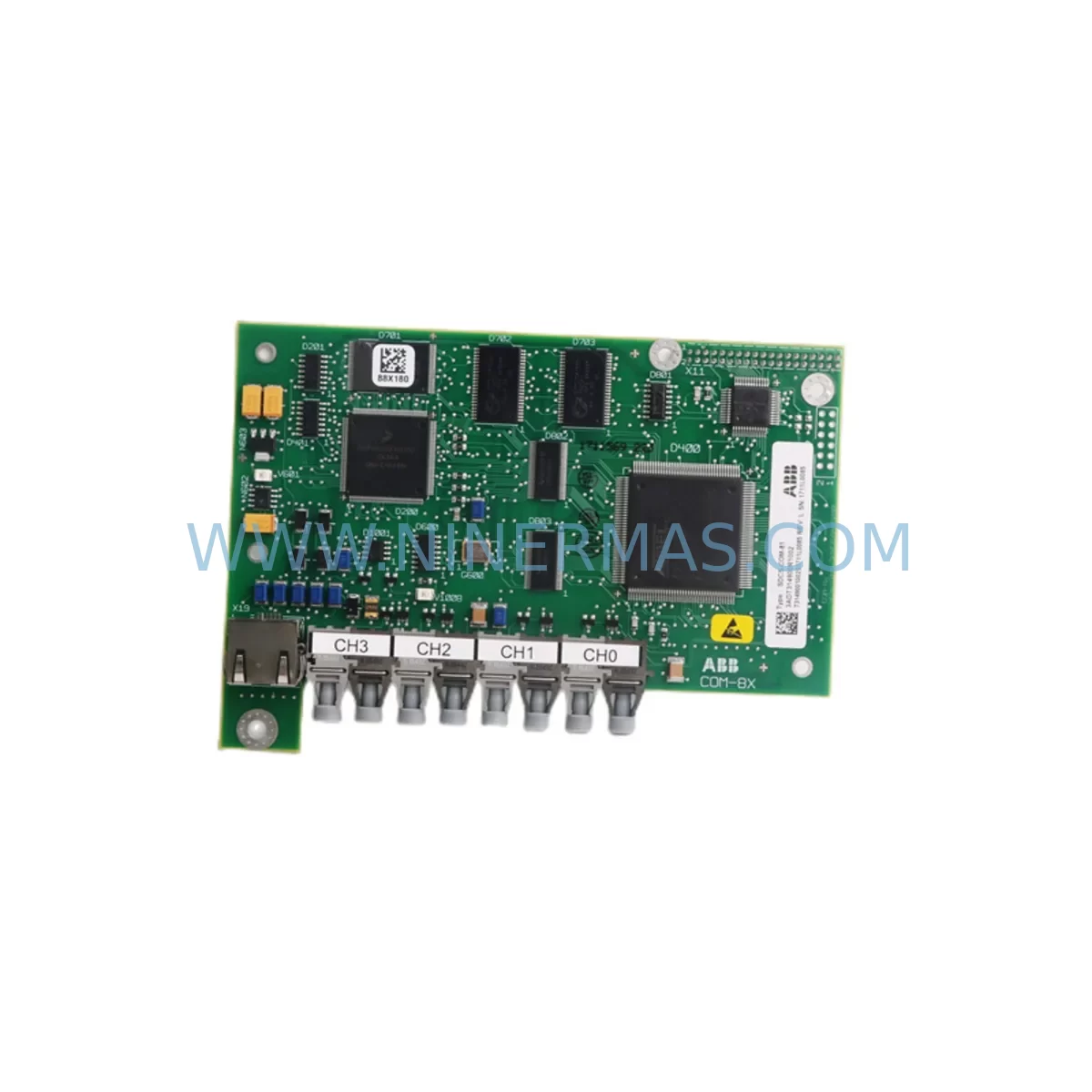

The ABB SDCS-COM-81 (part number 3ADT314900R1002) is a fieldbus communication module designed for integration with the ABB DCS800 series DC drives. As legacy automation systems age and original spare parts become increasingly difficult to source, the SDCS-COM-81 remains a critical component for facilities operating older DC drive platforms that depend on Profibus DP communication links between the drive controller and the supervisory PLC or DCS layer. NINERMAS maintains verified stock of this module with full functional testing, 12-month warranty coverage, and rapid dispatch to support planned and emergency retrofit projects worldwide.

For engineers managing aging production lines built around ABB DCS800 drives, the SDCS-COM-81 serves as the communication bridge between the drive’s internal control board — typically the SDCS-CON-4 or SDCS-CON-2 — and the plant-level fieldbus network. When this module fails or reaches end-of-life, the entire drive loses its ability to receive speed references, torque commands, and status polling from the master PLC, effectively halting production. Sourcing a verified replacement quickly, with confidence in compatibility and test status, is essential to minimizing downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the SDCS-COM-81 requires careful pre-planning across several system layers. Before removing the failed module, engineers should document the existing Profibus node address configured on the module (typically set via DIP switches on the SDCS-COM-81 itself), as well as the GSD file version loaded in the master PLC — commonly a Siemens S7-300, S7-400, or S7-1500 series controller managing the drive network. Mismatched GSD files between the old and replacement module can cause the master to reject the slave device even when the hardware is correctly installed.

Terminal wiring for the Profibus connector follows the standard RS-485 pinout (Pin 3: B+, Pin 8: A−), and the bus termination resistor must be correctly positioned at the physical ends of the Profibus segment. If the DCS800 drive is the last node on the segment, the termination on the SDCS-COM-81’s DB9 connector must be enabled. Failure to verify this during replacement is a common cause of intermittent communication faults after installation.

For facilities running mixed drive cabinets — for example, a control panel housing both DCS800 DC drives and ACS800 or ACS880 AC drives — the retrofit scope may extend beyond the communication module alone. The SDCS-PIN-41B power interface board, SDCS-FEX-2 field excitation module, and SDCS-DSL-4 digital speed feedback board are frequently inspected and replaced as part of a broader drive overhaul. If the SDCS-CON-4 control board itself shows signs of capacitor aging or firmware incompatibility with newer PLC configurations, it should be evaluated for replacement alongside the SDCS-COM-81 to avoid a secondary failure shortly after the communication module is restored.

In systems where the DCS800 communicates not only via Profibus but also outputs analog speed feedback to a legacy DCS or historian system, the SDCS-COM-81 replacement must be coordinated with verification of the analog I/O wiring on the SDCS-CON-4’s terminal block. Signal isolation between the drive’s 0–10V or 4–20mA outputs and the DCS input cards should be confirmed, particularly in older installations where signal isolators or barriers may have degraded. Where the plant uses an ABB AC500 or AC31 series PLC as the Profibus master, the hardware configuration in the PLC project must be updated to reflect the replacement module’s GSD parameters before going live.

HMI screens connected to the drive — whether an ABB CP600 panel, a Siemens TP700, or a third-party SCADA system — typically display drive status variables polled via Profibus. After replacing the SDCS-COM-81, all mapped process data words (PPO type, PZD configuration) should be verified against the original drive parameter backup to ensure the HMI continues to display speed, current, fault codes, and run/stop status correctly. If no parameter backup exists, NINERMAS recommends using ABB DriveWindow Light to read and document the current parameter set before powering down the drive for module replacement.

Downtime Control During System Migration

Minimizing production downtime during a SDCS-COM-81 replacement depends on preparation quality. The replacement procedure itself — with the drive de-energized, DC bus discharged, and the option slot accessible — typically takes under 30 minutes for a trained technician. The majority of unplanned downtime in these retrofits comes from post-installation commissioning issues: incorrect node address, bus termination errors, GSD mismatch, or parameter group 51 settings that do not match the master PLC’s expectations.

NINERMAS recommends the following sequence to protect program logic and maintain control continuity: (1) Export a full parameter backup from the DCS800 using DriveWindow or the drive keypad before any hardware change. (2) Photograph or document the DIP switch positions on the existing SDCS-COM-81 before removal. (3) Set the replacement module’s node address to match before installation. (4) After installation, restore parameter group 51 from the backup and perform a Profibus communication test with the master PLC in offline/test mode before returning the drive to automatic control. (5) Confirm all PZD process data words are mapping correctly by monitoring live Profibus traffic with a diagnostic tool such as a Profibus tester or the PLC’s online diagnostic view.

For facilities that cannot afford any unplanned extension of the maintenance window, NINERMAS offers pre-tested, pre-configured SDCS-COM-81 modules with node address set to customer specification prior to shipment, reducing on-site commissioning time to a minimum. All modules are powered-on tested against a live DCS800 drive before dispatch, with a test report included in the shipment documentation.

Retrofit Support FAQ

Q1: Is the SDCS-COM-81 (3ADT314900R1002) a direct replacement for the older SDCS-COM-8?
A: In most DCS800 installations, yes. The SDCS-COM-81 is the current-generation Profibus DP option module for the DCS800 platform and is backward compatible with the SDCS-COM-8 in terms of physical installation and protocol function. However, the GSD file used by the Profibus master PLC may need to be updated to reflect the SDCS-COM-81’s device identity. NINERMAS can provide the correct GSD file and configuration guidance upon request.

Q2: What wiring changes are required when replacing the SDCS-COM-81?
A: The Profibus DB9 connector is a standard plug — no rewiring of the fieldbus cable is required. The module slots directly into the DCS800 option board connector on the SDCS-CON-4 or SDCS-CON-2 control board. Verify that the bus termination switch position matches the drive’s physical location on the Profibus segment (end node = termination ON; mid-segment = termination OFF).

Q3: Does NINERMAS test the SDCS-COM-81 before shipment?
A: Yes. Every SDCS-COM-81 unit shipped by NINERMAS is powered-on tested against a live DCS800 drive platform to verify Profibus communication, parameter read/write function, and fault-free operation. A test report is included with each shipment. All units carry a 12-month warranty from the date of invoice.

Q4: How quickly can NINERMAS supply the SDCS-COM-81 for an emergency breakdown?
A: NINERMAS maintains ready stock of the SDCS-COM-81 (3ADT314900R1002) for immediate dispatch. Standard international express shipment (DHL/FedEx) typically delivers within 3–7 business days depending on destination. For urgent breakdown situations, contact our sales team directly to confirm stock availability and arrange priority dispatch.
