ABB DO814 Safety-Reliable Digital Output for Critical Control

ABB DO814 Safety-Reliable Digital Output Module for Critical Control Sites

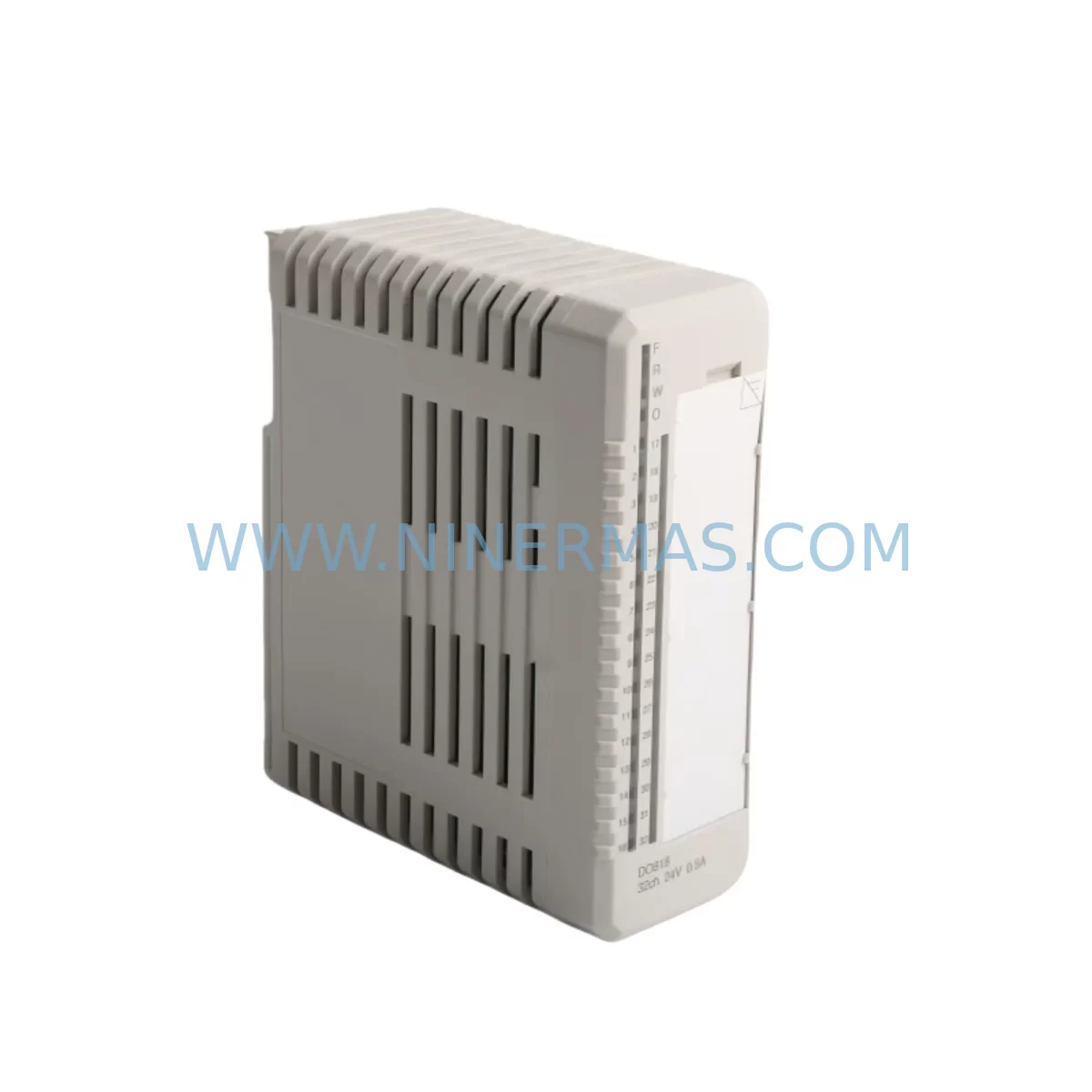

The ABB DO814 is a ruggedized digital output module engineered for demanding industrial automation environments where control reliability is non-negotiable. Designed as part of ABB’s proven AC500 PLC platform, the DO814 delivers deterministic, high-integrity digital output switching across a wide range of critical process industries — from petrochemical refineries and power generation facilities to mining operations, water treatment plants, and continuous manufacturing lines.

In safety-critical control architectures, a single point of output failure can cascade into unplanned shutdowns, process upsets, or hazardous conditions. The DO814 addresses this risk head-on with robust output channel isolation, high surge immunity, and a wide operating temperature range that ensures stable performance even in control cabinets exposed to thermal cycling, vibration, and high electromagnetic interference (EMI). Its ruggedized design philosophy means it continues to perform where standard modules fail — in dusty substations, humid pump houses, high-vibration compressor rooms, and high-temperature furnace control panels.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the DO814 does not operate in isolation — it functions as a critical node within a layered protection and control architecture. When paired with the ABB DI810 or DI811 digital input modules, the DO814 forms a complete I/O loop capable of handling high-speed interlock logic with minimal latency, reducing the risk of delayed trip responses in emergency shutdown (ESD) scenarios.

For power supply integrity — a leading cause of control system instability — the DO814 is best supported by a dedicated ABB CP-E 24/10.0 power supply unit, which provides regulated 24 V DC with built-in overload protection and output buffering. Pairing this with an ABB UPS module from the CP-B range ensures that transient grid disturbances, voltage sags, or momentary power interruptions do not propagate into the output channel logic, preventing spurious actuator trips or valve misoperation.

In high-EMI environments such as variable frequency drive (VFD) rooms or arc furnace control areas, signal integrity on the DO814’s output lines is further protected when the control cabinet incorporates ABB surge protection devices (SPDs) on field wiring terminals. These devices clamp transient overvoltages before they can damage output transistors or cause false switching events — a common failure mode in unprotected installations.

For communication-intensive architectures where the DO814 feeds into a distributed control system (DCS) or SCADA layer, the ABB AC500 CM579 PROFIBUS DP communication module or the CM589 PROFINET interface module provides deterministic, fault-tolerant data exchange between the PLC backplane and the supervisory network. Any communication anomaly — packet loss, bus timeout, or address conflict — is flagged immediately, allowing operators to isolate faults before they affect field outputs.

In safety interlock loops, the DO814 is frequently deployed alongside ABB safety relays from the JOKAB SMILE or Pluto series, where its digital outputs drive relay coils that control motor contactors, solenoid valves, or pneumatic actuators in Category 3 or Category 4 safety circuits per ISO 13849-1. This combination ensures that even in the event of a CPU fault or communication loss, the safety relay’s forced-guided contacts maintain a known safe state at the field device level.

For applications requiring analog process feedback alongside digital control — such as flow control loops in water treatment or chemical dosing systems — the DO814 is commonly installed in the same rack as the ABB AI810 analog input module and AO810 analog output module, creating a unified I/O platform that simplifies cabinet wiring, reduces termination errors, and supports coordinated diagnostics across all channel types.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units, hydrocracker control rooms, and compressor train automation panels, the DO814 controls solenoid-operated shutdown valves, motor starter contactors, and alarm annunciator outputs. Its short-circuit protection and per-channel diagnostics allow maintenance teams to identify and isolate faults without shutting down adjacent control loops — a critical capability in facilities where unplanned downtime carries significant safety and financial consequences.

Power Generation & Substation Automation: In coal-fired, gas turbine, or hydroelectric generation facilities, the DO814 is deployed in turbine protection panels, excitation control cabinets, and auxiliary system automation racks. Its high EMI immunity ensures reliable output switching even in proximity to high-voltage busbars, transformer banks, and generator terminals where induced noise levels routinely exceed the tolerance of standard I/O modules.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The DO814’s ruggedized construction and compliance with IEC 60068 environmental standards make it a dependable choice for conveyor drive control, crusher interlock systems, and ventilation fan automation in these demanding conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the DO814 to control pump start/stop sequences, chemical dosing valve actuators, and UV disinfection system outputs. In these environments, where humidity and chemical vapors are persistent, the module’s sealed construction and corrosion-resistant design contribute directly to long-term operational reliability.

Metallurgy & Steel Production: In electric arc furnace (EAF) control systems, rolling mill automation, and continuous casting line PLCs, the DO814 manages high-cycle output switching for cooling water valves, hydraulic press controls, and furnace electrode positioning systems. Its ability to sustain reliable operation at elevated ambient temperatures — up to 60°C — without derating makes it particularly well-suited to the thermal environment of steel plant control rooms.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide on the ABB DO814?
All ABB DO814 modules supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly, with replacement units dispatched from our in-stock inventory to minimize your site downtime.

Q2: How is the DO814 tested before shipment?
Every DO814 unit undergoes pre-shipment functional verification at our facility. Output channel switching, short-circuit protection response, and backplane communication integrity are confirmed before dispatch. Units are packaged in anti-static, shock-absorbing materials to prevent transit damage.

Q3: Is the ABB DO814 compatible with existing AC500 PLC installations?
Yes. The DO814 is fully compatible with the ABB AC500 backplane and CPU range, including PM571, PM581, PM591, and PM595 processors. It can be integrated into existing AC500 racks without firmware changes, making it a direct drop-in replacement for failed or end-of-life modules in the field.

Q4: Can NINERMAS guarantee long-term supply of the DO814 for ongoing maintenance?
NINERMAS maintains dedicated stock of the ABB DO814 and related AC500 I/O modules to support long-term spare parts programs for industrial facilities. We serve as a reliable supply partner for MRO procurement teams managing multi-year maintenance contracts, ensuring you are never left without a critical spare when it matters most.
