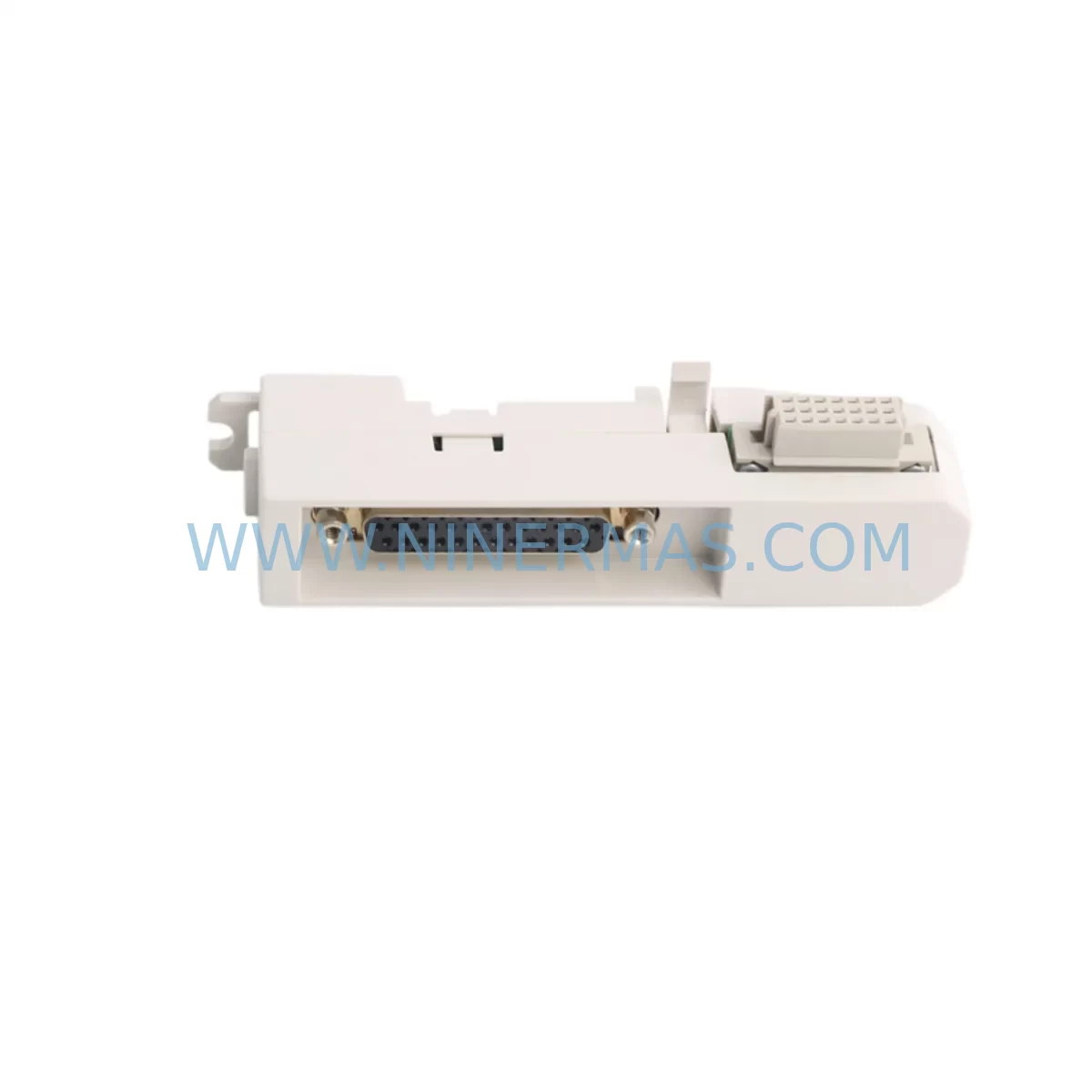

The ABB TB805 3BSE008534R1 is a high-integrity I/O terminal unit engineered for the ABB S800 I/O series, designed to deliver uncompromising reliability in the most demanding industrial control environments. Whether deployed in continuous process manufacturing, critical safety interlock loops, or high-density control cabinets subject to heavy electrical loads, the TB805 3BSE008534R1 provides the stable, interference-resistant signal interface that modern industrial automation demands.

In critical control sites — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port logistics systems, and marine vessel automation — control interruptions are not merely costly; they are potentially catastrophic. The TB805 3BSE008534R1 addresses this reality by offering a robust mechanical and electrical interface that minimizes the risk of signal drift, contact degradation, and communication anomalies that can trigger unplanned shutdowns or dangerous misoperations.

NINERMAS COMPANY LIMITED maintains verified inventory of the ABB TB805 3BSE008534R1, with each unit subject to pre-shipment functional testing and backed by a 12-month warranty — ensuring your procurement team can source with confidence and your maintenance engineers can install with assurance.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, every component in the signal chain must perform reliably under load, temperature cycling, and electrical stress. The ABB TB805 3BSE008534R1 serves as the critical interface between field wiring and the S800 I/O module stack, and its integrity directly affects the performance of the entire control loop.

When integrated with ABB AI810 analog input modules or ABB DI810 digital input modules, the TB805 terminal unit ensures that field signals — whether from pressure transmitters, flow meters, or limit switches — are cleanly routed into the controller without contact resistance variation or cross-talk interference. In high-density cabinets where multiple ABB AO810 analog output modules drive control valves and variable frequency drives simultaneously, a degraded terminal unit can introduce voltage offset errors that cause actuator misoperation — a risk the TB805 3BSE008534R1 is specifically built to eliminate.

Power supply stability is equally critical. Pairing the TB805 with a properly rated ABB SD831 or SD832 power supply unit within the S800 rack ensures that transient surges from motor starts, arc flash events, or grid switching do not propagate into the I/O signal layer. For applications requiring redundant power, the ABB SD833 redundant power supply provides seamless failover, keeping the terminal unit and its associated modules energized without interruption.

Communication integrity is another dimension of cabinet-level risk. The TB805 3BSE008534R1 operates within ABB’s S800 I/O architecture, which communicates with ABB AC800M controllers via the ModuleBus or PROFIBUS DP fieldbus. In environments with heavy cable runs, variable frequency drives, or high-current switching equipment, signal integrity on the fieldbus can degrade. Proper shielding, the use of ABB TB807 or TB820 bus modem units, and correct grounding of the terminal unit chassis are all part of a comprehensive EMI mitigation strategy.

For safety-instrumented systems operating under IEC 61511 or IEC 61508 frameworks, the TB805 3BSE008534R1 can be incorporated into safety loops alongside ABB AI830A or DI830A safety-rated I/O modules, providing the physical wiring interface for SIL-rated measurement and actuation channels. Maintaining a verified spare inventory of TB805 units — alongside compatible ABB TK801V006 or TK801V012 cable assemblies — is a recognized best practice for reducing mean time to repair (MTTR) in critical process facilities.

Critical Industrial Safety Applications

Petrochemical & Refining: In continuous distillation, reactor control, and pipeline monitoring applications, the ABB TB805 3BSE008534R1 provides the stable I/O interface required for pressure, temperature, and flow control loops that must not drift or drop out. Unplanned shutdowns in these environments carry significant safety and financial consequences, making terminal unit reliability a non-negotiable specification.

Power Generation & Transmission: Turbine control systems, boiler management, and substation automation rely on clean, low-noise signal interfaces. The TB805 3BSE008534R1, integrated within ABB S800 I/O racks connected to AC800M controllers, supports the high-availability control architectures demanded by grid-connected generation assets.

Mining & Mineral Processing: Conveyor interlocks, crusher control, and slurry pump management in mining environments expose control hardware to vibration, dust ingress, and wide temperature swings. The TB805’s robust mechanical design and compatibility with sealed enclosure installations make it a dependable choice for these harsh conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities require continuous, unattended operation of pumping, dosing, and filtration systems. The TB805 3BSE008534R1 supports the reliable I/O connectivity needed for SCADA-integrated ABB control systems managing these critical infrastructure assets.

Metallurgy & Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate extreme electromagnetic interference. The S800 I/O architecture, anchored by properly installed TB805 terminal units, is proven in these environments for its noise immunity and signal fidelity.

Port Logistics & Marine Automation: Crane control systems, ship loading automation, and vessel propulsion management require control hardware that performs reliably in salt-air, high-humidity, and vibration-intensive environments. The TB805 3BSE008534R1, when installed in appropriately rated enclosures, meets these operational demands.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the ABB TB805 3BSE008534R1?
Every ABB TB805 3BSE008534R1 supplied by NINERMAS COMPANY LIMITED is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions. Our technical team provides replacement support and failure analysis documentation upon request.

Q2: Is pre-shipment testing performed on each unit?
Yes. Each ABB TB805 3BSE008534R1 unit undergoes functional verification testing prior to dispatch. This includes connectivity checks and visual inspection to confirm the unit meets operational standards before it reaches your facility, reducing the risk of installation delays caused by DOA (dead-on-arrival) components.

Q3: Is the TB805 3BSE008534R1 compatible with existing ABB S800 I/O installations?
The ABB TB805 3BSE008534R1 is designed as a direct-fit terminal unit for the ABB S800 I/O module series, compatible with standard S800 baseplates and DIN rail mounting configurations. It is suitable for use with ABB AC800M and AC800F controller platforms communicating via ModuleBus or PROFIBUS DP. For specific compatibility questions related to your installed revision level, our technical team is available to advise.

Q4: Can NINERMAS support long-term or repeat supply of the TB805 3BSE008534R1 for maintenance and spare parts programs?
Yes. NINERMAS maintains ongoing inventory of the ABB TB805 3BSE008534R1 and related S800 I/O components to support planned maintenance schedules, emergency replacements, and multi-site spare parts programs. We recommend that facilities with critical control dependencies maintain a minimum buffer stock of terminal units to ensure rapid replacement capability and minimize MTTR.
