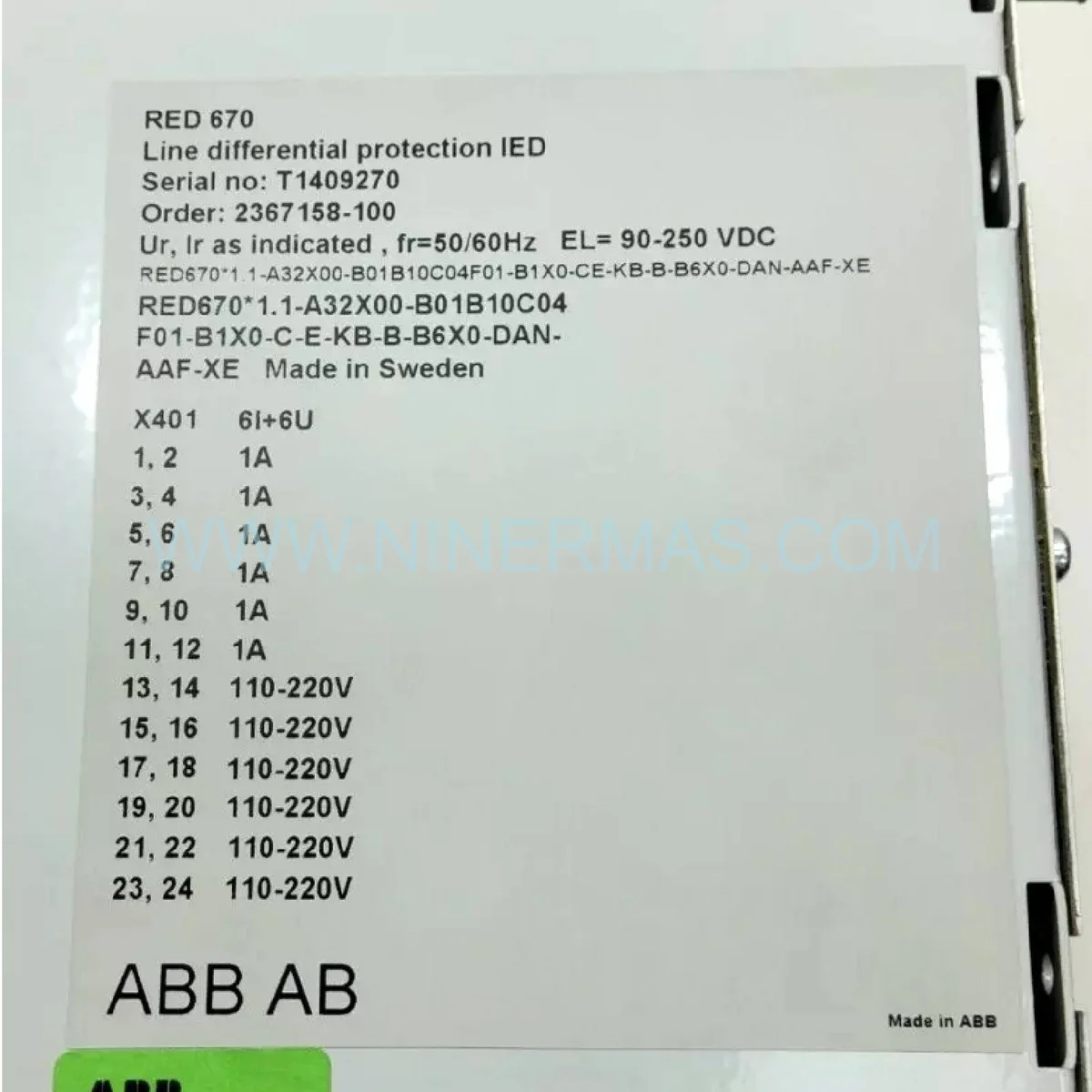

ABB RED670 Line Differential Protection Relay (ABB) – New & Original in Stock

ABB RED670 Line Differential Protection Relay | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing high-voltage transmission infrastructure, the ABB RED670 stands as a cornerstone of system availability assurance. The RED670 delivers sub-15ms fault isolation across multi-terminal and teed-line configurations, directly reducing mean time to recovery (MTTR) and safeguarding uptime in mission-critical power corridors. Its role in process optimization is not incidental — it is architecturally embedded into the protection scheme, enabling operational excellence across substations rated up to 500kV.

Deployed in harsh industrial environments — from coastal substations exposed to salt-laden air to inland facilities subject to extreme thermal cycling — the RED670 maintains measurement integrity across an operating range of -40°C to +70°C. Installation demands attention to CT polarity alignment, fiber-optic channel latency budgeting, and IEC 61850 GOOSE message configuration. Improper grounding or mismatched differential zone boundaries remain the leading causes of nuisance tripping; the RED670’s adaptive algorithm mitigates these risks through real-time differential current supervision.

As a strategic spare-parts asset, maintaining at least one RED670 unit in your critical inventory buffer is a recognized best practice in transmission reliability engineering. End-of-life (EOL) procurement cycles for legacy protection IEDs can extend 12-24 months; securing original factory stock now eliminates that operational exposure.

Key Operational Features

High-Speed Differential Protection: Fault clearance in <15ms — minimizing arc energy and equipment damage
Redundant Communication Architecture: Dual-channel fiber support ensures high availability even during single-link failures
Seamless System Integration: Native IEC 61850 Ed.2, DNP3, Modbus, and IEC 60870-5-103 for frictionless SCADA connectivity
Adaptive Algorithm Engine: Distinguishes internal faults from CT saturation and external disturbances — reducing false trips
Comprehensive I/O Modules: Flexible analog and digital I/O configuration supports diverse substation automation architectures
Cybersecurity Compliance: Role-based access control, encrypted sessions, and NERC CIP-aligned audit logging

Maintenance & Performance Benchmarks

The RED670 is engineered to integrate into industrial network architectures ranging from single-bay feeder protection schemes to complex multi-terminal transmission corridors. Its modular hardware platform supports field-replaceable I/O modules, enabling targeted maintenance without full relay replacement — a critical advantage for minimizing planned outage windows.

Performance benchmarks confirm 80 samples-per-cycle waveform capture, providing high-fidelity disturbance records for post-event forensic analysis. The built-in self-monitoring engine continuously validates measurement chain integrity — from CT input to trip output — and generates pre-fault alarms before degradation affects protection performance. This proactive diagnostic capability is central to any Automation Components lifecycle management strategy.

For large-scale industrial networks, the RED670’s PCM600 software integration enables centralized configuration management, batch firmware deployment, and automated test report generation — reducing per-relay commissioning time by up to 40% compared to legacy IED platforms.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every RED670 unit shipped by NINERMAS COMPANY LIMITED is sourced directly from authorized distribution channels and dispatched in Original Factory Packaging — complete with factory test certificates, firmware documentation, and tamper-evident seals. This ensures full traceability from manufacturer to installation site, a non-negotiable requirement for utility-grade protection equipment.

Same-Day Dispatch: Available for in-stock units confirmed before 14:00 CST
Global Supply Coverage: Specialized sourcing for EOL and legacy Relion 670 Series modules — including discontinued variants
Worldwide Express Logistics: DHL / FedEx / UPS priority freight with full customs documentation support
Export Compliance: All shipments processed with accurate HS codes and country-of-origin certification

Engineering Support & FAQ

Q1: What are the key steps for commissioning the RED670 in a new substation?
A: Commissioning begins with CT polarity verification and differential zone boundary definition using PCM600. Configure IEC 61850 GOOSE subscriptions for inter-relay communication, validate fiber-optic channel latency (<5ms recommended), and perform secondary injection testing to confirm trip thresholds before energization.

Q2: Which firmware versions are compatible with the RED670 for IEC 61850 Ed.2 operation?
A: IEC 61850 Ed.2 functionality is supported from firmware version 2.0 and above. Upgrading from Ed.1 requires a configuration migration using PCM600 v2.7+. Always verify firmware compatibility with your SCADA system’s IEC 61850 client implementation before deployment.

Q3: How does the RED670 handle CT saturation during external faults?
A: The relay employs a waveform-based saturation detection algorithm that analyzes the differential current signature in real time. When saturation is identified, the restraint characteristic is dynamically increased, preventing false differential trips while maintaining sensitivity to genuine internal faults.

Q4: What is the warranty process for a RED670 unit purchased through NINERMAS?
A: All units carry a 1-year warranty from the date of shipment. In the event of a defect, contact sale@ninermas.com with the unit serial number and fault description. Our engineering team will coordinate return authorization (RMA), expedited replacement dispatch, and root-cause documentation within 5 business days.

Q5: Can the RED670 be integrated into an existing SCADA system without replacing the RTU?
A: Yes. The RED670 supports legacy protocols including DNP3 and IEC 60870-5-103 alongside modern IEC 61850, allowing parallel integration with existing RTU infrastructure. Protocol mapping and data model configuration are managed through PCM600 without requiring RTU firmware changes.

Q6: Is the RED670 suitable for series-compensated transmission lines?
A: Absolutely. The RED670’s differential algorithm is specifically validated for series-compensated line applications, where voltage inversion and subsynchronous oscillations can challenge conventional distance protection. Its current-only differential principle remains immune to these phenomena, ensuring reliable fault detection in compensated networks.
