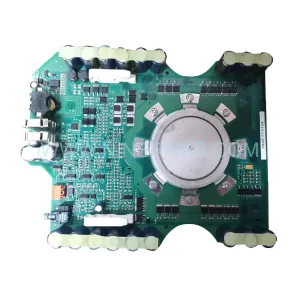

ABB RC-IGCT 5SHX 1060H0003 (3BHB020538R0001) | New & Original

ABB 5SHX 1060H0003 (3BHB020538R0001) | Reliable Automation Component for Mission-Critical Drives

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing high-availability production assets, the ABB 5SHX 1060H0003 (3BHB020538R0001) is not merely a power semiconductor — it is the operational backbone of medium voltage variable frequency drive systems. Deployed within ABB’s ACS5000 water-cooled drive platform, this Reverse Conducting Integrated Gate-Commutated Thyristor (RC-IGCT) directly governs system uptime in megawatt-class motor control applications. Its monolithic silicon architecture integrates the switching element and anti-parallel freewheeling diode into a single wafer, eliminating inter-component failure modes and elevating system availability to mission-critical standards. Process Optimization begins at the component level — and this module sets that benchmark.

In harsh industrial environments — including steel rolling mills, cement production lines, offshore marine propulsion, and mining conveyors — the ABB 5SHX 1060H0003 (3BHB020538R0001) demonstrates exceptional durability under sustained thermal cycling, mechanical vibration, and high-humidity exposure. The 68MM press-pack housing enforces direct thermal coupling between the silicon junction and the liquid cooling interface, achieving junction-to-case thermal resistance below 0.02 K/W. Installation requires controlled clamping force between 25-35 kN via precision mounting hardware; deviation from this specification risks micro-fractures in the silicon stack. Thermal interface material must be applied uniformly prior to assembly to ensure Operational Excellence across the full service life.

For SRE teams managing legacy or end-of-life drive platforms, maintaining a certified stock of this RC-IGCT module is a non-negotiable element of any spare parts strategy. Unplanned downtime in medium voltage drive applications can cost tens of thousands of dollars per hour. Sourcing a verified, factory-original 3BHB020538R0001 in advance — rather than reactively — is the single most effective risk mitigation measure available to maintenance engineers. System Integration with existing ACS5000 gate driver architectures is seamless, with no firmware reconfiguration required for like-for-like replacement.

Key Operational Features

Integrated RC-IGCT Architecture: Monolithic reverse-conducting design eliminates external freewheeling diodes, reducing I/O Modules count and improving thermal symmetry.
High Availability Switching: Hard-switching capability with sub-2µs turn-off time supports PWM frequencies up to several kHz — minimizing harmonic distortion in Automation Components.
Redundancy-Ready Press-Pack Form Factor: Field-replaceable without cooling system drainage; supports hot-swap during scheduled maintenance windows for maximum drive uptime.
Seamless System Integration: Direct compatibility with ABB ACS5000 proprietary gate driver and control architecture — zero reconfiguration overhead.
Precision Thermal Management: Direct liquid cooling interface rated for deionized water or water-glycol mixtures at 4-8 L/min per module; inlet temperature 15°C 45°C.
100% Factory Electrical Testing: Each unit verified for forward voltage drop, gate trigger characteristics, and thermal impedance prior to shipment.

Maintenance & Performance Benchmarks

The 3BHB020538R0001 is engineered to adapt across diverse industrial network architectures — from standalone single-drive installations to multi-drive parallel configurations in large-scale process plants. In distributed drive topologies, the module’s consistent gate trigger characteristics ensure synchronized switching across parallel IGCT stacks, preventing current imbalance that could degrade system performance.

Recommended maintenance intervals for this Automation Component are as follows: visual inspection every 12 months, infrared thermal imaging every 24 months, and full electrical parameter verification (VT, IT, gate impedance) every 36 months. Power cycling qualification exceeds 100,000 cycles at rated conditions, supporting a 20+ year operational lifetime in properly maintained systems. Built-in temperature sensors enable real-time junction monitoring, feeding predictive maintenance algorithms in modern SCADA and DCS environments — a key enabler of Operational Excellence in Industry 4.0 architectures.

For facilities operating multiple ACS5000 units, standardizing on a single verified spare — the ABB 5SHX 1060H0003 (3BHB020538R0001) — across all drive bays reduces spare parts inventory complexity and accelerates mean time to repair (MTTR) during unplanned outages.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every ABB 5SHX 1060H0003 (3BHB020538R0001) dispatched from our facility ships in Original Factory Packaging — including the manufacturer’s anti-static press-pack protective sleeve, foam-lined transit case, and original documentation set (test certificate, handling instruction sheet, and traceability label). Factory packaging integrity is verified prior to dispatch to ensure the silicon stack arrives without mechanical stress.

Same-Day Dispatch is available for in-stock units when orders are confirmed before the daily cut-off time. For mission-critical emergency replacements, we offer priority air freight with DHL Express, FedEx Priority, and UPS Worldwide Express — with typical transit times of 24-72 hours to major industrial hubs globally.

We maintain dedicated inventory of EOL (End-of-Life) and Legacy Automation Components, including discontinued ABB RC-IGCT variants no longer available through standard distribution channels. Our global sourcing network spans certified ABB partners across Europe, Asia-Pacific, and the Americas, enabling us to fulfill urgent requirements for aging ACS5000 fleets that cannot be easily upgraded. All units are subject to incoming inspection and electrical verification before being offered for sale.

Engineering Support & FAQ

Q1: What is the correct installation procedure for the ABB 5SHX 1060H0003 (3BHB020538R0001) press-pack module?
A: The module must be mounted between matched heat sink plates with a controlled clamping force of 25-35 kN. Apply a uniform layer of approved thermal interface material to both contact faces. Follow ABB’s ACS5000 maintenance manual torque sequence precisely. After mechanical assembly, perform gate impedance and forward voltage drop verification before energizing the drive.

Q2: Is the 3BHB020538R0001 compatible with all ACS5000 firmware versions?
A: Yes. As a like-for-like hardware replacement, the 3BHB020538R0001 is compatible with all ACS5000 firmware revisions without requiring parameter changes. Gate driver interface signals and protection thresholds are factory-matched to ABB’s control architecture. Always confirm the drive’s software version with ABB service documentation before commissioning.

Q3: How do I verify the authenticity of a 3BHB020538R0001 module upon receipt?

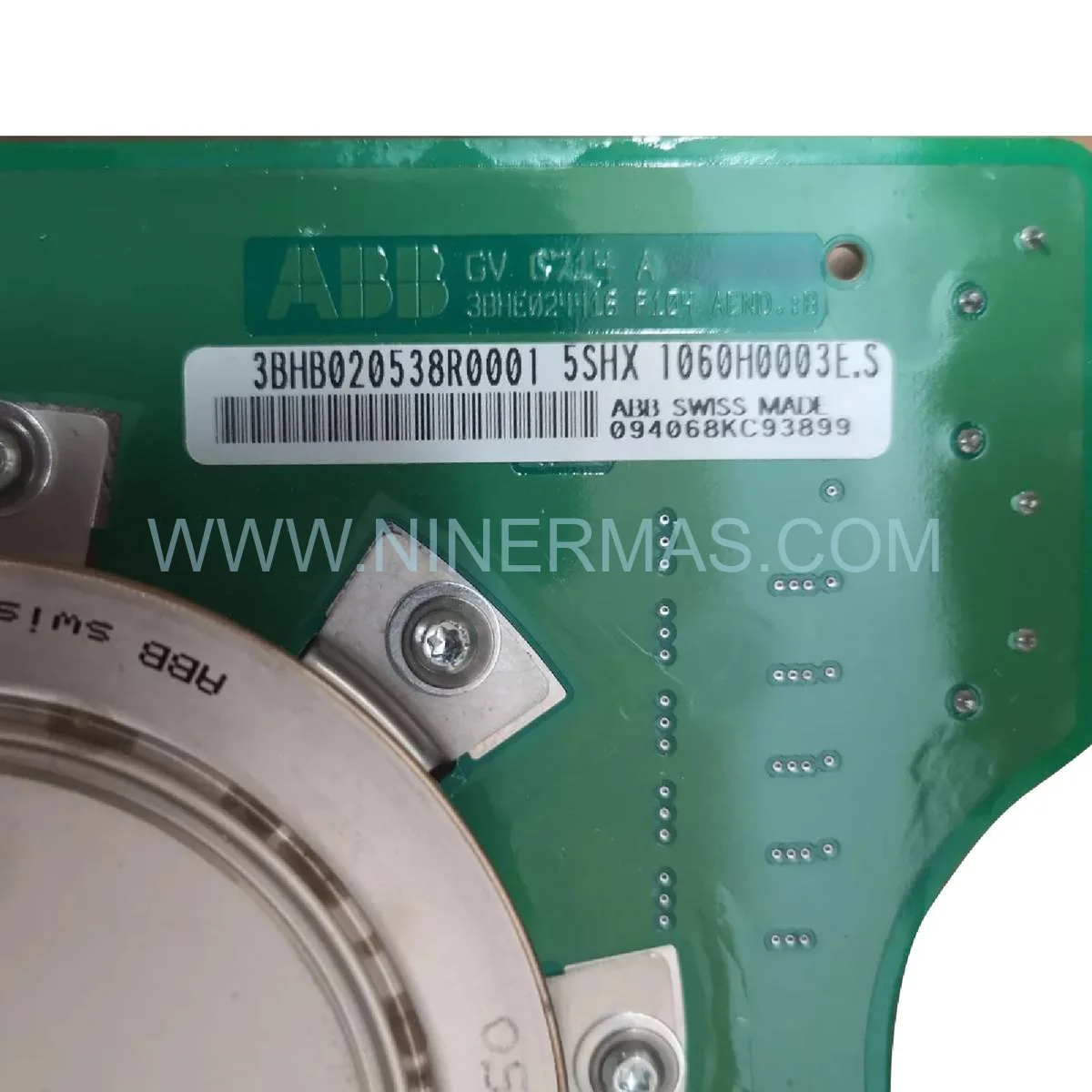

A: Authentic units carry a laser-etched ABB part number (3BHB020538R0001) and type designation (5SHX 1060H0003) on the press-pack body, along with a factory traceability label with batch and date codes. Cross-reference the test certificate serial number against the module’s physical marking. Contact our technical team if any discrepancy is observed.

Q4: What warranty coverage applies to this RC-IGCT module?
A: All units supplied by NINERMAS COMPANY LIMITED carry a 1-Year Warranty covering manufacturing defects and electrical parameter non-conformance. Warranty claims require the original test certificate and photographic evidence of installation conditions. Our team coordinates directly with ABB-certified service engineers for warranty assessment and replacement logistics.

Q5: Can this module be used in drive platforms other than the ACS5000?
A: The ABB 5SHX 1060H0003 (3BHB020538R0001) is specifically characterized for the ACS5000 gate driver architecture. Use in alternative platforms requires independent gate driver compatibility verification and thermal system re-evaluation. Consult our engineering support team for cross-platform application assessment before procurement.

Q6: What is the lead time for out-of-stock orders?
A: For units not immediately available from our warehouse stock, lead times typically range from 2-6 weeks depending on global supply chain conditions. We proactively monitor ABB’s authorized distribution network and secondary market channels to minimize sourcing delays for EOL and legacy Automation Components. Contact us for a real-time availability confirmation.
