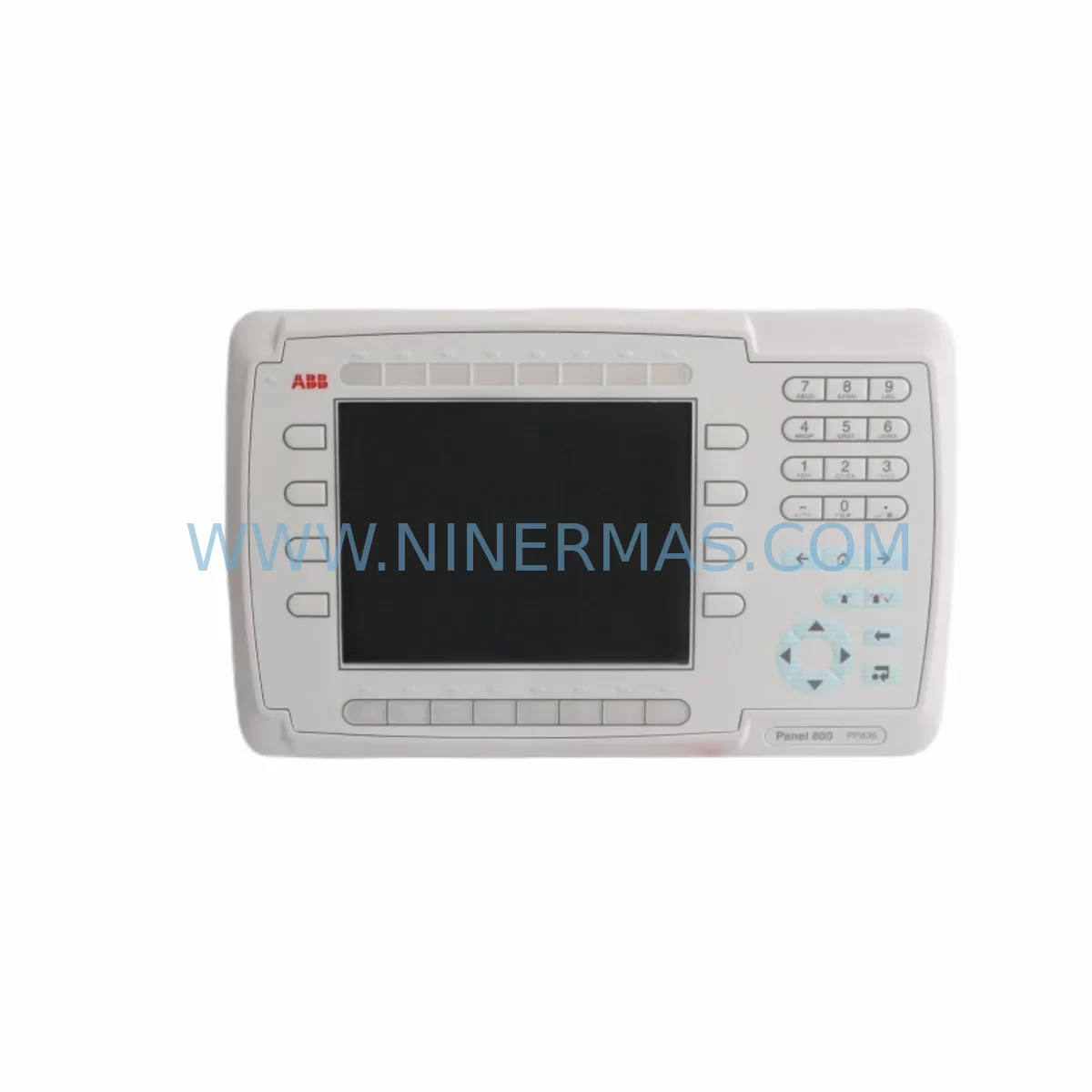

The ABB PP836 (part number 3BSE042237R1) is a high-performance operator panel designed for use within ABB’s AC 800M distributed control system platform. As a critical human-machine interface component in process automation environments, the PP836 serves as the primary touchpoint between plant operators and the underlying control logic managed by the PM856, PM861, or PM864 controller modules. When this panel fails or reaches end-of-service life, rapid replacement is essential to restore operator visibility and maintain safe, continuous production.

NINERMAS maintains ready stock of the ABB PP836 3BSE042237R1 to support maintenance engineers and procurement teams who cannot afford extended lead times. Each unit is sourced from verified supply channels, inspected prior to dispatch, and covered by a 12-month warranty from the date of shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for an AC 800M-based control system goes well beyond replacing the PP836 operator panel in isolation. Maintenance engineers conducting annual cabinet inspections or responding to unplanned failures should treat the PP836 replacement as an opportunity to audit the broader control architecture and identify components approaching end-of-life.

The PP836 communicates with the system controller — typically a PM856 or PM864 processor module — over an internal Ethernet link. Before replacing the panel, engineers should verify that the controller’s firmware version is compatible with the replacement unit’s software build. A mismatch between the PP836 application project and the controller’s configuration database is one of the most common causes of extended commissioning time after a panel swap.

Power integrity is equally important. The PP836 operates on a 24 VDC supply, and any instability in the cabinet power rail — often sourced from an ABB PSMB or a third-party DIN-rail power supply — can cause intermittent panel resets that are misdiagnosed as panel hardware failure. Inspecting the power supply module, checking output voltage under load, and verifying the integrity of terminal blocks and wiring ferrules in the 24 VDC distribution circuit should be standard practice before condemning the panel itself.

Within the same control cabinet, the SD833 or SD834 signal conditioner modules and the TB840A or TB842 termination units connected to the AI810, AO810, DI810, or DO810 I/O modules should be visually inspected for signs of overheating, corrosion, or loose terminal connections. These components share the same cabinet environment as the PP836 and are subject to the same thermal and vibration stresses. Replacing the panel without addressing degraded I/O termination units or failing signal isolators risks a repeat failure within a short maintenance cycle.

Communication continuity is another key consideration. The PP836 relies on a stable Ethernet connection to the controller and, in many installations, to a supervisory SCADA or historian system. Inspecting the Ethernet switch, patch cables, and RJ45 connectors inside the cabinet — and confirming that the IP address configuration stored in the replacement panel matches the original — will prevent unnecessary network troubleshooting after the panel is installed.

For sites running ABB’s 800xA system, the PP836 may also be integrated with the 800xA operator workplace environment. In these cases, the graphics project loaded on the panel must be re-deployed from the 800xA engineering station after replacement. Procurement teams should ensure that a licensed copy of the engineering software and a current backup of the operator graphics project are available before scheduling the replacement window.

Maintaining a small buffer stock of high-wear spare parts — including the PP836, relevant PM-series controller modules, and key I/O modules such as the AI810 or DI810 — is strongly recommended for facilities where the AC 800M platform is the primary control system. NINERMAS can support long-term supply agreements to help procurement engineers manage spare parts lifecycle risk without overstocking.

Site Replacement Workflow

When replacing the ABB PP836 3BSE042237R1 on-site, the following workflow minimizes downtime and reduces the risk of commissioning errors:

Step 1 — Pre-replacement preparation: Obtain a verified backup of the operator graphics project from the engineering station or from the existing panel’s internal storage. Confirm the firmware version of the replacement unit and compare it against the installed controller’s compatibility matrix. Prepare the correct IP address, subnet mask, and gateway settings for the replacement panel.

Step 2 — Safe isolation: Coordinate with the control room to place the affected loop or unit in manual control before isolating the panel. Do not remove the panel while the system is in automatic mode without confirming that all critical process variables are being monitored from an alternative operator station.

Step 3 — Physical replacement: Disconnect the 24 VDC power connector and all communication cables from the existing panel. Remove the panel from the cabinet cutout, taking care not to damage the gasket or mounting hardware. Install the replacement PP836, reconnect all cables in the correct sequence, and restore power.

Step 4 — Commissioning: Apply power and confirm that the panel boots to the correct startup screen. Configure the network settings to match the original IP assignment. Deploy the operator graphics project from the engineering backup. Verify that all process values displayed on the panel match those shown on the controller’s diagnostic interface and on any parallel operator stations.

Step 5 — Return to service: Confirm with the control room that all displays are correct and that no alarms are active as a result of the replacement. Return the affected loop or unit to automatic control and document the replacement in the site maintenance log.

NINERMAS ships the PP836 3BSE042237R1 with a pre-dispatch functional test report. Units are packaged in anti-static protective materials suitable for international freight. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units.

Spare Parts Support FAQ

Q1: Is the ABB PP836 3BSE042237R1 still in production, and how long can I expect supply availability?
The PP836 is a mature product within the AC 800M platform. While ABB has introduced newer HMI solutions, the PP836 remains in active use across a large installed base of process automation systems. NINERMAS maintains ongoing stock and can support long-term supply requirements. Contact our team to discuss scheduled procurement or blanket order arrangements.

Q2: Do I need to update the firmware on the replacement PP836 before installation?
Firmware compatibility depends on the version of the AC 800M controller and the 800xA software environment at your site. NINERMAS recommends confirming the firmware revision of the replacement unit against your site’s compatibility documentation before installation. Our technical team can assist with pre-shipment firmware verification upon request.

Q3: Can the PP836 be used as a direct replacement for an older PP835 or PP825 panel?
The PP836 is not a pin-compatible drop-in replacement for earlier PP-series panels due to differences in display resolution, communication interfaces, and mounting dimensions. A retrofit from PP825 or PP835 to PP836 requires updates to the operator graphics project and may require cabinet cutout modification. NINERMAS can provide technical guidance on the retrofit scope before you commit to the replacement.

Q4: What does the 12-month warranty cover, and what is the claims process?
