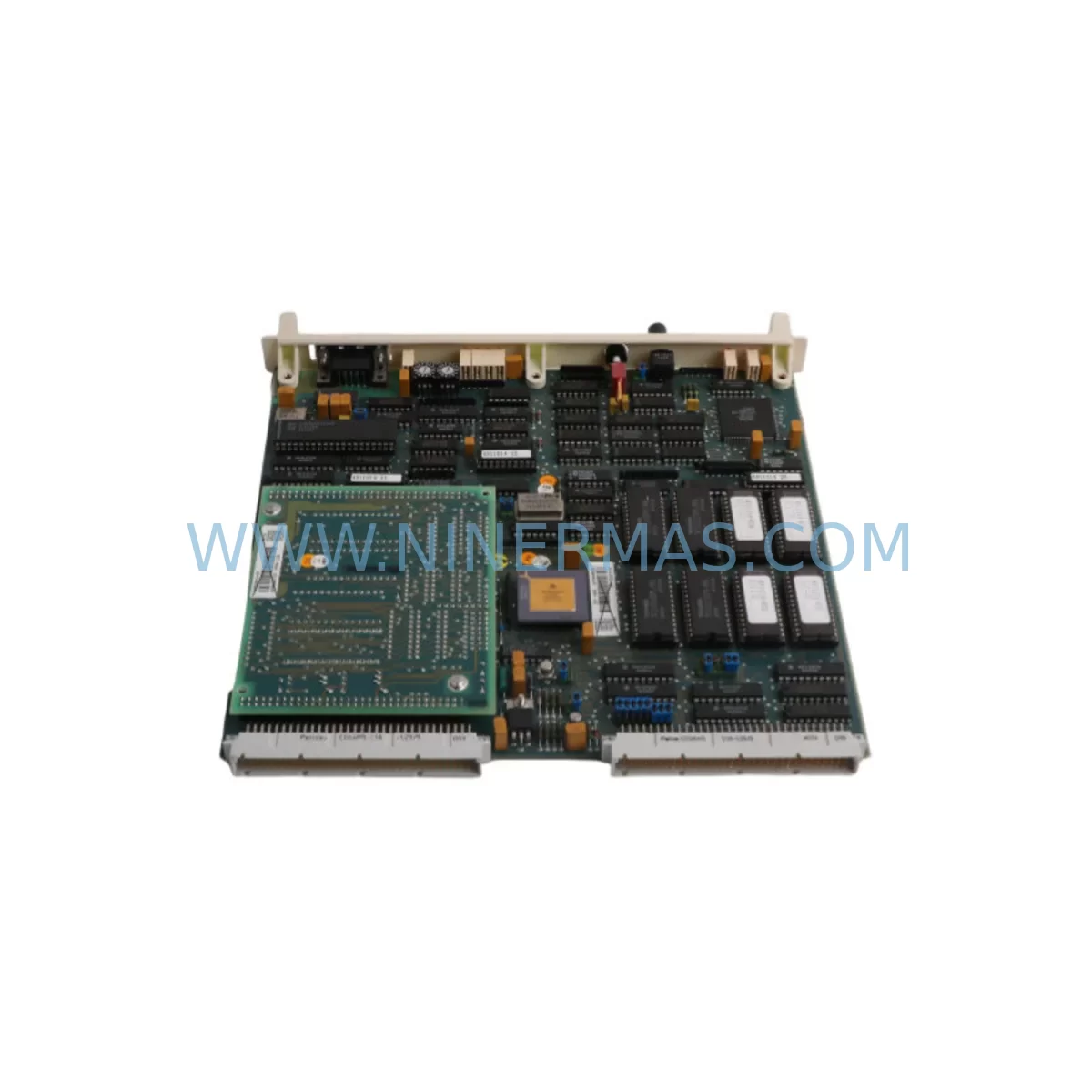

The ABB PFSK 130 (part number 3BSE002616R1) is a critical communication interface module used extensively within the ABB Advant OCS and MOD 300 distributed control system platforms. As these systems continue to operate in refineries, chemical plants, power generation facilities, and large-scale manufacturing environments worldwide, maintaining a reliable inventory of service-ready spare parts such as the PFSK 130 is essential for minimizing unplanned downtime and sustaining long-term production continuity. NINERMAS maintains verified stock of the 3BSE002616R1 to support maintenance engineers and procurement teams who require fast, dependable access to legacy DCS components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PFSK 130 module fails or shows degraded communication performance within an ABB Advant OCS or MOD 300 system, the impact extends well beyond the module itself. Maintenance engineers must approach the replacement as part of a broader cabinet inspection to prevent cascading failures and ensure the restored system operates reliably.

Before replacing the PFSK 130 (3BSE002616R1), verify the health of the associated PFSK 110 processor module, which works in close coordination with the PFSK 130 to manage inter-module communication. A fault in the PFSK 130 can sometimes mask an underlying issue in the PFSK 110, so both should be inspected simultaneously. Similarly, the PFSK 150 and PFSK 160 modules — responsible for I/O bus communication and field signal routing — should be checked for error flags or communication timeouts that may have been triggered by the PFSK 130 fault.

The DSAI 130 and DSAO 130 analog I/O modules connected downstream of the communication path should be verified for signal integrity after the PFSK 130 is replaced. Any drift in analog readings or loss of output response may indicate that the I/O modules themselves require recalibration or replacement. The DSDP 150 pulse counter module and DSDI 110 digital input module should also be included in the post-replacement verification checklist, particularly in process lines where discrete and pulse signals feed into the same controller rack.

Power distribution within the DCS cabinet is another critical area. The PFTL 101 load cell interface and the cabinet’s 24VDC bus rail should be inspected for voltage stability, as communication module failures are sometimes preceded by power supply irregularities. If the cabinet uses an ABB DSQC 604 or similar power supply unit, confirm that output voltage and ripple are within specification before commissioning the replacement PFSK 130.

Communication cabling between the PFSK 130 and adjacent modules — including the Modulebus or RCOM serial links — should be inspected for connector wear, pin corrosion, or cable damage. Faulty cabling is a common root cause of intermittent communication errors that are incorrectly attributed to the module itself. Replacing the PFSK 130 without addressing cabling issues will result in recurring faults.

For sites running ABB Master software or Advant Builder engineering tools, confirm that the replacement PFSK 130 is recognized correctly by the configuration database after installation. Module address settings, DIP switch configurations, and firmware revision compatibility should all be verified against the original system documentation before the unit is brought online.

Procurement teams managing spare parts inventories for Advant OCS or MOD 300 systems should consider maintaining buffer stock of the PFSK 130 alongside related modules such as the PFSK 110, DSAI 130, and DSDI 110, as these components share similar end-of-life risk profiles and are increasingly difficult to source through standard distribution channels. NINERMAS maintains long-term supply agreements and reserved inventory for these legacy ABB components to support planned maintenance cycles and emergency procurement needs.

Site Replacement Workflow

Replacing the ABB PFSK 130 (3BSE002616R1) on a live Advant OCS or MOD 300 system requires careful preparation to minimize downtime and avoid disruption to ongoing process control. The following workflow reflects best practices for field replacement in industrial DCS environments:

Step 1 — Pre-Replacement Preparation: Download and archive the current system configuration using ABB Master or Advant Builder. Confirm the firmware version of the existing PFSK 130 and ensure the replacement unit carries a compatible revision. Photograph the existing module’s DIP switch and jumper settings before removal.

Step 2 — Cabinet Isolation: Coordinate with the control room operator to place the affected controller node in manual or fallback mode. Identify which process loops are affected and confirm that field devices are in a safe state before proceeding. Do not power down the entire DCS cabinet unless the replacement cannot be performed hot.

Step 3 — Module Removal and Installation: Follow ABB’s ESD precautions when handling the PFSK 130. Remove the faulty module from the rack, inspect the backplane connector for damage, and seat the replacement unit firmly. Restore DIP switch and jumper settings to match the original configuration.

Step 4 — System Verification: Power up the replacement module and monitor the system diagnostic display for communication status. Confirm that all downstream I/O modules — including DSAI 130 analog inputs and DSDI 110 digital inputs — are reporting correctly. Run a loop check on critical process signals before returning the controller node to automatic mode.

Step 5 — Documentation: Record the replacement in the site maintenance log, including the serial number of the removed module, the replacement unit’s serial number, and the date of installation. Update the spare parts inventory to reflect the consumed stock and initiate a replenishment order to maintain buffer levels.
