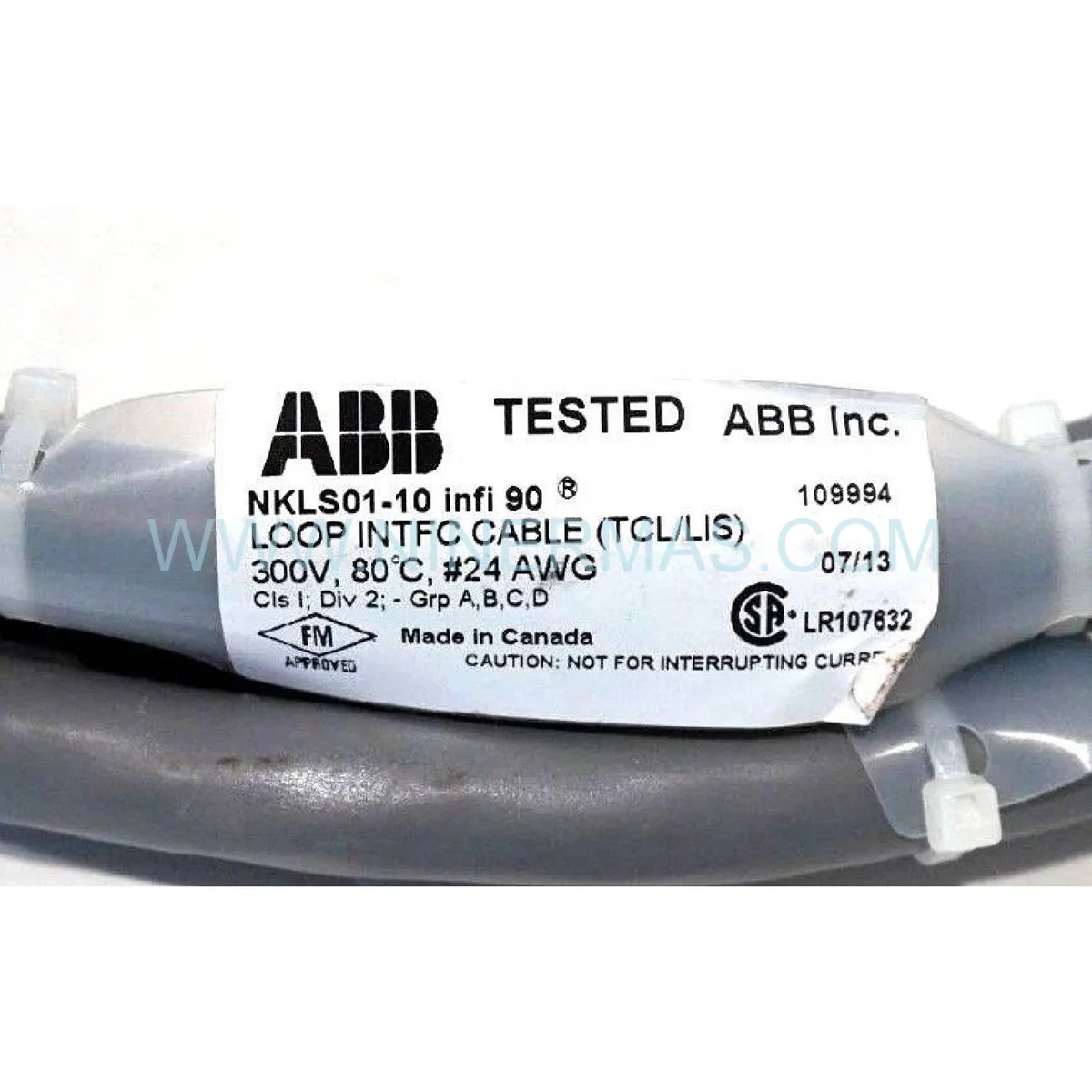

ABB NKLS01-10 INFI-Net Interface Cable (10ft) | New & Original in Stock

ABB NKLS01-10 INFI-Net Interface Cable | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing distributed control infrastructure, the ABB NKLS01-10 is far more than a passive interconnect — it is a mission-critical link that directly governs system availability in ABB Bailey INFI 90 and Net 90 architectures. The NKLS01-10 bridges the Network Interface Slave (NIS) module to the Network Termination Cable Loop (NTCL), forming the physical backbone of INFI-Net communication. In process environments where milliseconds of signal latency translate to production anomalies, this prefabricated 10-foot assembly eliminates the variability of field-terminated wiring and delivers deterministic, repeatable connectivity for process optimization across chemical, refining, and power generation sectors.

Operational durability under harsh industrial conditions is a defining characteristic of the NKLS01-10. Its PVC-insulated conductors withstand continuous exposure to industrial solvents, lubricants, and thermal cycling between -20°C and +60°C without insulation degradation. Controlled-impedance twisted-pair construction suppresses electromagnetic interference from adjacent VFDs, motor starters, and high-voltage bus bars — noise sources that routinely compromise signal integrity in densely populated control cabinets. Keyed, factory-terminated connectors prevent mis-mating during installation, a critical safeguard during emergency maintenance windows when speed and accuracy are equally non-negotiable.

For SREs and maintenance planners operating INFI 90 or Net 90 platforms, stocking the NKLS01-10 as a certified spare is a fundamental risk mitigation strategy. As an end-of-life (EOL) component within ABB’s legacy portfolio, procurement lead times from OEM channels can extend to weeks. A single unplanned communication failure between NIS and NTCL can cascade into full I/O module dropout, triggering unplanned shutdowns with six-figure hourly downtime costs. Maintaining on-hand inventory of this automation component is not optional — it is operational excellence in practice.

Key Operational Features

Mission-Critical Signal Integrity: Controlled-impedance twisted-pair conductors optimized for INFI-Net protocol, minimizing bit-error rates in high-noise industrial environments.
Redundancy-Ready Architecture: Compatible with dual-redundant NTCL topologies, supporting high availability configurations that sustain 99.99% uptime targets.
Seamless System Integration: Factory-terminated connectors ensure plug-and-play compatibility with all INFI 90 and Net 90 NIS/NTCL hardware revisions — zero field calibration required.
Prefabricated Precision: Eliminates field termination errors; reduces installation time by up to 70% versus bulk cable assemblies.
EMI Shielding Provisions: Shielded construction with single-point grounding support suppresses interference from switching equipment and power distribution systems.
Broad Environmental Tolerance: Rated -20°C to +60°C, 300V AC insulation — suitable for control room and field enclosure installations without derating.

Maintenance & Performance Benchmarks

The NKLS01-10 is engineered to integrate seamlessly into industrial network architectures ranging from compact single-loop controllers to enterprise-scale distributed control systems spanning multiple process units. In small-to-medium installations, a single NKLS01-10 may serve as the sole NIS-to-NTCL link; in large-scale refineries or power plants, dozens of these cables form the physical mesh of the INFI-Net communication fabric.

Preventive Maintenance Protocol: Annual inspection cycles should include visual examination for insulation cracking, connector corrosion, and strain relief integrity. Insulation resistance measurements (target: >10 MΩ to ground) using a calibrated megohmmeter provide early warning of dielectric degradation before communication faults manifest. Connector locking mechanisms should be verified for positive engagement — loose connectors are a leading cause of intermittent I/O errors in legacy DCS environments.

Fault Isolation Procedure: When NIS-to-NTCL communication anomalies occur — manifesting as sporadic I/O dropouts, module offline alarms, or increased error counters in the DCS historian — substitute the suspect NKLS01-10 with a verified spare as the first diagnostic step. This swap-and-confirm methodology isolates cable faults from module-level failures within minutes, minimizing mean time to repair (MTTR) and restoring system integration without extended diagnostic cycles.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every NKLS01-10 unit dispatched from our facility ships in original ABB factory packaging, preserving connector integrity and insulation condition from warehouse to installation point. For facilities managing unplanned outages, same-day dispatch is available on confirmed in-stock units — a capability that directly compresses recovery timelines for mission-critical process control failures.

As a globally sourced EOL and legacy automation component, the NKLS01-10 is increasingly difficult to procure through standard OEM channels. Our dedicated supply chain network spans authorized distributors, certified refurbishers, and factory-surplus inventories across North America, Europe, and Asia-Pacific, ensuring consistent availability for both emergency single-unit requirements and planned multi-unit procurement programs. Worldwide express logistics via DHL, FedEx, and UPS ensures delivery to any industrial site within 2-5 business days, supporting operational excellence for global operations teams.

Engineering Support & FAQ

Q1: Is the NKLS01-10 compatible with all revisions of the ABB Bailey INFI 90 NIS module?
A: Yes. The NKLS01-10 uses standardized INFI-Net connector specifications that are backward and forward compatible across all documented NIS hardware revisions within the INFI 90 and Net 90 platforms. No firmware or hardware modification is required for integration.

Q2: What is the maximum number of NKLS01-10 cables that can be daisy-chained in a single NTCL segment?
A: INFI-Net NTCL topology guidelines specify maximum segment lengths based on cumulative cable impedance and signal attenuation budgets. Consult the ABB INFI 90 Network Configuration Manual (document CI-INFI90-NET) for segment length calculations. As a general guideline, total NTCL segment length should not exceed manufacturer-specified limits to maintain signal integrity.

Q3: Can the NKLS01-10 be used in a dual-redundant NTCL configuration?
A: Absolutely. The cable is fully compatible with redundant NTCL architectures. In dual-redundant configurations, independent NKLS01-10 assemblies are routed on physically separate cable trays to eliminate common-cause failure modes, supporting high availability system designs.

Q4: What is the warranty process if a cable fails within the warranty period?
A: All units carry a 1-year warranty from date of shipment. In the event of a verified manufacturing defect, contact our technical support team with the order reference and a description of the failure mode. We will arrange priority replacement shipment — typically within 24-48 hours — to minimize impact on your production schedule.

Q5: Are installation drawings or ABB documentation available with the order?
A: Yes. Upon request, we provide available ABB technical documentation including installation guidelines, cable routing specifications, and system integration notes relevant to the NKLS01-10 and the broader INFI 90/Net 90 communication architecture.

Q6: What firmware versions of the NIS module are supported by this cable?
A: The NKLS01-10 is a passive hardware assembly with no firmware dependency. Compatibility is determined solely by physical connector specifications, which are consistent across all NIS firmware revisions. Firmware upgrade or downgrade procedures on the NIS module do not affect cable compatibility.
