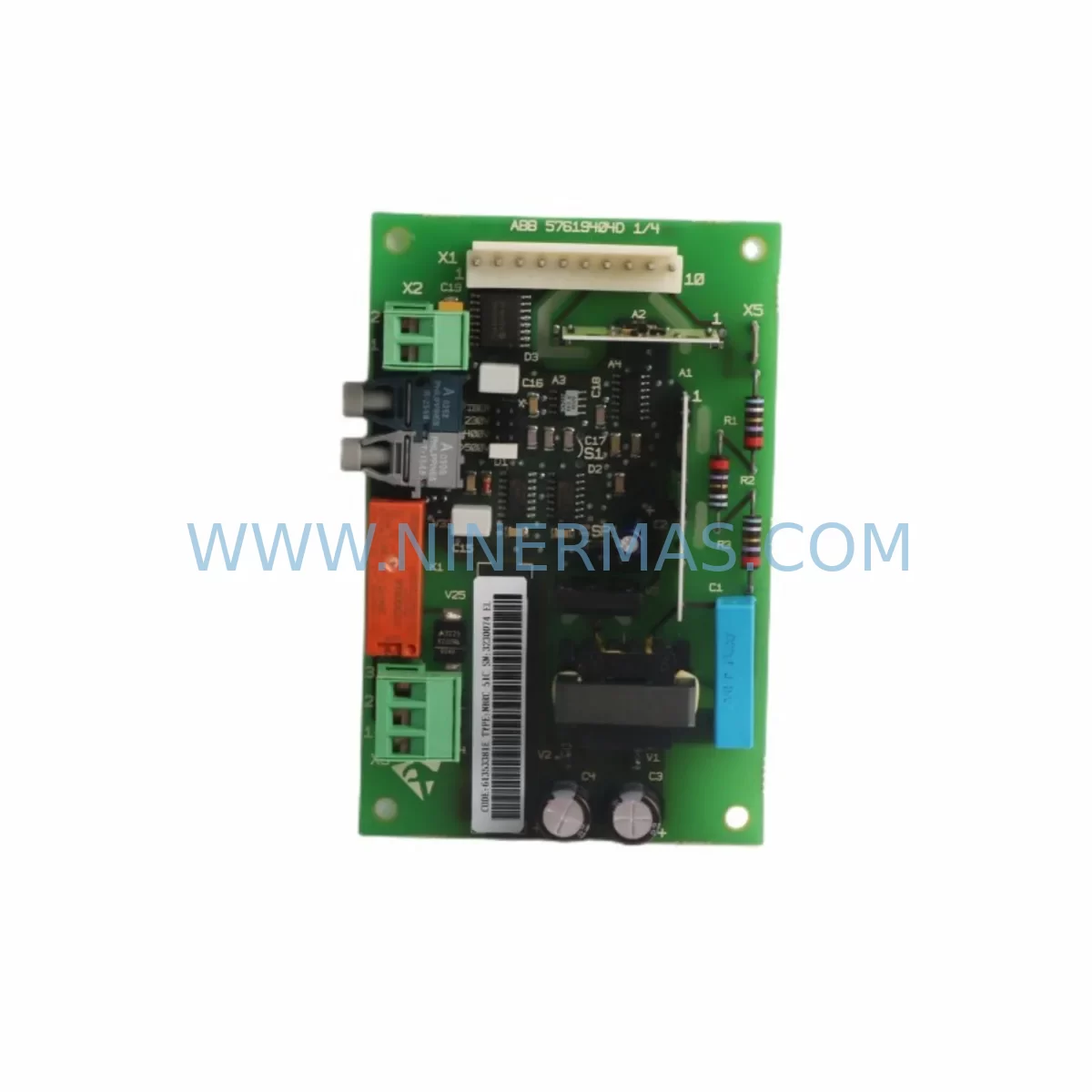

ABB NBRC-61C 61357246E Retrofit Drive Control Board

ABB NBRC-61C 61357246E Retrofit Drive Control Board for Legacy Systems

The ABB NBRC-61C 61357246E is a drive control board engineered for the ABB ACS800 and ACS600 variable frequency drive platforms — two of the most widely deployed drive series in heavy industrial environments worldwide. As these platforms age and original boards reach end-of-life, the NBRC-61C 61357246E has become a critical retrofit component for maintenance engineers managing legacy automation systems across pulp and paper, metals, marine propulsion, oil and gas, and large-scale HVAC applications.

When a drive control board fails in an ACS800 or ACS600 system, the consequences extend far beyond a single drive. The entire motor control loop — including speed reference signals, torque feedback, fieldbus communication, and protection logic — depends on the integrity of this board. Sourcing a verified, tested NBRC-61C 61357246E replacement is the fastest path to restoring full drive functionality without redesigning the control architecture or replacing the entire drive cabinet.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the NBRC-61C 61357246E in a live production environment requires a structured retrofit plan that accounts for every interconnected component in the drive cabinet and control loop. Maintenance engineers should begin by performing a full parameter backup using ABB DriveWindow software or the ACS800 control panel (ACS-CP-C or ACS-CP-D) before any board is removed. This backup preserves motor tuning data, speed references, torque limits, and all application-specific settings that would otherwise need to be re-entered manually after the swap.

Once the drive is safely isolated and de-energized — confirmed by checking the DC bus voltage with a calibrated meter — the NBRC-61C board can be carefully extracted from its backplane slot. Engineers should inspect the RDCO-02 or RDCO-03 optical communication module at this stage, as these modules are frequently degraded in aging ACS800 systems and can cause intermittent fieldbus faults even after a successful board replacement. If the RDCO module shows signs of contamination or connector wear, replacing it alongside the NBRC-61C eliminates a common source of post-retrofit communication instability.

The AINT-02 or AINT-14 inverter control interface board, which sits adjacent to the NBRC-61C in many ACS800 cabinet configurations, should also be inspected for capacitor bulging, corrosion on the edge connectors, and any signs of thermal stress. Similarly, the APBU-44C or APBU-12C pulse encoder interface board — used in closed-loop speed control applications — should be verified for signal integrity before the system is re-energized. A faulty encoder interface can produce speed oscillation or drive trips that are easily misdiagnosed as a control board issue.

On the power side, the OIDC-01 or OITF-01 gate driver boards and the associated DC bus capacitor bank should be evaluated as part of any ACS800 retrofit project. These components share the same service interval as the control board and are often the root cause of recurring drive faults in systems that have been in service for more than ten years. Replacing the NBRC-61C without addressing degraded gate drivers or capacitors risks a repeat failure within months.

For systems using PROFIBUS-DP or Modbus RTU communication, the RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter should be confirmed as compatible with the replacement board’s firmware version. Fieldbus adapter firmware mismatches are a known source of communication timeouts after control board replacement in ACS800 systems. The RDNA-01 DeviceNet adapter and RCAN-01 CANopen adapter are subject to the same compatibility check if those protocols are in use.

Terminal wiring on the XTIO and XTAI I/O terminal blocks should be photographed and documented before removal. These terminal blocks carry analog speed references, digital start/stop commands, fault relay outputs, and thermistor inputs — all of which must be reconnected precisely to restore original drive behavior. Any wiring errors at this stage will produce unexpected drive behavior during commissioning and can damage the replacement board if short circuits occur on the I/O bus.

Downtime Control During System Migration

Minimizing downtime during an NBRC-61C replacement begins with preparation, not execution. Engineers who arrive on-site with a pre-tested, verified replacement board, a complete parameter backup, and a documented wiring diagram can typically complete the swap and return the drive to service within two to four hours — even on large ACS800 multi-drive systems.

The most effective downtime reduction strategy is to pre-configure the replacement NBRC-61C 61357246E off-line before the maintenance window. Using DriveWindow, engineers can load the parameter backup onto the new board in a bench environment, verify that all parameters are correctly restored, and confirm that the board powers up without fault codes. This pre-commissioning step eliminates the most time-consuming phase of on-site replacement and reduces the risk of extended downtime caused by parameter entry errors.

For production lines where even a two-hour outage is unacceptable, a hot-standby strategy using a pre-configured spare NBRC-61C 61357246E held in the site spare parts inventory is the recommended approach. This board should be stored in an ESD-safe bag, kept at controlled temperature and humidity, and tested annually to confirm functionality. Ninermas maintains long-term inventory of the NBRC-61C 61357246E to support customers who require guaranteed availability for critical production assets.

After the replacement board is installed and the drive is re-energized, engineers should perform a no-load test run before reconnecting the motor load. Monitor the drive’s output current, DC bus voltage, and temperature readings during the test run to confirm that the control board is operating correctly. Verify fieldbus communication by checking the PLC or DCS for correct drive status feedback before releasing the drive to production.

Retrofit Support FAQ

Q1: Is the NBRC-61C 61357246E a direct replacement for all NBRC-61C variants in ACS800 systems?
The NBRC-61C 61357246E is compatible with the majority of ACS800 and ACS600 applications using the NBRC-61C board. However, firmware revision compatibility should be verified against your drive’s software version before installation. Ninermas technical support can assist with compatibility confirmation based on your drive’s nameplate data and existing firmware version.

Q2: What testing is performed before shipment?
Every NBRC-61C 61357246E unit is powered-on tested and functionally verified before shipment. Boards are inspected for component integrity, connector condition, and correct power-up behavior. A 12-month warranty is provided on all units, covering defects in materials and workmanship under normal operating conditions.

Q3: Can Ninermas supply the NBRC-61C 61357246E for long-term inventory stocking programs?
Yes. Ninermas maintains dedicated inventory of the NBRC-61C 61357246E and can support blanket order arrangements for customers managing large fleets of ACS800 or ACS600 drives. Contact our sales team to discuss volume pricing, lead times, and consignment stocking options for critical spare parts programs.

Q4: What should I do if the replacement board produces fault codes after installation?
The most common cause of post-replacement faults is an incomplete or corrupted parameter restore. Verify that the parameter backup was loaded correctly and that all motor data — including motor nominal voltage, current, frequency, speed, and power — matches the motor nameplate. If communication faults persist, check the RDCO optical module and fieldbus adapter firmware version. Ninermas provides post-sale technical support to assist customers through the commissioning process.
