SMC VV5Q11-10-X3105V-4060-00949 Retrofit Valve Manifold

SMC VV5Q11-10-X3105V-4060-00949 Retrofit Valve Manifold: Legacy System Compatible Upgrade

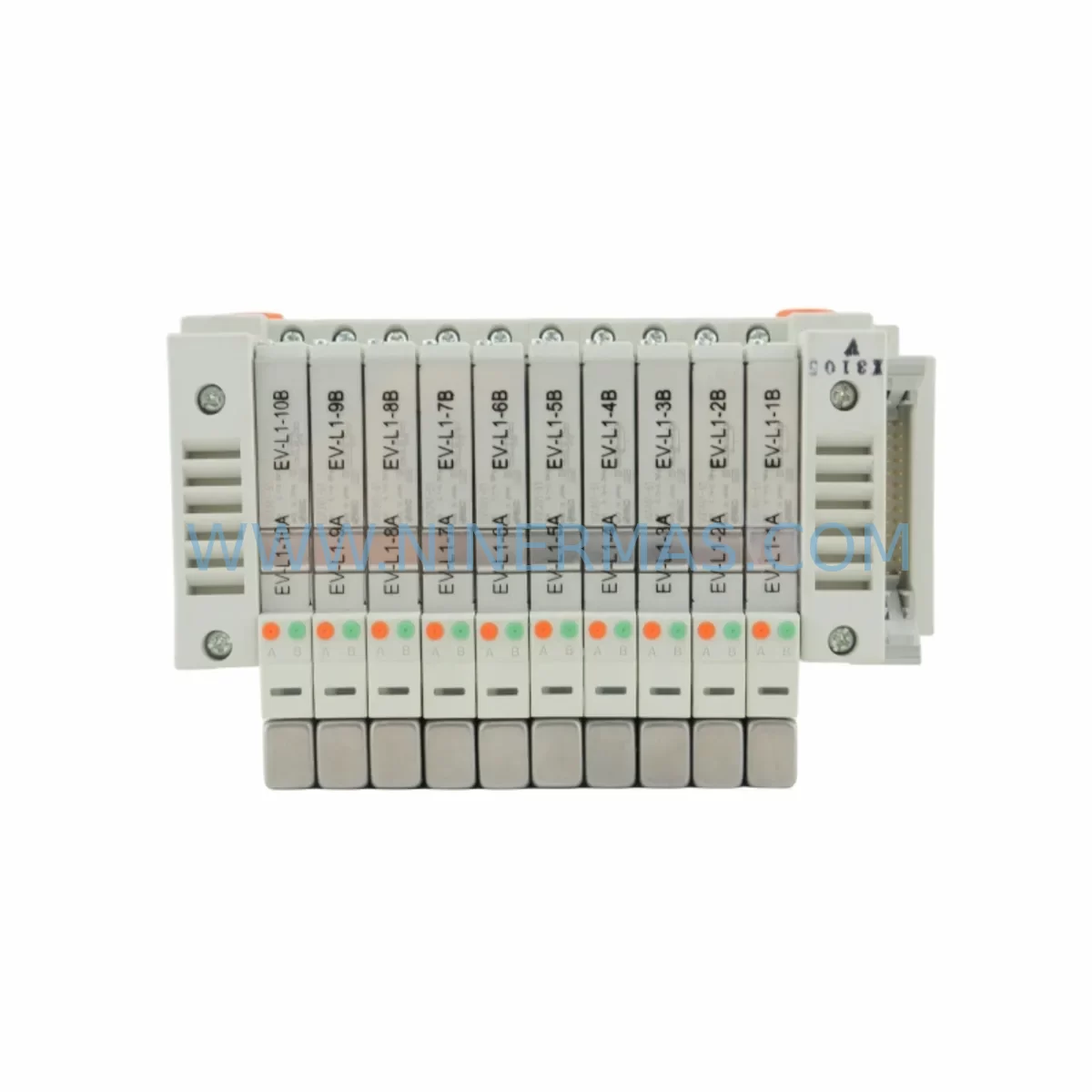

The SMC VV5Q11-10-X3105V-4060-00949 is a pre-configured pneumatic solenoid valve manifold assembly designed for direct integration into existing automation platforms. As legacy VQ-series manifold stations reach end-of-life status across aging production lines, this specific configuration provides a verified drop-in solution for facilities seeking to maintain operational continuity without full system redesign. This unit supports multi-station pneumatic sequencing in applications ranging from packaging machinery and semiconductor handling equipment to automotive assembly cells and food-grade processing lines.

When planning a retrofit of an existing pneumatic control cabinet, engineers must verify several critical parameters before committing to a replacement manifold. Power supply voltage compatibility, solenoid coil ratings, station count, port thread specification, exhaust configuration, and serial communication protocol all determine whether a direct swap is feasible or whether adapter plates, wiring harness modifications, or communication gateway modules are required. The VV5Q11-10-X3105V-4060-00949 is factory-assembled to match a defined station layout and valve function pattern, reducing on-site configuration time and minimizing the risk of incorrect solenoid assignment during commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a discontinued manifold assembly in a live production environment requires careful coordination between mechanical, electrical, and controls engineering teams. The VV5Q11-10-X3105V-4060-00949 is typically installed alongside other pneumatic and electronic infrastructure that must be assessed for compatibility during any upgrade project.

In most legacy cabinets using the VQ platform, the manifold communicates with the host PLC through an EX250 serial interface unit mounted at the end of the valve bank. When migrating from older wiring schemes to fieldbus-based architectures, engineers should confirm whether the existing EX250 gateway supports the target protocol or whether a newer communication module is needed. If the original system used individual wiring per solenoid rather than serial communication, the transition to the X3105V configuration may require rewiring the connector block and updating PLC I/O assignments.

Adjacent to the manifold, facilities often maintain related pneumatic components that should be inspected during any retrofit window. The VQ1101N-5 individual base-mounted valve is commonly used for auxiliary circuits outside the main manifold bank. Similarly, the VV5QC11-06 compact manifold variant may be present in secondary stations where space constraints prevented use of the full-size VV5Q11 assembly. Both should be evaluated for wear and seal integrity whenever the primary manifold is replaced.

On the controls side, legacy systems built around the SY3140-5LZ or SY5140-5LZ solenoid valves may share the same PLC program structure and ladder logic addressing scheme as the VQ-based manifold. Understanding the relationship between these valve families helps controls engineers verify that output mapping remains consistent after the physical swap. The SS5Y3-10F manifold base, used in SY-series installations, follows a similar station-numbering convention that can serve as a reference during commissioning.

For larger retrofit projects involving multiple manifold banks, the VV5Q21-10 twenty-station variant may be considered as a consolidation option, reducing the total number of manifold assemblies in the cabinet while maintaining equivalent I/O density. This approach requires confirming that the SI unit connector interface and blanking plates are correctly configured for unused stations.

Power conditioning and air preparation upstream of the manifold also warrant attention. The AW20-02 filter regulator is frequently paired with VQ-series manifolds to maintain clean, pressure-regulated supply air. Degraded filter elements or out-of-specification regulators can cause erratic valve response that mimics manifold failure, so these components should be replaced or serviced as part of any planned upgrade.

In systems where the VQC1000 series or SV1000/SV2000 compact manifold platforms were originally specified, migration to the VV5Q11 platform may offer improved serviceability and wider availability of replacement solenoid coils and seal kits. The physical footprint difference must be confirmed against available panel space, and any DIN rail adapter brackets should be sourced in advance.

Downtime Control During System Migration

Minimizing production interruption during manifold replacement depends on thorough preparation before the maintenance window begins. Pre-staging the VV5Q11-10-X3105V-4060-00949 with verified solenoid orientation, labeled tubing connections, and pre-terminated electrical connectors allows the physical swap to be completed within a single shift in most installations.

Before removing the legacy manifold, technicians should document all tubing port assignments, solenoid wiring color codes, and communication cable routing. Digital photographs of the existing installation provide a reference that accelerates reconnection and reduces the probability of crossed connections. If the original manifold used legacy color-coded tubing without port labels, this is an opportunity to implement standardized identification that will simplify future maintenance.

After mechanical installation, the commissioning sequence should include leak testing at operating pressure, individual solenoid activation verification from the PLC, and confirmation that all cylinder and actuator end-of-stroke sensors report correctly. Any discrepancy between expected and actual actuator behavior typically indicates a port assignment error or a reversed solenoid connection that can be resolved without removing the manifold from the cabinet.

Program backup and restoration procedures should be confirmed before beginning work. In facilities where the PLC program has been modified over years of production without version control, creating a verified backup ensures that the original control logic can be restored if unexpected behavior occurs after the manifold swap. HMI alarm configurations and diagnostic screens referencing specific valve station numbers should also be reviewed for consistency with the new hardware.

Retrofit Support FAQ

Q: Is the VV5Q11-10-X3105V-4060-00949 a direct replacement for my existing VV5Q11 manifold?
A: Yes, provided your existing assembly uses the same station count, voltage rating, and communication configuration. Verify the suffix codes on your current unit match the X3105V-4060-00949 designation. If your original part number differs in station count or communication type, contact our technical team for cross-reference assistance.

Q: Do you perform functional testing before shipment?
A: Every unit undergoes full electrical and pneumatic verification before dispatch. Solenoid coil resistance, port leakage, and communication response are confirmed to factory specification. Test documentation is available upon request.

Q: What warranty coverage is provided?
A: All units ship with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with replacement unit priority shipping to minimize production impact.

Q: Can you assist with identifying the correct replacement if my part number differs slightly?
A: Yes. Provide your existing manifold part number, station count, voltage, and communication type. Our engineering team will confirm compatibility or recommend the correct alternative configuration from available inventory.
