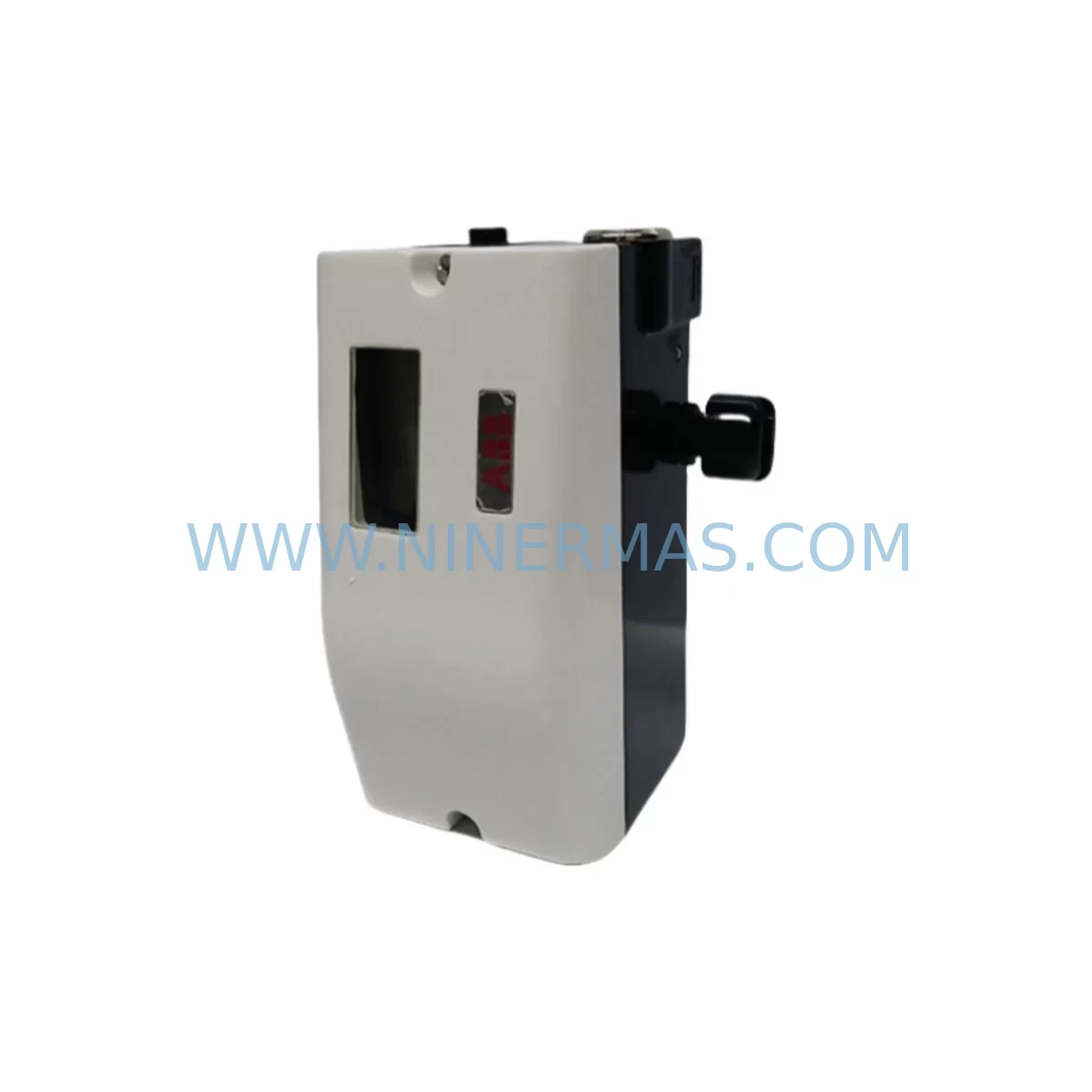

The ABB 18345-1010421001 is an original I/O module designed for industrial automation systems within the ABB AC500 PLC series. As a critical spare part in control cabinet maintenance, this module supports fast field replacement, minimizes unplanned downtime, and ensures seamless compatibility with existing ABB automation infrastructure. Whether you are managing a scheduled annual overhaul, responding to an emergency fault, or building a proactive spare parts inventory, the ABB 18345-1010421001 delivers the reliability and traceability that maintenance engineers and procurement teams demand.

Sourced directly from authorized supply channels, each unit undergoes pre-shipment functional testing to verify signal integrity, terminal continuity, and module communication before dispatch. With a 12-month warranty and long-term supply commitment, NINERMAS supports your plant’s operational continuity from initial procurement through extended system lifecycle management.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ABB 18345-1010421001 in a live control cabinet, a thorough inspection of the surrounding electrical environment is essential to prevent repeat failures and ensure stable system recovery. Maintenance engineers should begin by verifying the 24 VDC supply rail feeding the I/O rack — a degraded ABB PS501 or PS502 power supply module can cause intermittent I/O faults that mimic module failure. Confirm supply voltage is within tolerance before installing the replacement module.

Next, inspect the AC500 backplane or S500 expansion rack for physical damage, oxidized bus connectors, or loose retention clips. A compromised backplane can corrupt communication between the CPU — such as the ABB PM573 or PM591 — and the I/O tier, leading to premature module failure after replacement. Check that all adjacent I/O modules, including digital input modules like the DI524 and digital output modules like the DO524, are seated correctly and showing healthy status LEDs.

Terminal wiring connected to the 18345-1010421001 should be inspected for insulation breakdown, loose ferrules, and correct labeling. In high-vibration environments, terminal blocks from the ABB ENTRELEC or Phoenix Contact series may loosen over time, causing signal noise or open-circuit faults. Torque all field wiring terminals to specification after module replacement.

For systems using communication modules such as the ABB CI502 PROFIBUS or CI504 PROFINET adapter, verify that the network address configuration is preserved and that the replacement module is correctly recognized by the PLC program. A mismatch in hardware configuration within the ABB Automation Builder or PS501 Control Builder software will prevent the module from going online. Always compare the hardware configuration file against the physical rack layout before commissioning the replacement.

Signal isolators and surge protection devices installed upstream of the I/O module — particularly on analog input channels — should be tested for correct output range. Faulty Pepperl+Fuchs or Phoenix Contact signal conditioners can inject out-of-range signals that damage I/O module input circuits. Replace any isolator showing drift or clipping behavior as part of the same maintenance event.

Finally, review the fuse protection for each I/O group. Blown or weakened fuses in the field circuit distribution — often housed in Weidmüller or ABB fuse terminal blocks — are a common root cause of I/O module damage. Replace all suspect fuses and document the event in your CMMS for future reference. A complete spare parts kit for this maintenance scenario should include the 18345-1010421001 module, a backup CPU module, at least one power supply module, and a set of field-side fuse terminals.

Site Replacement Workflow

The ABB 18345-1010421001 is designed as a direct plug-in replacement for the corresponding slot in the AC500 I/O rack. No hardware modification is required when replacing a like-for-like unit. Follow this workflow to minimize downtime and ensure a clean system recovery:

Step 1 — Isolate and de-energize: Follow your site’s lockout/tagout (LOTO) procedure. Confirm the I/O rack is de-energized before removing the faulty module. Document the slot position and wiring layout with photographs before disconnection.

Step 2 — Remove the faulty module: Release the module retention latch, disconnect field wiring terminals (if removable), and extract the module from the backplane slot. Inspect the backplane connector pins for damage or contamination.

Step 3 — Install the replacement: Insert the ABB 18345-1010421001 into the correct slot, ensuring full backplane engagement. Reconnect field wiring terminals in the correct order, referencing your wiring documentation or photographs.

Step 4 — Power-up and verify: Re-energize the rack and observe the module status LED. A solid green LED indicates successful initialization. From the PLC programming environment (ABB Automation Builder), confirm the module is online and all I/O channels are reporting correctly.

Step 5 — Functional test: Perform a channel-by-channel I/O test to verify correct signal mapping. Compare live process values against known reference values to confirm accurate operation before returning the system to production.

Step 6 — Update maintenance records: Log the replacement in your CMMS, including the date, replaced part number, technician name, and any observations. Update your spare parts inventory to trigger reorder of a replacement unit for future use.

Spare Parts Support FAQ

Q1: Is the ABB 18345-1010421001 compatible with all AC500 CPU variants?
The 18345-1010421001 is designed for use within the ABB AC500 I/O system and is compatible with the S500 expansion rack architecture. Compatibility with specific CPU variants — including PM571, PM573, PM581, PM591, and PM595 — depends on the hardware configuration defined in your PLC project. Always verify the hardware configuration file in ABB Automation Builder before installation to confirm slot assignment and module type match.

Q2: What pre-shipment testing is performed on each unit?
Every ABB 18345-1010421001 unit supplied by NINERMAS undergoes functional testing prior to dispatch. This includes verification of backplane communication, channel signal integrity, and LED status indication. Units that do not pass testing are not shipped. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this module replace older or discontinued ABB I/O module variants?
In many cases, the 18345-1010421001 can serve as a direct replacement for earlier ABB I/O module revisions within the same product family, provided the channel count, signal type, and backplane interface are compatible. For legacy systems where the original module is discontinued, NINERMAS can advise on compatible replacement options based on your system’s hardware configuration. Contact our technical team with your CPU model and rack layout for confirmation.

Q4: What is your long-term supply commitment for this part?
