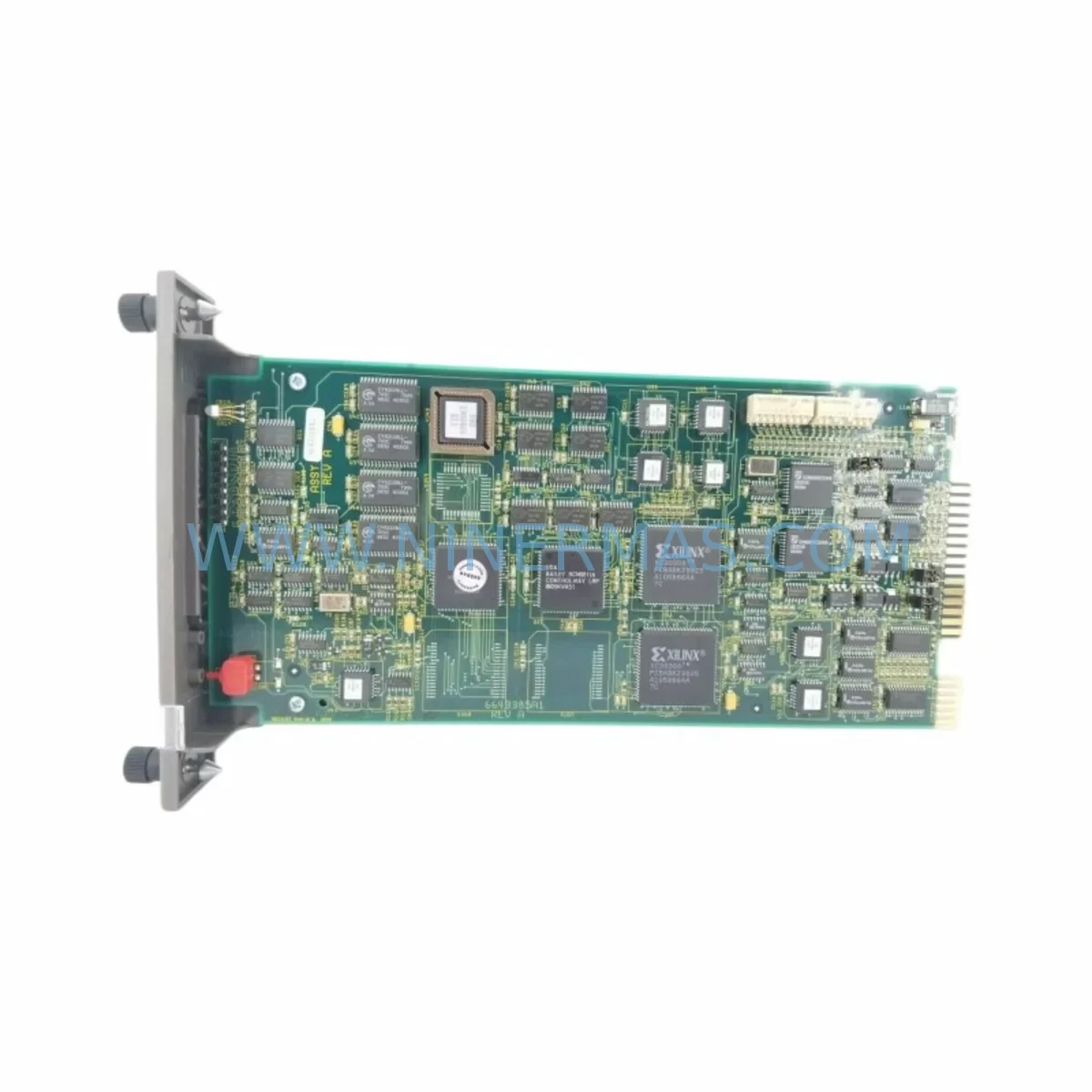

The ABB INNPM11 is a Network Processor Module originally designed for the ABB Advant OCS (Open Control System) platform — one of the most widely deployed distributed control architectures in process industries including oil & gas, pulp & paper, power generation, and chemical manufacturing. As the Advant OCS platform has reached end-of-life and ABB has officially discontinued the INNPM11, plant engineers and automation managers are increasingly sourcing verified replacement units to sustain aging control systems, extend operational life, and bridge the gap toward full DCS migration.

NINERMAS COMPANY LIMITED maintains verified stock of the ABB INNPM11 and provides full pre-shipment functional testing, ensuring that every unit shipped is operationally confirmed before it leaves our facility. Each unit is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the ABB INNPM11, the scope of work extends well beyond simply swapping the module. A successful replacement requires a structured assessment of the entire control cabinet and network segment. The INNPM11 sits at the heart of the Advant OCS communication architecture, bridging the controller — typically a PM511V16 or PM510V16 processor module — with remote I/O stations distributed across the plant floor. Before removing the failed unit, engineers should document the existing MasterNet node address set on the DIP switches of the original INNPM11, as this address governs how the controller identifies the network processor within the segment. Replicating this address on the replacement unit is the single most critical step in ensuring a transparent swap.

The subrack housing the INNPM11 typically also contains power supply modules such as the DSQC 236 or the ABB SS822 rack power supply. Before installation, confirm that the 24 VDC backplane rail has sufficient current headroom to support the replacement module, particularly if other modules in the rack — such as INICT13A analog input modules, INDSL231 digital slave modules, or INNIS21 network interface stations — have been added since the original system commissioning. Overloaded power rails are a common and overlooked cause of intermittent communication faults following module replacement.

For plants running mixed I/O architectures, the INNPM11 replacement often coincides with a broader review of the I/O layer. Remote I/O stations connected via MasterNet — including INICT13A current input modules, INBAS21 base units, and INDSL231 digital slave modules — should be verified for firmware compatibility and correct station addressing. If any of these remote stations have been upgraded or replaced independently, their node addresses and communication parameters must be reconciled with the network map before the new INNPM11 is brought online.

HMI connectivity is another area requiring attention. Plants using ABB Operate IT or legacy AdvaBuild engineering stations connected to the Advant OCS network may need to verify that the RCOM serial link parameters — baud rate, parity, and stop bits — are correctly configured on the replacement INNPM11. In some installations, the HMI screen database references specific controller tags that are resolved through the network processor; a misconfigured RCOM link can cause tag read failures on the operator station even when the controller itself is running normally.

Where the retrofit is part of a broader migration toward a modern DCS — such as ABB System 800xA or a third-party platform — the INNPM11 replacement serves as a stabilization measure, keeping the legacy system operational while the migration project is planned and executed. In this context, sourcing a verified replacement unit with a 12-month warranty provides the operational runway needed to complete the migration without forcing an emergency shutdown.

Downtime Control During System Migration

Minimizing downtime during an INNPM11 replacement requires preparation that begins well before the maintenance window. The first step is a full backup of the controller program using the ABB AdvaBuild or Control Builder engineering tool, capturing the application program, I/O configuration, and network topology map. This backup serves as the recovery baseline if the replacement module requires re-commissioning from scratch.

Where the process allows, a hot-standby or redundant controller configuration — using a paired PM511V16 in redundant mode — can maintain process control continuity while the primary network processor is replaced. In non-redundant installations, the maintenance window should be scheduled during planned production downtime, with the replacement INNPM11 pre-configured (DIP switches set, firmware verified) before the window opens to minimize the time the system is offline.

During the swap, the MasterNet segment should be powered down in a controlled sequence: first isolating the remote I/O stations, then the network processor, and finally the controller. This sequence prevents spurious communication errors from propagating to the HMI and triggering unnecessary alarms. After installing the replacement INNPM11, power should be restored in reverse order, with the engineer monitoring the MasterNet diagnostic LEDs on the module to confirm that the node has successfully joined the network segment before releasing the system to production.

Post-replacement verification should include a full I/O scan from the engineering station, confirmation that all remote INNIS21 network interface stations are communicating, and a review of the HMI alarm log to ensure no latent faults were masked during the outage. Where the plant uses a SCADA system connected via OPC or a serial gateway, the gateway link should also be verified to confirm that tag data is flowing correctly through the restored network processor.

Retrofit Support FAQ

Q1: Is the INNPM11 a direct replacement for the unit currently installed in my Advant OCS rack?
Yes. The INNPM11 is a direct form-fit-function replacement for any existing INNPM11 unit in an Advant OCS subrack. The replacement unit must have its DIP switches configured to match the original node address. No firmware changes or controller program modifications are required for a like-for-like swap.

Q2: What pre-shipment testing is performed, and how can I verify the unit is functional before installation?
Every INNPM11 unit shipped by NINERMAS undergoes a full functional test on an Advant OCS-compatible test bench prior to dispatch. A test report is available upon request. Upon receipt, we recommend a visual inspection for physical damage during transit before installation.

Q3: What is the lead time and warranty coverage?
In-stock units are typically dispatched within 1–3 business days of order confirmation. Each unit is covered by a 12-month warranty from the date of shipment, covering functional failures under normal operating conditions. Warranty claims are supported by our technical team at sale@ninermas.com.

Q4: Can the INNPM11 be used in a system that has been partially upgraded with newer ABB modules?
Yes, provided the subrack and backplane remain Advant OCS standard and the MasterNet segment has not been replaced with a newer fieldbus protocol. If your system has been partially migrated to ABB System 800xA with an AC 800M controller, the INNPM11 is not compatible with the 800xA backplane and a different communication module would be required. Contact our technical team to confirm compatibility for mixed-generation installations.
