ABB IMASI23 Analog Input Module | Original & New Spare Parts

ABB IMASI23 Analog Input Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, the ABB IMASI23 represents a cornerstone component within Harmony Rack-based Distributed Control System architectures. This analog input module was engineered to bridge the physical world of process variables ressure, temperature, flow, and level ith the digital intelligence of ABB’s DCS hardware platform. In environments where milliseconds of signal latency or fractions of a percent in measurement error can cascade into costly shutdowns, the ABB IMASI23 delivers the precision and stability that process engineers demand.

What sets this module apart from generic alternatives is its deep compatibility with the Harmony Rack backplane ecosystem. Unlike third-party substitutes that may introduce Fieldbus communication anomalies or calibration drift, the IMASI23 was designed from the ground up to integrate seamlessly with ABB’s proprietary bus architecture nsuring deterministic scan cycles and reliable data handshaking with upstream controllers. Its 12-bit ADC resolution and ±0.1% full-scale accuracy make it a preferred choice for legacy upgrade projects where measurement fidelity cannot be compromised.

Original inventory of the IMASI23 is increasingly scarce. As ABB has transitioned production to the SPASI23 successor, factory-sealed units of the IMASI23 have become a critical part for industry safety in facilities that cannot afford the engineering overhead of a full platform migration. Securing genuine, tested stock now is a strategic imperative for any maintenance team responsible for Harmony-based process control continuity.

Key Technical Highlights

16 Differential Analog Input Channels — Simultaneous multi-point monitoring across complex process loops
12-Bit ADC Resolution — 0.024% measurement granularity for high-fidelity signal acquisition
Dual Signal Compatibility — Accepts 4-20mA current loops and 0-10V voltage inputs without external conditioning
1500V Channel-to-Bus Galvanic Isolation — Eliminates ground loop interference in electrically noisy industrial environments
100ms Per-Channel Scan Cycle — Fast enough for dynamic process variables in high-speed control loops
Wide Operating Range — Rated -20°C to +60°C, 5-95% RH non-condensing for harsh field conditions
Low Power Draw — 5W typical from backplane bus, minimizing thermal load in dense rack configurations
Harmony Engineering Suite Integration — Per-channel scaling, alarm thresholds, and filter parameters configurable without hardware changes

Vertical Industry Applications

Petrochemical & Refining: The IMASI23 monitors reactor inlet temperatures, column differential pressures, and feed flow rates across multi-stage distillation units. Its noise immunity and galvanic isolation prevent spurious readings caused by high-voltage motor drives operating in proximity irectly reducing unplanned shutdowns in continuous process environments.

Mining & Mineral Processing: In ore processing facilities, this module tracks slurry density, pump discharge pressures, and conveyor load cells simultaneously. The 16-channel architecture consolidates field wiring, reducing installation complexity in remote mining sites where maintenance access is limited and system downtime is exceptionally costly.

Marine & Offshore Platforms: Offshore oil and gas installations rely on the IMASI23 for monitoring ballast tank levels, separator pressures, and gas flow metering. Its wide temperature tolerance and robust isolation make it suitable for the electrically aggressive environments found on floating production storage and offloading (FPSO) vessels.

Power Generation: Steam turbine control systems use this module to acquire thermocouple and RTD signals from bearing temperature sensors, steam chest pressure transmitters, and lube oil flow meters eeding critical data to protection logic that prevents catastrophic equipment failure.

Water & Wastewater Treatment: Municipal treatment plants deploy the IMASI23 to track pH, turbidity, dissolved oxygen, and chlorine dosing rates across multiple treatment stages, enabling comprehensive SCADA visualization and regulatory compliance reporting from a single module.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every IMASI23 unit we supply is 100% Original ABB manufacture o rebranded, refurbished, or counterfeit substitutes. Each module undergoes functional verification against ABB’s published specifications before dispatch. Our inventory is stored in climate-controlled facilities to preserve factory-sealed integrity, ensuring that the module you receive performs identically to a unit pulled from ABB’s original production line.

12-Month Comprehensive Warranty: We stand behind every component with a full one-year warranty covering manufacturing defects and functional failures under normal operating conditions. Replacement or full refund is processed within 5 business days of confirmed fault diagnosis.

Emergency Delivery Capability: For critical plant shutdowns and emergency repair scenarios, we offer priority dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express. Most in-stock orders ship within 24 hours of payment confirmation, with tracking provided immediately. We serve maintenance teams across North America, Europe, the Middle East, Southeast Asia, and beyond ecause process control emergencies don’t respect time zones.

Documentation Support: Original ABB datasheets, wiring diagrams, and configuration guides are available upon request at no additional charge.

Buyer’s FAQ — Selection & Sourcing Guide

Q1: How can I verify that the IMASI23 I receive is a genuine ABB original and not a counterfeit?

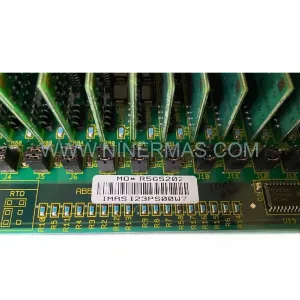

Authentic ABB IMASI23 modules carry a holographic ABB certification label on the module housing, a traceable serial number registered in ABB’s manufacturing database, and consistent PCB markings that match ABB’s internal quality documentation. We provide the serial number and batch reference with every shipment so you can cross-reference with ABB’s support team if required. Counterfeit units typically show inconsistent label printing, mismatched connector tolerances, and fail functional verification within the first power cycle.

Q2: Where can I obtain the official ABB IMASI23 datasheet and wiring documentation?
The official technical datasheet, installation manual, and Harmony Engineering Suite configuration guide for the IMASI23 are available directly from ABB’s document library (library.e.abb.com) using the part number as the search key. We also maintain copies of the primary technical documents and can email them to your engineering team upon order confirmation imply request documentation in your purchase inquiry.

Q3: Is the IMASI23 compatible with my existing Harmony Rack chassis and Infi 90 controllers?
The IMASI23 was designed for the Harmony Rack (also known as Infi 90) backplane architecture. It is slot-compatible with standard Harmony Rack chassis and communicates via the proprietary ABB backplane bus. Compatibility with specific controller firmware versions should be verified against your system’s engineering documentation. Our technical team can assist with compatibility assessment if you provide your controller model and firmware revision.

Q4: Can the IMASI23 be used as a direct drop-in replacement for a failed module in a running plant?
In most cases, yes rovided the replacement unit carries the same hardware revision as the failed module. The IMASI23 is a hot-swap-capable module in Harmony Rack systems with redundant power architectures. Channel configuration (scaling, alarm limits, filter settings) is stored in the controller database, not on the module itself, so a replacement module will automatically adopt the correct configuration upon insertion and system recognition. We recommend confirming hardware revision compatibility before ordering for critical replacement applications.

Q5: What is the recommended strategy for facilities still running IMASI23 modules that cannot migrate to SPASI23?
For facilities where a full migration to the SPASI23 successor is not feasible within the current maintenance cycle, the recommended approach is to establish a Maintenance Stock reserve of 2-3 spare IMASI23 units per critical process loop. Given the declining availability of factory-sealed original stock, procurement lead times will increase significantly over the next 12-24 months. Securing inventory now hile original units remain available s the most cost-effective risk mitigation strategy for long-term operational continuity.

Q6: What information should I include in my purchase inquiry to ensure the fastest response?
To expedite your quotation, please include: the required quantity, your preferred delivery timeline (standard or emergency), your destination country for shipping cost calculation, and whether you require new factory-sealed units, tested surplus, or either condition. If you have a specific hardware revision requirement, please include that as well. Our team typically responds to inquiries within 2 business hours during business days.
