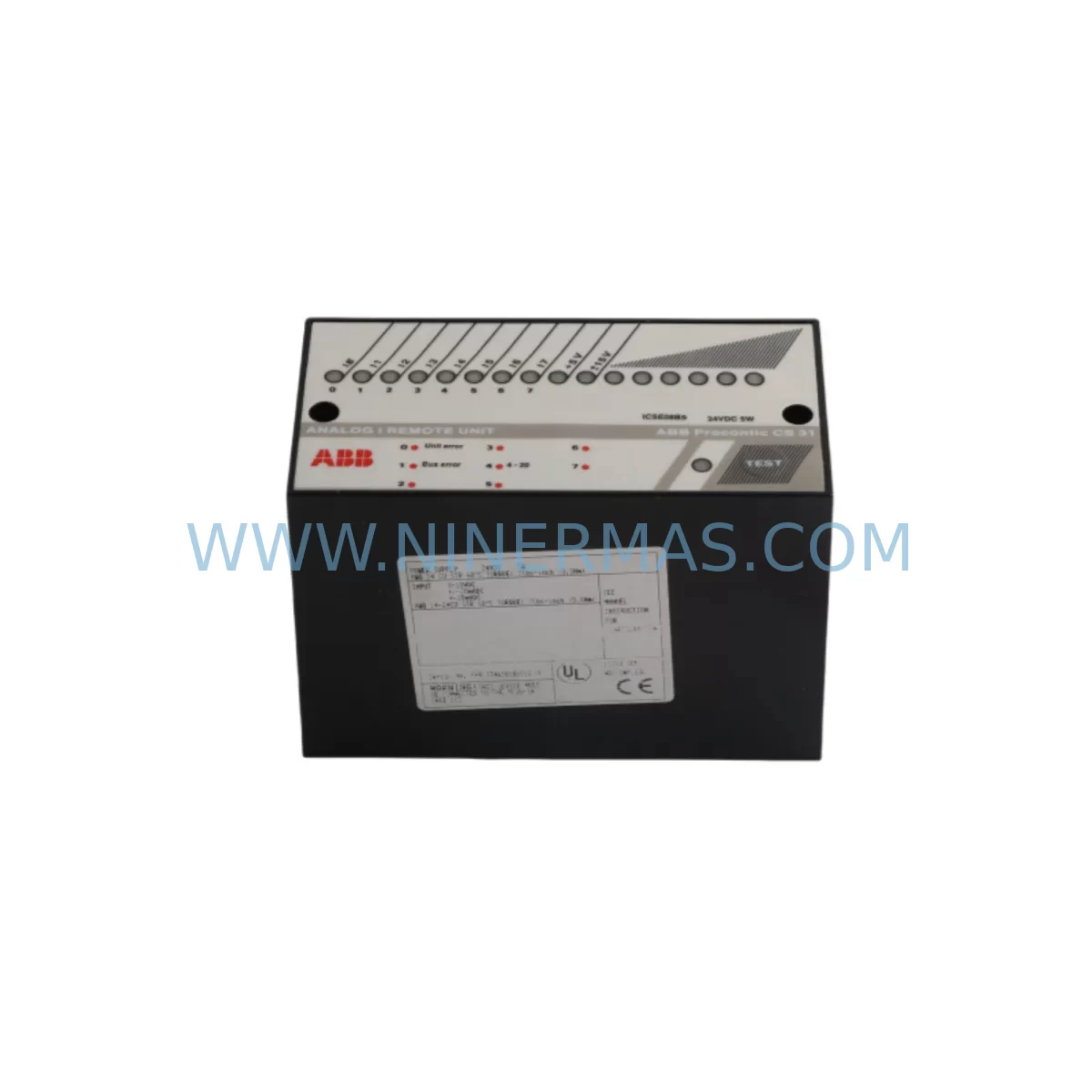

The ABB ICSE08B5 (ordering number FPR3346501R1012) is a signal concentrator module designed for use within ABB’s Symphony Plus distributed control system — formerly known as the Bailey INFI 90 platform. This module serves as a critical interface between field instrumentation and the DCS controller layer, aggregating analog and digital signals from process equipment and transmitting them reliably to the control network. For maintenance engineers managing aging automation infrastructure in petrochemical, power generation, pulp and paper, or heavy manufacturing environments, maintaining a verified service-ready spare of the ICSE08B5 is a fundamental risk mitigation strategy.

Unplanned downtime caused by a failed signal concentrator can cascade rapidly across a control loop, triggering process shutdowns, safety interlocks, and production losses that far exceed the cost of a stocked spare. The ICSE08B5 occupies a central role in signal routing within the Symphony Plus cabinet architecture, and its failure typically manifests as loss of analog input visibility, erratic process variable readings, or complete I/O dropout on the affected channel group. Procurement engineers sourcing replacement units should prioritize suppliers who can confirm original manufacture, provide pre-shipment functional testing, and offer a minimum 12-month warranty against defects — all of which are standard with NINERMAS supply.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a Symphony Plus DCS installation requires a holistic view of the signal chain — from field transmitter through to the controller. When scheduling replacement of the ICSE08B5, maintenance engineers should simultaneously inspect and, where appropriate, stock spares for the adjacent modules that share the same cabinet, backplane, and power bus.

The IMASI01 analog input module and IMDSO14 digital output module are frequently installed in the same rack as the ICSE08B5 and are subject to similar thermal and electrical stress cycles. A cabinet inspection that surfaces a degraded ICSE08B5 should prompt a functional check of these modules as well. Similarly, the INNIS21 network interface module governs communication between the I/O rack and the controller highway — a marginal INNIS21 can produce intermittent signal loss symptoms that are easily misattributed to the signal concentrator itself.

Power integrity is another critical factor. The IMAS001 power supply module feeds the backplane bus that powers the ICSE08B5 and its neighbors. Voltage ripple or output degradation from an aging IMAS001 can cause erratic behavior across multiple I/O modules simultaneously. Procurement engineers should maintain at least one IMAS001 spare per cabinet cluster as part of a minimum viable spare parts inventory.

For signal conditioning and isolation, the IMCIS02 current input signal conditioner is commonly used upstream of the ICSE08B5 in installations where field signals require additional filtering or galvanic isolation before entering the DCS. Replacing the ICSE08B5 without verifying the condition of upstream IMCIS02 units may result in recurring signal quality issues post-replacement.

Terminal units such as the NTCL01 provide the physical wiring interface between field cables and the module backplane. Corroded or loose terminal connections at the NTCL01 level are a common root cause of apparent module failures and should be inspected during any ICSE08B5 replacement event. Communication modules including the INICT03 interface controller and the IMFEC12 fieldbus expansion controller should also be verified for firmware currency and physical integrity during annual cabinet inspections that include ICSE08B5 servicing.

For installations that include HMI integration, the operator workstation connection relies on a healthy controller-to-HMI data path. Faults in the IIMGC04 graphics controller or the ICSK20 communication interface can mask or amplify symptoms originating at the I/O module level, making systematic cabinet inspection — rather than single-module replacement — the recommended approach for minimizing mean time to repair.

Site Replacement Workflow

Replacing the ABB ICSE08B5 in a live Symphony Plus installation requires careful preparation to avoid extended downtime and to ensure system compatibility is maintained throughout the procedure.

Step 1 — Pre-replacement verification: Confirm the replacement unit’s ordering number (FPR3346501R1012) matches the installed module. Verify firmware revision compatibility with the site’s Symphony Plus controller version. Document the current channel configuration and any site-specific parameter settings stored in the module.

Step 2 — Safe isolation: Place the affected control loop in manual mode at the DCS operator station. Notify operations personnel of the planned I/O interruption. Follow site lock-out/tag-out (LOTO) procedures for the cabinet section containing the ICSE08B5.

Step 3 — Module extraction and installation: Remove the faulty ICSE08B5 by releasing the module locking lever and sliding it clear of the backplane connector. Inspect the backplane connector pins for damage or contamination before inserting the replacement unit. Seat the new module firmly and re-engage the locking lever.

Step 4 — Configuration restore: Using the Symphony Plus engineering workstation, download the saved channel configuration to the replacement module. Verify that all analog input channels return expected process variable readings within normal operating range.

Step 5 — Return to automatic: Confirm stable signal readings across all channels, then return the control loop to automatic mode. Document the replacement event in the site maintenance management system (CMMS) and update the spare parts inventory record.

This workflow is applicable to both emergency corrective replacements and planned preventive maintenance swap-outs. Maintaining a pre-tested, configuration-documented spare ICSE08B5 on-site reduces the active replacement time to under two hours in most installations.

Spare Parts Support FAQ

Q1: What is the expected service life of the ABB ICSE08B5, and when should I plan for replacement?
The ICSE08B5 is a mature product within the Symphony Plus platform. ABB has transitioned this series to limited support status, meaning new production units are no longer manufactured. Service life in field installations typically ranges from 15 to 25 years depending on environmental conditions and cabinet cooling quality. Maintenance engineers should plan for proactive replacement when the installed unit exceeds 15 years of service or when diagnostic tools indicate increasing error rates on the module’s communication bus.

Q2: How do I verify that a replacement ICSE08B5 is compatible with my existing Symphony Plus installation?
Compatibility is confirmed by matching the ordering number (FPR3346501R1012) and verifying the firmware revision against the site’s controller version matrix. NINERMAS provides pre-shipment functional test reports for each unit, and our technical team can assist with compatibility verification based on your site’s controller revision and backplane configuration prior to order placement.

Q3: What pre-shipment testing does NINERMAS perform on the ICSE08B5?
Each ICSE08B5 unit supplied by NINERMAS undergoes bench-level functional testing that includes power-on self-test verification, analog channel signal integrity checks across the full 4–20 mA input range, backplane communication bus handshake confirmation, and visual inspection for component-level damage. A test report is available upon request and accompanies shipments where required by the customer’s incoming inspection procedure.

Q4: Can NINERMAS support long-term supply commitments for the ICSE08B5?
Yes. NINERMAS maintains reserved inventory programs for end-of-life and limited-availability ABB Symphony Plus modules including the ICSE08B5. Long-term supply agreements can be structured to cover multi-year procurement requirements, with agreed pricing, reserved stock allocation, and priority shipment scheduling. Contact our procurement team to discuss a supply agreement tailored to your site’s maintenance cycle and annual consumption forecast.
