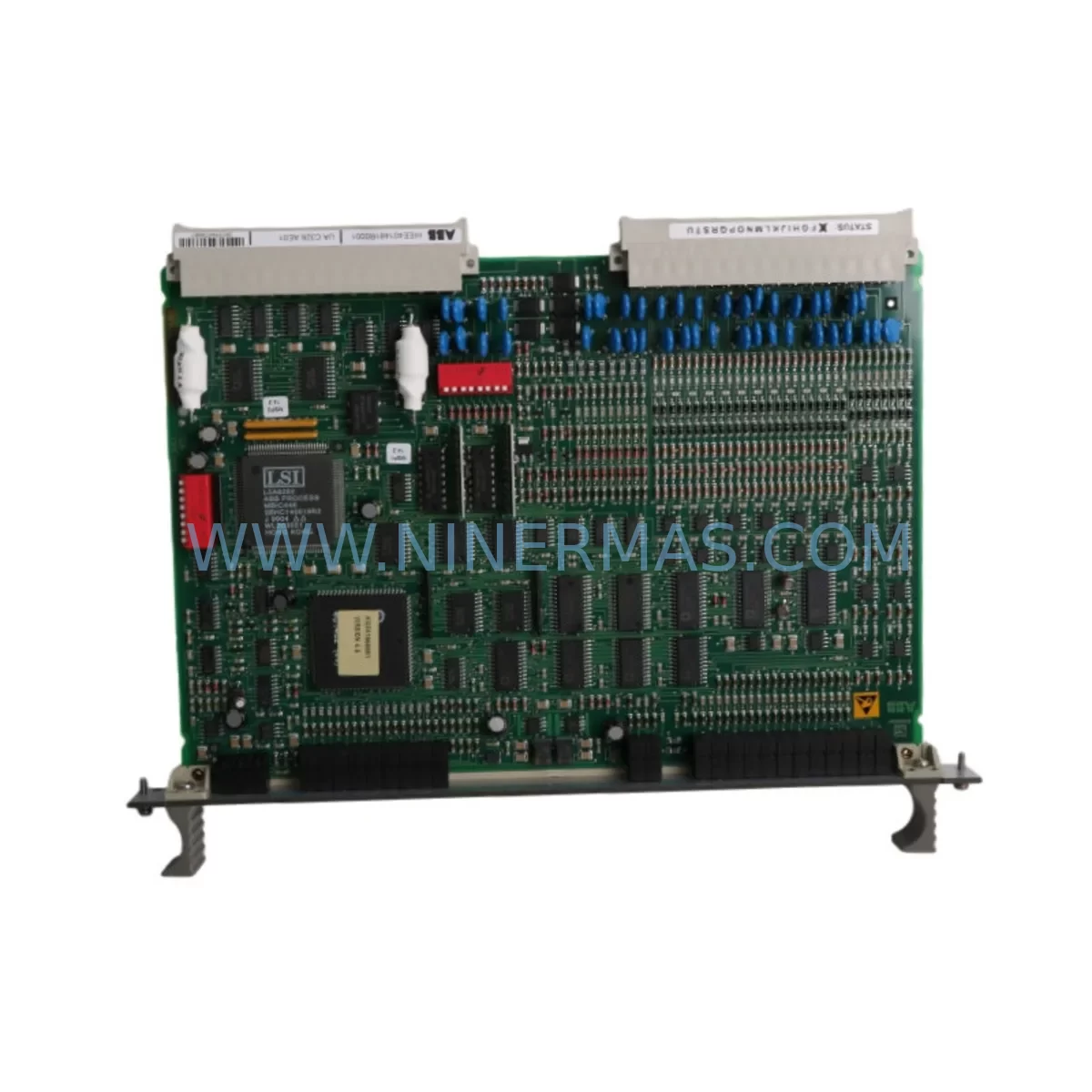

ABB HIEE401481R0001 UAC326AE01 Retrofit Analog I/O Card

ABB HIEE401481R0001 UAC326AE01 Retrofit Analog I/O Card: Legacy System Compatibility & Smooth Upgrade

The ABB HIEE401481R0001 UAC326AE01 is a high-precision analog I/O card engineered for the ABB AC 800M and Advant Controller platform. As legacy distributed control systems (DCS) and programmable automation controllers (PAC) approach end-of-life, the UAC326AE01 remains one of the most sought-after retrofit-compatible modules for engineers tasked with modernizing existing control cabinets without full system replacement. NINERMAS maintains verified stock of this module, fully tested and backed by a 12-month warranty, ready for immediate dispatch to minimize your plant downtime.

When planning a retrofit or spare-parts replenishment for an ABB-based control system, the HIEE401481R0001 UAC326AE01 typically serves as a direct replacement for failed or aging analog signal conditioning cards within the same rack assembly. Its compatibility with the AC 800M controller family — including the PM861, PM864, and PM866 processor modules — means that in most retrofit scenarios, no firmware re-flashing or address reconfiguration is required, provided the existing rack backplane and I/O bus assignments remain unchanged. Engineers should verify the module slot address, confirm the backplane connector pinout against the original wiring diagram, and cross-reference the terminal block assignments before powering up the replacement card.

For sites still running the older Advant OCS or Master Bus 300 (MB300) communication architecture, the UAC326AE01 supports the same signal range and channel configuration as its predecessor modules. During migration from MB300 to MMS or PROFIBUS DP communication protocols, this analog I/O card can be retained in the existing rack while the communication interface module — such as the CI858 or CI854A — is upgraded separately, allowing a phased migration that avoids a full control system shutdown.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the HIEE401481R0001 UAC326AE01 begins well before the module arrives on site. The first step is a thorough audit of the existing control cabinet: confirm available rack slots, measure the available installation depth, and document the current terminal block wiring using the original I/O list. In many aging ABB installations, the S800 I/O rack may also house power supply modules such as the SD821 or SD822, which should be load-tested before adding or replacing any I/O card to ensure the 24 VDC bus can support the additional current draw of the new analog module.

Signal isolation is a common concern during analog I/O replacement. If the legacy installation used external signal isolators or barriers between field transmitters and the original card, these should be retained or replaced with equivalent units — such as the RLM01 signal conditioner — to maintain loop integrity. Grounding and shielding practices must be re-verified at the terminal block level, particularly for 4–20 mA current loop signals where ground loops can introduce measurement errors that are difficult to diagnose after commissioning.

For sites where the HMI system — such as an ABB Panel 800 or a third-party SCADA running OPC DA — displays analog values derived from this I/O card, engineers should prepare updated HMI tag mappings and confirm that the engineering unit scaling configured in ABB Control Builder M matches the field transmitter range. If the original module had custom channel offset calibrations stored in the controller project, these parameters must be re-entered or verified after the replacement card is installed, as the new module will initialize with factory default calibration.

In multi-rack configurations, where the UAC326AE01 is installed in an expansion rack connected to the main AC 800M controller via an optical ModuleBus cable, the rack address DIP switch settings must be confirmed before powering up. A mismatch in rack addressing is one of the most common causes of I/O communication faults following a module swap. After addressing is confirmed, the controller’s I/O configuration in Control Builder should be forced to re-scan the rack to re-establish communication with the replacement card.

Where the retrofit scope extends beyond a single module replacement — for example, when upgrading an entire I/O section from legacy Advant S100 I/O to S800 I/O — the UAC326AE01 is typically deployed alongside digital I/O modules such as the DI810 or DO810, communication interface modules such as the CI854A for PROFIBUS DP connectivity, and updated termination units (TU810 or TU830) that provide the field wiring connection points. Planning the termination unit selection early in the retrofit project avoids last-minute wiring changes that extend commissioning time.

Downtime Control During System Migration

Minimizing production downtime during an analog I/O card replacement requires a structured hot-swap or planned-outage strategy. For the HIEE401481R0001 UAC326AE01, the recommended approach is a planned short-duration outage: isolate the affected I/O loop at the field junction box, document the current process values and controller output states, then perform the module swap with the rack powered down. Total physical swap time for an experienced technician is typically under 15 minutes; the majority of the outage window is consumed by pre-swap documentation and post-swap verification.

To protect the original control program logic, export a full backup of the AC 800M controller project from Control Builder M before beginning any hardware work. This backup preserves all function block configurations, I/O assignments, alarm limits, and PID tuning parameters. If the replacement module triggers any unexpected I/O faults after installation, the controller project backup allows rapid restoration to the last known good configuration without re-engineering effort.

For continuous processes where even a brief I/O interruption is unacceptable, consider placing the affected analog loops in manual control mode at the DCS operator station before the swap. This transfers control authority from the automatic controller output to the operator, maintaining field actuator positions during the module replacement window. Once the new UAC326AE01 is installed and I/O communication is confirmed healthy in the controller diagnostic view, the loops can be transferred back to automatic control in a controlled, bumpless manner.

NINERMAS ships all modules with a pre-dispatch functional test report, confirming that each analog channel has been verified against its specified input/output range. This reduces the risk of receiving a non-functional unit and allows your maintenance team to proceed with installation confidence, further compressing the planned outage window.

Retrofit Support FAQ

Q1: Is the HIEE401481R0001 UAC326AE01 a direct replacement for other UAC326 variants?
In most cases, yes. The UAC326AE01 is the primary variant of the UAC326 analog I/O card family and is directly interchangeable with other UAC326 suffix variants within the same rack generation, provided the termination unit type and terminal block wiring are compatible. Always cross-reference the original module’s hardware revision and termination unit part number before ordering.

Q2: What commissioning steps are required after installing the replacement card?
After physical installation, power up the rack and confirm the module status LED indicates healthy operation. In ABB Control Builder M, navigate to the I/O configuration and perform a hardware scan to verify the controller recognizes the new module at the correct slot address. Validate analog channel scaling against the field transmitter datasheet, and confirm that all associated HMI displays and historian tags are receiving valid engineering unit values before returning the loops to automatic control.

Q3: Does NINERMAS provide wiring and terminal block compatibility guidance?
Yes. Our technical team can assist with terminal block pinout verification, termination unit selection (TU810, TU830, or TU831), and signal wiring documentation review. Contact us at sale@ninermas.com with your existing wiring diagram and we will confirm compatibility before shipment.

Q4: What does the 12-month warranty cover, and what is the stock availability?
All HIEE401481R0001 UAC326AE01 modules supplied by NINERMAS are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. We maintain in-house stock for immediate dispatch, with typical lead time of 1–3 business days for international shipments. Each unit ships with a functional test report. For urgent requirements, contact our sales team directly for expedited shipping options.
