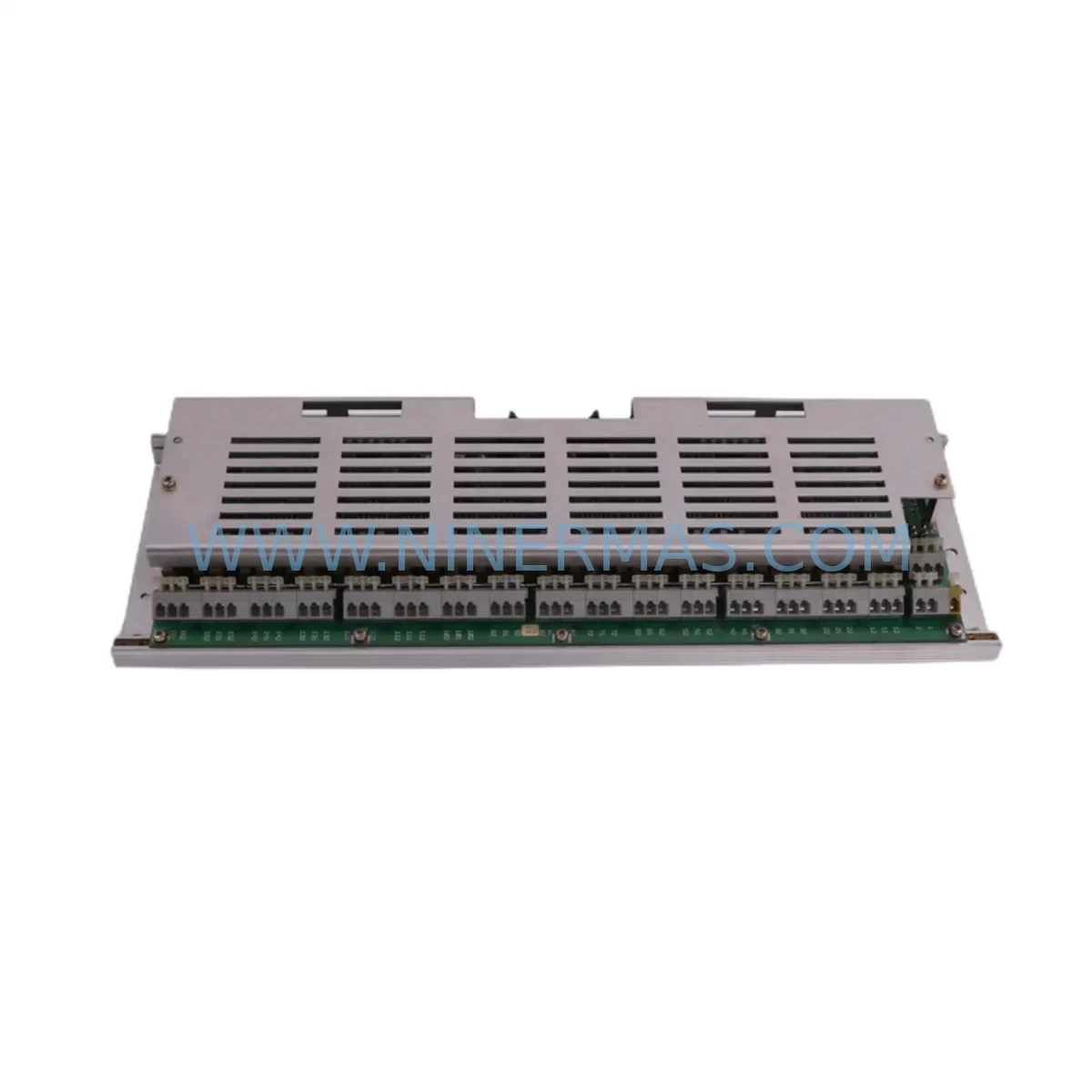

ABB HIEE300910R0001 UFC092BE01 Retrofit-Compatible Processor

ABB HIEE300910R0001 UFC092BE01 Retrofit-Compatible Processor for Legacy MOD 300 & Advant Systems

The ABB HIEE300910R0001 UFC092BE01 is a critical processor module originally designed for ABB’s MOD 300 and Advant series distributed control systems (DCS). As these platforms approach end-of-life and OEM support is discontinued, plant engineers and automation integrators face mounting pressure to source verified replacement units that can be installed without triggering a full system overhaul. NINERMAS maintains ready stock of the HIEE300910R0001 UFC092BE01, fully tested and backed by a 12-month warranty, specifically to support retrofit projects, emergency spare replacements, and phased system modernization programs.

Whether your facility is running a MOD 300 control network that has been in continuous operation for over a decade, or you are mid-way through migrating an Advant OCS platform to a newer ABB 800xA architecture, the UFC092BE01 processor card remains a linchpin component. Its role in managing backplane communication, executing control logic, and coordinating I/O scanning means that a failed or degraded unit can bring an entire control loop — or an entire process unit — to a standstill. Having a pre-tested, shelf-ready HIEE300910R0001 UFC092BE01 on hand is not a luxury; it is a risk management decision.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit around the HIEE300910R0001 UFC092BE01 begins well before the replacement unit arrives on site. The first step is a thorough audit of the existing MOD 300 or Advant subrack. Engineers should document the current slot assignments for all installed modules — including the AI810 analog input cards, DI810 digital input modules, AO810 analog output cards, and any DO810 digital output units — because the UFC092BE01 processor maintains a fixed I/O map that must be preserved exactly during the swap to avoid address conflicts and program faults.

Power budget verification is equally important. The PM150 power supply module or its equivalent must be confirmed to have sufficient headroom to support the replacement UFC092BE01 without causing voltage sag on the backplane. If the existing power module is already running near capacity — a common situation in aging control cabinets where additional I/O cards have been added over the years — a parallel PM150 or a higher-capacity power module should be staged before the processor swap begins.

Communication link integrity must be validated before and after the replacement. In MOD 300 networks, the MasterBus 300 coaxial trunk and associated MB300 communication modules carry all inter-controller traffic. Any degradation in the bus termination or cable shielding will manifest as intermittent communication faults after the new UFC092BE01 is installed, making it difficult to distinguish a wiring issue from a module compatibility problem. Similarly, if the system uses a CI854 PROFIBUS DP communication interface module to connect field devices, the PROFIBUS GSD files and station addresses must be re-confirmed after the processor is replaced.

For facilities that have already begun migrating toward ABB 800xA, the UFC092BE01 replacement can serve as a bridge step. The existing Advant OCS nodes can continue to operate under 800xA supervision via the AC 800M connectivity server, allowing the plant to maintain production continuity while the longer-term migration plan is executed in phases. In this scenario, the SC510 communication controller and associated AF100 fieldbus modules may also require attention, as they handle the interface between the legacy Advant backplane and the 800xA information layer.

HMI considerations should not be overlooked. If the plant is running legacy ABB Operate IT or an older OperaStation HMI, the graphic displays and alarm configurations are typically tied to the controller node address and tag database. Replacing the UFC092BE01 without updating the HMI node reference will result in communication loss between the HMI and the controller. Coordinate with the HMI engineer to update the node configuration before the replacement window begins.

Finally, if the retrofit scope includes expanding I/O capacity — for example, adding new measurement points as part of a process optimization project — the TB820 Modulebus optical port module and additional S800 I/O modules can be integrated into the existing Advant rack structure without requiring a full controller replacement, provided the UFC092BE01 processor has sufficient scan cycle capacity to handle the additional I/O load.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer authorizing a processor module replacement on a live production system. For the HIEE300910R0001 UFC092BE01, the recommended approach is to prepare a complete replacement kit — including the tested processor module, a backup copy of the application program on the Engineering Workstation, and a printed copy of the DIP switch and jumper settings from the original unit — before scheduling the maintenance window.

The application program should be uploaded from the existing UFC092BE01 to the EWS immediately before the replacement, even if a recent backup already exists. This ensures that any last-minute program changes made by operations staff are captured. The upload should be verified by comparing the program checksum against the known-good backup version.

During the physical swap, the subrack should remain powered where plant safety procedures permit, allowing the remaining I/O modules — AI810, DI810, AO810, DO810 — to continue reporting status to any redundant controller or supervisory system. Once the new UFC092BE01 is seated and the application program is downloaded from the EWS, the controller will perform its self-test sequence before resuming scan. The typical cold-start sequence for an Advant AC 450 node takes between 45 and 90 seconds, during which the associated field devices will hold their last output values if the output modules are configured for hold-last-value on communication loss.

Post-replacement verification should include a full I/O force test on critical loops, a review of the alarm summary for any latent faults that appeared during the restart sequence, and a confirmation that the MasterBus 300 communication status is green on all connected nodes. If the system includes a redundant controller pair, the switchover logic should be tested before the maintenance window is closed to confirm that the replacement UFC092BE01 will correctly assume the active role in the event of a future fault.

NINERMAS ships all UFC092BE01 units with a factory-equivalent functional test report. Each module is powered, initialized, and verified against its communication and I/O interface specifications before dispatch, reducing the risk of receiving a non-functional unit during a time-critical replacement event. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units.

Retrofit Support FAQ

Q1: Is the HIEE300910R0001 UFC092BE01 a direct replacement for all UFC092BE01 revisions?
The UFC092BE01 has been produced in multiple hardware revisions over the lifecycle of the MOD 300 and Advant platforms. In most cases, later revisions are backward compatible with earlier ones, but it is essential to compare the revision suffix on the original module label with the unit being supplied. NINERMAS will confirm revision compatibility before shipment and can advise on any firmware or jumper differences that need to be addressed during commissioning.

Q2: What commissioning steps are required after installing the replacement module?
After seating the UFC092BE01 in the subrack, the application program must be downloaded from the ABB Engineering Workstation. The node address DIP switches must match the original configuration exactly. Communication links — including MasterBus 300 and any PROFIBUS DP connections via the CI854 interface — should be verified in the diagnostic display before returning the controller to automatic mode. A full I/O scan verification is recommended before releasing the loop to process control.

Q3: Can the UFC092BE01 be used in a system that is being migrated to ABB 800xA?
Yes. The UFC092BE01 can continue to operate as an Advant OCS node under 800xA supervision during a phased migration. The 800xA system communicates with the legacy Advant nodes via the AC 800M connectivity server and the AF100 fieldbus interface. This allows the plant to maintain production continuity while migrating individual control functions to the 800xA platform over time, without requiring a simultaneous cutover of all legacy controllers.

Q4: What does the 12-month warranty cover, and what is the stock availability?
The 12-month warranty covers functional failure of the UFC092BE01 module under normal operating conditions, including processor faults, communication interface failures, and backplane interface defects. Physical damage caused by incorrect installation, overvoltage, or environmental contamination is excluded. NINERMAS maintains rolling stock of the HIEE300910R0001 UFC092BE01 and can confirm current inventory levels upon inquiry. For urgent requirements, same-day dispatch is available for confirmed in-stock units. Contact sale@ninermas.com or call +0086 187 5021 5667 for availability confirmation.
