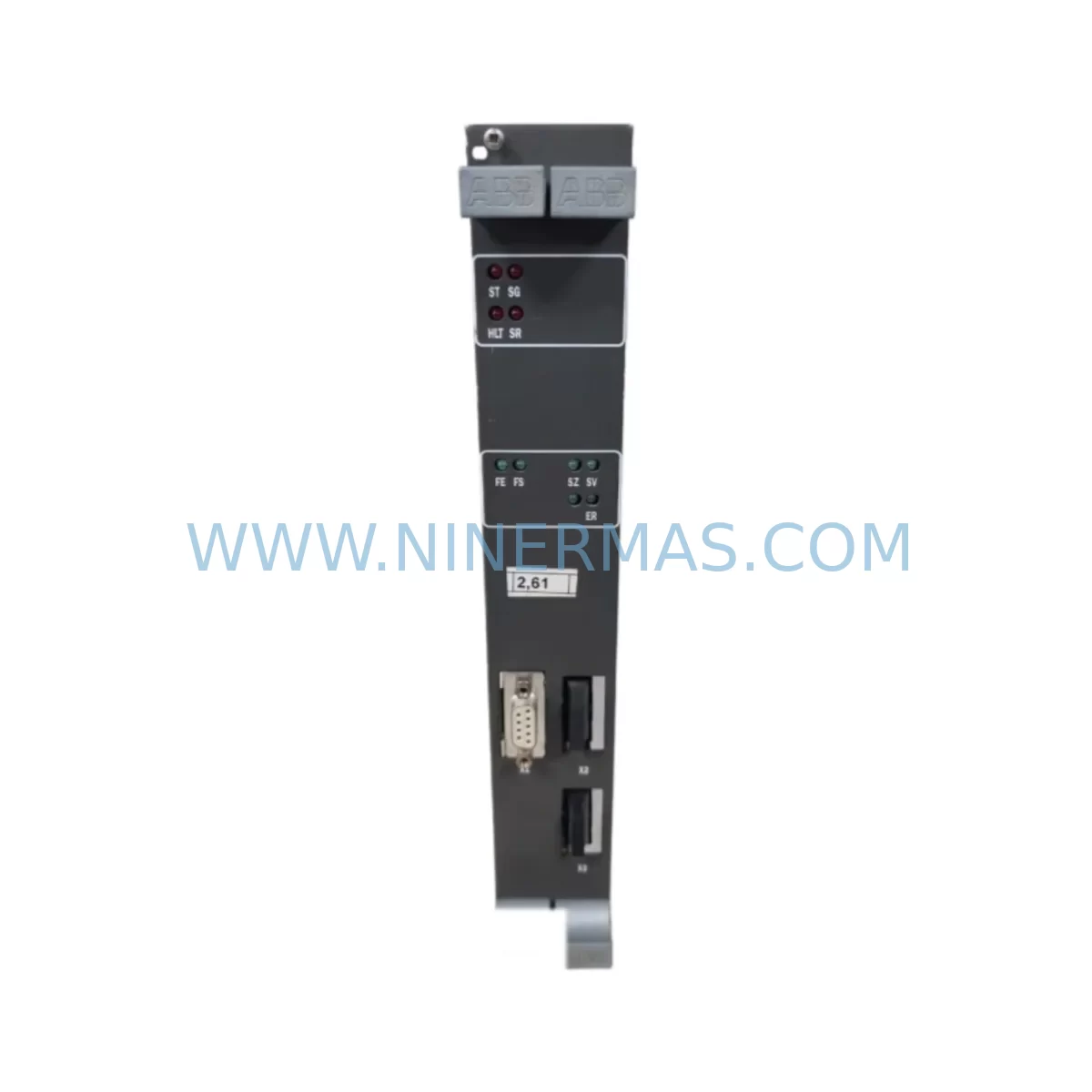

ABB GJR2397000R1210 88TK50A-E Retrofit-Compatible Station Bus Coupling Module

ABB GJR2397000R1210 88TK50A-E Retrofit-Compatible Station Bus Coupling Module for Legacy Systems

The ABB GJR2397000R1210 88TK50A-E is a Station Bus Coupling Module designed for the ABB S800 I/O family, widely deployed in AC 800M and Advant Controller-based distributed control systems (DCS). As ABB progressively phases out legacy I/O hardware, this module has become a critical retrofit and replacement component for facilities operating aging control architectures. Whether you are managing a brownfield upgrade, replacing a discontinued spare, or extending the service life of an existing control cabinet, the GJR2397000R1210 provides a verified, compatible solution that minimises engineering risk and downtime.

In retrofit projects, the Station Bus Coupling Module serves as the communication bridge between the S800 I/O station and the controller backplane. Before committing to a replacement, engineers must confirm several key parameters: the station bus segment address, the number of I/O modules currently addressed on the same bus segment, the power rail loading from adjacent modules such as the SD821 or SD822 power supply units, and whether the existing TB820 or TB840 Modulebus Optical Port modules remain in service. Mismatched bus termination or incorrect DIP-switch addressing are among the most common causes of failed commissioning during like-for-like replacements.

Terminal wiring on the GJR2397000R1210 follows the standard S800 I/O rail-mount convention. When retrofitting into an existing cabinet, verify that the DIN rail spacing accommodates the module width and that adjacent modules — including AI810, AO810, DI810, or DO810 I/O modules — are not physically displaced during installation. The station bus ribbon cable or optical fibre connection to the CI854 or CI855 PROFIBUS DP communication interface must be re-seated and tested after module swap. If the control system uses a CI801 or CI810 Modulebus interface, confirm firmware compatibility before energising the replacement module.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the GJR2397000R1210 88TK50A-E into a running plant begins well before the module arrives on site. A structured retrofit plan should address the following areas:

Power Budget Review: Calculate the total current draw of all modules on the affected I/O station. The SD821 and SD822 power supply modules each have defined output current limits. Adding or replacing a Station Bus Coupling Module changes the bus loading, and an undersized power supply will cause intermittent faults or prevent the station from initialising. If the existing power supply is already near capacity, consider upgrading to the SD823 redundant power supply configuration before proceeding.

Backplane and Rack Audit: Inspect the S800 I/O rail assembly for mechanical wear, corroded bus connectors, or cracked module housings. A degraded backplane bus can cause communication errors that are incorrectly attributed to the new coupling module. If the rail assembly shows signs of age, replacing the full station — including the TB820 Modulebus Optical Port and associated I/O modules — may be more cost-effective than a single-module swap.

Communication Protocol Migration: Sites migrating from legacy Advant OCS architectures to AC 800M-based systems often need to remap PROFIBUS DP node addresses. The CI854A PROFIBUS DP interface module supports GSD-based device configuration, and any change to the Station Bus Coupling Module’s address must be reflected in the AC 800M Control Builder project before download. Failure to synchronise the hardware address with the software configuration is a leading cause of extended commissioning time.

I/O Channel Mapping and Program Compatibility: Before removing the old module, export the current I/O channel assignments from the AC 800M Control Builder or Advant Engineer tool. Verify that all analogue input channels — typically served by AI810 or AI820 modules — and digital output channels served by DO810 or DO814 modules retain their logical addresses after the coupling module is replaced. Any address shift will require a program modification and a full functional test of affected control loops.

HMI Screen Validation: If the plant uses an ABB Operate IT or System 800xA HMI, confirm that all faceplates and trend displays linked to I/O points on the affected station continue to update correctly after the module swap. A communication interruption during the swap may cause HMI alarms that need to be acknowledged and reset before normal operation resumes.

Signal Isolation and Earthing: For analogue signal circuits, verify that signal isolators — such as those used between field transmitters and AI810 input channels — are correctly earthed and that shield terminations are re-connected after the module is installed. Poor earthing on a retrofitted station bus segment can introduce noise that degrades analogue measurement accuracy.

Programming Cable and Diagnostic Access: During commissioning, a TK212A or equivalent USB-to-serial programming cable connected to the AC 800M processor module allows real-time diagnostic monitoring of the station bus. Use the Control Builder hardware tree to confirm that the GJR2397000R1210 appears online and that all downstream I/O modules report healthy status before releasing the station to process control.

Downtime Control During System Migration

Minimising production interruption is the primary concern for any control system retrofit. For a Station Bus Coupling Module replacement, the following approach is recommended to keep the maintenance window as short as possible:

Pre-staging and Bench Testing: Configure the replacement GJR2397000R1210 off-line before the scheduled outage. Set the bus address DIP switches to match the existing module, confirm the firmware version is compatible with the installed AC 800M processor, and perform a bench power-on test using a portable 24 VDC supply. This eliminates the most common causes of on-site delay.

Program Backup: Before any hardware change, create a full backup of the AC 800M application program, hardware configuration, and I/O assignment database using Control Builder. Store the backup on a separate engineering workstation and verify the backup file integrity. If the replacement module causes unexpected behaviour, a verified backup allows rapid restoration of the previous configuration.

Hot-swap Procedure: The S800 I/O system supports module replacement under power in many configurations, but the Station Bus Coupling Module itself controls the entire station bus segment. Replacing it will interrupt communication to all I/O modules on that segment. Coordinate with the process control team to place all affected control loops in manual mode before removing the old module. This protects the process from uncontrolled output changes during the swap interval.

Commissioning Sequence: After installing the GJR2397000R1210, restore power to the I/O station and monitor the AC 800M hardware status display. Confirm that all I/O modules on the station bus return to online status within the expected scan cycle. Return control loops to automatic mode one at a time, verifying each loop’s process variable and output signal before proceeding to the next. This staged return to automatic control limits the risk of simultaneous process upsets.

Post-retrofit Documentation: Update the plant’s as-built drawings, spare parts register, and maintenance records to reflect the new module serial number and installation date. Record the commissioning test results, including bus scan time, I/O module count, and any alarm events generated during the swap. This documentation supports future maintenance planning and warranty claims.

Retrofit Support FAQ

Q1: Is the GJR2397000R1210 88TK50A-E a direct drop-in replacement for the original ABB Station Bus Coupling Module?
Yes, in the vast majority of S800 I/O installations the GJR2397000R1210 is a direct replacement. Before installation, verify that the bus address DIP-switch settings on the replacement module match those of the unit being removed. No program modification is required if the hardware address is preserved. If the existing installation uses an older revision of the module, confirm that the firmware version is compatible with the installed AC 800M processor firmware level.

Q2: What pre-shipment testing is performed on this module?
Each GJR2397000R1210 unit undergoes functional power-on testing prior to dispatch. The test confirms that the station bus communication interface initialises correctly, that the module’s status LEDs respond as expected, and that there are no physical defects on the bus connector or terminal housing. A test record is available on request. All units are shipped with anti-static packaging and are covered by a 12-month warranty against manufacturing defects and functional failure.

Q3: What is the lead time and stock availability?
We maintain inventory of the GJR2397000R1210 88TK50A-E to support urgent retrofit and breakdown replacement requirements. Standard orders are dispatched within 1–3 business days. For large-quantity orders or projects requiring multiple units across an extended delivery schedule, contact our sales team at sale@ninermas.com to confirm availability and arrange a supply agreement. We can also source associated S800 I/O components — including AI810, DO810, SD821, and TB820 — to support a complete station retrofit.

Q4: What support is available if commissioning issues arise after installation?
Our technical support team can assist with bus address configuration, Control Builder hardware tree diagnostics, and communication fault analysis. If the module fails to come online after installation, we will work with you to determine whether the issue is related to the module, the backplane bus, the power supply, or the AC 800M configuration. Modules confirmed to be defective within the 12-month warranty period will be replaced at no charge. Contact us at sale@ninermas.com or +0086 187 5021 5667 for direct technical assistance.
