ABB GJR2391500R1210 81EU01E-E Industrial Spare Part

ABB GJR2391500R1210 81EU01E-E Industrial Spare Part: Spare Part Replacement & Downtime Risk Control

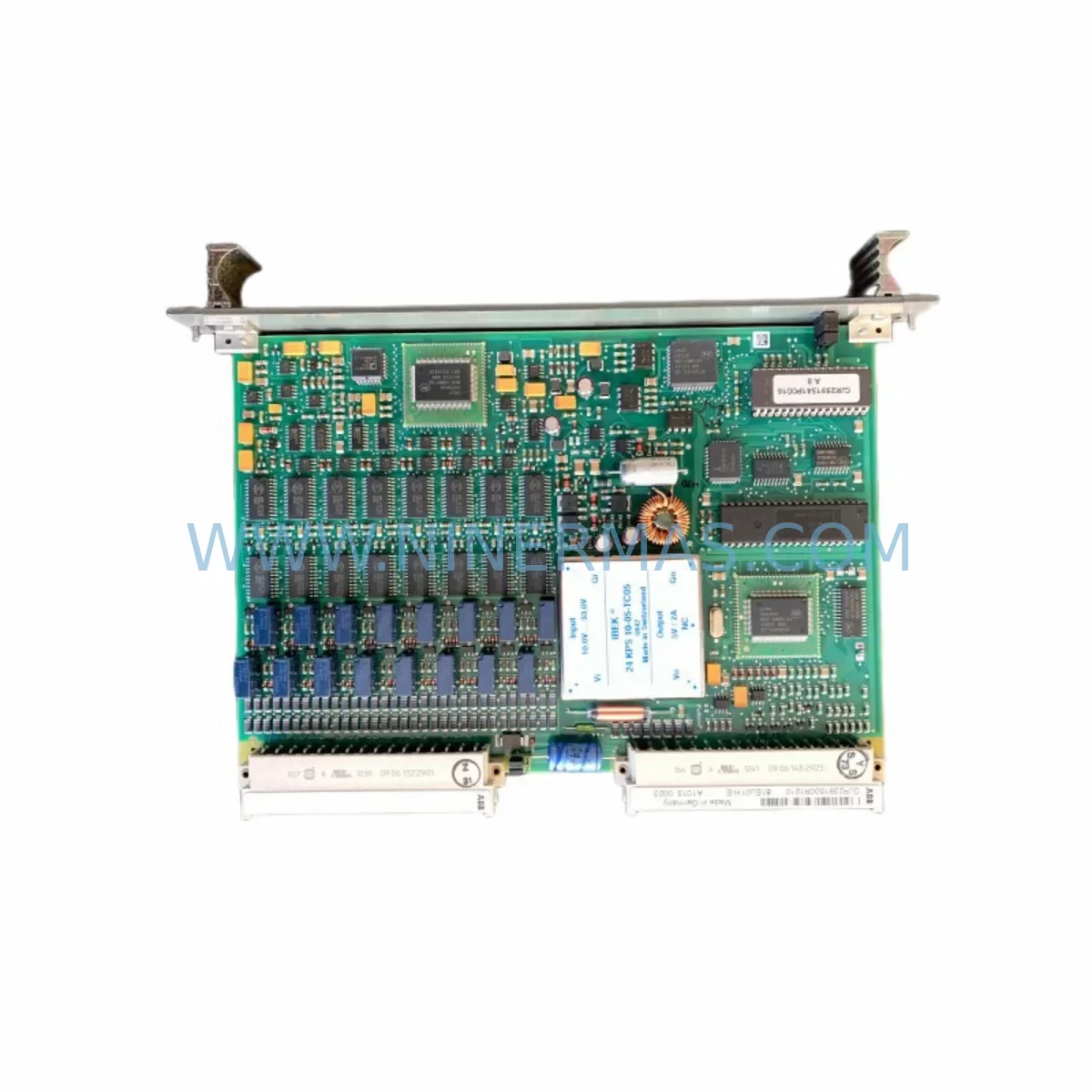

The ABB GJR2391500R1210 81EU01E-E is a communication and interface module designed for the ABB Freelance / AC800F Distributed Control System (DCS) platform — one of ABB’s most widely deployed process automation architectures in chemical, oil & gas, power generation, and water treatment facilities. As a service-ready spare part sourced and tested by NINERMAS, this unit is prepared for immediate field deployment to minimize unplanned downtime and support continuous plant operation.

Maintenance engineers and procurement teams managing legacy Freelance or AC800F installations understand the critical importance of having verified spare parts on the shelf. The GJR2391500R1210 module — also identified by its firmware/variant designation 81EU01E-E — plays a central role in the communication backbone of the AC800F controller rack. When this module fails or degrades, it can disrupt field device communication, trigger process alarms, and in worst-case scenarios, force a full controller shutdown. Rapid replacement with a pre-tested, compatible unit is the most effective strategy for restoring normal operation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a fault in the GJR2391500R1210 81EU01E-E communication module, the replacement procedure should not be treated in isolation. The AC800F controller rack is an integrated system, and a communication module failure often signals stress or degradation in adjacent components. A thorough site inspection during the replacement window is strongly recommended to prevent repeat failures and extend the operational life of the control system.

Begin by verifying the AC800F rack power supply module — typically a 24 VDC redundant power unit — as voltage fluctuations or ripple are a common root cause of communication module failures. Inspect the backplane bus connectors for oxidation, mechanical damage, or loose seating, as poor backplane contact can cause intermittent communication errors that mimic module failure. Check the AC800F CPU module (e.g., PM803F or PM865) for firmware version compatibility with the replacement 81EU01E-E unit, and confirm that no firmware mismatch exists that could prevent proper initialization.

Review the I/O modules connected downstream of the communication module — including digital input (DI), digital output (DO), and analog input (AI) modules — for any secondary faults that may have been masked by the primary communication failure. Inspect terminal blocks and field wiring at the marshalling cabinet for loose connections, insulation breakdown, or moisture ingress, particularly in older installations. If the system uses PROFIBUS DP or HART communication, verify the fieldbus segment termination resistors and cable shielding integrity.

For plants running safety instrumented systems (SIS) in proximity to the AC800F rack, confirm that the replacement procedure does not inadvertently affect the safety loop. Check signal isolators and barriers between the DCS and field instruments, as these components are often overlooked during module replacements but are critical for signal integrity. Inspect any relay output modules or interposing relays in the control cabinet for contact wear, especially if the system has been in service for more than five years.

If the plant uses an ABB System 800xA or Freelance Engineering Tool (FET) for configuration management, ensure that the replacement module is correctly configured and that the project database is backed up before and after the swap. For sites with redundant controller configurations, perform the replacement on the standby controller first and validate communication before switching over. Finally, update the site’s spare parts inventory register and procurement plan to ensure a replacement unit is always available on the shelf — a minimum of one spare per critical communication module is the recommended baseline for uninterrupted plant operation.

Site Replacement Workflow

The GJR2391500R1210 81EU01E-E is a direct replacement for the original ABB module of the same part number. No hardware modification is required for like-for-like substitution within the AC800F rack. Follow this workflow to minimize downtime and ensure system compatibility:

Step 1 — Pre-Replacement Verification: Confirm the part number and firmware variant (81EU01E-E) match the installed module. Cross-reference with the AC800F system documentation or the Freelance Engineering Tool project file. Verify that the replacement unit has been tested and is confirmed functional prior to installation.

Step 2 — Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures. For hot-swap capable racks, confirm whether the AC800F configuration supports online module replacement without a full controller restart. If not, coordinate with the operations team for a planned shutdown window.

Step 3 — Module Swap: Remove the faulty GJR2391500R1210 module by releasing the rack locking mechanism. Insert the replacement unit firmly into the backplane slot. Verify LED status indicators upon power-up — a solid green RUN LED confirms successful initialization.

Step 4 — Communication Validation: Using the Freelance Engineering Tool or System 800xA, confirm that all fieldbus segments and I/O channels associated with the module are communicating correctly. Check for any residual alarms or diagnostic messages in the DCS operator station.

Step 5 — Documentation & Inventory Update: Record the replacement in the site maintenance log, including the date, technician name, old module serial number, and new module serial number. Update the spare parts inventory to trigger a replenishment order for the consumed spare unit.

This workflow is applicable to both emergency corrective maintenance and planned preventive replacement scenarios. NINERMAS supplies the GJR2391500R1210 81EU01E-E with a 12-month warranty and full pre-shipment functional testing, reducing the risk of installing a defective unit and ensuring rapid restoration of plant communication.

Spare Parts Support FAQ

Q1: Is the GJR2391500R1210 81EU01E-E a genuine ABB original spare part?
Yes. NINERMAS supplies original ABB spare parts sourced through authorized industrial channels. Each unit undergoes pre-shipment functional testing and is shipped with documentation confirming its part number and variant designation. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I verify compatibility with my existing AC800F / Freelance DCS installation?
Compatibility is confirmed by matching the full part number (GJR2391500R1210) and the firmware/variant code (81EU01E-E) against your installed module label and the AC800F system documentation. If you are unsure, provide your controller model, rack configuration, and Freelance project version to our technical team at sale@ninermas.com, and we will confirm compatibility before shipment.

Q3: What is the recommended spare parts inventory strategy for critical communication modules?
For process-critical AC800F installations, we recommend maintaining a minimum of one spare GJR2391500R1210 81EU01E-E on-site at all times. For multi-rack or redundant controller configurations, a minimum of two units is advisable. NINERMAS offers long-term supply agreements and reserved stock programs to ensure availability for plants with extended maintenance cycles or remote locations where emergency procurement is not feasible.

Q4: What is included in the pre-shipment testing and what does the 12-month warranty cover?
Each GJR2391500R1210 81EU01E-E unit is powered up and functionally tested prior to shipment to verify communication interface operation, LED status indicators, and backplane connectivity. The 12-month warranty covers defects in materials and workmanship and functional failures under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed promptly with replacement unit dispatch upon fault confirmation.
