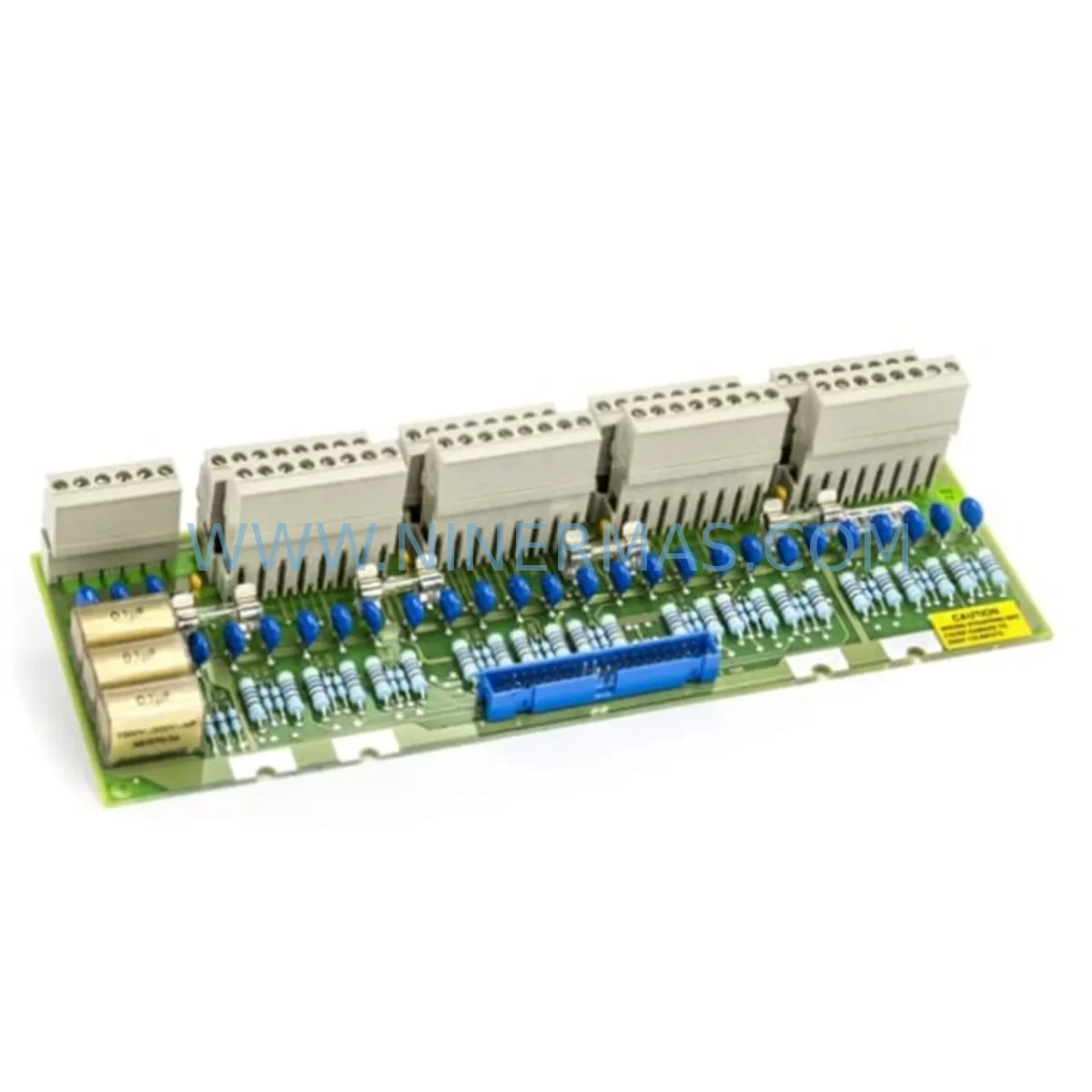

ABB DSTX170 57160001-ADK Retrofit-Compatible Module

ABB DSTX170 57160001-ADK Retrofit-Compatible Module for Legacy Advant Controller Systems

The ABB DSTX170 57160001-ADK is a critical retrofit-compatible module designed to support the modernization, repair, and life extension of legacy ABB Advant Controller platforms — including the AC450 and AC410 series widely deployed across process industries, power generation, pulp and paper, oil and gas, and chemical manufacturing facilities worldwide. As ABB has progressively discontinued support for the Advant OCS product family, plant engineers and automation managers face increasing pressure to source verified replacement modules that maintain backward compatibility with existing backplane architectures, terminal wiring, and control logic without triggering a full system overhaul.

The DSTX170 57160001-ADK addresses this challenge directly. Whether you are replacing a failed unit on an active production line, building a strategic spare parts inventory, or executing a phased migration toward a modern distributed control system, this module provides the electrical and mechanical compatibility required to restore system integrity with minimal disruption to ongoing operations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DSTX170 57160001-ADK into an existing Advant Controller installation requires a structured pre-retrofit assessment. Before removing the failed module, site engineers should document the current rack configuration — noting the slot assignments of adjacent modules such as the DSDI110A digital input module, DSDO110A digital output module, and any installed DSAI130A analog input modules — to ensure that I/O channel mapping in the application program remains intact after the swap.

Power budget verification is a non-negotiable step. The PM150 or PM511 power supply module feeding the affected rack must have sufficient headroom to support the DSTX170 57160001-ADK alongside all co-installed modules. Overloaded power rails are a common root cause of intermittent faults in aging Advant systems and should be measured under full load before the replacement module is energized.

For sites running MasterBus 300 communication infrastructure, the network segment connected to the affected controller node should be inspected for cable integrity and termination resistance. If the retrofit is part of a broader migration toward PROFIBUS DP or PROFINET, a CI522A or CI532V communication interface module may be required to bridge legacy and modern network segments within the same control cabinet.

Where the Advant system interfaces with third-party field devices through analog signal loops, signal isolators and loop-powered transmitter barriers should be checked for calibration drift — a common issue in installations exceeding 15 years of continuous service. Replacing the DSTX170 without addressing signal quality issues upstream will not resolve intermittent process alarms or erratic PID behavior.

For facilities operating Advant Station AS500 HMI workstations, the operator display faceplates associated with the I/O channels served by the DSTX170 57160001-ADK should be reviewed to confirm that tag names, engineering unit scaling, and alarm limits are correctly mapped to the replacement module’s channel assignments. In most like-for-like swap scenarios, no HMI reconfiguration is required, but this should be verified against the site’s as-built documentation.

If the retrofit is being executed as part of a rack-level upgrade — for example, replacing an entire aging sub-rack with a refreshed assembly — engineers should also evaluate the condition of the DSBC172 or DSBC176 backplane bus coupler and the rack’s internal bus connectors. Corroded or mechanically stressed backplane contacts are a frequent cause of module communication errors that persist even after a successful module replacement.

Programming cable access via TK212A or TK501V may be required to perform online module configuration or to upload/download the application program using ABB Master software or Control Builder M, depending on the controller generation. Ensure that the engineering workstation retains a verified backup of the current application before any hardware change is made.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a module in a live Advant Controller system. The recommended approach is to pre-configure and bench-test the DSTX170 57160001-ADK before the scheduled maintenance window, verifying that DIP switch addressing matches the original module and that the unit powers up correctly on a test rack if one is available on site.

During the swap, the application program should remain resident in the controller’s battery-backed RAM. The AC450 or AC410 controller module will typically retain its program and I/O configuration across a hot-swap of a peripheral module, but this behavior should be confirmed against the specific firmware version running on the site’s controller. If the controller does not support hot-swap for the affected slot type, a controlled shutdown sequence should be planned to protect the integrity of the running process — including notifying the DCS operator, placing affected control loops in manual mode, and confirming that field actuators are in a safe state before power is removed from the rack.

Post-installation, the module should be brought online incrementally: first confirming backplane communication, then verifying I/O channel status against field device readings, and finally returning control loops to automatic mode one at a time while monitoring process variables for stability. This staged commissioning approach reduces the risk of introducing process upsets caused by wiring errors or address conflicts that were not detected during bench testing.

For sites with no available test rack, NINERMAS performs a pre-shipment functional test on every DSTX170 57160001-ADK unit prior to dispatch, providing documented test results that give site engineers confidence in the module’s operational status before it is installed in a live system. All units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Retrofit Support FAQ

Q1: Is the DSTX170 57160001-ADK a direct replacement for the original ABB DSTX170 installed in my AC450 system?
A: Yes. The DSTX170 57160001-ADK is designed as a form-fit-function compatible replacement for the original DSTX170 module used in ABB Advant Controller AC450 and AC410 systems. The module uses the same backplane connector, occupies the same rack slot width, and is compatible with the same I/O channel assignments. No modifications to the existing rack, wiring harness, or application program are required for a like-for-like replacement.

Q2: What pre-shipment testing does NINERMAS perform on this module?
A: Every DSTX170 57160001-ADK unit supplied by NINERMAS undergoes a functional power-on test and communication verification before dispatch. Test results are documented and available upon request. Units are shipped in anti-static packaging with physical protection to prevent transit damage. The 12-month warranty begins from the date of shipment.

Q3: Can this module be used in a system that is being migrated from MasterBus 300 to PROFIBUS?
A: The DSTX170 57160001-ADK is compatible with the MasterBus 300 communication architecture native to the Advant Controller platform. For sites executing a protocol migration to PROFIBUS DP, the module can continue to serve its original function within the legacy rack while the communication layer is upgraded through the addition of a CI522A or CI532V interface module. Full PROFIBUS-native operation would require migration to a compatible controller platform.

Q4: What is the typical lead time and do you maintain stock?
A: NINERMAS maintains inventory of the DSTX170 57160001-ADK to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days depending on destination. For large quantity orders or long-term supply agreements, please contact our sales team directly to discuss availability and scheduling.
